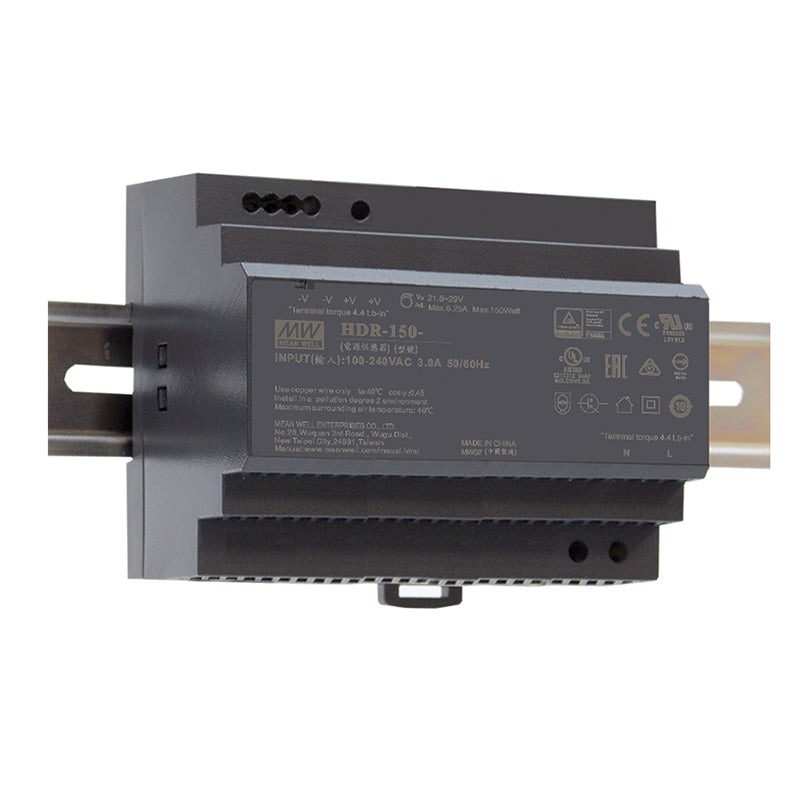

Mean Well HDR-150-48 Ultra Slim Step Shape Power Supply 150W 48V - ...
$46.48 USD
Unit price /
Unavailable
Description
Description
Features
| Universal AC input / Full range |
| Installed on DIN rail TS35 / 7.5 or 15 |
| Protections: Short circuit / Overload / Over voltage |
| No load power consumption <0.3W |
| Ultra slim design with 105mm(6SU) width |
| Isolation class II |
| Cooling by free air convection |
| LED indicator for power on |
| 3 years warranty |
General Specification
| AC input voltage range | 85~264VAC; 120~370VDC |
| AC inrush current | Cold start 35A at 115VAC, 70A at 230VAC |
| DC adjustment range | ±10% rated output voltage |
| Overload protection | 110%~145% constant current limiting, auto-recovery |
| Over voltage protection | 115%~135% rated output voltage |
| Setup, rise, hold up time | 500ms, 60ms, 30ms |
| Withstand voltage | I/P-O/P:4kVAC |
| Working temperature | -30~+70°C (refer to output derating curve) |
| Vibration | 10~500Hz, 2G 10min./1cycle, period for 60min. Each along X, Y, Z axes |
| Safety standards | UL508, UL,IEC 62368-1, EN61588-1,2-16 |
| EMC standards | EN55032 class B, EN61000-3-2,3, EN61000-4-2,3,4,5,6,8,11 |
| Connection | I/P: 2 poles, O/P: 4 poles screw DIN terminal |
| Dimension (LxWxH) | 105x90x54.5 |
| Packing | 32pcs / 11kg |
Specifications
Specifications
-
BrandMean Well
-
SeriesHDR Series
-
Power Rating130.6 Watt
-
Output Voltage48 Volt
-
Rated Current2.72 Ampere
-
Input Voltage85V~264V
-
Standards MetCB,CE,cUL,EAC,TUV,UL
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length4.13 in
-
Width3.54 in
-
Height2.15 in
-
Weight0.68 lb
