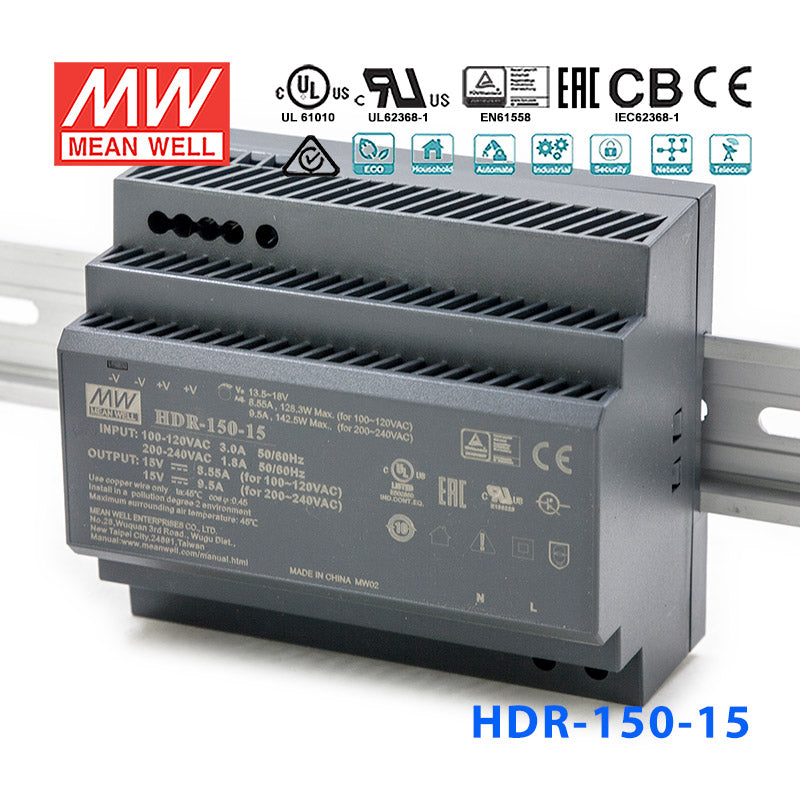

Mean Well HDR-150-15 Ultra Slim Step Shape Power Supply 150W 15V 8.55A - DIN Rail

Name: Mean Well HDR-150-15 Ultra Slim Step Shape Power Supply 150W 15V 8.55A - DIN Rail
Brand: Mean Well
SKU: HDR-150-15
Price: 46.48 USD
Availability: InStock

step sizeisolation class IIDC output adjustableno load power consumption<0.3W

SKU HDR-150-15

$46.48 USD

Shipping calculated at checkout.

Select model — 5 in this family

HDR-150-15

HDR-15-15 15W 15V In stock$16.91 USD

HDR-30-15 30W 15V In stock$20.34 USD

HDR-60-15 60W 15V In stock$27.93 USD

HDR-100-15 100W 15V In stock$39.90 USD

HDR-150-15 150W 15V Low stock$46.48 USD

Product variants

In stock

Overview

HDR-150-15 is the 15V output model of this series: rated current 8.55A, rated power 128.3W, typical efficiency 89.5%.

HDR-150 is an economical ultra slim 150W DIN rail power supply series, adapt to be installed on TS-35/7.5 or TS-35/15 mounting rails. The body is designed 105mm(6SU) in width, which allows space saving inside the cabinets. The entire series adopts the full range AC input from 85VAC to 264VAC(277VAC operational) and conforms to BS EN/EN61000-3-2, the norm the European Union regulates for harmonic current. HDR-150 is designed with plastic housing that it can effectively prevent user from electric hazards. With working efficiency up to 90.5%, the entire series can operate at the ambient temperature between -30℃ and 70℃ under air convection. The complete protection functions and relevant certificates for home automations and industrial control apparatus (IEC62368-1, UL62368-1,UL61010, BS EN/EN61558-2-16) make HDR-150 a very competitive power supply solution for household and industrial applications.

Features

Ultra slim design with 105mm(6SU) width
Universal input 85~264VAC(277VAC operational)
No load power consumption<0.3W
Isolation class Ⅱ
DC output voltage adjustable
Protections : Short circuit / Overload / Over voltage
Cooling by free air convection
DIN rail TS-35/7.5 or 15 mountable
Over voltage category Ⅲ
LED indicator for power on
3 years warranty

Specifications

HDR-150-15Specifications from the official datasheet (2026-10-09 edition)

OUTPUT

DC VOLTAGE: 15V
RATED CURRENT 115VAC: 8.55A
RATED CURRENT 230VAC: 9.5A
RATED POWER 115VAC: 128.3W
RATED POWER 230VAC: 142.5W
RIPPLE & NOISE (max.)^Note.2: 120mVp-p
VOLTAGE ADJ. RANGE: 13.5 ~ 18V
VOLTAGE TOLERANCE^Note.3: ±1.0%
LINE REGULATION: ±1.0%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME: 500ms, 60ms/230VAC 500ms, 60ms/115VAC at full load
HOLD UP TIME (Typ.): 30ms/230VAC 12ms/115VAC at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC (277VAC operational ) 120 ~ 370VDC (390VDC operational )
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 89.5%
AC CURRENT (Typ.): 3A/115VAC 1.6A/230VAC
INRUSH CURRENT (Typ.): COLD START 35A/115VAC 70A/230VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Hiccup mode when output voltage <50%, recovers automatically after fault condition is removed Constant current limiting within 50% ~100% rated output voltage, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.8 ~ 22.5V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20 ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 45℃) RH non-condensing
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
OPERATING ALTITUDE^{Note 4}: 2000 meters
OVER VOLTAGE CATEGORY: Ⅲ ;According to EN62368,EN61558, EN50178,EN60664-1, EN62477-1 ;altitude up to 2000 meters

SAFETY & EMC

SAFETY STANDARDS: IEC62368-1, UL62368-1, UL61010, TUV BS EN/EN61558-2-16, BS EN/EN61558-1, EAC TP TC 004,BIS IS13252(Part1): 2010/IEC 609501:2005(except for 48) approved; Design refer to BS EN/EN50178, TUV BS EN/EN62368-1
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted BS EN/EN55032(CISPR32) Class B
Radiated BS EN/EN55032(CISPR32) Class B (note 5)
Harmonic Current (Note 6 ) BS EN/EN61000-3-2 Class A
Voltage Flicker BS EN/EN61000-3-3
EMC IMMUNITY^Note.7: BS EN/EN55024, BS EN/EN61000-6-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility BS EN/EN61000-4-3 Level 3, criteria A
EFT/Burest BS EN/EN61000-4-4 Level 3, criteria A
Surge BS EN/EN61000-4-5 Level 4,2KV/L-N, criteria A
Conducted BS EN/EN61000-4-6 Level 3, criteria A
Magnetic Field BS EN/EN61000-4-8 Level 4, criteria A
Voltage Dips and interruptions BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted	BS EN/EN55032(CISPR32)	Class B
Radiated	BS EN/EN55032(CISPR32)	Class B (note 5)
Harmonic Current (Note 6 )	BS EN/EN61000-3-2	Class A
Voltage Flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact, criteria A
Radiated Susceptibility	BS EN/EN61000-4-3	Level 3, criteria A
EFT/Burest	BS EN/EN61000-4-4	Level 3, criteria A
Surge	BS EN/EN61000-4-5	Level 4,2KV/L-N, criteria A
Conducted	BS EN/EN61000-4-6	Level 3, criteria A
Magnetic Field	BS EN/EN61000-4-8	Level 4, criteria A
Voltage Dips and interruptions	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 3046.3K hrs min. Telcordia SR-332 (Bellcore) ; 535.9K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 105*90*54.5mm (W*H*D)
PACKING: 0.31Kg; 32pcs/11Kg/1.0CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature.
2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1μF & 47μF parallel capacitor.
3. Tolerance : includes set up tolerance, line regulation and load regulation.
4. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
5. When the input voltage is 230VAC,delivers EMI Class B for radiated emission for the power supply; When the input voltage is 110VAC, delivers EMI Class A for radiated emission for the power supply.
6. Harmonic current test at 70% load .
7. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

HDR-150-15 Block Diagram — Block Diagram

HDR-150-15 Output Derating VS Input Voltage — Output Derating VS Input Voltage

HDR-150-15 Mechanical Specification — Mechanical Specification

Typical applications

Household control system
Building automation
Industrial control system
Factory automation
Electro-mechanical apparatus

Downloads

Datasheet1

HDR-150-15 datasheetHDR-150-SPEC.PDF · 2026-10-09 edition PDF Download

Certificates8

Mean Well E215312-UL Certificate PDF Download

Mean Well HDR-150 TUV Certificate PDF Download

Mean Well HDR-150 CB(UL) Certificate PDF Download

Mean Well HDR-150 EMC Certificate PDF Download

Mean Well HDR-150 UK-dec Certificate PDF Download

Mean Well HDR-150 CE-dec Certificate PDF Download

Mean Well E183223 UL Certificate PDF Download

Mean Well EAC Certificate PDF Download

Test reports1

Mean Well HDR-150-15 Test Report PDF Download

Catalogues2

Mean Well Catalog (Industrial) PDF Download

Mean Well DIN RAIL Catalog PDF Download

FAQ

What 15V industrial control loads can the HDR-150-15 handle?

The HDR-150-15 provides 142.5W at 9.5A on a 15V bus at 230VAC input (128.3W / 8.55A at 115VAC). It suits demanding 15V loads such as multi-device analog control systems and legacy industrial drives inside DIN rail panels.

Is the output voltage adjustable on the HDR-150-15?

Yes, the DC output voltage is adjustable from 13.5V to 18V. Over-voltage protection trips at 18.8 ~ 22.5V and shuts down the output; re-power on to recover.

What are the enclosure and temperature requirements for the HDR-150-15?

The HDR-150-15 operates from -30°C to +70°C (output derated at higher ambients per the derating curve) at 20 ~ 90% RH non-condensing, up to 2000 m altitude. It is cooled by free air convection and mounts on TS-35/7.5 or TS-35/15 DIN rail.
