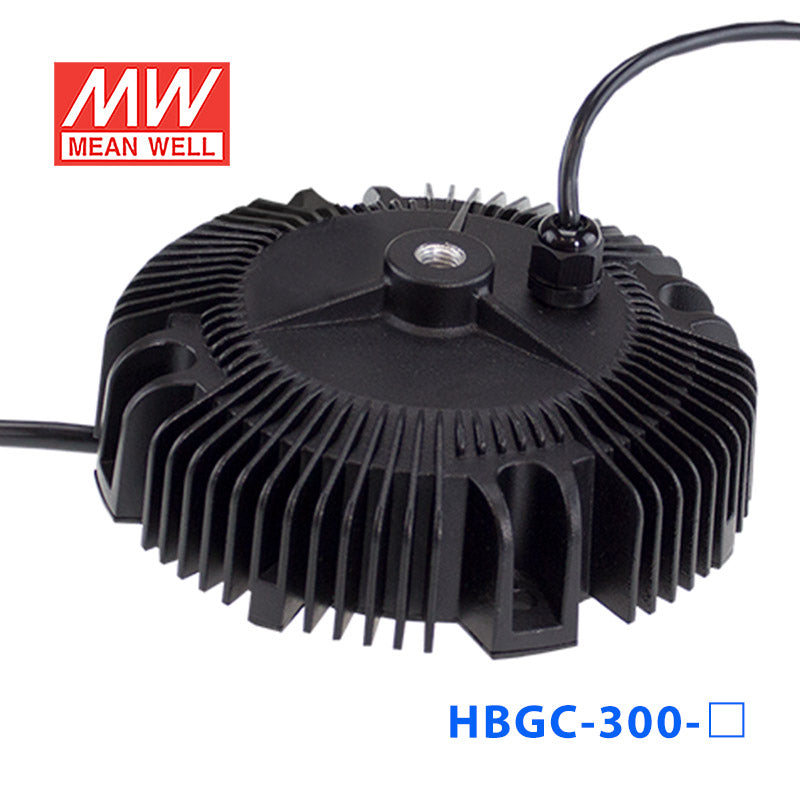

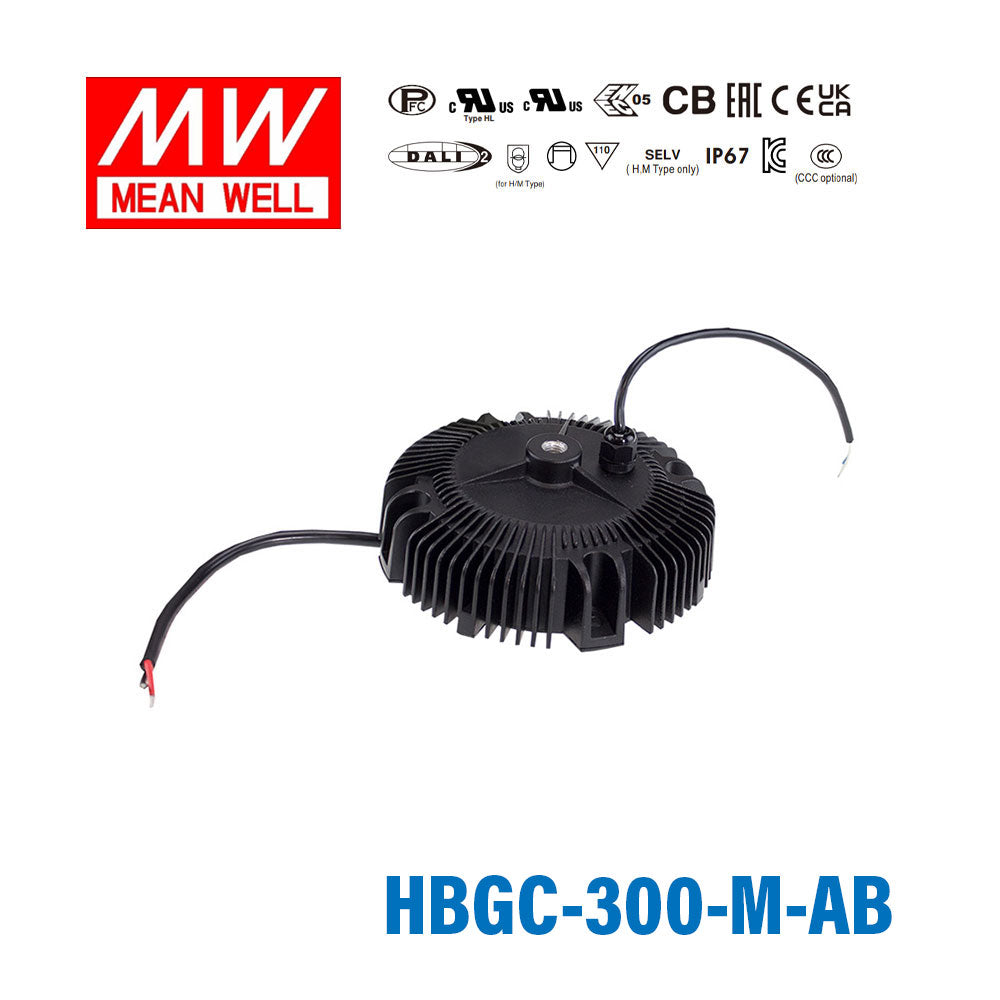

Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable

Name: Mean Well HBGC-300-M-AB Power Supply 300W 2800mA - Adjustable and Dimmable
Brand: Mean Well
SKU: HBGC-300-M-AB
Price: 106.52 USD
Availability: InStock

SKU HBGC-300-M-AB

$106.52 USD

Shipping calculated at checkout.

Select model — 3 in this family

HBGC-300-M-AB

HBGC-300-M-A 2800mA Adjustable Low stock$100.49 USD

HBGC-300-M-ADA 2800mA Adjustable and DALI Low stock$118.11 USD

HBGC-300-M-AB 2800mA Adjustable and Dimmable Low stock$106.52 USD

Product variants

In stock

Overview

HBGC-300-M-AB is the model of this series: rated power 301.6W, typical efficiency 93.5%. Type AB: output constant power adjustable via built-in potentiometer + 3 in 1 dimming (0~10Vdc, 10V PWM signal and resistance) (IP67).

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. HBGC-300 operates from 90~305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world. HBGC-300 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Wide input range 90 ~ 305VAC
Full power at 60~100% max current (Constant Power )
Built-in active PFC function
Circular metal housing design with IP67
Function options: output adjustable via potentiometer; 3 in 1 dimming (Dim to off and Isolation)
Typical lifetime>50000 hours
5 years warranty

Specifications

HBGC-300-M-ABSpecifications from the official datasheet (2024-10-11 edition)

OUTPUT

DEFAULT CURRENT: 2800mA
RATED POWER: 301.6W
CONSTANT CURRENT REGION: 58 ~ 116V
FULL POWER CURRENT RANGE: 2600~4330mA
OPEN CIRCUIT VOLTAGE (max.): 120V
CURRENT ADJ. RANGE: 1300~4330mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME: 500ms/230VAC, 500ms/115VAC

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 305VAC 127VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to "TOTAL HARMONIC DISTORTION (THD)" section
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=1300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for AB / ADA-Type Blank/A-Type please refer to Note. 5

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 121 ~ 145V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Tcase>80℃±5℃,derate power automatically by 6%/℃ max.

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB19510.1,GB19510.14; IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020

OTHERS

MTBF: 1772.9K hrs min. Telcordia SR-332 (Bellcore) ;175.4K hrs min. MIL-HDBK-217F (25℃)
LIFETIME^Note.4: 50000 hrs min.
DIMENSION: φ191.5mm *69mm
PACKING: 2.2Kg;8pcs/19.8Kg/2.09CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A: output constant power adjustable via built-in potentiometer; IP67
AB (this model): output constant power adjustable via built-in potentiometer + 3 in 1 dimming (0~10Vdc, 10V PWM signal and resistance); IP67
ADA: DALI-2 control technology with Io Adjustable via build-in Potentiometer; IP67

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected to the mains.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. For A/AB/ADA type need to consider build in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBGC-300-M-AB BLOCK DIAGRAM — BLOCK DIAGRAM

HBGC-300-M-AB DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

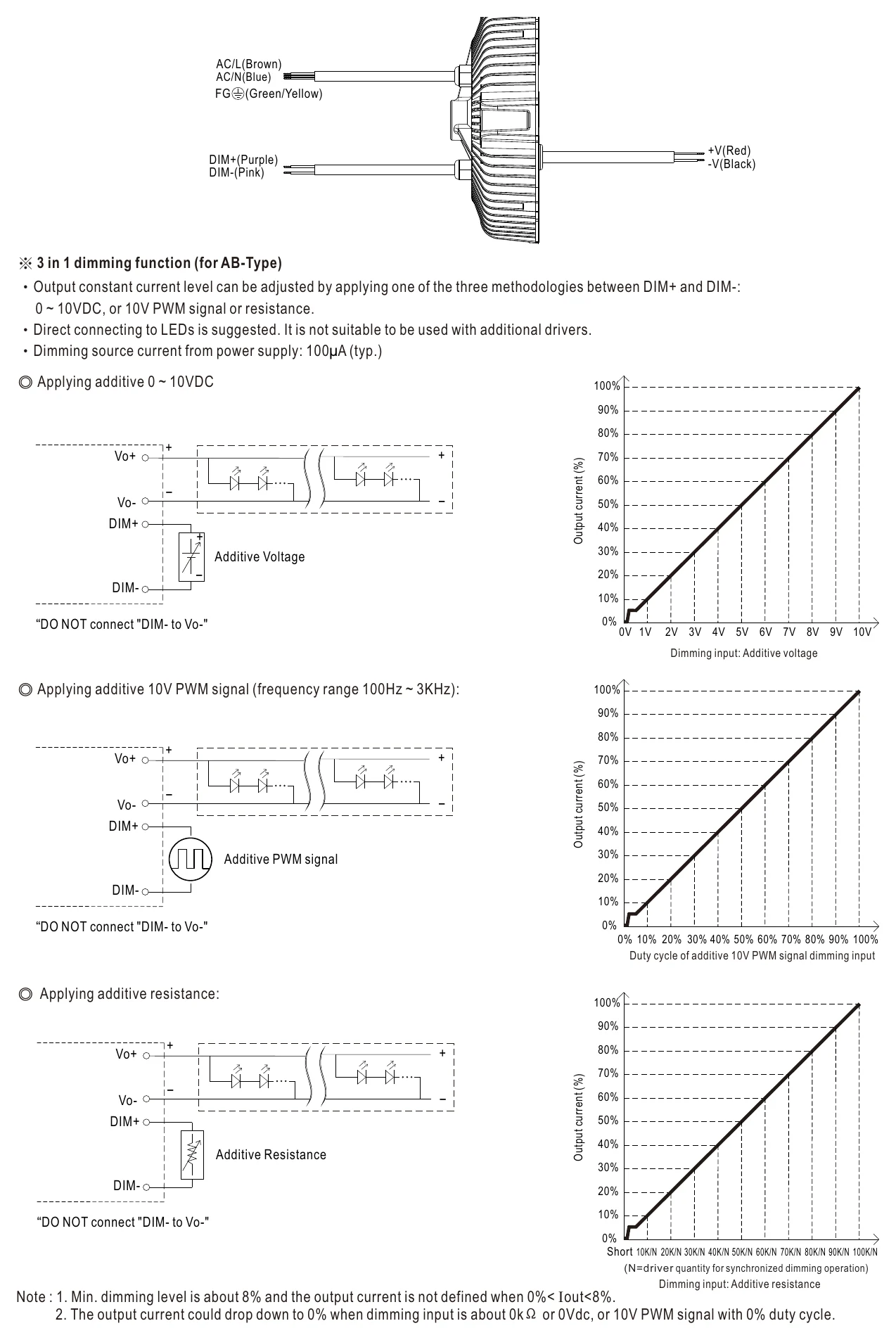

HBGC-300-M-AB DIMMING OPERATION — DIMMING OPERATION

HBGC-300-M-AB OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBGC-300-M-AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBGC-300-M-AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBGC-300-M-AB MECHANICAL SPECIFICATION ※ AB/ADA-Type — MECHANICAL SPECIFICATION ※ AB/ADA-Type

Typical applications

Bay lighting
Stage lighting
Flood lighting
Stadium lighting
Type HL for use in class I ,Division 2

Downloads

Datasheet1

HBGC-300-M-AB datasheetHBGC-300-SPEC.PDF · 2024-10-11 edition PDF Download

Certificates9

Mean Well HBGC-300H-M KC Certificate PDF Download

Mean Well HBGC-300 CCC Certificate PDF Download

Mean Well HBGC-300 ENEC Certificate PDF Download

Mean Well HBGC-300 CB Certificate PDF Download

Mean Well HBGC-300 EMC Certificate PDF Download

Mean Well HBGC-300 UK-dec Certificate PDF Download

Mean Well HBGC-300 CE-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBGC-300-M Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HBGC-300-M-AB for dimmable LED downlights that need constant current?

Yes, if the LED downlight array is a constant-current load operating within 58-116V. This AB version supports dimming with 0-10Vdc, 10V PWM, and resistance, which can be useful in dimmable commercial fixtures. It is not intended for constant-voltage LED products.

Is the HBGC-300-M-AB appropriate for signage modules that need analog dimming control?

It can be appropriate when the signage assembly is a constant-current load and the total forward voltage falls within 58-116V. The exact number of modules depends on each module's forward voltage, so there is no fixed module count. Its 301.6W rating and 0-10Vdc / 10V PWM / resistance dimming support make it suitable for higher-power dimmable systems in that range.

Can this driver run a small LED array in a fixture that uses 0-10V dimming?

Yes, if the LED array is constant current and its operating voltage stays within 58-116V. The AB feature set is specifically the version in this series with 0-10Vdc, 10V PWM, and resistance dimming support. It should not be used as a constant-voltage source for 12V or 24V LED arrays.

How do I size an LED load for the HBGC-300-M-AB?

Match it to a constant-current LED load whose total forward voltage is inside the 58-116V CC range and whose total power stays within 301.6W. The usable number of LEDs depends on the forward voltage of each LED or module, so LED count is not a fixed specification for this driver. That distinction matters because this is a constant-current driver, not a constant-voltage power supply.

Can the HBGC-300-M-AB handle outdoor or temperature-exposed lighting applications?

Yes. It carries an IP67 waterproof rating and a case temperature (Tcase) working range of -40°C to +80°C. Those ratings make it suitable for demanding indoor or outdoor environments where moisture and temperature range matter.
