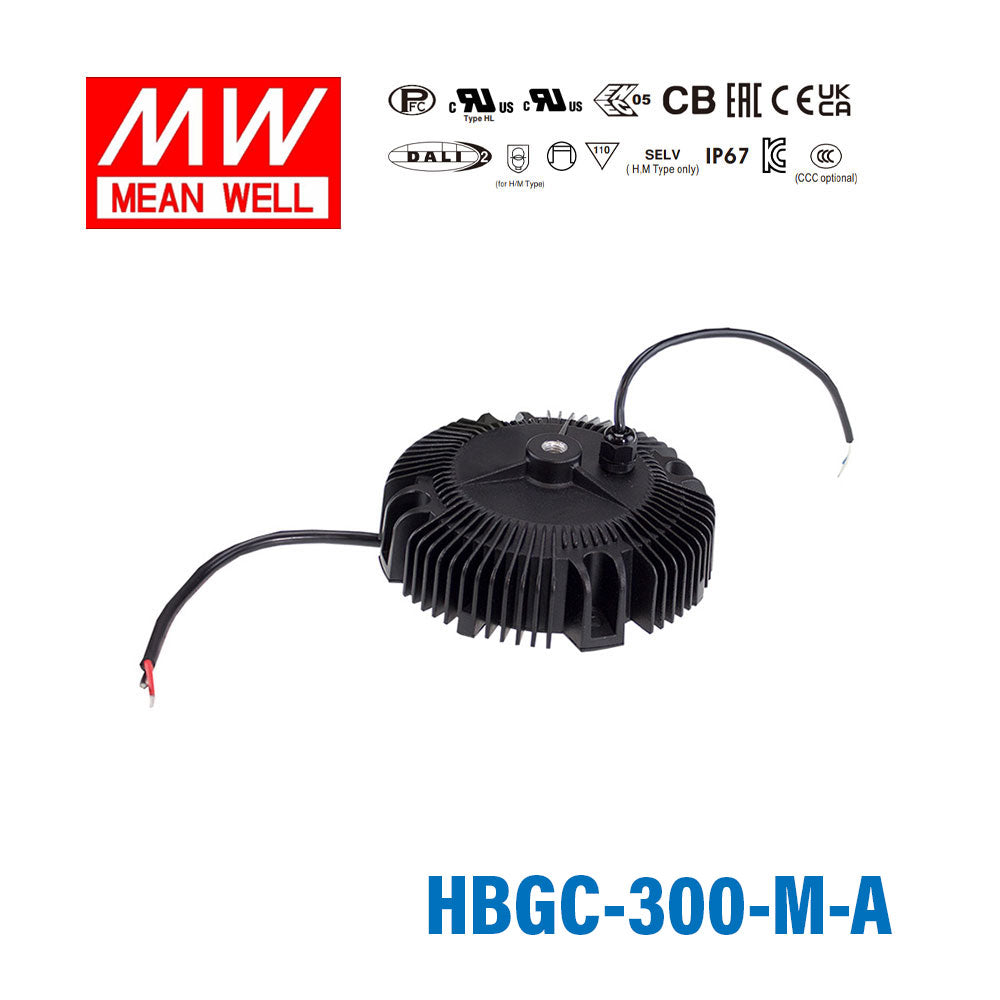

Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable

Name: Mean Well HBGC-300-M-A Power Supply 300W 2800mA - Adjustable
Brand: Mean Well
SKU: HBGC-300-M-A
Price: 100.49 USD
Availability: InStock

SKU HBGC-300-M-A

$100.49 USD

Shipping calculated at checkout.

Select model — 3 in this family

HBGC-300-M-A

HBGC-300-M-A 2800mA Adjustable Low stock$100.49 USD

HBGC-300-M-ADA 2800mA Adjustable and DALI Low stock$118.11 USD

HBGC-300-M-AB 2800mA Adjustable and Dimmable Low stock$106.52 USD

Product variants

In stock

Overview

HBGC-300-M-A is the model of this series: rated power 301.6W, typical efficiency 93.5%. Type A: output constant power adjustable via built-in potentiometer (IP67).

HBGC-300 series is a 300W LED AC/DC driver featuring the constant power mode and high voltage output. HBGC-300 operates from 90~305VAC and offers models with different rated current ranging between 1300mA and 8670mA. Thanks to the high efficiency up to 94.5%, with the fanless design, the entire series is able to operate for -40℃~+80℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. Moreover the innovative environment-adaptive capability allows this series to reliably light on the LEDs for all kinds of application environments in almost any spots that may install LED luminaire in the world.

Features

Wide input range 90 ~ 305VAC
Full power at 60~100% max current (Constant Power )
Built-in active PFC function
Circular metal housing design with IP67
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HBGC-300-M-ASpecifications from the official datasheet (2024-10-11 edition)

OUTPUT

DEFAULT CURRENT: 2800mA
RATED POWER: 301.6W
CONSTANT CURRENT REGION: 58 ~ 116V
FULL POWER CURRENT RANGE: 2600~4330mA
OPEN CIRCUIT VOLTAGE (max.): 120V
CURRENT ADJ. RANGE: 1300~4330mA
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5%
SET UP TIME: 500ms/230VAC, 500ms/115VAC

INPUT

VOLTAGE RANGE^Note.2: 90 ~ 305VAC 127VDC ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF≧0.97 / 115VAC, PF≧0.95 / 230VAC, PF≧0.92 / 277VAC at full load (Please refer to "Power Factor Characteristic" section)
TOTAL HARMONIC DISTORTION: THD< 10% (@ load≧50% at 115VAC/230VAC ,@load≧75% at 277VAC) Please refer to "TOTAL HARMONIC DISTORTION (THD)" section
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 3A / 115VAC 1.6A / 230VAC 1.3A / 277VAC
INRUSH CURRENT(Typ.): COLD START 45A(twidth=1300μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. NO. of PSUs on 16A CIRCUIT BREAKER: 2 unit(circuit breaker of type B) / 4 units(circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC
NO LOAD / STANDBY POWER CONSUMPTION: Standby power consumption <0.5W for AB / ADA-Type Blank/A-Type please refer to Note. 5

PROTECTION

SHORT CIRCUIT: Constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 121 ~ 145V Shut down output voltage, re-power on to recovery
OVER TEMPERATURE: Tcase>80℃±5℃,derate power automatically by 6%/℃ max.

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +80℃(Please refer to "OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+80℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"), CSA C22.2 No. 250.13-12; ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; EAC TP TC 004;GB19510.1,GB19510.14; IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@ load≧50%); BS EN/EN61000-3-3,GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547, light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV), EAC TP TC 020

OTHERS

MTBF: 1772.9K hrs min. Telcordia SR-332 (Bellcore) ;175.4K hrs min. MIL-HDBK-217F (25℃)
LIFETIME^Note.4: 50000 hrs min.
DIMENSION: φ191.5mm *69mm
PACKING: 2.2Kg;8pcs/19.8Kg/2.09CUFT

Certifications & ratings

Type: HL

MODEL ENCODING

A (this model): output constant power adjustable via built-in potentiometer; IP67
AB: output constant power adjustable via built-in potentiometer + 3 in 1 dimming (0~10Vdc, 10V PWM signal and resistance); IP67
ADA: DALI-2 control technology with Io Adjustable via build-in Potentiometer; IP67

Test conditions and notes9

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
3. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
4. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
5. To fulfill requirements of the latest ErP regulation for lighting fixture, this LED drive can only be used behind a switch without permanently connected to the mains.
6. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
8. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
9. For A/AB/ADA type need to consider build in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBGC-300-M-A BLOCK DIAGRAM — BLOCK DIAGRAM

HBGC-300-M-A DRIVING METHODS OF LED MODULE — DRIVING METHODS OF LED MODULE

HBGC-300-M-A OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBGC-300-M-A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBGC-300-M-A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

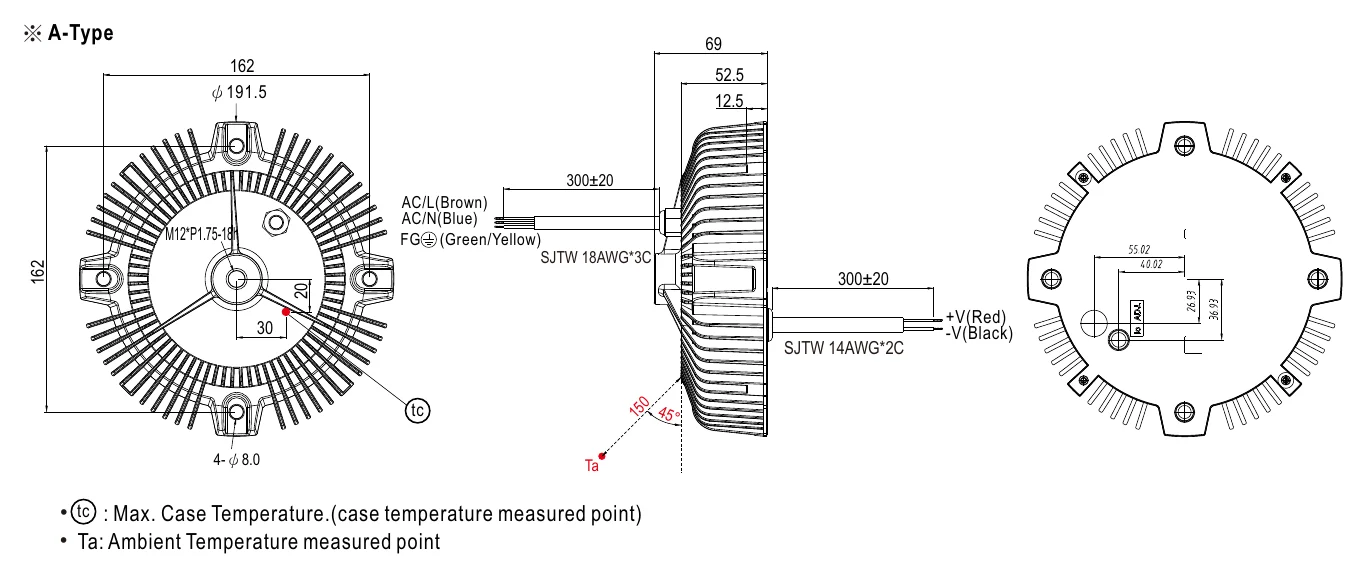

HBGC-300-M-A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

Typical applications

Bay lighting
Stage lighting
Flood lighting
Stadium lighting
Type HL for use in class I ,Division 2

Downloads

Datasheet1

HBGC-300-M-A datasheetHBGC-300-SPEC.PDF · 2024-10-11 edition PDF Download

Certificates9

Mean Well HBGC-300H-M KC Certificate PDF Download

Mean Well HBGC-300 CCC Certificate PDF Download

Mean Well HBGC-300 ENEC Certificate PDF Download

Mean Well HBGC-300 CB Certificate PDF Download

Mean Well HBGC-300 EMC Certificate PDF Download

Mean Well HBGC-300 UK-dec Certificate PDF Download

Mean Well HBGC-300 CE-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBGC-300-M Test Report PDF Download

Catalogues1

Mean Well LED Driver Catalog PDF Download

FAQ

Can I use the HBGC-300-M-A for medium-voltage LED downlight arrays?

Yes, if the downlight array is a constant-current design that operates within the 58-116V CC range. This driver is rated at 301.6W, so it suits larger LED loads than small constant-voltage power supplies. It is not the right choice for 12V or 24V constant-voltage downlights.

Is the HBGC-300-M-A a good fit for LED signage modules in a mid-voltage series configuration?

It can be, provided the signage load is constant current and its total forward voltage falls between 58V and 116V. The exact number of LEDs or modules depends on the forward voltage of each one, so there is no single LED count for this driver. Its 301.6W capacity supports higher-power assemblies within that voltage window.

Can this model power a compact LED array used in commercial lighting equipment?

Yes, when the LED array is built for constant-current operation and the array voltage stays within 58-116V. Its adjustable output current (1300-4330mA) makes this version suitable where output adjustment is needed at the driver level. It is not intended for constant-voltage LED loads.

What should I check before pairing the HBGC-300-M-A with an LED load?

The main checks are constant-current operation, a forward-voltage requirement inside 58-116V, and total load power within 301.6W. The number of LEDs depends on each LED's forward voltage, so sizing should be done from the load's voltage characteristics instead of a fixed LED count. If the product expects a fixed DC voltage, use a constant-voltage supply instead.

How does the HBGC-300-M-A compare with other HBGC-300 series current ranges?

Within the 301.6W HBGC-300 family, the H versions use a 29-58V CC range at 5600mA, the M versions use a 58-116V CC range at 2800mA, and the L versions use a 116-232V CC range at 1400mA. This HBGC-300-M-A is the adjustable M-range option. AB adds dimming, and ADA adds DALI dimming.
