Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

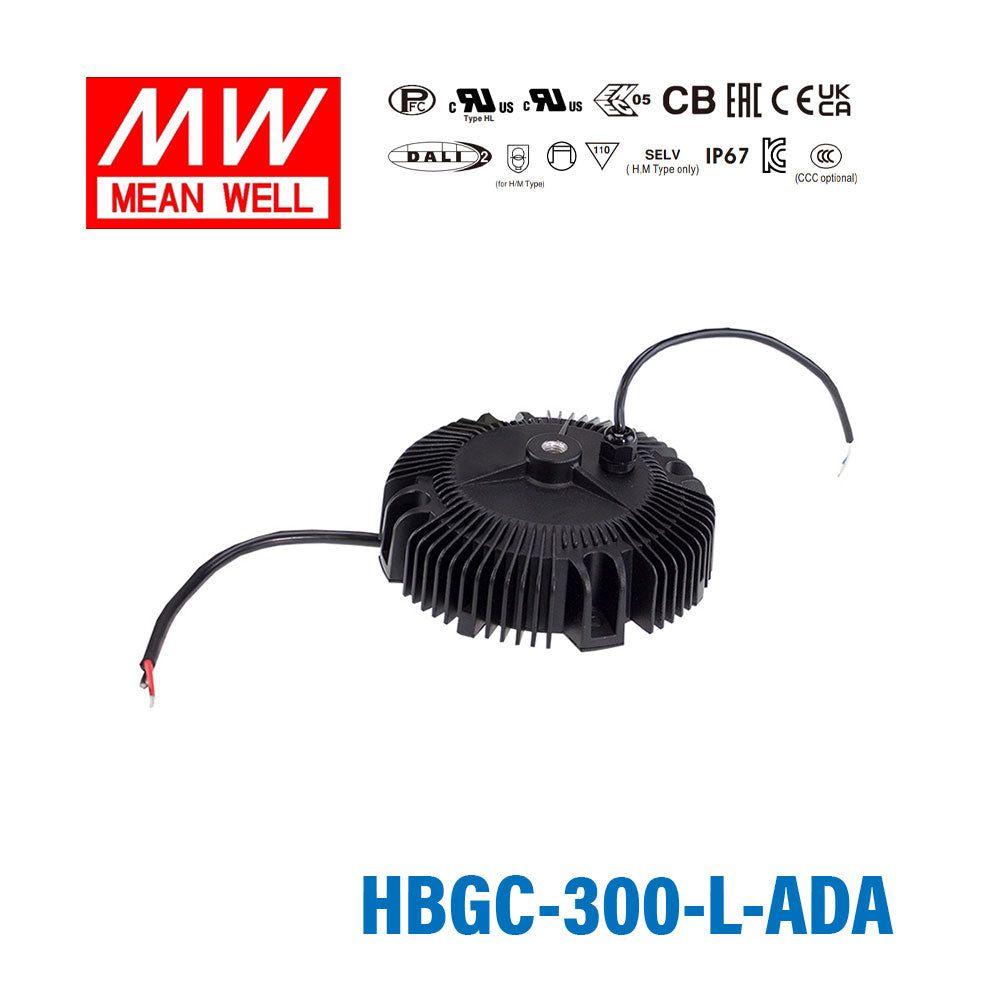

Mean Well HBGC-300-L-ADA Power Supply 300W 1400mA - Adjustable and ...
$118.11 USD
Unit price /
Unavailable
Description
Description
The HBGC-300-L-ADA is a 301.6W Mean Well AC-DC constant current LED driver (input: 90~305VAC, output: 240V, operating temperature: -40~+80°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage (max): 240V
- ✓ Rated output current: 1.4A
- ✓ DALI dimming support
- ✓ Ingress protection: IP67
- ✓ Operating temperature: -40~+80°C
- ✓ Active PFC — meets international energy efficiency standards
- ✓ Safety certifications: CB, CCC, CE, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBGC Series
-
Power Rating301.6 Watt
-
Output Voltage240 Volt
-
Rated Current1.4 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CCC,CE,ENEC,UL
-
Operation ModeConstant Current
-
Operating Temperature-40°C~80°C
-
Warranty5 Year
-
Length7.54 in
-
Width7.54 in
-
Height2.72 in
-
Weight4.85 lb
File Downloads
File Downloads
::specification::
