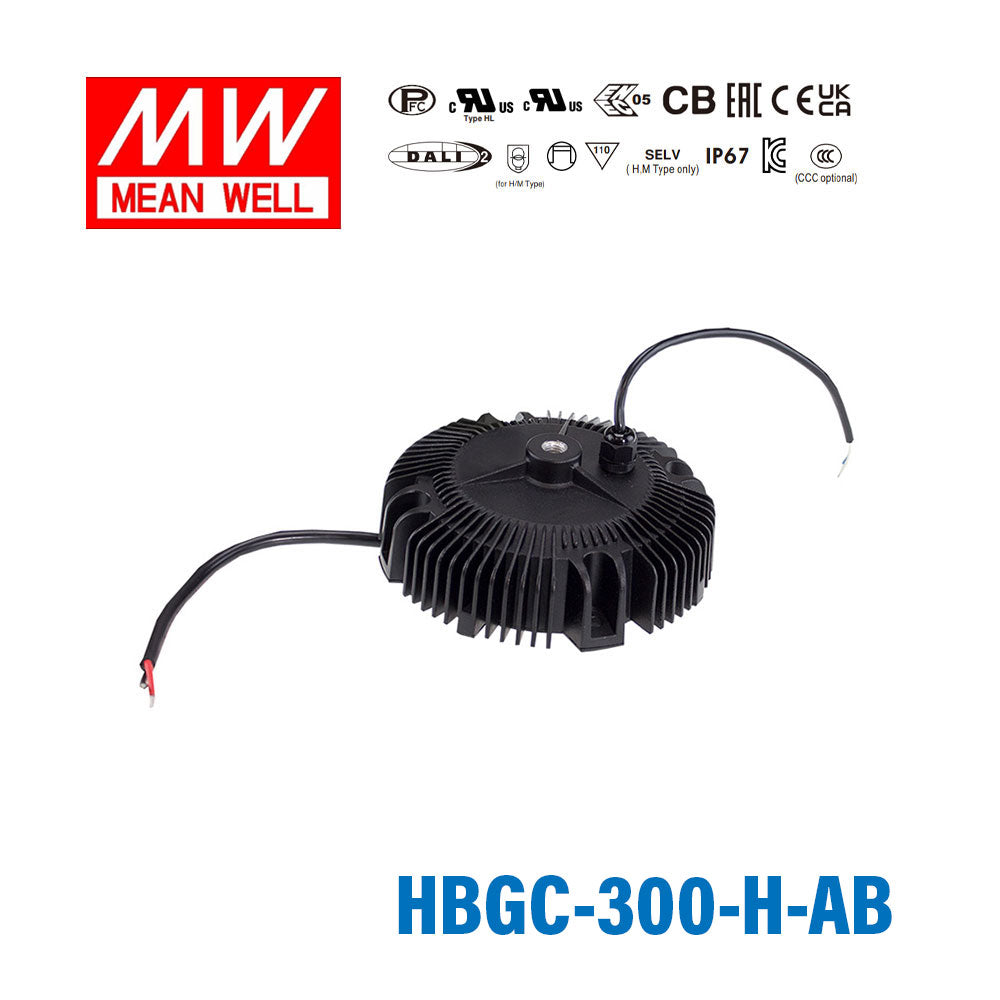

Mean Well HBGC-300-H-AB Power Supply 300W 5600mA - Adjustable and Dimmable

$106.52 USD
Shipping calculated at checkout.

|

Your order will be processed within 24 hours

Description

Features

Wide input range 90~305VAC
Full power at 60~100% max current (Constant Power)
Built-in active PFC function
Circular metal housing design with IP67
Function options: output adjustable via potentiometer; 3 in 1 dimmable(Dim to off and isolation); DALI-2 dimming
Typical lifetime>50000 hours
5 years warranty

General Specification

AC input voltage range 90~305VAC   127~431VDC
AC inrush current (max.) Cold start, 45A at 230VAC
DC adjustment range 30%~100% max current
Over-voltage protection up to 125% of open circuit voltage
Withstand voltage I/P - O/P: 3.75kVAC, I/P-FG:2kVAC, O/P-FG:1.5kVAC
Working temperature -40~+80°C
Safety standards UL8750 ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384 (type”HL”), CSA C22.2 No. 250.13-12; ; EAC TP TC 004;GB19510.1 GB19510.14 , ; IP67 approved
EMC standards EN55015, EN61000-3-2 Class C, EN61000-4-2,3,4,5,6,8,11
Connection SJTW 18AWG for input/SJTW 14AWG for output
Dimension (DxH) φ191.5mm x 69mm
Packing 2.2Kg;8pcs/19.8Kg/2.09CUFT

Specifications

  • Brand
    Mean Well
  • Series
    HBGC Series
  • Power Rating
    301.6 Watt
  • Output Voltage
    62 Volt
  • Rated Current
    5.6 Ampere
  • Input Voltage
    90V~305V
  • Standards Met
    CB,CCC,CE,ENEC,UL
  • Operation Mode
    Constant Current
  • Operating Temperature
    -40°C~80°C
  • Warranty
    5 Year
  • Length
    7.54 in
  • Width
    7.54 in
  • Height
    2.72 in
  • Weight
    4.85 lb
