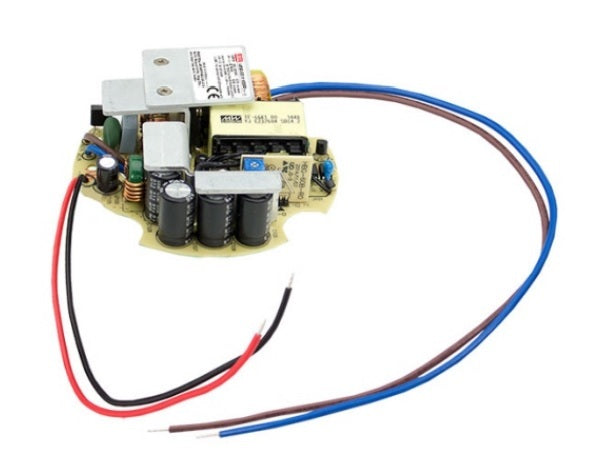

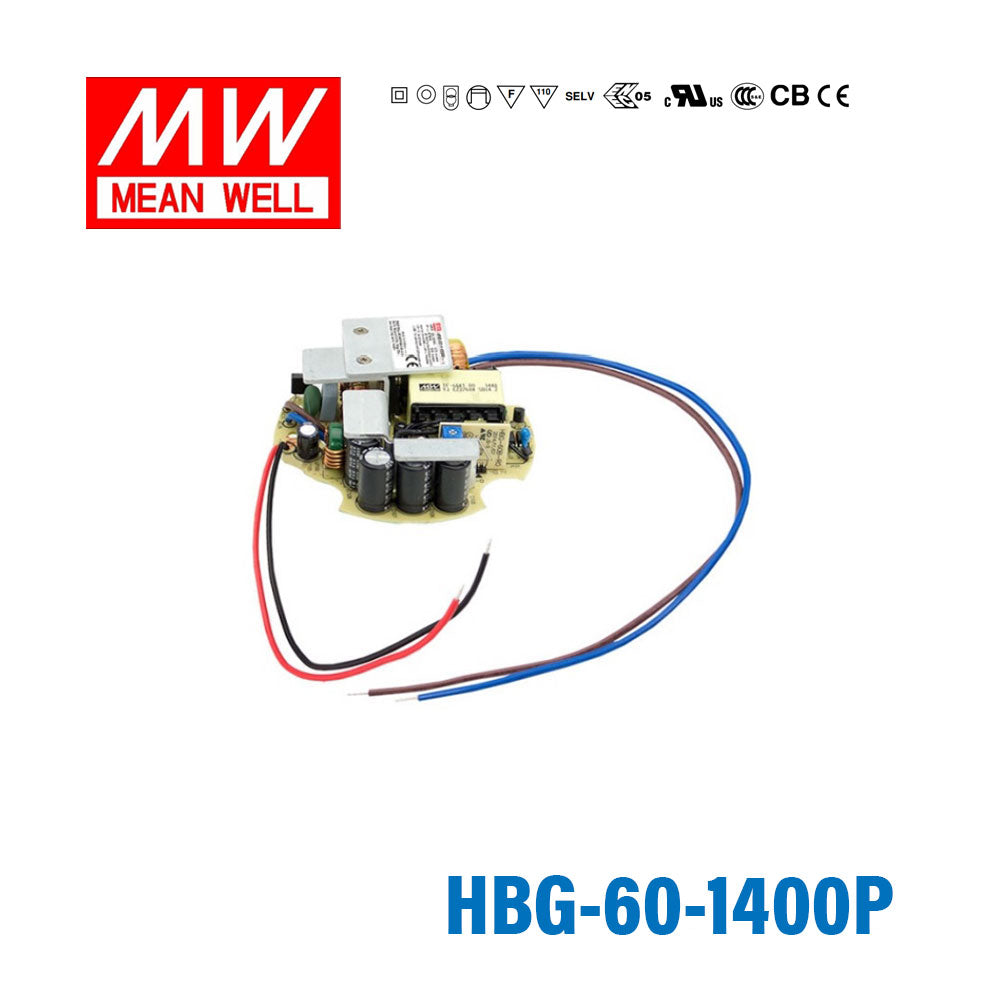

Mean Well HBG-60-1400 Power Supply 60W 1400mA PCB Type

Name: Mean Well HBG-60-1400 Power Supply 60W 1400mA PCB Type
Brand: Mean Well
SKU: HBG-60-1400P
Price: 40.61 USD
Availability: InStock

circular shapefor high/low bay lightPCB design

SKU HBG-60-1400P

$40.61 USD

Shipping calculated at checkout.

Select model — 5 in this family

HBG-60-1400P

HBG-60-1400 1400mA Low stock$27.81 USD

HBG-60-1400P 1400mA PCB Type Low stock$40.61 USD

HBGC-300-L-A 1400mA Adjustable Low stock$100.49 USD

HBGC-300-L-ADA 1400mA Adjustable and DALI Low stock$118.11 USD

HBGC-300-L-AB 1400mA Adjustable and Dimmable Low stock$106.52 USD

Product variants

In stock

Overview

HBG-60-1400P is the model of this series: rated current 1400mA, rated power 60.2W, typical efficiency 89%.

HBG-60-P series is a 60W AC/DC PCB type LED driver featuring the circular shape design. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +70℃ ambient temperature under free air convection.

Features

Constant current mode output
Circular shape PCB type design with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-60-1400PSpecifications from the official datasheet (2026-02-09 edition)

OUTPUT

RATED CURRENT: 1400mA
RATED POWER: 60.2W
CONSTANT CURRENT REGION^Note.2: 28 ~ 43V
OPEN CIRCUIT VOLTAGE(max.): 50V
CURRENT ADJ. RANGE: 910 ~ 1400mA
CURRENT RIPPLE: 25% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230VAC 1200ms / 115VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC 127 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧65%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Ta=-40 ~ +70℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: Ul8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1 & BS EN/EN61347-2-13, BS EN/EN62384, GB/T19510.1, GB/T19510.213 independent,EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3,EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ99mm *26mm (D * H)
PACKING: 0.21Kg; 45pcs/ 10.4Kg/ 1.03CUFT

Test conditions and notes7

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com

Technical drawings

HBG-60-1400P fosc : 50KHz — fosc : 50KHz

HBG-60-1400P ※ This series works in constant current mode to directly… — ※ This series works in constant current mode to directly…

HBG-60-1400P STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-60-1400P TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-60-1400P MECHANICAL SPECIFICATION — MECHANICAL SPECIFICATION

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
LED down lighting

Downloads

Datasheet1

HBG-60-1400P datasheetHBG_60_P_spec.pdf · 2026-02-09 edition PDF Download

FAQ

What type of product is the Mean Well HBG-60-1400P?

The HBG-60-1400P is a constant current LED power supply rated at 60.2W with a 1400mA output. It is a PCB type unit in Mean Well's circular HBG-60-P series and is designed for LED driver applications where constant current output is required.

What are the main electrical ratings of the HBG-60-1400P?

This model is rated for 60.2W output power, 1.4A rated current, and a 28 to 43V constant current region (50V max. open circuit voltage). Its AC input range is 90 to 295VAC, and it also supports 127 to 417VDC input.

Does the Mean Well HBG-60-1400P support dimming?

The datasheet does not list any dimming function for this model. If your project requires output dimming, you would need to compare it with a dimmable model rather than this specific one.

Is the HBG-60-1400P suitable for demanding temperature conditions?

This power supply has a working temperature range of -40°C to +70°C, with load derating at higher ambient temperatures per the output load vs temperature curve, which makes it suitable for use in harsh operating environments within that range. Buyers should still confirm that the full application stays within the product's stated environmental limits.

What protection and compliance features does the HBG-60-1400P include?

The HBG-60-1400P includes over-current protection with hiccup mode and automatic recovery, plus over-temperature protection. It is also specified with PFC (PF>0.95 at 230VAC) and is listed to BS EN/EN61347-1 and BS EN/EN61347-2-13, with EMC standards including EN55015 and EN61000-3-2 Class C.

What kinds of applications is this model generally used for?

Because it is a constant current 1400mA LED driver, this model is generally suited to LED lighting applications that require a driver in that output class. It is especially relevant where a compact circular PCB type form factor is desirable.

What are the physical and service-life details of the HBG-60-1400P?

The unit measures 99mm in diameter by 26mm high and has a listed weight of 0.21kg. Mean Well also specifies an MTBF of 4523.2K hours min. (Telcordia SR-332) for this model.
