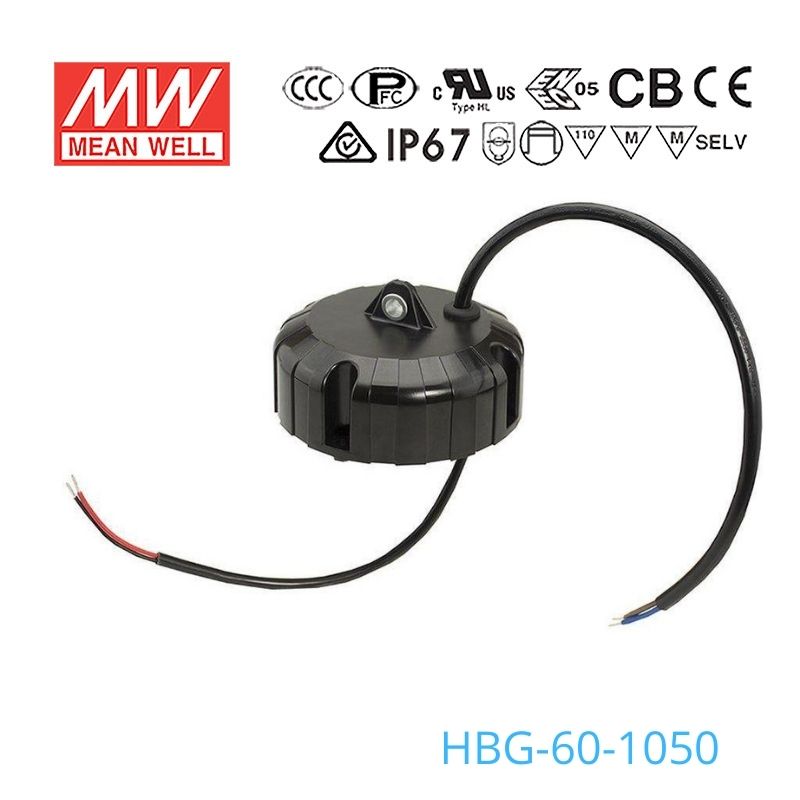

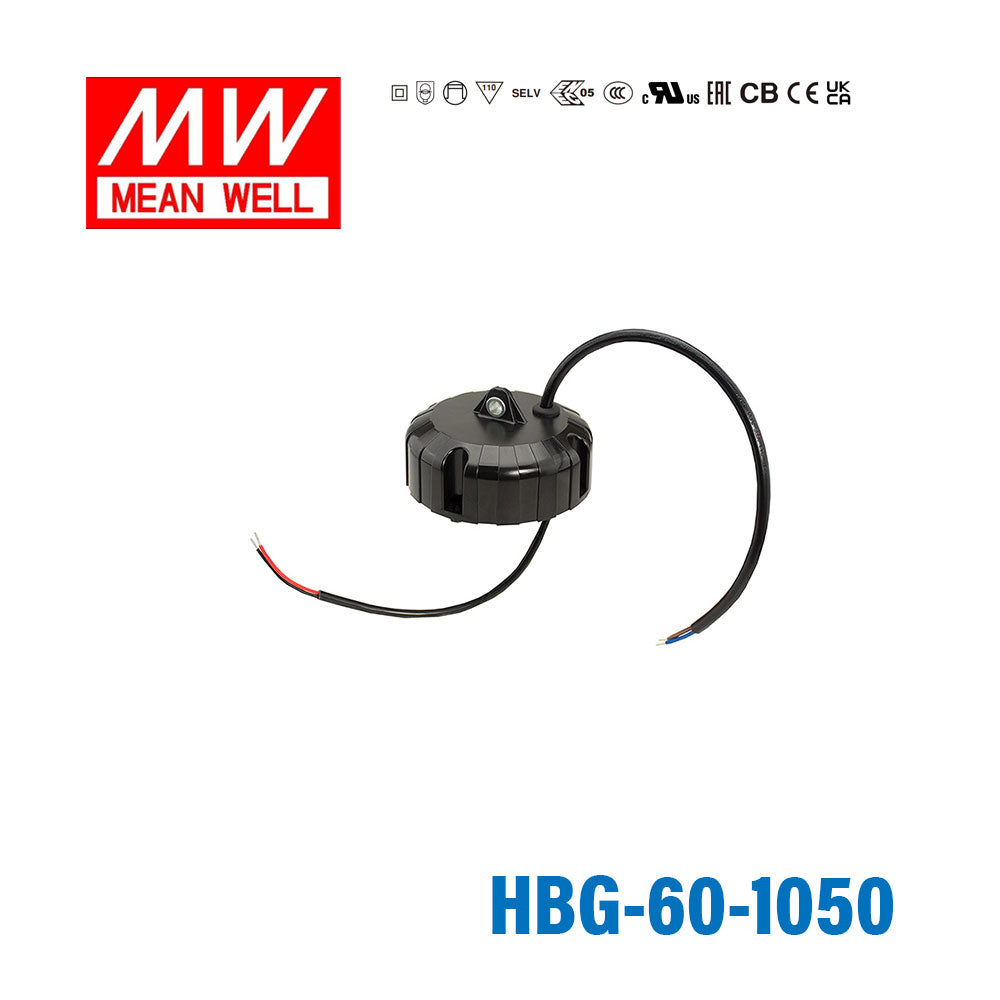

Mean Well HBG-60-1050 Power Supply 60W 1050mA

Name: Mean Well HBG-60-1050 Power Supply 60W 1050mA
Brand: Mean Well
SKU: HBG-60-1050
Price: 27.81 USD
Availability: InStock

circular shapefor high/low bay lightmetal case for 100W+

SKU HBG-60-1050

$27.81 USD

Shipping calculated at checkout.

Select model — 2 in this family

HBG-60-1050

HBG-60-1050 1050mA Low stock$27.81 USD

HBG-60-1050P 1050mA PCB Type Low stock$40.61 USD

Product variants

In stock

Overview

HBG-60-1050 is the model of this series: rated current 1050mA, rated power 57.75W, typical efficiency 90%.

HBG-60 series is a 60W AC/DC LED driver featuring the circular shape design with the plastic enclosure. It operates from 90~295VAC and offers the constant current output models with different rated current between 1050mA and 2100mA. Thanks to the high efficiency up to 90%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection.

Features

Constant current mode output
Circular plastic housing with class II design
Built-in active PFC function
Class 2 power unit
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-60-1050Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 1050mA
RATED POWER: 57.75W
CONSTANT CURRENT REGION^Note.2: 37 ~ 55V
OPEN CIRCUIT VOLTAGE(max.): 60V
CURRENT ADJ. RANGE: 680 ~ 1050mA
CURRENT RIPPLE: 25% max. @rated current
CURRENT TOLERANCE: ±5.0%
SET UP TIME^Note.4: 500ms / 230VAC 1200ms / 115VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 295VAC 127 ~ 417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.97/115VAC, PF>0.95/230VAC, PF>0.9/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧65%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 0.7A/115VAC 0.4A/230VAC 0.3A/277VAC
INRUSH CURRENT (Typ.): COLD START 45A(twidth=100μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 28 units (circuit breaker of type B) / 32 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: Hiccup mode, recovers automatically after fault condition is removed
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 60℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750, CSA C22.2 No. 250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^Note.8: Compliance to BS EN/EN55015, GB/T 17743, GB17625.1, BS EN/EN61000-3-2 Class C (@load≧65%) ; BS EN/EN61000-3-3, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11; BS EN/EN61547, BS EN/EN55024, light industry level(surge immunity: Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 4523.2K hrs min. Telcordia SR-332 (Bellcore) ; 455.5Khrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ110mm * 60.5mm (D * H)
PACKING: 0.5Kg; 20pcs/ 11Kg/ 0.94CUFT

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
6. To fulfill requirements of the latest ErP regulation for lighting fixtures, this LED driver can only be used behind a switch without permanently connected to the mains.
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 80℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft)
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf.

Technical drawings

HBG-60-1050 BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-60-1050 ※ This series works in constant current mode to directly… — ※ This series works in constant current mode to directly…

HBG-60-1050 OUTPUT LOAD vs TEMPERATURE — OUTPUT LOAD vs TEMPERATURE

HBG-60-1050 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-60-1050 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-60-1050 Illustration (page 6) — Illustration (page 6)

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
LED down lighting

Downloads

Datasheet1

HBG-60-1050 datasheetHBG-60-SPEC.PDF · 2026-06-15 edition PDF Download

Certificates9

Mean Well HBG-60 CCC Certificate PDF Download

Mean Well HBG-60 CB Certificate PDF Download

Mean Well HBG-60 EMC Certificate PDF Download

Mean Well HBG-60 ENEC Certificate PDF Download

Mean Well HBG-60 CE-dec Certificate PDF Download

Mean Well HBG-60 UK-dec Certificate PDF Download

Mean Well HBG-60 Erp Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-60-1050 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-60-1050 for LED downlights that need a higher forward-voltage constant current driver?

This model is a constant current LED driver with a 37-55V constant current range and 57.75W output. It fits LED downlights built around a higher forward-voltage LED load that operates within that range. It is not a constant voltage driver, so it should be matched to a constant current LED load.

Is the HBG-60-1050 suitable for a compact LED signage module assembly?

It can suit a signage module assembly if the LED load is designed for constant current operation and falls within the 37-55V constant current range. The available output power is 57.75W, so the total load also needs to stay within that rating. This is generally the better fit for higher forward-voltage module strings rather than constant voltage signage products.

Can this driver run a small LED array or COB module?

Yes, if the LED array is a constant current load and its operating voltage stays within 37-55V. With 57.75W available, it is aimed at moderate-power LED arrays rather than larger multi-array builds. The key match is the array's constant current requirement, not a fixed constant voltage output.

How do I know if my LED load is compatible with the HBG-60-1050?

Check that the LED load is designed for constant current operation and that its total forward voltage falls within the 37-55V constant current range. The number of LEDs depends on each LED's forward voltage, so there is no single fixed LED count for this driver. The load also needs to stay within the 57.75W rating.

What is the difference between the HBG-60-1050 and the other HBG-60 constant current versions?

Within the HBG-60 constant current group, the HBG-60-1050 is 57.75W with a 37-55V CC range at 1050mA, the HBG-60-1400 is 60.2W with a 28-43V CC range at 1400mA, and the HBG-60-2100 is 60.9W with a 19-29V CC range at 2100mA. All three use 90-295VAC input and share the same round housing of 110mm diameter x 60.5mm height.

Can the HBG-60-1050 be used in hot or cold operating conditions?

The specified working temperature is Tcase -40°C to +85°C (case temperature, with load derating per the output load vs temperature curve). That covers demanding thermal conditions, but these specs do not list an IP rating. If the environment is exposed to water or dust, you would need the product's listed enclosure rating before treating it as suitable for that condition.
