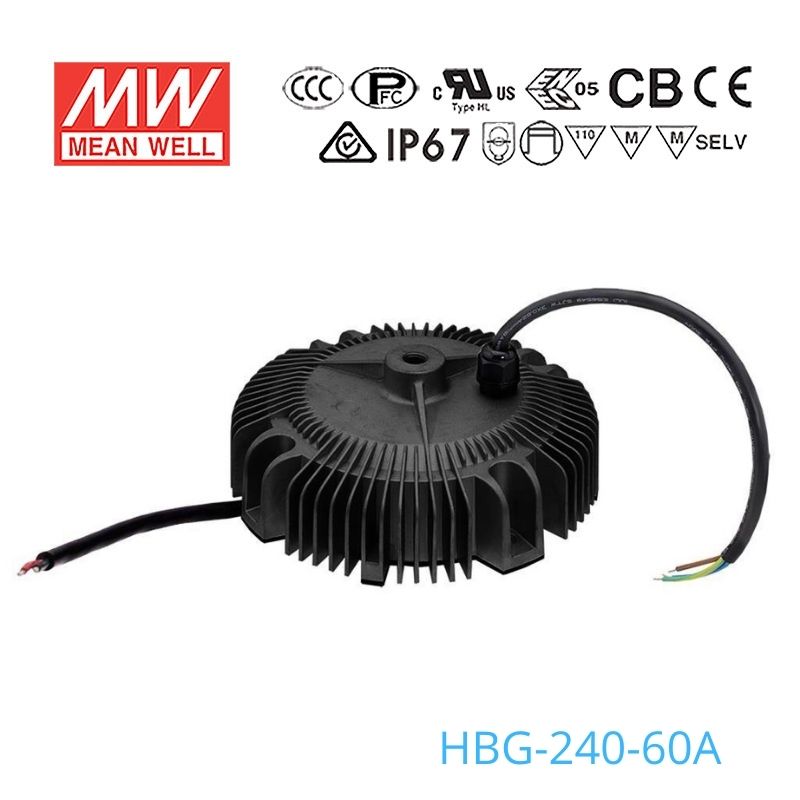

Mean Well HBG-240-60A Power Supply | Constant Voltage + Constant Current LED Driver

Name: Mean Well HBG-240-60A Power Supply 240W 60V - Adjustable 4A
Brand: Mean Well
SKU: HBG-240-60A
Price: 87.12 USD
Availability: InStock

Overview

HBG-240-60A is the 60V output model of this series: rated current 4.0A, rated power 240W, typical efficiency 93.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-240-60ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 4.0A
RATED POWER^Note.5: 240W
RIPPLE & NOISE (max.)^Note.3: 350mVp-p
CURRENT ADJ. RANGE: 2.4 ~ 4.0A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.): 15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.7: 93.5%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 62 ~ 85V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+75℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ191.5mm *69mm (D * H)
PACKING: 2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank: Io fixed; IP67
A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-240-60A BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-240-60A Illustration (page 5) — Illustration (page 5)

HBG-240-60A OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HBG-240-60A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-240-60A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-240-60A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HBG-240-60A INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting

Downloads

Datasheet1

HBG-240-60A datasheetHBG-240-spec.pdf · 2026-06-15 edition PDF Download

Certificates8

Mean Well HBG-240 ENEC Certificate PDF Download

Mean Well HBG-240 CCC Certificate PDF Download

Mean Well HBG-240 CB Certificate PDF Download

Mean Well HBG-240 EMC Certificate PDF Download

Mean Well HBG-240 CE-DEC Certificate PDF Download

Mean Well HBG-240 UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-240-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-240-60A for a 60V warehouse high bay fixture?

Yes, this series is shown for high bay light installation and this model supplies 240W at 60V with a 36-60V constant current region. It matches fixtures that are designed for constant-current operation in that range and up to 4A output.

Is the HBG-240-60A suitable for covered outdoor signage?

It can be used for 60V constant-current signage lighting in covered outdoor or splash-prone areas when the load is within 36-60V and does not exceed 240W. The HBG-240 series is IP65 or IP67 approved, which supports use where water resistance is needed.

Can this driver work for 60V commercial canopy lighting?

Yes, it is suitable for 60V constant-current canopy or similar commercial lighting loads within the 36-60V range and up to 240W. The -40°C to +75°C working case temperature (Tcase) range supports demanding indoor or sheltered outdoor conditions.

How do I estimate LED strip length for the HBG-240-60A?

Use the 240W maximum output and divide by the strip power per meter. For example, 240W divided by 12W per meter equals 20 meters, and 240W divided by 15W per meter equals 16 meters; check your strip rated power per meter and confirm the strip matches the 60V output or the 36-60V constant current region.

Can the HBG-240-60A be used in wet outdoor locations?

The HBG-240 series is IP65 or IP67 approved, but the sheet text does not state which rating this A version carries. Confirm the rating before specifying it for fully exposed wet outdoor locations.

What are the main differences between HBG-240-60A and the other 240W HBG voltage options?

Across the 240W HBG family, the constant current regions are 14.4-24V or 16.8-24V for 24V models, 21.6-36V or 25.2-36V for 36V models, 28.8-48V or 33.6-48V for 48V models, and 36-60V or 42-60V for 60V models. The HBG-240-60A is the 60V, 240W, 4A version with a 36-60V region and output current adjustable from 2.4 to 4.0A.
