Mean Well

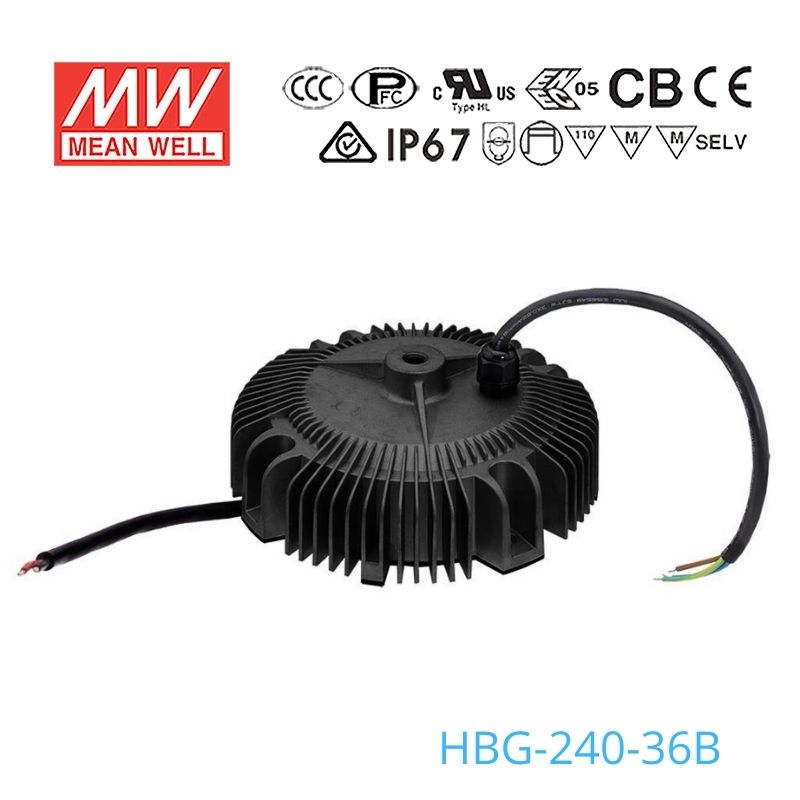

Mean Well HBG-240-36B Power Supply 240W 36V - Dimmable 6.7A

circular shapefor high/low bay lightmetal case for 100W+
SKU HBG-240-36B
$92.63 USD
Shipping calculated at checkout.

Select model — 26 in this family

HBG-240-36B
In stock
|

Overview

HBG-240-36B is the 36V output model of this series: rated current 6.7A, rated power 240W, typical efficiency 92.5%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Circular metal housing with classⅠdesign
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Function options: 3 in 1 dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HBG-240-36BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
36V
CONSTANT CURRENT REGIONNote.2
21.6 ~ 36V
RATED CURRENT
6.7A
RATED POWERNote.5
240W
RIPPLE & NOISE (max.)Note.3
250mVp-p
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.)
15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)Note.7
92.5%
AC CURRENT (Typ.)
2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
43 ~ 52V
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+75℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF
1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
ψ191.5mm *69mm (D * H)
PACKING
2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank
Io fixed; IP67
A
Io adjustable through built-in potentiometer; IP65
B (this model)
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA
DALI control technology; IP67
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  9. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-240-36B BLOCK DIAGRAM
BLOCK DIAGRAM
HBG-240-36B DIMMING OPERATION
DIMMING OPERATION
HBG-240-36B Illustration (page 5)
Illustration (page 5)
HBG-240-36B OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HBG-240-36B STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HBG-240-36B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HBG-240-36B LIFETIME(Kh)
LIFETIME(Kh)
HBG-240-36B MECHANICAL SPECIFICATION ※ B/DA-Type
MECHANICAL SPECIFICATION ※ B/DA-Type
HBG-240-36B INSTALLATIONS
INSTALLATIONS

Typical applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting

Downloads

FAQ

Can I use the HBG-240-36B for a 36V high bay LED light?

Yes, this model is built for 36V constant voltage + constant current LED loads and the series is shown for high bay light installation. It delivers up to 240W with 6.7A output and works across a 21.6-36V constant current region.

Is the HBG-240-36B suitable for outdoor commercial lighting?

Yes, the HBG-240 series is IP65 or IP67 approved, so it is intended for wet and outdoor environments. It also has a working case temperature (Tcase) range of -40°C to +75°C, which suits demanding site conditions.

Can this driver be used for 36V LED signage lighting?

It can be used where the signage lighting system matches the 36V output or the 21.6-36V constant current region. The 240W capacity gives headroom for higher-power signage assemblies.

Can I use the HBG-240-36B for a large 36V LED strip lighting run?

Yes, if the strip system matches the 36V output or the 21.6-36V constant current region. The maximum load is 240W, so the sizing math is 240W divided by your strip rated power per meter equals the maximum estimated length; check your strip rated power per meter before sizing.

What kinds of 36V lighting projects is this model best matched to?

This driver is best matched to higher-power 36V lighting loads that need up to 240W and 6.7A. Its round Ø191.5mm housing and high bay installation focus make it a better fit for fixture-based lighting than for small low-power loads.

How does the HBG-240-36B compare with other HBG series options?

Within the 240W HBG-240 series, the 36V models (HBG-240-36, -36A, -36AB, -36B) use a 21.6-36V constant current region at 6.7A, while the HBG-240-36DA uses 25.2-36V. Other sibling voltages in the series are 24V at 10A, 48V at 5A, and 60V at 4A, all rated 240W.
