Mean Well

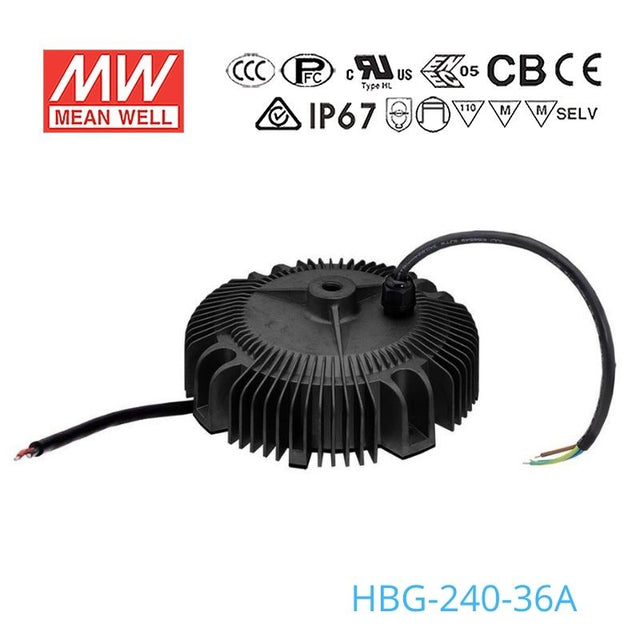

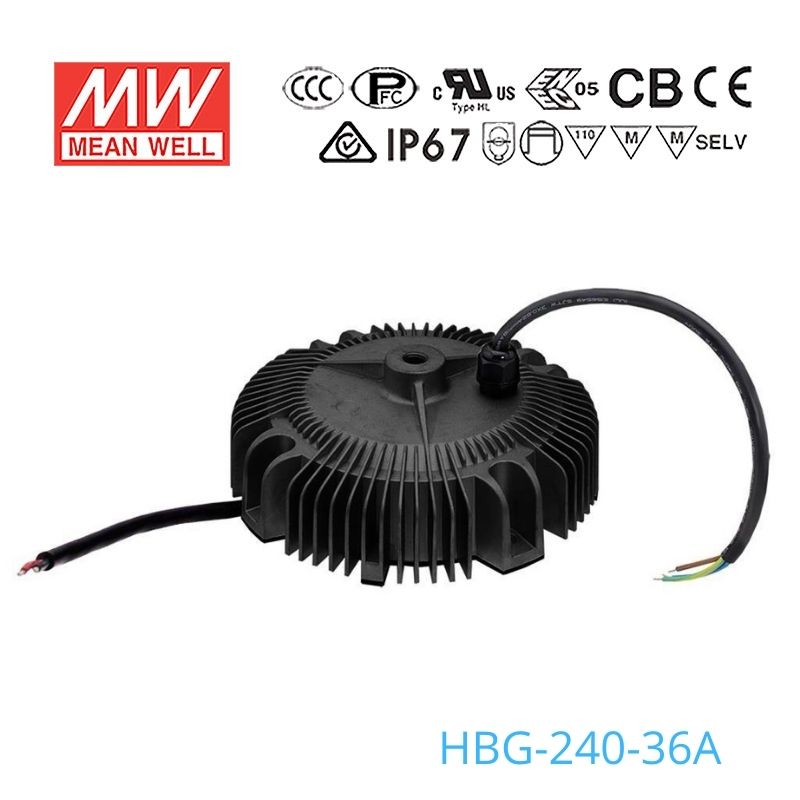

Mean Well HBG-240-36A Power Supply 240W 36V - Adjustable 6.7A

circular shapefor high/low bay lightmetal case for 100W+
SKU HBG-240-36A
$90.04 USD
Shipping calculated at checkout.

Select model — 26 in this family

HBG-240-36A
In stock
|

Overview

HBG-240-36A is the 36V output model of this series: rated current 6.7A, rated power 240W, typical efficiency 92.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Circular metal housing with classⅠdesign
  • Built-in active PFC function
  • IP65 rating for indoor or outdoor installations
  • Function options: output adjustable via potentiometer
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HBG-240-36ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
36V
CONSTANT CURRENT REGIONNote.2
21.6 ~ 36V
RATED CURRENT
6.7A
RATED POWERNote.5
240W
RIPPLE & NOISE (max.)Note.3
250mVp-p
CURRENT ADJ. RANGE
4.0 ~ 6.7A
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.)
15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)Note.7
92.5%
AC CURRENT (Typ.)
2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
43 ~ 52V
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+75℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP65 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF
1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
ψ191.5mm *69mm (D * H)
PACKING
2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank
Io fixed; IP67
A (this model)
Io adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA
DALI control technology; IP67
Test conditions and notes12
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  9. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
  12. 13. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-240-36A BLOCK DIAGRAM
BLOCK DIAGRAM
HBG-240-36A Illustration (page 5)
Illustration (page 5)
HBG-240-36A OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HBG-240-36A STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HBG-240-36A TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HBG-240-36A LIFETIME(Kh)
LIFETIME(Kh)
HBG-240-36A MECHANICAL SPECIFICATION ※ A-Type
MECHANICAL SPECIFICATION ※ A-Type
HBG-240-36A INSTALLATIONS
INSTALLATIONS

Typical applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting

Downloads

FAQ

Can the HBG-240-36A be used for 36V linear or area lighting indoors or under cover?

Yes, it provides 36V output with up to 240W and 6.7A for larger 36V lighting loads. As part of the IP65 or IP67 approved HBG-240 series, it is a practical choice where the driver may see dust or splashing water.

Is this driver suitable for 36V LED strip lighting in commercial display or signage work?

It can be used where the lighting load is designed for 36V and the total demand stays within 240W. The 6.7A output gives capacity for larger 36V lighting projects.

Can the HBG-240-36A be used for high bay or low bay LED fixtures?

Yes, the series is shown for high bay light installation, and this model supplies 240W at 36V. Its round Ø191.5mm housing with hanger or chain mounting aligns with that type of lighting fixture.

How much 36V LED strip can I size on the HBG-240-36A?

Maximum strip length is calculated as 240W divided by your strip's watts per meter. This unit provides up to 240W at 36V and 6.7A, but check your strip rated power per meter before final sizing.

Is the HBG-240-36A okay for outdoor use?

The HBG-240 series is IP65 or IP67 approved, but the sheet text does not state which rating this A version carries. Confirm the rating before using it in fully exposed wet locations.
