Mean Well HBG-240-36 240W 36V Power Supply | HBG Series | Constant Voltage + Constant Current LED Driver

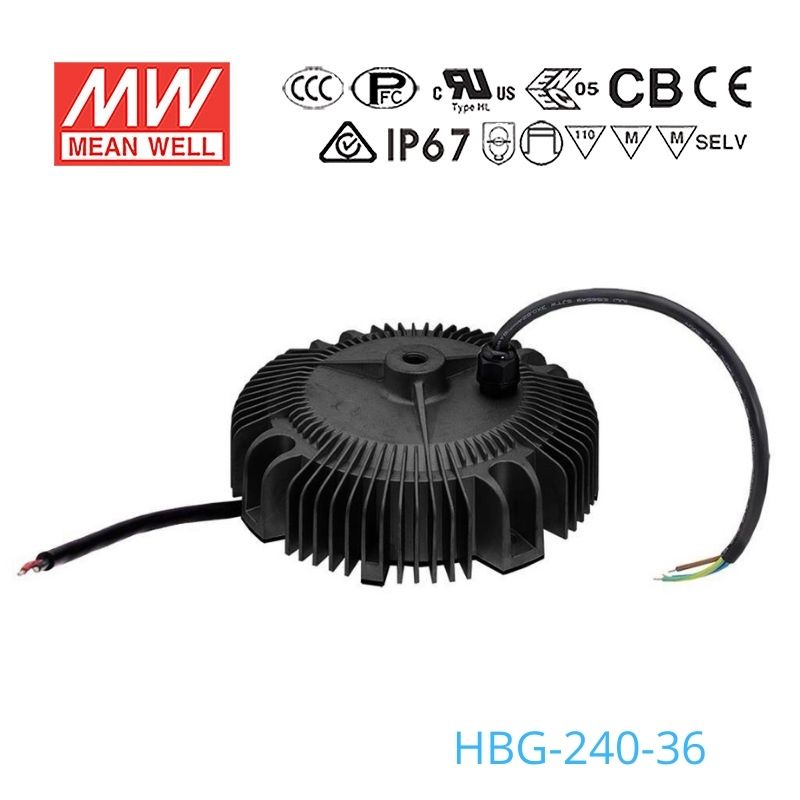

Name: Mean Well HBG-240-36 Power Supply 240W 36V 6.7A
Brand: Mean Well
SKU: HBG-240-36
Price: 76.81 USD
Availability: InStock

Overview

HBG-240-36 is the 36V output model of this series: rated current 6.7A, rated power 240W, typical efficiency 92.5%. Type Blank: Io fixed (IP67).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-240-36Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 36V
CONSTANT CURRENT REGION^Note.2: 21.6 ~ 36V
RATED CURRENT: 6.7A
RATED POWER^Note.5: 240W
RIPPLE & NOISE (max.)^Note.3: 250mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±0.5%
SETUP, RISE TIME^Note.6: 500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.): 15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.7: 92.5%
AC CURRENT (Typ.): 2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.): COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 43 ~ 52V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+75℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ191.5mm *69mm (D * H)
PACKING: 2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank (this model): Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-240-36 BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-240-36 Illustration (page 5) — Illustration (page 5)

HBG-240-36 OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HBG-240-36 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-240-36 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-240-36 MECHANICAL SPECIFICATION ※ Blank-Type — MECHANICAL SPECIFICATION ※ Blank-Type

HBG-240-36 INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting

Downloads

Datasheet1

HBG-240-36 datasheetHBG-240-spec.pdf · 2026-06-15 edition PDF Download

Certificates8

Mean Well HBG-240 ENEC Certificate PDF Download

Mean Well HBG-240 CCC Certificate PDF Download

Mean Well HBG-240 CB Certificate PDF Download

Mean Well HBG-240 EMC Certificate PDF Download

Mean Well HBG-240 CE-DEC Certificate PDF Download

Mean Well HBG-240 UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-240-36 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-240-36 for a 36V LED strip or linear lighting system?

Yes, if your lighting load is designed for 36V, this driver provides 36V output with up to 240W total power. Its 6.7A output capacity makes it suitable for larger 36V lighting runs.

Is the HBG-240-36 suitable for 36V signage lighting in outdoor conditions?

It can be used for 36V sign lighting loads that need up to 240W. The series' IP65 or IP67 approval also makes it appropriate for outdoor or wet-location lighting projects.

Can this model power a high bay or low bay LED fixture?

Yes, the HBG series is shown for high bay light installation, and this version delivers 240W at 36V. The round Ø191.5mm housing with hanger or chain mounting also matches that type of fixture design.

How do I estimate the maximum 36V LED strip length for the HBG-240-36?

Use the formula 240W divided by your strip's rated watts per meter. This model can deliver up to 240W at 36V and 6.7A, but you should check your strip rated power per meter before deciding the total run length.

Is the HBG-240-36 rated for wet and harsh environments?

Yes, it belongs to the IP65 or IP67 approved HBG-240 series and has a working case temperature (Tcase) range of -40°C to +75°C. That makes it suitable for exposed lighting locations where moisture, dust, and temperature range are part of the environment.
