Mean Well

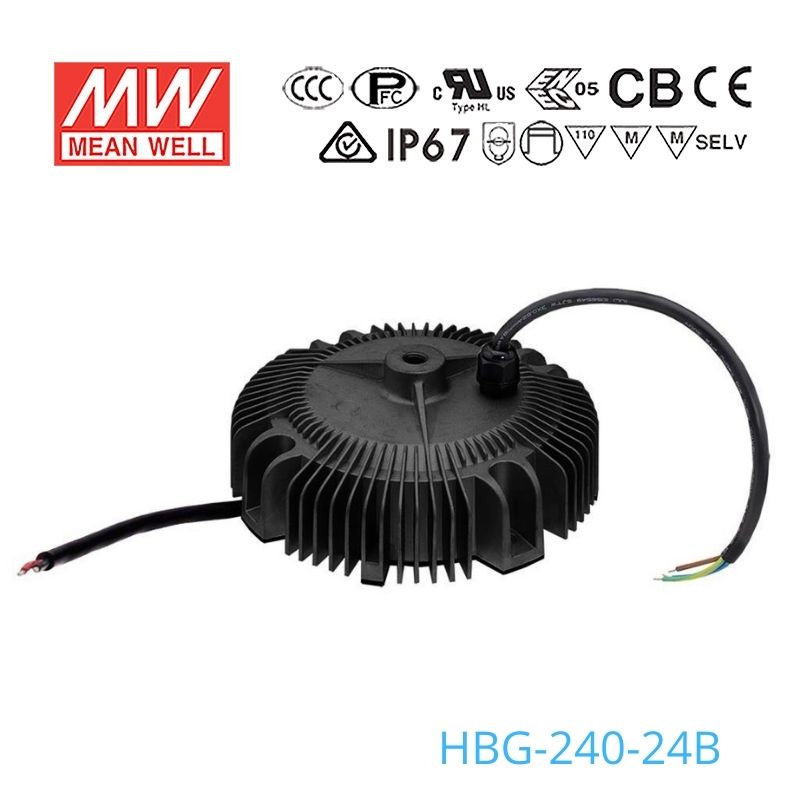

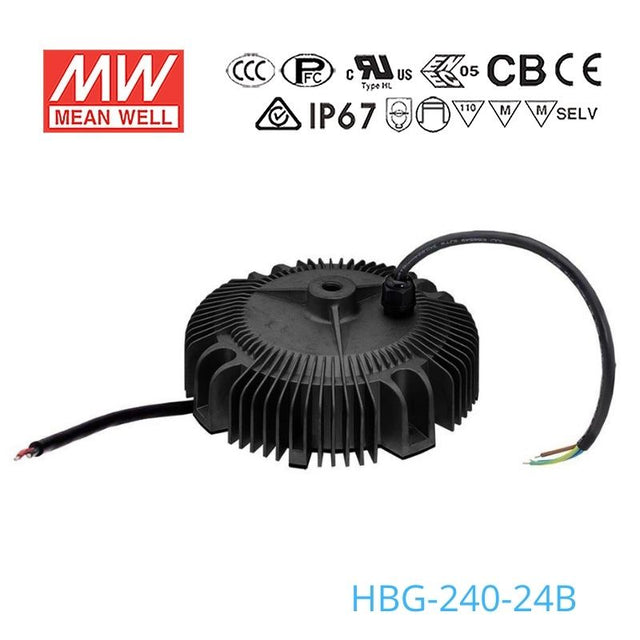

Mean Well HBG-240-24B Power Supply 240W 24V - Dimmable 10A

circular shapefor high/low bay lightmetal case for 100W+
SKU HBG-240-24B
$92.63 USD
Shipping calculated at checkout.

Select model — 15 in this family

HBG-240-24B
In stock
|

Overview

HBG-240-24B is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 92.5%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-240 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

  • Constant Voltage + Constant Current mode output
  • Circular metal housing with classⅠdesign
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Function options: 3 in 1 dimming
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HBG-240-24BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
24V
CONSTANT CURRENT REGIONNote.2
14.4 ~ 24V
RATED CURRENT
10A
RATED POWERNote.5
240W
RIPPLE & NOISE (max.)Note.3
150mVp-p
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.)
15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)Note.7
92.5%
AC CURRENT (Typ.)
2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27 ~ 34V
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+75℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF
1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
ψ191.5mm *69mm (D * H)
PACKING
2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank
Io fixed; IP67
A
Io adjustable through built-in potentiometer; IP65
B (this model)
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA
DALI control technology; IP67
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  9. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-240-24B BLOCK DIAGRAM
BLOCK DIAGRAM
HBG-240-24B DIMMING OPERATION
DIMMING OPERATION
HBG-240-24B Illustration (page 5)
Illustration (page 5)
HBG-240-24B OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HBG-240-24B STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HBG-240-24B TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HBG-240-24B LIFETIME(Kh)
LIFETIME(Kh)
HBG-240-24B MECHANICAL SPECIFICATION ※ B/DA-Type
MECHANICAL SPECIFICATION ※ B/DA-Type
HBG-240-24B INSTALLATIONS
INSTALLATIONS

Typical applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting

Downloads

FAQ

Can I use the HBG-240-24B for long 24V LED strip runs on an outdoor building outline?

Yes, it is built for 24V output and has up to 240W available at 10A. As part of the IP65 or IP67 approved HBG-240 series, it is also a better fit for outdoor lighting locations than indoor-only drivers, as long as your total 24V load stays within 240W.

Is the HBG-240-24B suitable for 24V illuminated signage and channel letter lighting?

It can be a fit for 24V signage loads that need a 24V driver with up to 240W capacity. For larger sign layouts, confirm the combined load does not exceed 10A and 240W.

Can this model be used for wet-location architectural or facade lighting?

Yes, the HBG-240-24B is from the IP65 or IP67 approved HBG-240 series and has a working case temperature (Tcase) range of -40°C to +75°C. That makes it suitable for demanding indoor or outdoor lighting environments where moisture and temperature range matter.

How much 24V LED strip can the HBG-240-24B support?

The maximum available output is 240W at 24V, with up to 10A. To estimate strip length, use 240W divided by your strip's rated watts per meter, and check your strip rated power per meter before sizing the run.

Is the HBG-240-24B suitable for outdoor or exposed locations?

The HBG-240 series is IP65 or IP67 approved, so it is intended for harsher environments than water-resistant indoor drivers. Its working case temperature (Tcase) range of -40°C to +75°C, with load derating at higher temperatures, also supports use in very cold or hot locations.
