Mean Well

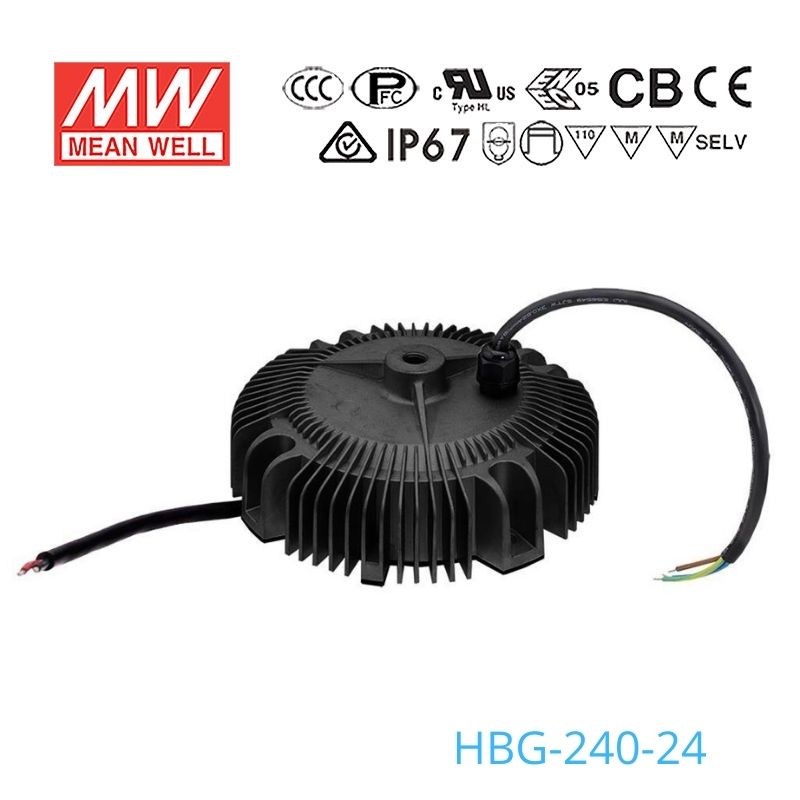

Mean Well HBG-240-24 Power Supply 240W 24V 10A

circular shapefor high/low bay lightmetal case for 100W+
SKU HBG-240-24
$76.81 USD
Shipping calculated at checkout.

Select model — 15 in this family

HBG-240-24
Available to order
|

Overview

HBG-240-24 is the 24V output model of this series: rated current 10A, rated power 240W, typical efficiency 92.5%. Type Blank: Io fixed (IP67).

HBG-240 series is a 240W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +75℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

Features

  • Constant Voltage + Constant Current mode output
  • Circular metal housing with classⅠdesign
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HBG-240-24Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
24V
CONSTANT CURRENT REGIONNote.2
14.4 ~ 24V
RATED CURRENT
10A
RATED POWERNote.5
240W
RIPPLE & NOISE (max.)Note.3
150mVp-p
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±0.5%
SETUP, RISE TIMENote.6
500ms,120ms /230VAC 2500ms,120ms /115VAC
HOLD UP TIME (Typ.)
15ms /115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧80%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)Note.7
92.5%
AC CURRENT (Typ.)
2.5A / 115VAC 1.3A / 230VAC 1.2A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 75A(twidth=680μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
2 units (circuit breaker of type B) / 3 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
27 ~ 34V
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +75℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+75℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750,CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1, BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 48A,60A only), EAC TP TC 004, IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧75%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF
1792.9K hrs min. Telcordia SR-332 (Bellcore) ;172.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
ψ191.5mm *69mm (D * H)
PACKING
2.1Kg; 8pcs/18.3Kg/2.09CUFT

MODEL ENCODING

Blank (this model)
Io fixed; IP67
A
Io adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA
DALI control technology; IP67
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  9. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-240-24 BLOCK DIAGRAM
BLOCK DIAGRAM
HBG-240-24 Illustration (page 5)
Illustration (page 5)
HBG-240-24 OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HBG-240-24 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HBG-240-24 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HBG-240-24 LIFETIME(Kh)
LIFETIME(Kh)
HBG-240-24 MECHANICAL SPECIFICATION ※ Blank-Type
MECHANICAL SPECIFICATION ※ Blank-Type
HBG-240-24 INSTALLATIONS
INSTALLATIONS

Typical applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting

Downloads

FAQ

Can I use the Mean Well HBG-240-24 for 24V LED strip lighting?

Yes, this model is a 24V LED driver with 240W maximum output and 10A output current, so it fits 24V LED strip systems that stay within those limits. It works in constant voltage or constant current mode, with a 14.4-24V constant current region, so the connected load should match the product's electrical requirements. The HBG-240 series is IP65 or IP67 approved, so it can also suit strip lighting projects in wet or exposed locations.

Is the HBG-240-24 suitable for LED signage or channel letter lighting?

It can be used for 24V LED signage where the total load does not exceed 240W or 10A. The wide 90-305VAC input range helps it fit many commercial power environments, and the series' IP65 or IP67 approval supports outdoor or damp-location signage. Check that the sign's LED modules are designed for 24V operation or fall within the 14.4-24V constant current region.

Can this driver be used for high bay or low bay LED lighting?

Yes, this series is shown for high bay light installation (hanger or chain mounting), and this model provides 240W at 24V in a round Ø191.5mm housing suited to that fixture style. The working case temperature range of -40°C to +75°C (Tcase) supports demanding lighting environments. Confirm the fixture's electrical requirements match 24V output and 10A maximum current.

How much 24V LED strip can the HBG-240-24 run?

The driver can supply up to 240W total. To estimate strip length, divide 240W by your strip's rated power per meter: for example, length = 240W / strip watts per meter. Always check your strip rated power per meter and keep the total at or below 240W and 10A.

Is the HBG-240-24 rated for outdoor or wet-location use?

Yes, the HBG-240 series is IP65 or IP67 approved, so it is intended for wet or exposed environments. Its working case temperature (Tcase) range is -40°C to +75°C, with load derating at higher temperatures, which supports use in very cold and hot conditions. Size and weight should also be considered in the enclosure or fixture because it measures Ø191.5 mm × 69 mm and weighs 2.1 kg.

How does the HBG-240-24 compare with other HBG-240 series models?

The HBG-240-24 is 240W, 24V, 10A with a 14.4-24V constant current region. In the same 24V family, HBG-240-24A, HBG-240-24AB, and HBG-240-24B are also 240W, 24V, 10A with a 14.4-24V region, while HBG-240-24DA is 240W, 10A with a 16.8-24V region. Other HBG-240 outputs are 36V at 6.7A with a 21.6-36V region, 48V at 5A with a 28.8-48V region, and 60V at 4A with a 36-60V region.
