Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

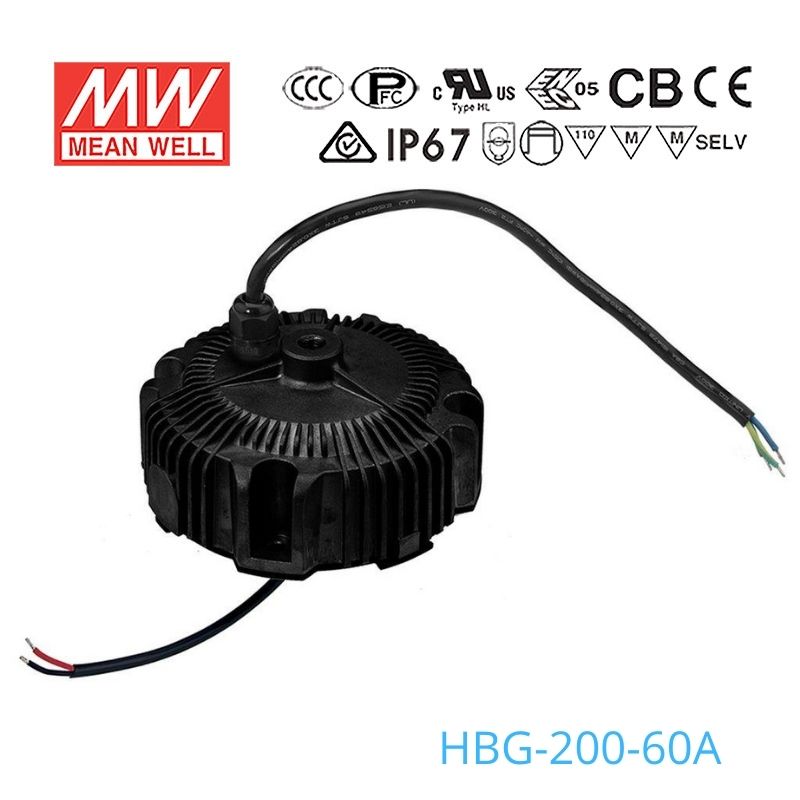

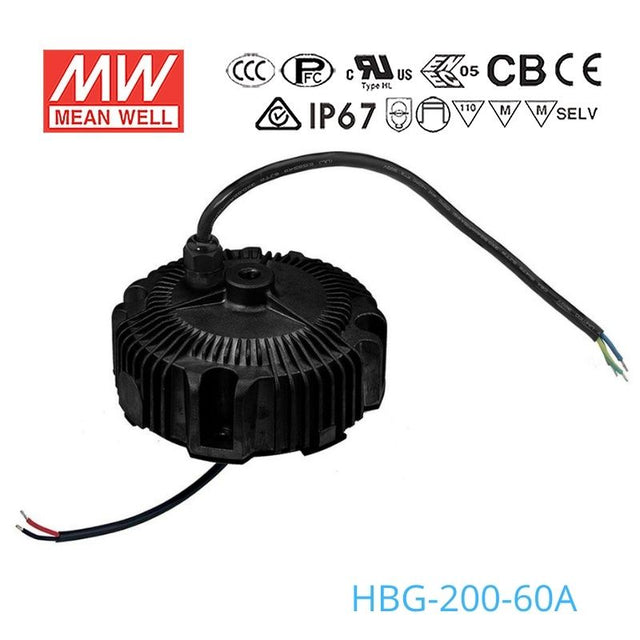

Mean Well HBG-200-60A Power Supply 200W 60V - Adjustable 3.3A
$74.29 USD
Unit price /
Unavailable
Description
Description
The HBG-200-60A is a 198W Mean Well AC-DC LED driver (input: 90~305VAC, output: 60V, operating temperature: -40~+85°C).
Key Features
- ✓ Input voltage: 90~305VAC
- ✓ Output voltage: 60V
- ✓ Rated output current: 3.3A
- ✓ Ingress protection: IP65
- ✓ Operating temperature: -40~+85°C
- ✓ Safety certifications: CB, CE, EAC, ENEC, UL
- ✓ 5 year warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesHBG Series
-
Power Rating198 Watt
-
Output Voltage60 Volt
-
Rated Current3.3 Ampere
-
Input Voltage90V~305V
-
Standards MetCB,CE,EAC,ENEC,UL
-
Operation ModeConstant Current,Constant Voltage
-
Operating Temperature-40°C~85°C
-
Warranty5 Year
-
Length5.97 in
-
Width5.97 in
-
Height2.62 in
-
Weight3.37 lb
