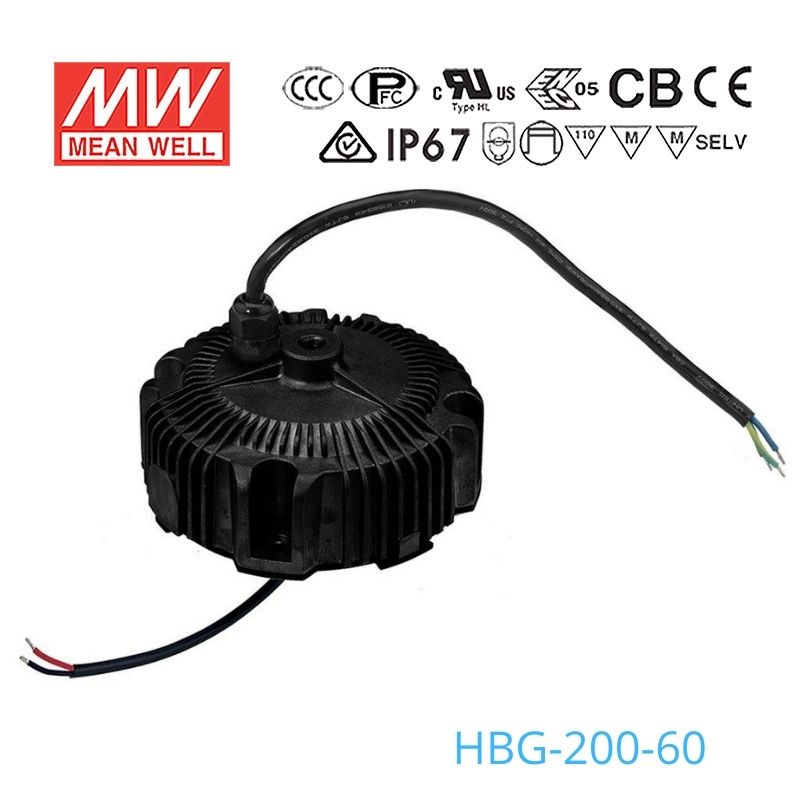

Mean Well HBG-200-60 Constant Voltage + Constant Current LED Driver

Name: Mean Well HBG-200-60 Power Supply 200W 60V 3.3A
Brand: Mean Well
SKU: HBG-200-60
Price: 64.33 USD
Availability: InStock

Overview

HBG-200-60 is the 60V output model of this series: rated current 3.3A, rated power 198W, typical efficiency 93.5%. Type Blank: Io fixed (IP67).

HBG-200 series is a 200W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 36Vand 60V. Thanks to the high efficiency up to 93.5%,with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-200-60Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 3.3A
RATED POWER: 198W
RIPPLE & NOISE (max.)^Note.3: 350mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms,200ms /115VAC 500ms,200ms /230VAC
HOLD UP TIME (Typ.): 12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.): 93.5%
AC CURRENT (Typ.): 1.9A / 115VAC 1A / 230VAC 0.9A / 277VAC
INRUSH CURRENT (Typ.): COLD START 85A(twidth=600μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95~108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode or constant current limiting, recovers automatically after fault condition is removed
OVER VOLTAGE: 65 ~ 75V Shut down o/p voltage with auto-recovery or re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12,ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213; EAC TP TC 004,IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3; GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV,Line-Line:2KV),EAC TP TC 020

OTHERS

MTBF: 2042.7K hrs min. Telcordia SR-332 (Bellcore) ;207.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: Refer to mechanical specification
PACKING: 1.53Kg; 8pcs/13.8Kg/1.61CUFT

MODEL ENCODING

Blank (this model): Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (0~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
8. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
9. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
10. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
11. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-200-60 BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-200-60 ◎ Applying additive resistance — ◎ Applying additive resistance

HBG-200-60 ◎ Applying additive resistance (2) — ◎ Applying additive resistance (2)

HBG-200-60 OUTPUT LOAD vs TEMPERATURE(Note.9) — OUTPUT LOAD vs TEMPERATURE(Note.9)

HBG-200-60 STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-200-60 TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-200-60 MECHANICAL SPECIFICATION ※ Blank-Type — MECHANICAL SPECIFICATION ※ Blank-Type

HBG-200-60 INSTALLATIONS — INSTALLATIONS

Typical applications

LED high/low bay lighting
LED canopy lighting
LED stage lighting
LED spot lighting
Outdoor architectural lighting system
Type “HL” for use in Class Ⅰ, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-200-60 datasheetHBG-200-spec.pdf · 2026-06-15 edition PDF Download

Certificates7

Mean Well HBG-200-160(DA) ENEC Certificate PDF Download

Mean Well HBG-160-200-DA CB Certificate PDF Download

Mean Well HBG-200 EMC Certificate PDF Download

Mean Well HBG-200-160-DA CE-dec Certificate PDF Download

Mean Well HBG-200-160-DA UK-dec Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-200-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the HBG-200-60 for a 60V high bay LED fixture?

Yes, if the fixture is designed for constant current operation in the 36-60V range. This driver provides up to 3.3A and 198W, and the sheet's installation section shows the series mounted in a high bay light.

Is this driver appropriate for 60V industrial or warehouse lighting?

It is appropriate for 60V-class constant current lighting loads that stay within 36-60V and do not exceed 3.3A or 198W. That makes it suitable for larger industrial and warehouse lighting assemblies in that power class.

Can the HBG-200-60 be used for 60V signage or linear lighting?

Yes, for signage or linear lighting systems built around 60V constant current operation. The load must remain inside the 36-60V CC range and under the 3.3A, 198W output limit.

How do I estimate LED strip length for the HBG-200-60?

The driver can supply up to 198W. The math is: maximum strip length = 198W divided by your strip's rated watts per meter, and you should check that the strip runs at 60V and its total current stays within the 3.3A rating.

Can this driver be used outdoors?

Yes, the HBG-200-60 has an IP67 waterproof rating, so it is suited to outdoor and wet-location lighting systems. Its case temperature (Tcase) range is -40°C to +85°C.

How does the HBG-200-60 compare with other 60V HBG options?

This sheet covers the HBG-200 series only, so other HBG wattages are not listed here. Within HBG-200, all 60V versions (60, 60A, 60AB, 60B, 60DA) are 198W at 3.3A with a 36-60V constant current region; A/AB add a built-in current-adjust potentiometer, B/AB add 3-in-1 dimming and DA adds DALI.
