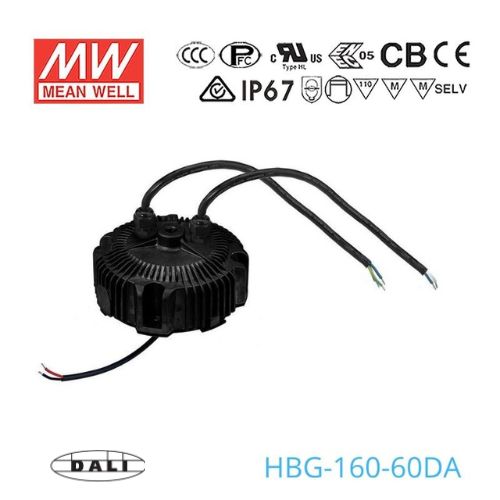

Mean Well HBG-160-60DA Power Supply 160W 60V - DALI | Constant Voltage + Constant Current LED Driver

Name: Mean Well HBG-160-60DA Power Supply 160W 60V - DALI 2.6A
Brand: Mean Well
SKU: HBG-160-60DA
Price: 74.65 USD
Availability: InStock

Overview

HBG-160-60DA is the 60V output model of this series: rated current 2.6A, rated power 156W, typical efficiency 93.5%. Type DA: DALI control technology (IP67).

HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Function options: DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-160-60DASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 2.6A
RATED POWER: 156W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.7: 93.5%
AC CURRENT (Typ.): 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 65 ~ 75V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved
DALI STANDARDS: Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ151.68mm *66.5mm (D * H)
PACKING: 1.53Kg; 8pcs/13.8Kg/1.37CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA (this model): DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
7. The DA type power supply is less efficient than the typical efficiency in specification by 1%.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-160-60DA BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160-60DA Illustration (page 5) — Illustration (page 5)

HBG-160-60DA OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HBG-160-60DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160-60DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160-60DA LIFETIME(Kh) — LIFETIME(Kh)

HBG-160-60DA MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-160-60DA INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-160-60DA datasheetHBG-160-spec.pdf · 2026-06-15 edition PDF Download

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-60)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the Mean Well HBG-160-60DA for a 60V constant-current LED high bay light?

Yes, this model can drive constant-current LED loads and provides 2.6A with a 36-60V constant-current range. Its circular shape and 156W rating make it suitable for high bay or low bay light fixtures that match those electrical requirements.

Is the HBG-160-60DA suitable for outdoor LED signage or wet-location lighting?

It is suitable for outdoor or wet-location use where an IP67 waterproof driver is required. The case temperature (Tcase) range is -40°C to +85°C, so it can be used in demanding environmental conditions if the fixture itself is rated appropriately.

Can this driver be used for a 60V LED lighting application with DALI control?

Yes, the HBG-160-60DA is a 60V LED driver with DALI in the model designation, and it operates in constant-current mode at 2.6A. It should only be paired with LED lighting products whose electrical requirements fall within the 36-60V constant-current range and 156W maximum power.

Can I use the HBG-160-60DA for long runs of 60V LED strip lighting?

It can be used for 60V LED strip applications if the strip is a 60V product within 2.6A, since this is a constant voltage + constant current driver. For sizing, use the 156W maximum power and divide by your strip rated power per meter; for example, maximum length = 156W / strip watts per meter, and you should check your strip rated power per meter before selecting run length.

Is the Mean Well HBG-160-60DA okay for hot, cold, or exposed environments?

This driver is built for demanding conditions with an IP67 waterproof rating and a case temperature (Tcase) range of -40°C to +85°C, with output derating at higher temperatures. It weighs 1.53 kg, which is worth allowing for when planning the fixture mounting.

What is the difference between the HBG-160-24DA, HBG-160-36DA, HBG-160-48DA, and HBG-160-60DA?

These HBG-160 DA models mainly differ by output voltage and output current while staying in the same power class. HBG-160-24DA is 156W at 24V and 6.5A with a 14.4-24V constant-current range, HBG-160-36DA is 158.4W at 36V and 4.4A with a 21.6-36V range, HBG-160-48DA is 158.4W at 48V and 3.3A with a 28.8-48V range, and HBG-160-60DA is 156W at 60V and 2.6A with a 36-60V range.
