Mean Well HBG-160-60B Power Supply 160W 60V - Dimmable | Constant Voltage + Constant Current LED Driver

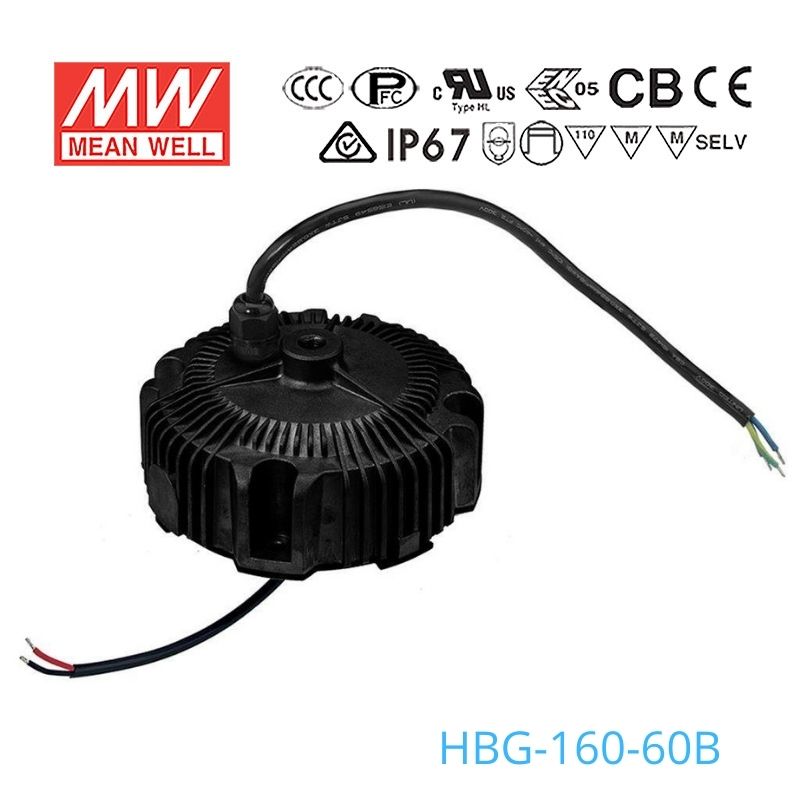

Name: Mean Well HBG-160-60B Power Supply 160W 60V - Dimmable 2.6A
Brand: Mean Well
SKU: HBG-160-60B
Price: 69.23 USD
Availability: InStock

Overview

HBG-160-60B is the 60V output model of this series: rated current 2.6A, rated power 156W, typical efficiency 93.5%. Type B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance) (IP67).

HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Function options: 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-160-60BSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 60V
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
RATED CURRENT: 2.6A
RATED POWER: 156W
RIPPLE & NOISE (max.)^Note.3: 300mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.7: 93.5%
AC CURRENT (Typ.): 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 65 ~ 75V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ151.68mm *66.5mm (D * H)
PACKING: 1.53Kg; 8pcs/13.8Kg/1.37CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B (this model): 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes11

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-160-60B BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160-60B DIMMING OPERATION — DIMMING OPERATION

HBG-160-60B Illustration (page 5) — Illustration (page 5)

HBG-160-60B OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HBG-160-60B STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160-60B TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160-60B MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-160-60B INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-160-60B datasheetHBG-160-spec.pdf · 2026-06-15 edition PDF Download

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-60)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the Mean Well HBG-160-60B for a high bay LED light?

Yes, this model is intended for high and low bay lighting and has a circular shape that fits that style of fixture. It delivers 156W in constant current mode with a 36-60V CC range and 2.6A output, so the LED load must match that operating range.

Can this power supply be used for outdoor or wet-location LED lighting?

Yes, the HBG-160-60B is rated IP67 waterproof, so it is suited to outdoor or wet-location lighting environments where that protection level is required. It is specified for a case temperature (Tcase) of -40°C to +85°C, and the load still needs to be a 60V or 36-60V constant current LED system within 156W.

Can I use the HBG-160-60B for LED signage or sign lighting?

It can work for LED signage if the sign uses a 60V LED load or a constant current LED load that operates within 36-60V. The driver provides up to 156W at 2.6A and has an IP67 rating, which makes it suitable for signage exposed to dust or water.

Can I use this driver with a 60V LED strip?

Yes, if the strip is a 60V product: this is a constant voltage + constant current LED driver, so it can supply a 60V constant voltage strip or a constant current LED load within its 36-60V range. The maximum load is 156W, so the strip's total rated power must stay within 156W.

How much LED strip can the HBG-160-60B run?

Use the formula: maximum strip length = 156W / your strip's rated power per meter. Check your strip rated power per meter, and also confirm the strip is designed for 60V (or 36-60V constant current) operation before sizing the run.
