Mean Well

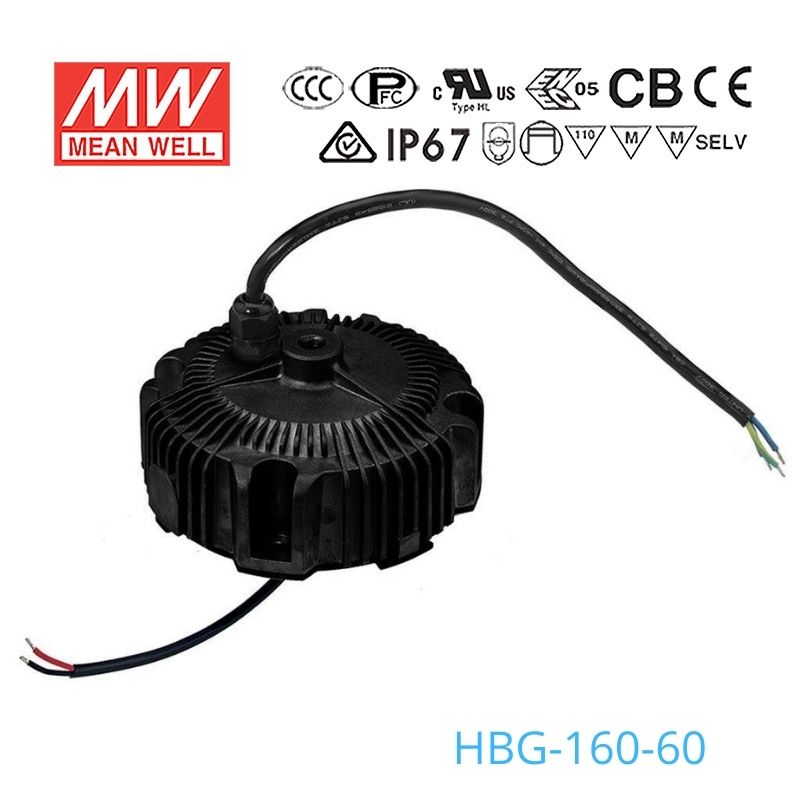

Mean Well HBG-160-60 Power Supply 160W 60V 2.6A

circular shapefor high/low bay lightmetal case for 100W+
SKU HBG-160-60
$58.05 USD
Shipping calculated at checkout.

Select model — 26 in this family

HBG-160-60
In stock
|

Overview

HBG-160-60 is the 60V output model of this series: rated current 2.6A, rated power 156W, typical efficiency 93.5%. Type Blank: Io fixed (IP67).

HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit indoor and outdoor applications.

Features

  • Constant Voltage + Constant Current mode output
  • Circular metal housing with classⅠdesign
  • Built-in active PFC function
  • IP67 rating for indoor or outdoor installations
  • Typical lifetime>50000 hours
  • 5 years warranty

Specifications

HBG-160-60Specifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE
60V
CONSTANT CURRENT REGIONNote.2
36 ~ 60V
RATED CURRENT
2.6A
RATED POWER
156W
RIPPLE & NOISE (max.)Note.3
300mVp-p
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATION
±0.5%
LOAD REGULATION
±1.0%
SETUP, RISE TIMENote.6
2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.)
12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGENote.5
90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR
PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION
THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)Note.7
93.5%
AC CURRENT (Typ.)
1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.)
COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER
4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT
<0.75mA / 277VAC

PROTECTION

OVER CURRENT
95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT
Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
65 ~ 75V
OVER TEMPERATURE
Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.
Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.
Tcase=+85℃
WORKING HUMIDITY
20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT
±0.03%/℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP67 approved
WITHSTAND VOLTAGE
I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY
Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF
2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
ψ151.68mm *66.5mm (D * H)
PACKING
1.53Kg; 8pcs/13.8Kg/1.37CUFT

Certifications & ratings

Type
Type HL

MODEL ENCODING

Blank (this model)
Io fixed; IP67
A
Io adjustable through built-in potentiometer; IP65
B
3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB
Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA
DALI control technology; IP67
Test conditions and notes11
  1. 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
  2. 2. Please refer to "DRIVING METHODS OF LED MODULE".
  3. 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
  4. 4. Tolerance : includes set up tolerance, line regulation and load regulation.
  5. 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
  6. 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
  7. 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
  8. 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
  9. 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
  10. 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  11. 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-160-60 BLOCK DIAGRAM
BLOCK DIAGRAM
HBG-160-60 Illustration (page 5)
Illustration (page 5)
HBG-160-60 OUTPUT LOAD vs TEMPERATURE(Note.10)
OUTPUT LOAD vs TEMPERATURE(Note.10)
HBG-160-60 STATIC CHARACTERISTIC
STATIC CHARACTERISTIC
HBG-160-60 TOTAL HARMONIC DISTORTION
TOTAL HARMONIC DISTORTION
HBG-160-60 LIFETIME(Kh)
LIFETIME(Kh)

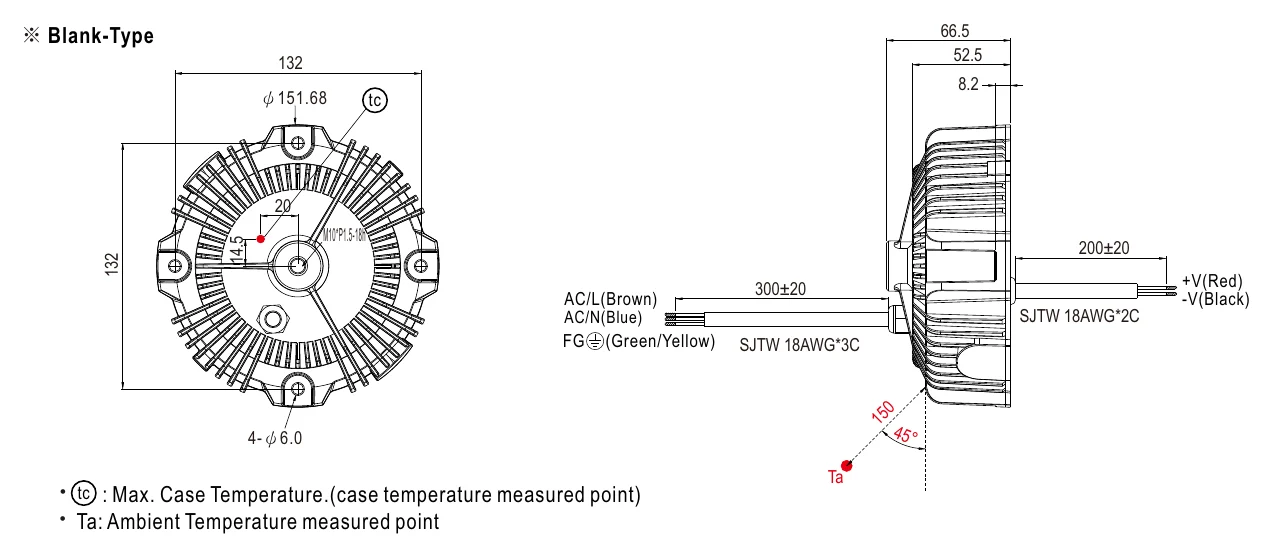

HBG-160-60 MECHANICAL SPECIFICATION ※ Blank-Type
MECHANICAL SPECIFICATION ※ Blank-Type
HBG-160-60 INSTALLATIONS
INSTALLATIONS

Typical applications

  • LED bay lighting
  • LED stage lighting
  • LED spot lighting
  • Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

FAQ

Can I use the HBG-160-60 for a 60V high bay LED fixture?

Yes, this model is intended for high/low bay light use and delivers constant voltage + constant current output with a 36-60V CC range. It provides up to 156W at 2.6A, which suits larger 60V-class LED fixtures.

Is the HBG-160-60 suitable for outdoor 60V architectural lighting?

It can be used for outdoor architectural lighting fixtures that require a 60V driver and do not exceed 156W. The IP67 waterproof rating and -40°C to +85°C case temperature (Tcase) range support exposed and demanding environments.

Can this driver power a 60V LED sign or display lighting system?

It can, provided the lighting system is designed for constant current operation within the 36-60V range and 2.6A output. With 156W available, it is aimed at larger sign or display lighting loads rather than small low-power modules.

How much 60V LED strip can the HBG-160-60 support?

The maximum available power is 156W, so estimated strip length is 156W divided by your strip wattage per meter. The math is 156W / watts per meter = maximum meters. Check your strip rated power per meter and make sure the strip is a 60V product that suits this constant voltage + constant current driver.

Is the HBG-160-60 good for wet or fully exposed outdoor locations?

Yes, this version is rated IP67 waterproof, so it is intended for harsher outdoor and wet-location use than an IP65 water-resistant unit. It is specified for a case temperature (Tcase) of -40°C to +85°C, with output derating at higher temperatures.

What changes when you move from HBG-160-48 to HBG-160-60?

The HBG-160-48 versions are 158.4W with a 28.8-48V CC range at 3.3A, while the HBG-160-60 versions are 156W with a 36-60V CC range at 2.6A. The HBG-160-60 is the higher-voltage option in the same 160W family.
