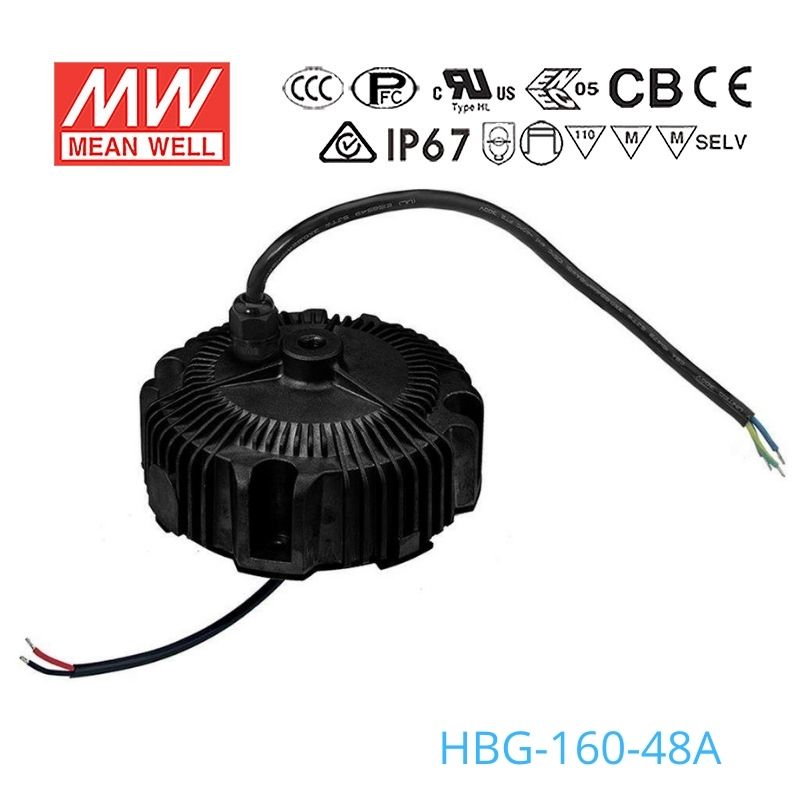

Mean Well HBG-160-48A Power Supply 160W 48V - Adjustable 3.3A
Overview
HBG-160-48A is the 48V output model of this series: rated current 3.3A, rated power 158.4W, typical efficiency 93%.
HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67/IP65 ingress protection level allows this series to fit indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.
Features
- Constant Voltage + Constant Current mode output
- Circular metal housing with classⅠdesign
- Built-in active PFC function
- IP67 / IP65 rating for indoor or outdoor installations
- Function options: output adjustable via potentiometer; 3 in 1 dimming; DALI
- Typical lifetime>50000 hours
- 5 years warranty
Specifications
OUTPUT
- DC VOLTAGE
- 48V
- CONSTANT CURRENT REGIONNote.2
- 28.8 ~ 48V
- RATED CURRENT
- 3.3A
- RATED POWER
- 158.4W
- RIPPLE & NOISE (max.)Note.3
- 300mVp-p
- CURRENT ADJ. RANGE
- 1.98 ~ 3.3A
- VOLTAGE TOLERANCENote.4
- ±2.0%
- LINE REGULATION
- ±0.5%
- LOAD REGULATION
- ±1.0%
- SETUP, RISE TIMENote.6
- 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
- HOLD UP TIME (Typ.)
- 12ms /115VAC, 230VAC
INPUT
- VOLTAGE RANGENote.5
- 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
- FREQUENCY RANGE
- 47 ~ 63Hz
- POWER FACTOR
- PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
- TOTAL HARMONIC DISTORTION
- THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
- EFFICIENCY (Typ.)Note.7
- 93%
- AC CURRENT (Typ.)
- 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
- INRUSH CURRENT (Typ.)
- COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
- MAX. No. of PSUs on 16A CIRCUIT BREAKER
- 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
- LEAKAGE CURRENT
- <0.75mA / 277VAC
PROTECTION
- OVER CURRENT
- 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
- SHORT CIRCUIT
- Hiccup mode, recovers automatically after fault condition is removed
- OVER VOLTAGE
- 54 ~ 62V
- OVER TEMPERATURE
- Shut down o/p voltage, recovers automatically after temperature goes down
ENVIRONMENT
- WORKING TEMP.
- Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
- MAX. CASE TEMP.
- Tcase=+85℃
- WORKING HUMIDITY
- 20 ~ 95% RH non-condensing
- STORAGE TEMP., HUMIDITY
- -40 ~ +80℃, 10 ~ 95% RH
- TEMP. COEFFICIENT
- ±0.03%/℃ (0 ~ 50℃)
- VIBRATION
- 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY & EMC
- SAFETY STANDARDS
- UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP65 or IP67 approved
- DALI STANDARDS
- Compliance to IEC62386-101, 102, 207 for DA-Type only
- WITHSTAND VOLTAGE
- I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
- ISOLATION RESISTANCE
- I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
- EMC EMISSION
- Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
- EMC IMMUNITY
- Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020
OTHERS
- MTBF
- 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
- DIMENSION
- ψ151.68mm *66.5mm (D * H)
- PACKING
- 1.53Kg; 8pcs/13.8Kg/1.37CUFT
Certifications & ratings
- Type
- Type HL
Test conditions and notes13
- 1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
- 2. Please refer to "DRIVING METHODS OF LED MODULE".
- 3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
- 4. Tolerance : includes set up tolerance, line regulation and load regulation.
- 5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
- 6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
- 7. The DA type power supply is less efficient than the typical efficiency in specification by 1%.
- 8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
- 9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
- 10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
- 11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
- 12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
- 13. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.
Technical drawings
Typical applications
- LED bay lighting
- LED stage lighting
- LED spot lighting
- Type "HL" for use in Class I, Division 2 hazardous (Classified) location.
Downloads
Certificates5
Test reports1
FAQ
Can I use the HBG-160-48A for a 48V high bay LED fixture?
Yes, this constant voltage + constant current driver has a 28.8-48V CC range and 3.3A output, and the sheet shows high bay light installations. Its 158.4W power rating also fits higher-output industrial fixtures that need a 48V-class driver.
Is the HBG-160-48A suitable for 48V LED signage or large channel-letter lighting?
It can be suitable for larger 48V LED signage loads if the sign lighting system runs at 48V or as a constant current load in the 28.8-48V range. The driver can supply up to 158.4W at 3.3A, so it is better matched to higher-power signage assemblies than small sign modules.
Can this driver power a 48V architectural lighting fixture outdoors?
It can be used for outdoor architectural lighting fixtures when the fixture is compatible with this 48V driver and the installation does not require more than IP65 water resistance. The -40°C to +85°C case temperature (Tcase) range also supports demanding conditions, with output derating at higher temperatures.
How much 48V LED strip can the HBG-160-48A support?
The maximum output power is 158.4W, so estimated strip length is 158.4W divided by your strip wattage per meter. For example, the math is 158.4W / watts per meter = maximum meters. Check your strip rated power per meter and confirm the strip is a 48V product that suits this constant voltage + constant current driver.
Is the HBG-160-48A OK for wet or outdoor locations?
This model is rated IP65 water-resistant, so it is suited to outdoor or damp locations where the driver needs protection against dust and water spray. It is not the higher IP67 version, so use it where water exposure is controlled rather than where full waterproof protection is needed.
What is the difference between the HBG-160 24V, 36V, 48V, and 60V versions?
In the HBG-160 series, the 24V versions are 156W with a 14.4-24V CC range at 6.5A, the 36V versions are 158.4W with a 21.6-36V CC range at 4.4A, the 48V versions are 158.4W with a 28.8-48V CC range at 3.3A, and the 60V versions are 156W with a 36-60V CC range at 2.6A. The HBG-160-48A is the adjustable 48V model in that group.
