Mean Well HBG-160-24AB Power Supply | Adjustable and Dimmable LED Driver

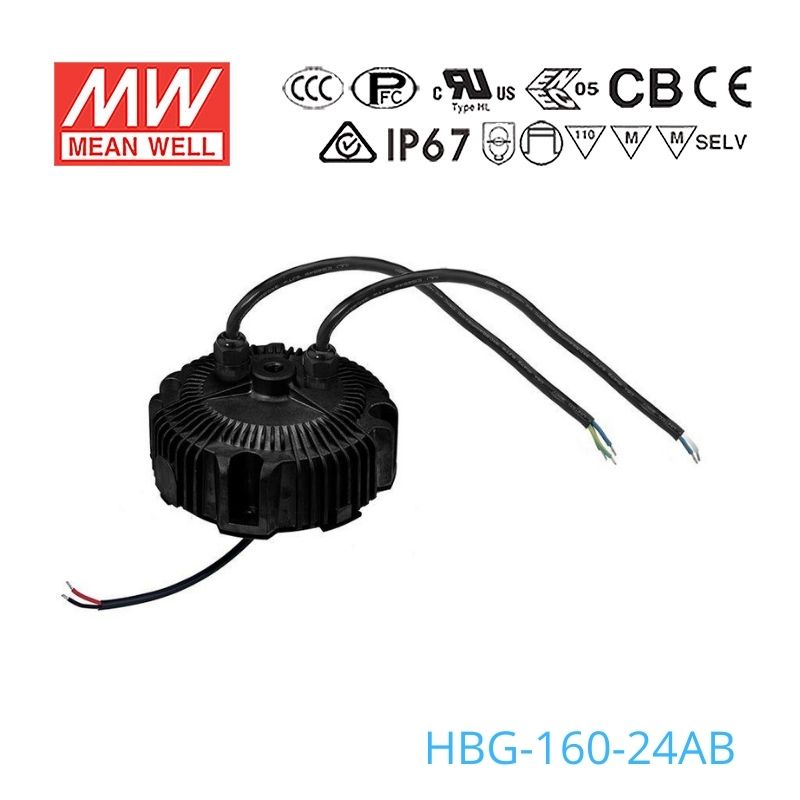

Name: Mean Well HBG-160-24AB Power Supply 160W 24V - Adjustable and Dimmable 6.5A
Brand: Mean Well
SKU: HBG-160-24AB
Price: 70.28 USD
Availability: InStock

Overview

HBG-160-24AB is the 24V output model of this series: rated current 6.5A, rated power 156W, typical efficiency 92%. Type AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function (IP65).

HBG-160 series is a 160W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the dual modes constant voltage and constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 93.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit indoor and outdoor applications. HBG-160 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant Voltage + Constant Current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-160-24ABSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

DC VOLTAGE: 24V
CONSTANT CURRENT REGION^Note.2: 14.4 ~ 24V
RATED CURRENT: 6.5A
RATED POWER: 156W
RIPPLE & NOISE (max.)^Note.3: 200mVp-p
CURRENT ADJ. RANGE: 3.9 ~ 6.5A
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION: ±0.5%
LOAD REGULATION: ±1.0%
SETUP, RISE TIME^Note.6: 2500ms, 200ms / 115VAC 500ms, 200ms / 230VAC
HOLD UP TIME (Typ.): 12ms /115VAC, 230VAC

INPUT

VOLTAGE RANGE^Note.5: 90 ~ 305VAC 127~417VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.98/115VAC, PF>0.95/230VAC, PF>0.92/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to "TOTAL HARMONIC DISTORTION(THD)" section)
EFFICIENCY (Typ.)^Note.7: 92%
AC CURRENT (Typ.): 1.7A / 115VAC 0.78A / 230VAC 0.7A / 277VAC
INRUSH CURRENT (Typ.): COLD START 65A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 7 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting, recovers automatically after fault condition is removed
SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 28 ~ 34V
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to " OUTPUT LOAD vs TEMPERATURE" section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type"HL"),CSA C22.2 No.250.13-12, TUV BS EN/EN61347-1,BS EN/EN61347-2-13; BIS IS15885(for 36A,48A,48B,60A, 60DA only), EAC TP TC 004, GB/T19510.1,GB/T19510.213, IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743, GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2047.8K hrs min. Telcordia SR-332 (Bellcore) ;194.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ151.68mm *66.5mm (D * H)
PACKING: 1.53Kg; 8pcs/13.8Kg/1.37CUFT

Certifications & ratings

Type: Type HL

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes12

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.
4. Tolerance : includes set up tolerance, line regulation and load regulation.
5. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
6. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
8. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
9. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 70℃ or less.
10. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
11. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
12. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
13. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-160-24AB BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-160-24AB DIMMING OPERATION — DIMMING OPERATION

HBG-160-24AB Illustration (page 5) — Illustration (page 5)

HBG-160-24AB OUTPUT LOAD vs TEMPERATURE(Note.10) — OUTPUT LOAD vs TEMPERATURE(Note.10)

HBG-160-24AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-160-24AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-160-24AB LIFETIME(Kh) — LIFETIME(Kh)

HBG-160-24AB MECHANICAL SPECIFICATION ※ Blank-Type — MECHANICAL SPECIFICATION ※ Blank-Type

HBG-160-24AB MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HBG-160-24AB MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-160-24AB INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type "HL" for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-160-24AB datasheetHBG-160-spec.pdf · 2026-06-15 edition PDF Download

Certificates5

UL Certificate (HBG-160)(EN) PDF Download

TUV Certificate(HBG-160)(EN) PDF Download

CB Certificate(HBG-160)(EN) PDF Download

EMC Certificate(HBG-160)(EN) PDF Download

CCC Certificate(HBG-160)(CN) PDF Download

Test reports1

Test Report(HBG-160-24)(EN) PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the Mean Well HBG-160-24AB for 24V LED strip lighting?

Yes, this LED driver is designed for 24V output and can supply up to 156W at 6.5A. For 24V LED strip projects, add up the total strip wattage and keep it within 156W. It is also IP65 water-resistant, so it can fit indoor or outdoor lighting applications where moisture resistance is needed.

Is the HBG-160-24AB a good choice for LED signage or channel letter lighting?

It can be a fit for 24V LED signage systems that need up to 156W total load. The 24V output, 6.5A output current, and IP65 water-resistant housing make it suitable for signage environments where dust or water exposure is a concern. Confirm the sign lighting load stays within 156W and matches the 24V requirement.

Can this power supply be used for high bay or low bay LED lighting?

Yes, this model is intended for high and low bay light use and has a circular ψ151.68mm housing. It delivers 156W at 24V and operates in constant voltage or constant current mode with a 14.4-24V CC voltage range. Make sure the fixture is designed for a 24V driver within that operating range.

How much 24V LED strip can I run from the HBG-160-24AB?

This driver provides up to 156W, so the maximum supported strip length depends on your strip's rated power per meter. The sizing math is: 156W divided by your strip watts per meter equals the maximum meters. Check your strip rated power per meter and keep the total load at or below 156W.

Is the Mean Well HBG-160-24AB suitable for outdoor or wet locations?

It is IP65 water-resistant, which makes it suitable for environments where water spray and dust resistance are important. Its case temperature (Tcase) range is -40°C to +85°C, so it is built for demanding conditions. Final suitability depends on the overall enclosure and whether your application requires more than IP65 water resistance.

What is the difference between the HBG-160-24AB and other HBG-160 series models?

Within the HBG-160 family, the 24V versions are rated at 156W with a 14.4-24V constant current range, the 36V versions are rated at 158.4W with a 21.6-36V range, the 48V versions are rated at 158.4W with a 28.8-48V range, and the 60V versions are rated at 156W with a 36-60V range. The HBG-160-24AB is the 24V AB version in that series. Model selection should be based on the output voltage and constant current range your fixture requires.
