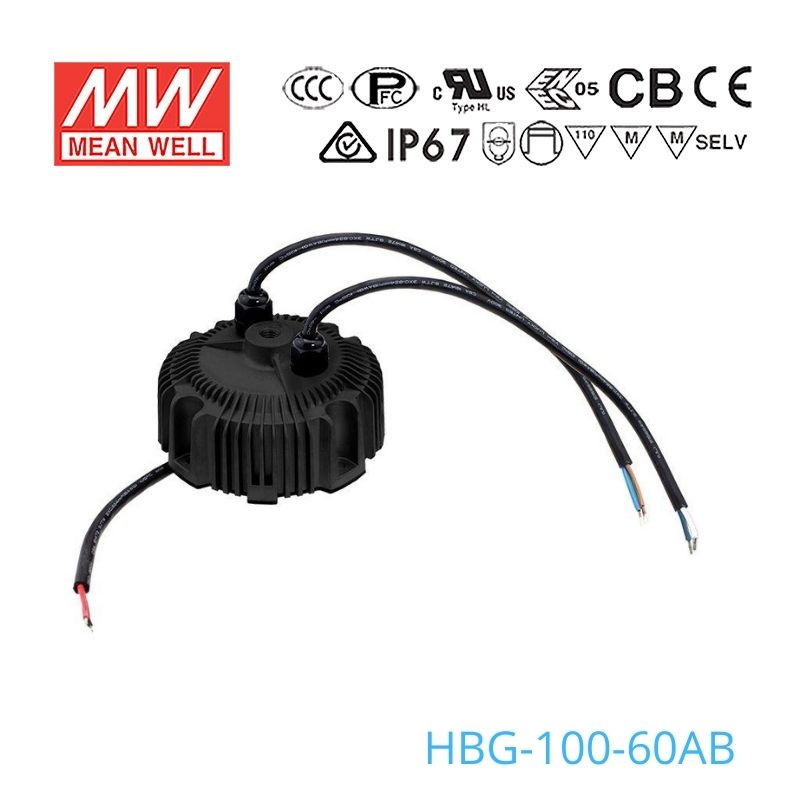

Mean Well HBG-100-60AB Power Supply | 100W 60V - Adjustable & Dimmable | Constant Current LED Driver

Name: Mean Well HBG-100-60AB Power Supply 100W 60V - Adjustable and Dimmable
Brand: Mean Well
SKU: HBG-100-60AB
Price: 54.54 USD
Availability: InStock

Overview

HBG-100-60AB is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%. Type AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function (IP65).

HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer; 3 in 1 dimming
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100-60ABSpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 1.6A
RATED POWER: 96W
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
OPEN CIRCUIT VOLTAGE(max.): 62V
CURRENT ADJ. RANGE: Adjustable for AB-Type (via built-in potentiometer) 1.0 ~ 1.6A
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.5: 91.5%
AC CURRENT (Typ.): 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting
OVER VOLTAGE: 65 ~ 75V Shut down o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ130mm *66.5mm (D * H)
PACKING: 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB (this model): Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-100-60AB BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100-60AB DIMMING OPERATION — DIMMING OPERATION

HBG-100-60AB Illustration (page 5) — Illustration (page 5)

HBG-100-60AB OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HBG-100-60AB STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100-60AB TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

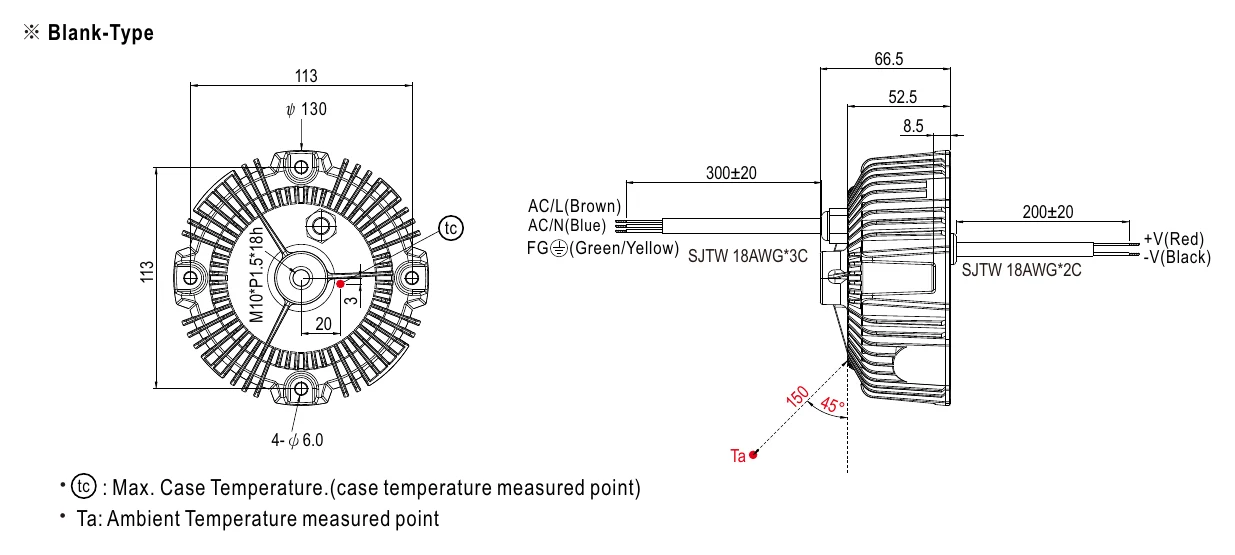

HBG-100-60AB MECHANICAL SPECIFICATION ※ Blank-Type — MECHANICAL SPECIFICATION ※ Blank-Type

HBG-100-60AB MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HBG-100-60AB MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-100-60AB INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-100-60AB datasheetHBG-100-spec.pdf · 2026-06-15 edition PDF Download

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the Mean Well HBG-100-60AB for a high bay LED fixture?

Yes, this model is intended for high and low bay lighting and uses a constant current output for LED loads. It delivers up to 96W with a constant current voltage range of 36-60V, so the fixture's LED array needs to match that range. The HBG-100 series is also IP65 or IP67 approved, which makes it a fit for demanding lighting environments.

Can this LED driver power a 60V-class LED array?

Yes, if the LED array is designed for constant current operation and runs within the 36-60V constant current range. The total load also needs to stay within the 96W rating. It should not be used as a constant voltage power supply for loads that expect fixed-voltage output.

Can I use this driver with LED downlights?

You can use it with LED downlights only if the downlight uses a constant current driver and its LED load falls within the 36-60V constant current range. The driver is rated for 96W, so the downlight load must stay within that limit. If the downlight requires constant voltage instead, this is not the correct type of driver.

Is the HBG-100-60AB suitable for signage modules or small LED arrays?

It can be used for signage modules or small LED arrays when the load is constant current and operates within 36-60V. The number of LEDs depends on each LED's forward voltage, not on a fixed count, and the total load must remain within 96W. Many signage products use constant voltage, so that distinction needs to be confirmed before selecting this driver.

How do I check if my LED load is compatible with this driver?

Start by confirming the LED load is a constant current load, because this unit operates in constant current mode rather than constant voltage mode. The LED load must fall within the 36-60V constant current output range, and the total power must stay within 96W. The number of LEDs depends on each LED's forward voltage, so compatibility is based on the full load voltage rather than a set LED count.

What is the difference between the HBG-100-60AB and other HBG-100 series versions?

Within the HBG-100 family, the main output options are 14.4-24V at 96W for the 24V versions, 21.6-36V at 97.2W for the 36V versions, 28.8-48V at 96W for the 48V versions, and 36-60V at 96W for the 60V versions. The HBG-100-60AB is the 36-60V, 96W version with potentiometer adjustment and 3-in-1 dimming. Other sibling suffixes in the same voltage class include HBG-100-60, HBG-100-60A, HBG-100-60B, and HBG-100-60DA.
