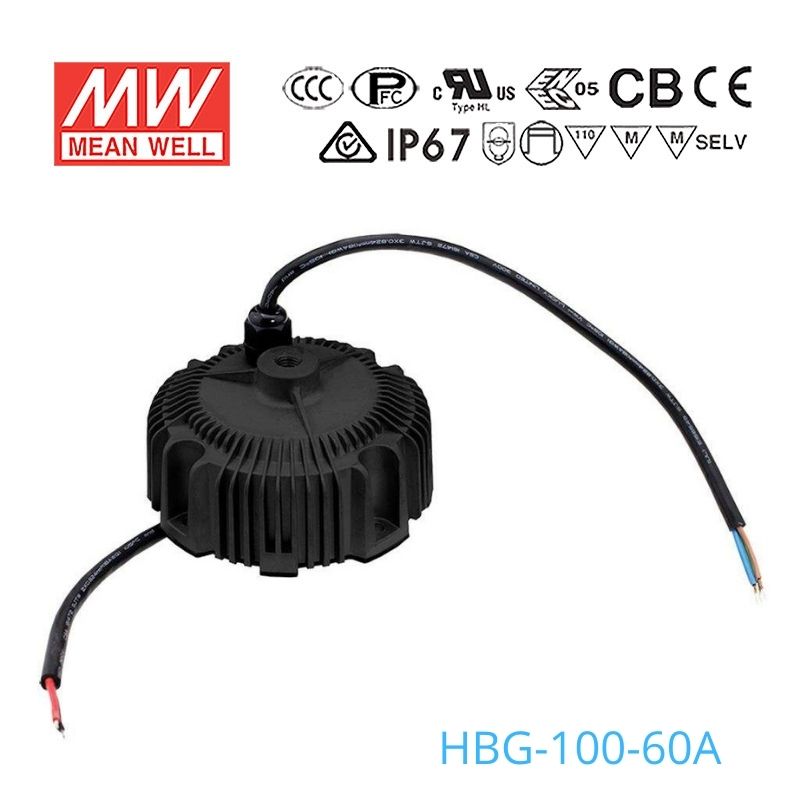

Mean Well HBG-100-60A Power Supply 100W 60V - Adjustable | Constant Current LED Driver

Name: Mean Well HBG-100-60A Power Supply 100W 60V - Adjustable
Brand: Mean Well
SKU: HBG-100-60A
Price: 50.8 USD
Availability: InStock

Overview

HBG-100-60A is the model of this series: rated current 1.6A, rated power 96W, typical efficiency 91.5%. Type A: Io adjustable through built-in potentiometer (IP65).

HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP65 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP65 rating for indoor or outdoor installations
Function options: output adjustable via potentiometer
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100-60ASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 1.6A
RATED POWER: 96W
CONSTANT CURRENT REGION^Note.2: 36 ~ 60V
OPEN CIRCUIT VOLTAGE(max.): 62V
CURRENT ADJ. RANGE: Adjustable for A/AB-Type (via built-in potentiometer) 1.0 ~ 1.6A
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.5: 91.5%
AC CURRENT (Typ.): 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting
OVER VOLTAGE: 65 ~ 75V Shut down o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP65 approved
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ130mm *66.5mm (D * H)
PACKING: 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

MODEL ENCODING

Blank: Io fixed; IP67
A (this model): Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA: DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf
11. For A/AB type need to consider build-in using or filling the Io adjusting hole with the potting compound to comply with Type HL application.

Technical drawings

HBG-100-60A BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100-60A Illustration (page 5) — Illustration (page 5)

HBG-100-60A OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HBG-100-60A STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100-60A TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-100-60A MECHANICAL SPECIFICATION ※ A-Type — MECHANICAL SPECIFICATION ※ A-Type

HBG-100-60A INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-100-60A datasheetHBG-100-spec.pdf · 2026-06-15 edition PDF Download

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-60 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can I use the Mean Well HBG-100-60A for LED downlights that need a constant current driver?

Yes, this model is a constant current LED driver with a 36-60V CC output range and 96W power. It is a better fit for downlights that are designed for constant current operation, not constant voltage power. You still need the downlight's driver requirements to fall within the 36-60V range.

Is the HBG-100-60A suitable for powering LED signage modules?

It can be suitable for signage modules only if the modules are designed for a constant current driver and operate within the 36-60V CC range. This is not a constant voltage power supply, so it should not be matched to signage modules that expect fixed voltage input. Its 96W rating also needs to match the total load.

Can this LED driver run a small LED array?

Yes, it can run a small LED array when the array is built for constant current operation and the total forward voltage stays within 36-60V. The driver is rated for 96W and has a maximum open-circuit voltage of 62V. It is not the right choice for arrays that require constant voltage instead of constant current.

Can I use the HBG-100-60A for high bay or low bay LED lights?

Yes, this model is listed for LED bay lighting and has a circular housing. Its constant current operation and 36-60V CC range need to match the light engine requirements. The 96W rating should also align with the fixture load.

How do I know if my LEDs are compatible with the HBG-100-60A?

The main check is whether your LEDs or LED module require a constant current driver and operate within the 36-60V CC output range. The number of LEDs depends on the forward voltage of each LED, so there is no single LED count that applies to every setup. You should also keep the total load within the 96W rating.

Can the HBG-100-60A be used in wet or harsh environments?

The HBG-100 series is IP65 or IP67 approved, so it is better suited to environments where moisture resistance is needed than a non-rated driver. The operating case temperature (Tcase) range is -40°C to +85°C, which supports demanding conditions. Final suitability still depends on the full enclosure and fixture design.

How does the HBG-100-60A compare with other HBG-100 60V models?

Within the HBG-100 60V group, HBG-100-60, HBG-100-60A, HBG-100-60AB, HBG-100-60B, and HBG-100-60DA are all rated 1.6A, 36-60V, and 96W. They differ by function type: Blank (fixed current), A (current adjustable via built-in potentiometer), AB (potentiometer plus 3-in-1 dimming), B (3-in-1 dimming) and DA (DALI). The series is IP65 or IP67 approved.
