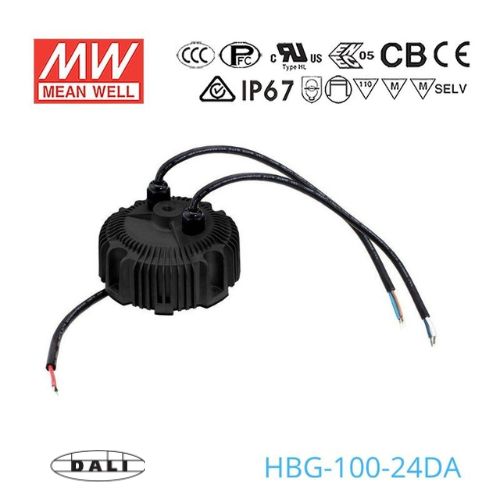

Mean Well HBG-100-24DA Power Supply 100W 24V - DALI

Name: Mean Well HBG-100-24DA Power Supply 100W 24V - DALI
Brand: Mean Well
SKU: HBG-100-24DA
Price: 60.13 USD
Availability: InStock

Overview

HBG-100-24DA is the model of this series: rated current 4A, rated power 96W, typical efficiency 90.5%. Type DA: DALI control technology (IP67).

HBG-100 series is a 100W AC/DC LED driver featuring the circular shape design. It operates from 90~305VAC and offers the constant current output models with different rated voltage between 24V and 60V. Thanks to the high efficiency up to 91.5%, with the fanless design, the entire series is able to operate for -40℃ ~ +85℃ case temperature under free air convection. The design of metal housing and IP67 ingress protection level allows this series to fit both indoor and outdoor applications. HBG-100 is equipped with various function options, such as dimming methodologies, so as to provide the optimal design flexibility for LED lighting system.

Features

Constant current mode output
Circular metal housing with classⅠdesign
Built-in active PFC function
IP67 rating for indoor or outdoor installations
Function options: DALI
Typical lifetime>50000 hours
5 years warranty

Specifications

HBG-100-24DASpecifications from the official datasheet (2026-06-15 edition)

OUTPUT

RATED CURRENT: 4A
RATED POWER: 96W
CONSTANT CURRENT REGION^Note.2: 14.4 ~ 24V
OPEN CIRCUIT VOLTAGE(max.): 25V
CURRENT RIPPLE: 5.0% max. @rated current
CURRENT TOLERANCE: ±5.0%
SETUP TIME^Note.4: 2000ms / 115VAC 500ms / 230VAC

INPUT

VOLTAGE RANGE^Note.3: 90 ~ 305VAC 127 ~ 431VDC (Please refer to "STATIC CHARACTERISTIC" section)
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR: PF>0.96/115VAC, PF>0.96/230VAC, PF>0.94/277VAC@full load (Please refer to "POWER FACTOR (PF) CHARACTERISTIC" section)
TOTAL HARMONIC DISTORTION: THD< 20%(@load≧60%/115VC,230VAC; @load≧75%/277VAC) (Please refer to “TOTAL HARMONIC DISTORTION(THD)” section)
EFFICIENCY (Typ.)^Note.5: 90.5%
AC CURRENT (Typ.): 1.1A / 115VAC 0.5A / 230VAC 0.45A / 277VAC
INRUSH CURRENT (Typ.): COLD START 60A(twidth=550μs measured at 50% Ipeak) at 230VAC; Per NEMA 410
MAX. No. of PSUs on 16A CIRCUIT BREAKER: 4 units (circuit breaker of type B) / 8 units (circuit breaker of type C) at 230VAC
LEAKAGE CURRENT: <0.75mA / 277VAC

PROTECTION

OVER CURRENT: 95 ~ 108% Constant current limiting
OVER VOLTAGE: 28 ~ 35V Shut down o/p voltage re-power on to recovery
OVER TEMPERATURE: Shut down o/p voltage re-power on to recovery

ENVIRONMENT

WORKING TEMP.: Tcase=-40 ~ +85℃ (Please refer to “ OUTPUT LOAD vs TEMPERATURE” section)
MAX. CASE TEMP.: Tcase=+85℃
WORKING HUMIDITY: 20 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +80℃, 10 ~ 95% RH
TEMP. COEFFICIENT: ±0.03%/℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: UL8750(type”HL”),CSA C22.2 No.250.13-12, ENEC BS EN/EN61347-1,BS EN/EN61347-2-13 independent, BS EN/EN62384; GB/T19510.1,GB/T19510.213, BIS IS15885(for 36A,48A,60A only), EAC TP TC 004,IP67 approved
DALI STANDARDS: Compliance to IEC62386-101, 102, 207 for DA-Type only
WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Compliance to BS EN/EN55015, BS EN/EN61000-3-2 Class C (@load≧60%) ; BS EN/EN61000-3-3, GB/T 17743 ,GB17625.1, EAC TP TC 020
EMC IMMUNITY: Compliance to BS EN/EN61000-4-2,3,4,5,6,8,11, BS EN/EN61547,light industry level (surge immunity:Line-Earth:4KV, Line-Line:2KV), EAC TP TC 020

OTHERS

MTBF: 2433.4K hrs min. Telcordia SR-332 (Bellcore) ;299.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: ψ130mm *66.5mm (D * H)
PACKING: 1.18Kg; 12pcs/15.7Kg/1.43CUFT(Blank/A/B Type),1.89CUFT(E Type)

MODEL ENCODING

Blank: Io fixed; IP67
A: Io adjustable through built-in potentiometer; IP65
B: 3 in 1 dimming function (1~10Vdc, 10V PWM signal and resistance); IP67
AB: Io adjustable through built-in potentiometer with 3 in 1 dimming function; IP65
DA (this model): DALI control technology; IP67

Test conditions and notes10

1. All parameters NOT specially mentioned are measured at 230VAC input, rated current and 25℃ of ambient temperature.
2. Please refer to "DRIVING METHODS OF LED MODULE".
3. De-rating may be needed under low input voltages. Please refer to “STATIC CHARACTERISTIC” sections for details.
4. Length of set up time is measured at cold first start. Turning ON/OFF the driver may lead to increase of the set up time.
5. The DA type power supply is less efficient than the typical efficiency in specification by 1%.
6. The driver is considered as a component that will be operated in combination with final equipment. Since EMC performance will be affected by the complete installation, the final equipment manufacturers must re-qualify EMC Directive on the complete installation again. (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf)
7. This series meets the typical life expectancy of >50,000 hours of operation when Tcase, particularly tc point (or TMP, per DLC), is about 75℃ or less.
8. Please refer to the warranty statement on MEAN WELL's website at http://www.meanwell.com
9. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
10. For any application note and IP water proof function installation caution, please refer our user manual before using. https://www.meanwell.com/Upload/PDF/LED_EN.pdf

Technical drawings

HBG-100-24DA BLOCK DIAGRAM — BLOCK DIAGRAM

HBG-100-24DA Illustration (page 5) — Illustration (page 5)

HBG-100-24DA OUTPUT LOAD vs TEMPERATURE(Note.8) — OUTPUT LOAD vs TEMPERATURE(Note.8)

HBG-100-24DA STATIC CHARACTERISTIC — STATIC CHARACTERISTIC

HBG-100-24DA TOTAL HARMONIC DISTORTION — TOTAL HARMONIC DISTORTION

HBG-100-24DA MECHANICAL SPECIFICATION ※ B/DA-Type — MECHANICAL SPECIFICATION ※ B/DA-Type

HBG-100-24DA INSTALLATIONS — INSTALLATIONS

Typical applications

LED bay lighting
LED stage lighting
LED spot lighting
Type “HL” for use in Class I, Division 2 hazardous (Classified) location.

Downloads

Datasheet1

HBG-100-24DA datasheetHBG-100-spec.pdf · 2026-06-15 edition PDF Download

Certificates9

Mean Well HBG-100-160-60(DA) BIS Certificate PDF Download

Mean Well HBG-100 ENEC Certificate PDF Download

Mean Well HBG-100 CCC Certificate PDF Download

Mean Well HBG-100 CB Certificate PDF Download

Mean Well HBG-100 EMC Certificate PDF Download

Mean Well HBG-100 UK-dec Certificate PDF Download

Mean Well HBG-100 CE-DEC Certificate PDF Download

Mean Well IDLC Series UL Certificate PDF Download

Mean Well IDLC Series EAC Certificate PDF Download

Test reports1

Mean Well HBG-100-24 Test Report PDF Download

Catalogues2

Mean Well LED Driver Catalog PDF Download

Mean Well Sign Panel Catalog PDF Download

FAQ

Can the HBG-100-24DA be used with a constant current LED downlight engine?

Yes, if the LED downlight is designed for constant current operation and its load falls within the 14.4-24V CC range. This is not a constant voltage 24V supply, so it should not be selected for LED products that require fixed-voltage output.

Is this a good driver for a compact signage light engine?

It can be, provided the signage light engine is a constant current LED load within the 14.4-24V range and under 96W. For common constant voltage signage modules, a constant voltage supply would be the correct type instead.

Can I use the HBG-100-24DA for a small LED array in a circular high-bay style fixture?

Yes, that is a reasonable fit when the LED array is designed for constant current drive within 14.4-24V and within the 96W limit. Its circular shape and stated high/low bay use make it appropriate for integrated LED fixture assemblies.

Is the HBG-100-24DA suitable for wet or exposed locations?

Yes, the HBG-100 series is IP65 or IP67 approved and this model operates at a case temperature (Tcase) of -40°C to +85°C. That makes it suitable for demanding indoor or outdoor environments where dust and water exposure are concerns.

How should I size the LED load for the HBG-100-24DA?

The LED load must be a constant current load whose total forward voltage stays within the 14.4-24V CC output range. The number of LEDs depends on the forward voltage of each LED, so the correct check is total forward voltage, not a fixed LED quantity.

What are the main electrical differences between the 24V, 36V, 48V, and 60V HBG-100 variants?

The 24V variants, including this model, are 96W with 4A output current and a 14.4-24V CC range. The 36V variants are 97.2W with 2.7A and 21.6-36V, the 48V variants are 96W with 2A and 28.8-48V, and the 60V variants are 96W with 1.6A and 36-60V.
