Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

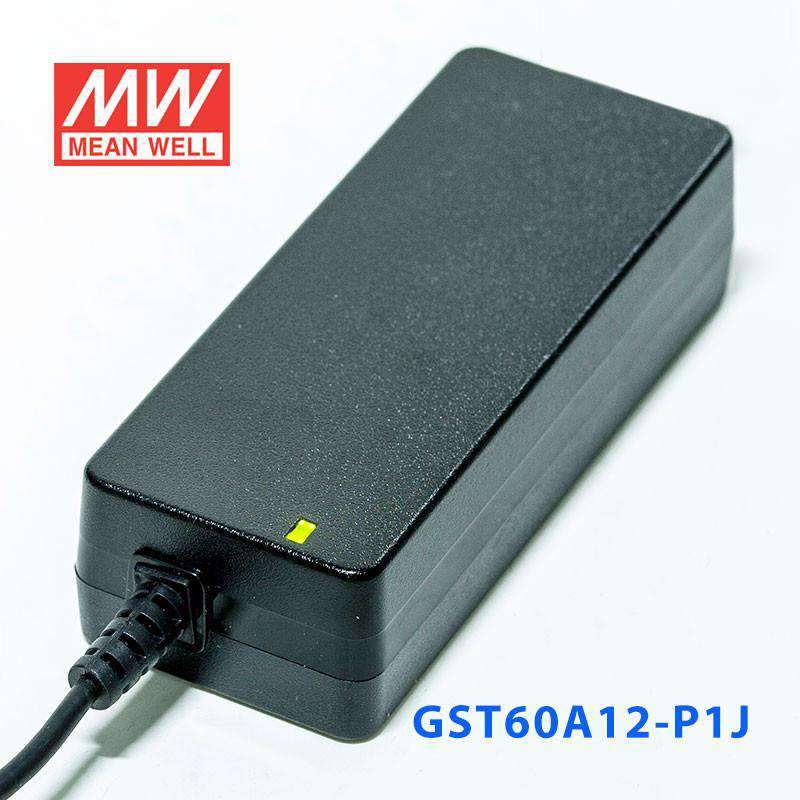

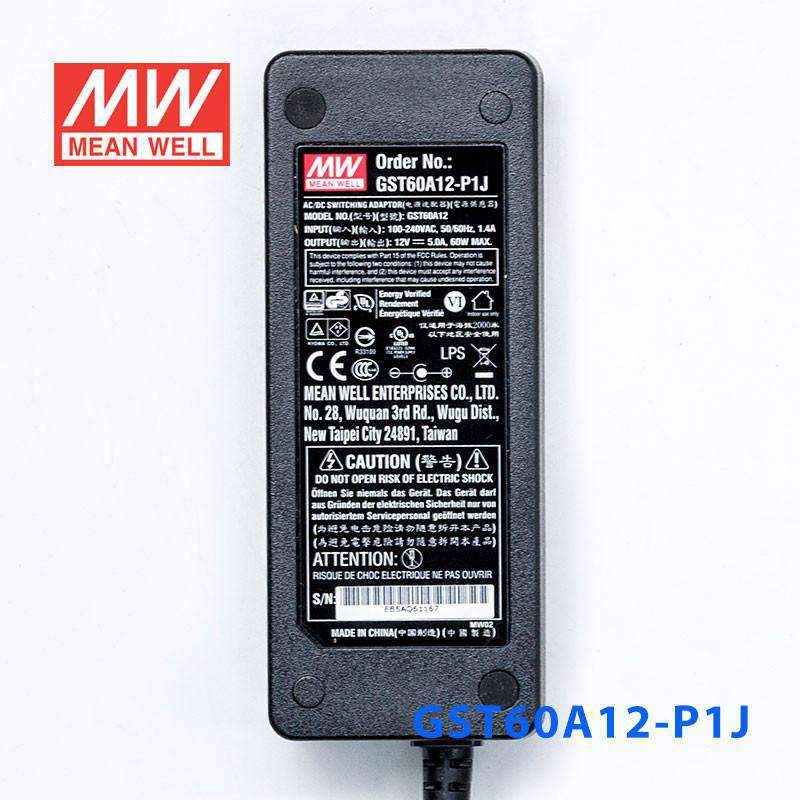

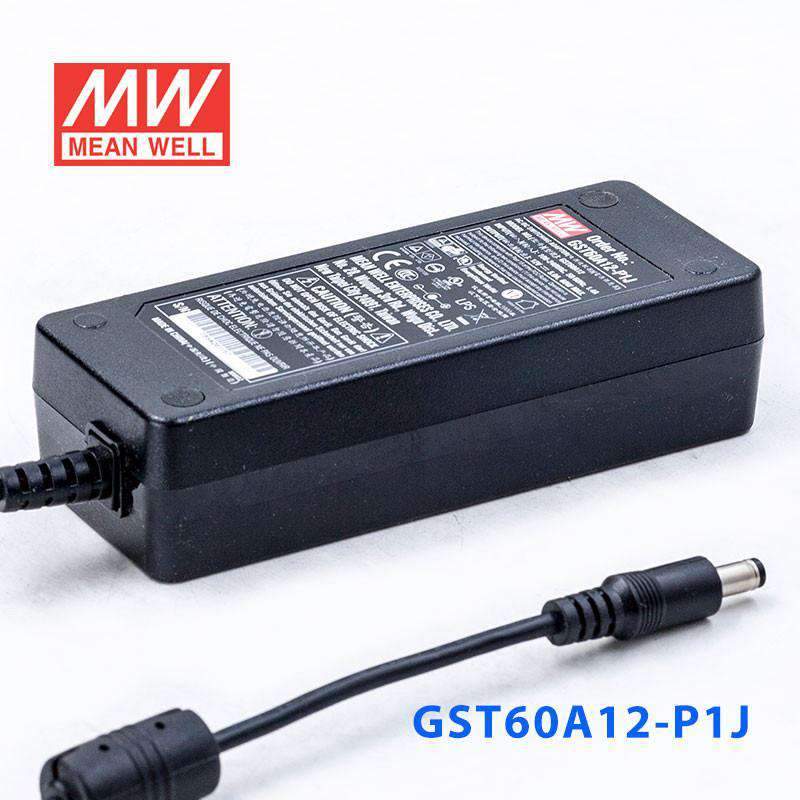

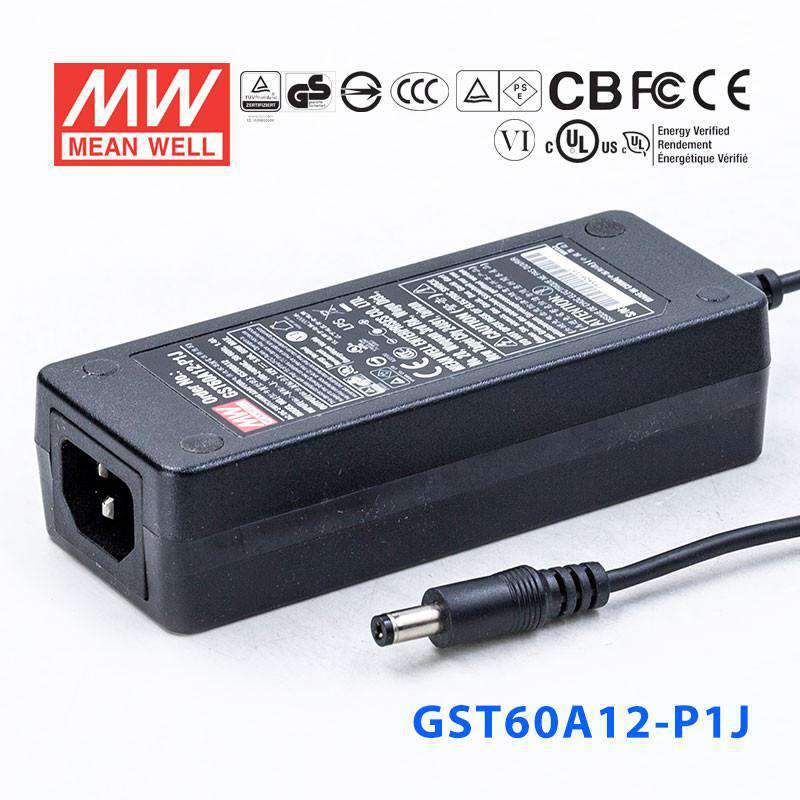

Mean Well GST60A12-P1J Power Supply 60W 12V 5A

SKU GST60A12-P1J
$22.03 USD
Shipping calculated at checkout.

Select model — 14 in this family

GST60A12-P1J
In stock
|

Overview

GST60A12-P1J is the 12V output model of this series: rated current 5A, typical efficiency 89.5%. Type P1J: Standard model,2.1 φ x5.5 φ x11mm,C+,tuning fork type.

GST60A is a highly reliable, 60W desktop style single-output green adaptor series. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 90VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 92% and the extremely low no-load power consumption below 0.075W, GST60A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST60A is certified for the international safety regulations.

Features

  • Global certificates
  • Universal AC input / Full range

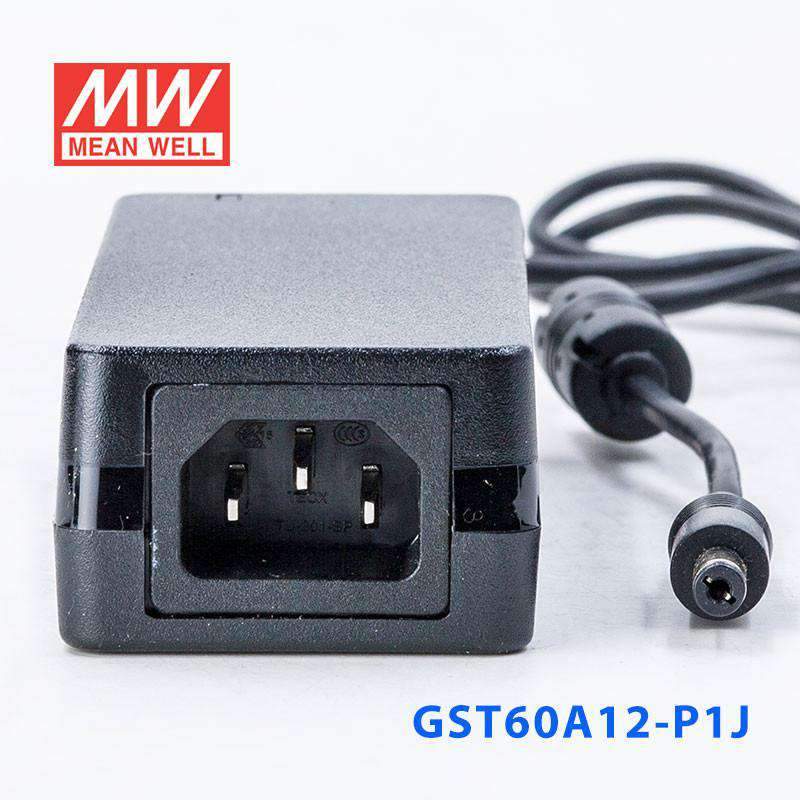

  • 3 pole AC inlet IEC320-C14,ClassⅠpower unit
  • No load power consumption< 0.075W
  • Energy efficiency Level Ⅵ
  • Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fully enclosed plastic case
  • Pass LPS
  • -30~+70℃ wide range working temperature
  • LED indicator for power on
  • Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GST60A12-P1JSpecifications from the official datasheet (2026-04-03 edition)

ORDER NO.

SAFETY MODEL NO.
GST60A12

OUTPUT

DC VOLTAGENote.2
12V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER (max.)
60W
RIPPLE & NOISE (max.)Note.3
120mVp-p
VOLTAGE TOLERANCENote.4
±3.0%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIMENote.6
1000ms, 50ms / 230VAC 1000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.)
50ms / 230VAC 15ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
90 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89.5%
AC CURRENT (Typ.)
1.4A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.)
Cold start 35A / 115AC 65A / 230VAC
LEAKAGE CURRENT(max.)
0.75mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
12.6 ~ 16.2V Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 10)

SAFETY STANDARDSNote. 8
UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS 15598-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 62368.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
ISOLATION RESISTANCE
I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Radiated emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Harmonic currentBS EN/EN61000-3-2,GB9254Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 2, 3V/m
EFT burstsBS EN/EN61000-4-4Level 2, 1KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibilityBS EN/EN61000-4-6Level 2, 3V
Magnetic field immunityBS EN/EN61000-4-8Level 2, 3A/m
Voltage dips , interruptionBS EN/EN61000-4-11＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF
3620.0K hrs min. Telcordia SR-332 (Bellcore) ; 709.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
125*50*31.5mm (L*W*H)
PACKING
0.305Kg; 40pcs/13.02Kg/1.04CUFT

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model)
Standard model,2.1 φ x5.5 φ x11mm,C+,tuning fork type
Blank
Other options available by customer requested (see Page 4~5)
Test conditions and notes9
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST60A12-P1J Derating Curve
Derating Curve
GST60A12-P1J Mechanical Specification
Mechanical Specification
GST60A12-P1J DC output plug
DC output plug
GST60A12-P1J Example quick adapter accessory
Example quick adapter accessory
GST60A12-P1J Pin Assignment
Pin Assignment

Typical applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipments

Downloads

FAQ

Can I use the GST60A12-P1J for a 12V automation controller or industrial accessory?

Yes, if the equipment requires a constant 12V DC input and the total draw stays within 60W and 5A. That makes it relevant for 12V automation controllers, industrial accessories, and other fixed-voltage control devices.

Is this 12V power supply suitable for small IT hardware or network-related devices that run on 12V?

It can be suitable for compact IT or networking equipment that is specified for 12V constant-voltage input. The main electrical limits are 60W maximum output power and 5A maximum output current.

Can the GST60A12-P1J be used for 12V sensors, fans, or low-power control equipment?

It can be used for 12V devices such as sensors, control peripherals, or other DC equipment when the combined requirement stays within 5A and 60W. Because the output mode is constant voltage, it is intended for loads that expect a regulated 12V source.

Does this model support indoor industrial environments with temperature swings?

The operating temperature range is -30°C to +70°C, so the thermal spec covers a wide span for indoor equipment locations. The provided product data does not include an IP rating, so it should not be treated as an outdoor-rated or sealed unit from these specs alone.

How can I tell if my 12V device is compatible with this power supply?

Your equipment should require 12V DC input and remain within the unit's 5A and 60W output limits. If either the voltage requirement or the total current demand is outside those values, this is not the correct match.
