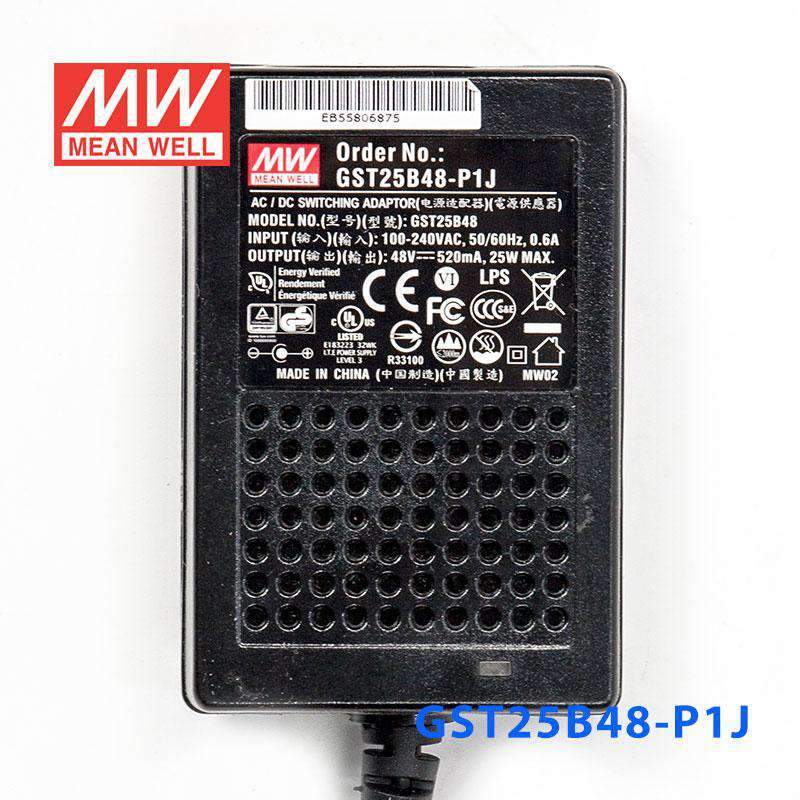

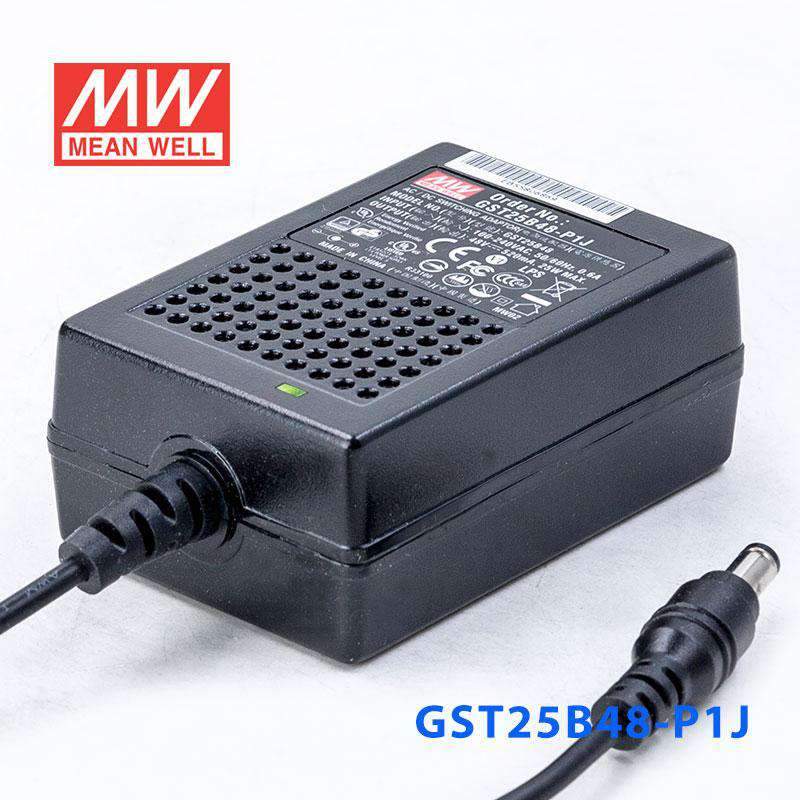

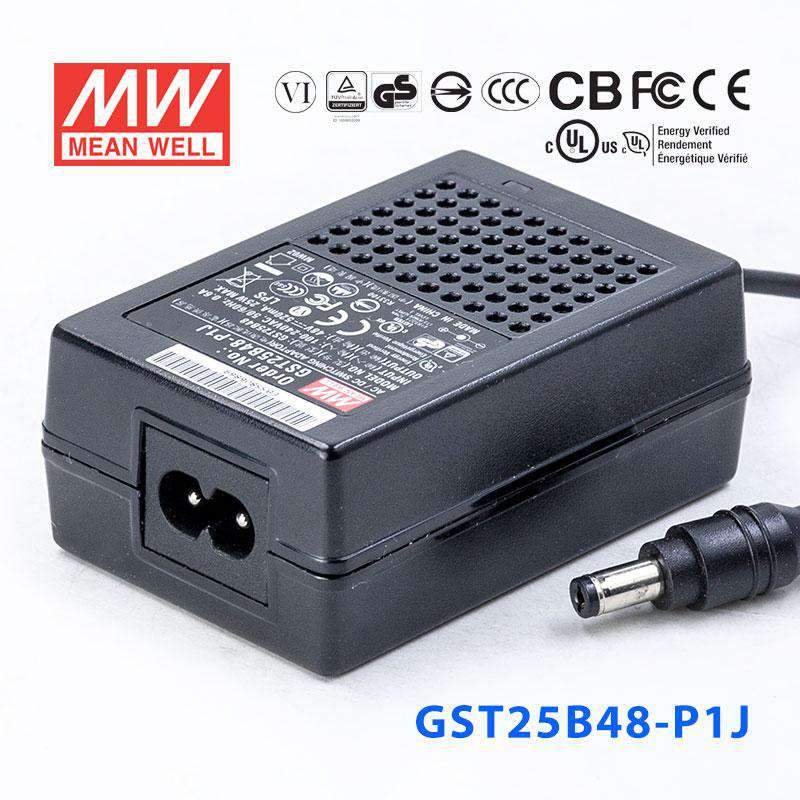

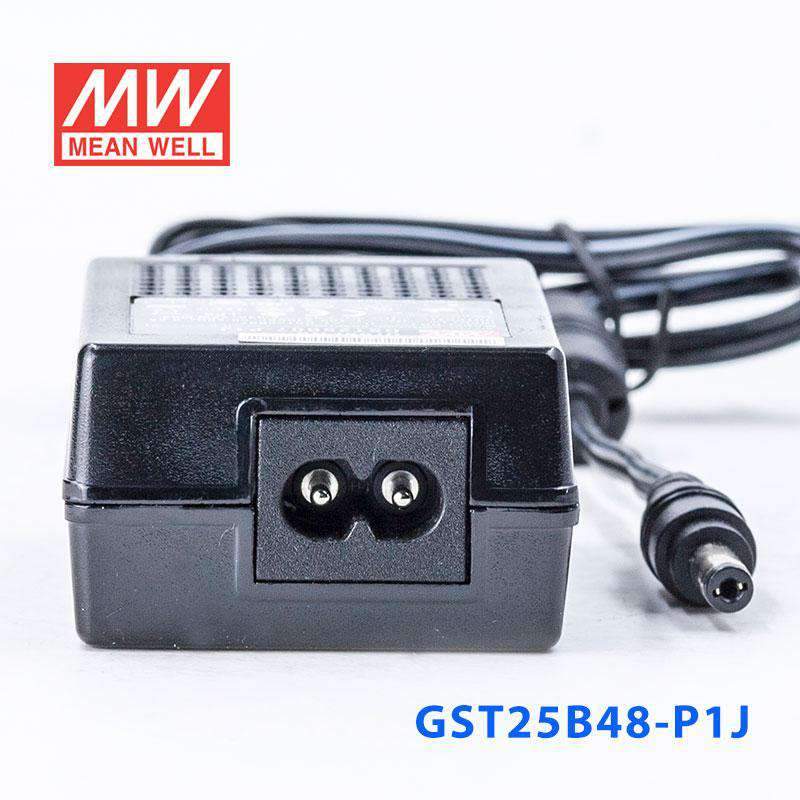

Mean Well GST25B48-P1J Power Supply 25W 48V 520mA

SKU GST25B48-P1J
$18.38 USD
Shipping calculated at checkout.

Select model — 12 in this family

GST25B48-P1J
In stock
|

Overview

GST25B48-P1J is the 48V output model of this series: rated current 0.52A, typical efficiency 89%.

GST25B is a highly reliable, 25W desktop style single-output green adaptor series. This product is a classⅡ power unit (no FG), equipped with a standard IEC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W,GST25B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP,and Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST25B is certified for the international safety regulations.

Features

  • Global certificates
  • Universal AC input / Full range
  • 2 pole AC inlet IEC320-C8,Class Ⅱ power unit
  • No load power consumption< 0.075W
  • Energy efficiency Level Ⅵ
  • Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Pass LPS
  • -30~+70℃ wide range working temperature
  • LED indicator for power on
  • Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GST25B48-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.
GST25B48
DC VOLTAGENote.2
48V
RATED CURRENT
0.52A
CURRENT RANGE
0 ~ 0.52A
RATED POWER (max.)
25W
RIPPLE & NOISE (max.)Note.3
150mVp-p
VOLTAGE TOLERANCENote.4
±2.0%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATIONNote.6
±2.0%
SETUP, RISE, HOLD UP TIME
1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load

INPUT

VOLTAGE RANGENote.7
85 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
89%
AC CURRENT
0.6A / 115VAC 0.35A / 230VAC
INRUSH CURRENT (max.)
Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.)
0.25mA / 240VAC

PROTECTION

OVERLOAD
110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
110 ~ 140% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0 ~ 50℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote. 8
UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1,AS/NZS 62368.1,PSE J62368-1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:4242VDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Radiated emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Harmonic currentBS EN/EN61000-3-2,GB9254Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 2, 3V/m
EFT burstsBS EN/EN61000-4-4Level 2, 1KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityBS EN/EN61000-4-6Level 2, 3V
Magnetic field immunityBS EN/EN61000-4-8Level 2, 3A/m
Voltage dips , interruptionBS EN/EN61000-4-11＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF
3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 674.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
79*54*33mm (L*W*H)
PACKING
191.5g; 60pcs/12.5Kg/1.15CUFT

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested
Test conditions and notes8
  1. 1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4.Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5.Line regulation is measured from low line to high line at rated load.
  6. 6.Load regulation is measured from 10% to 100% rated load.
  7. 7.Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

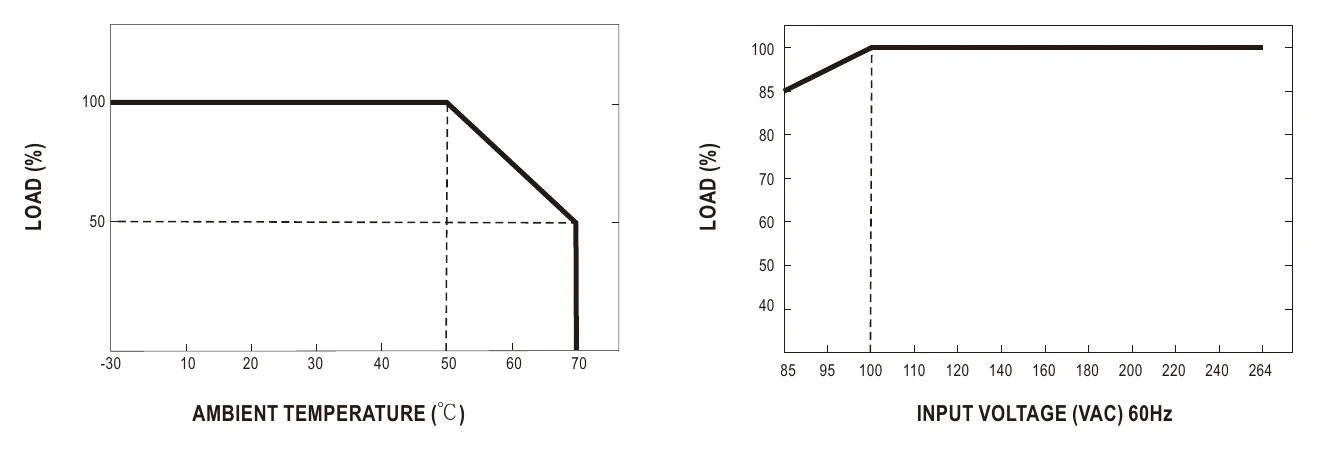

GST25B48-P1J Derating Curve
Derating Curve

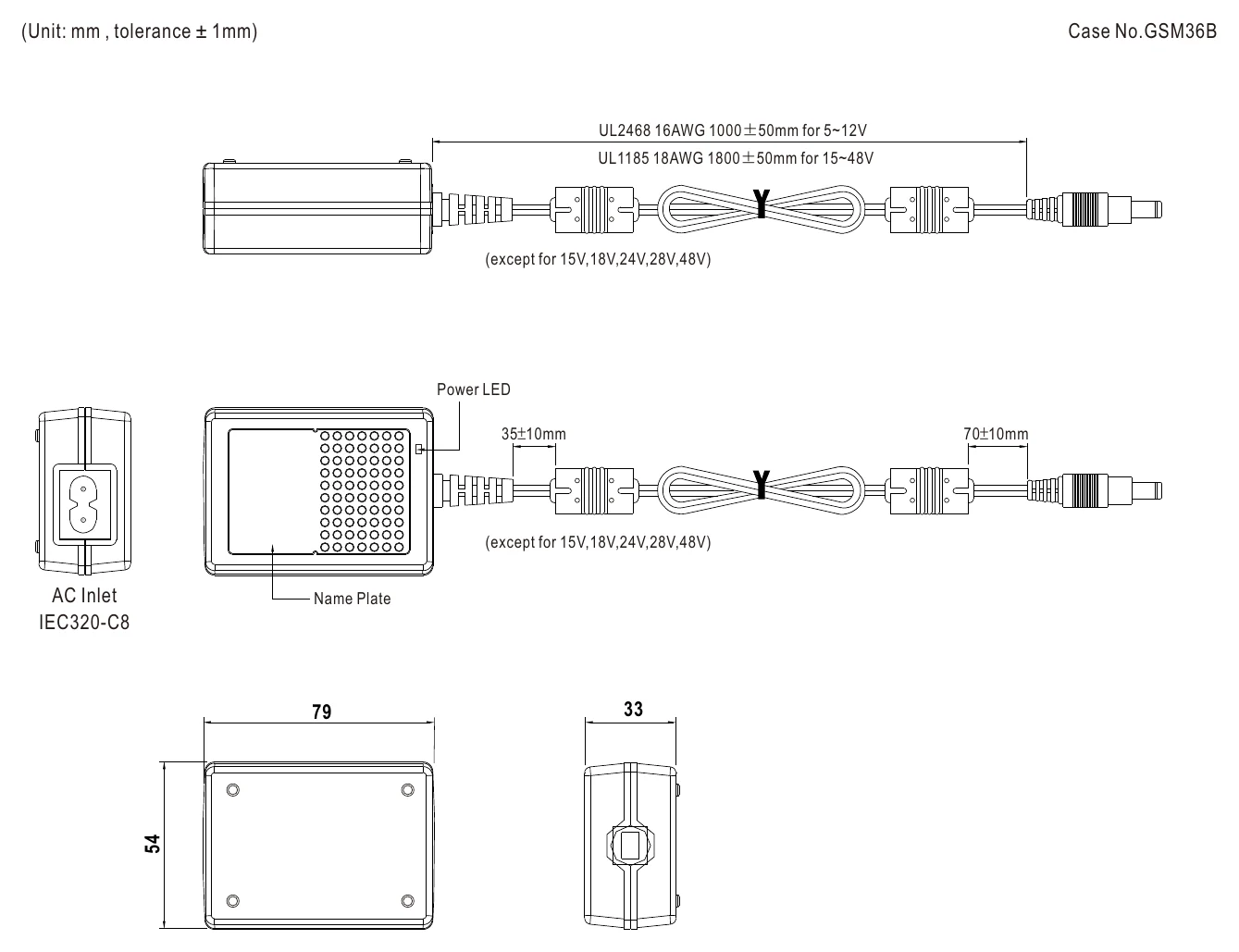

GST25B48-P1J Mechanical Specification
Mechanical Specification

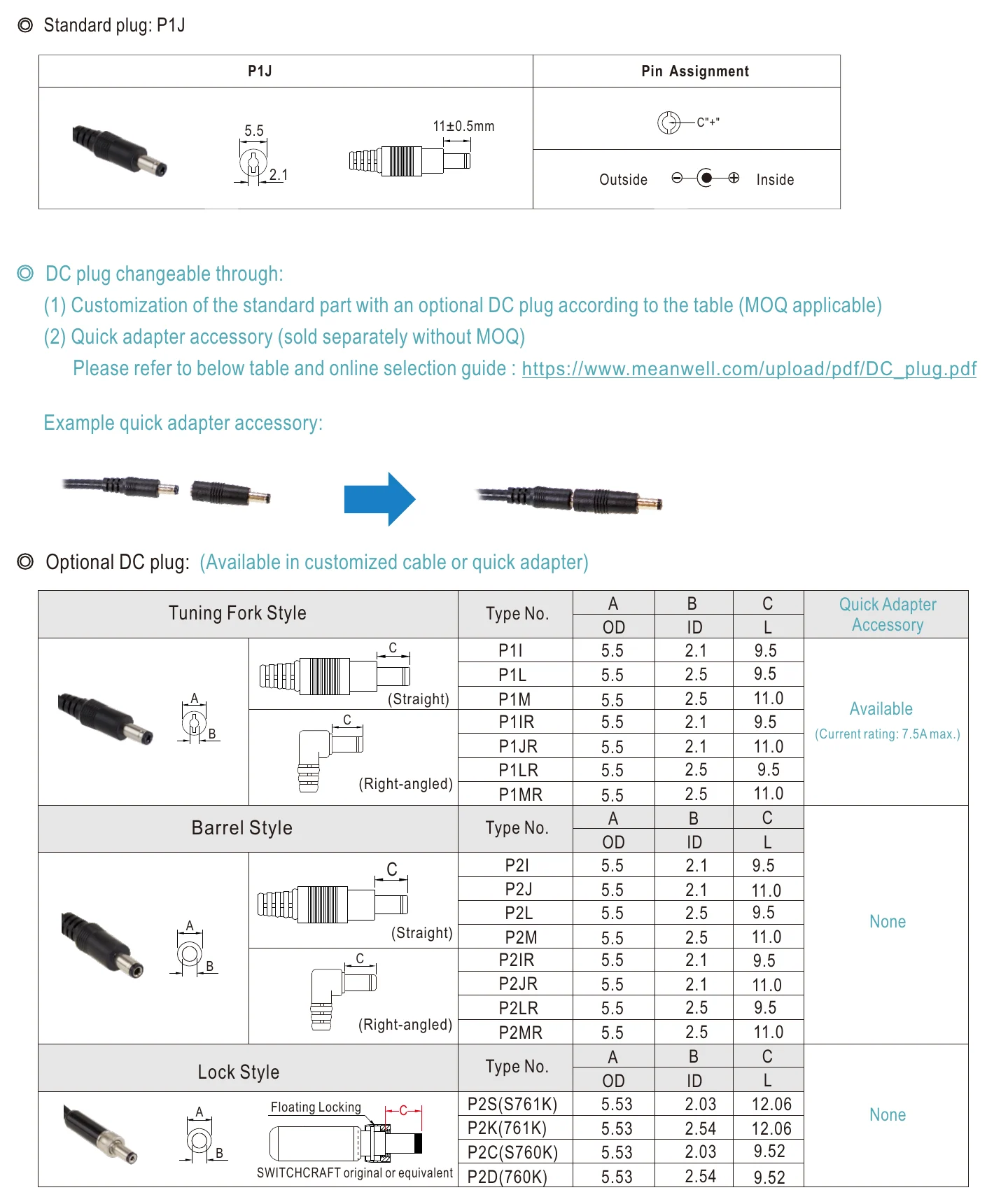

GST25B48-P1J DC output plug
DC output plug

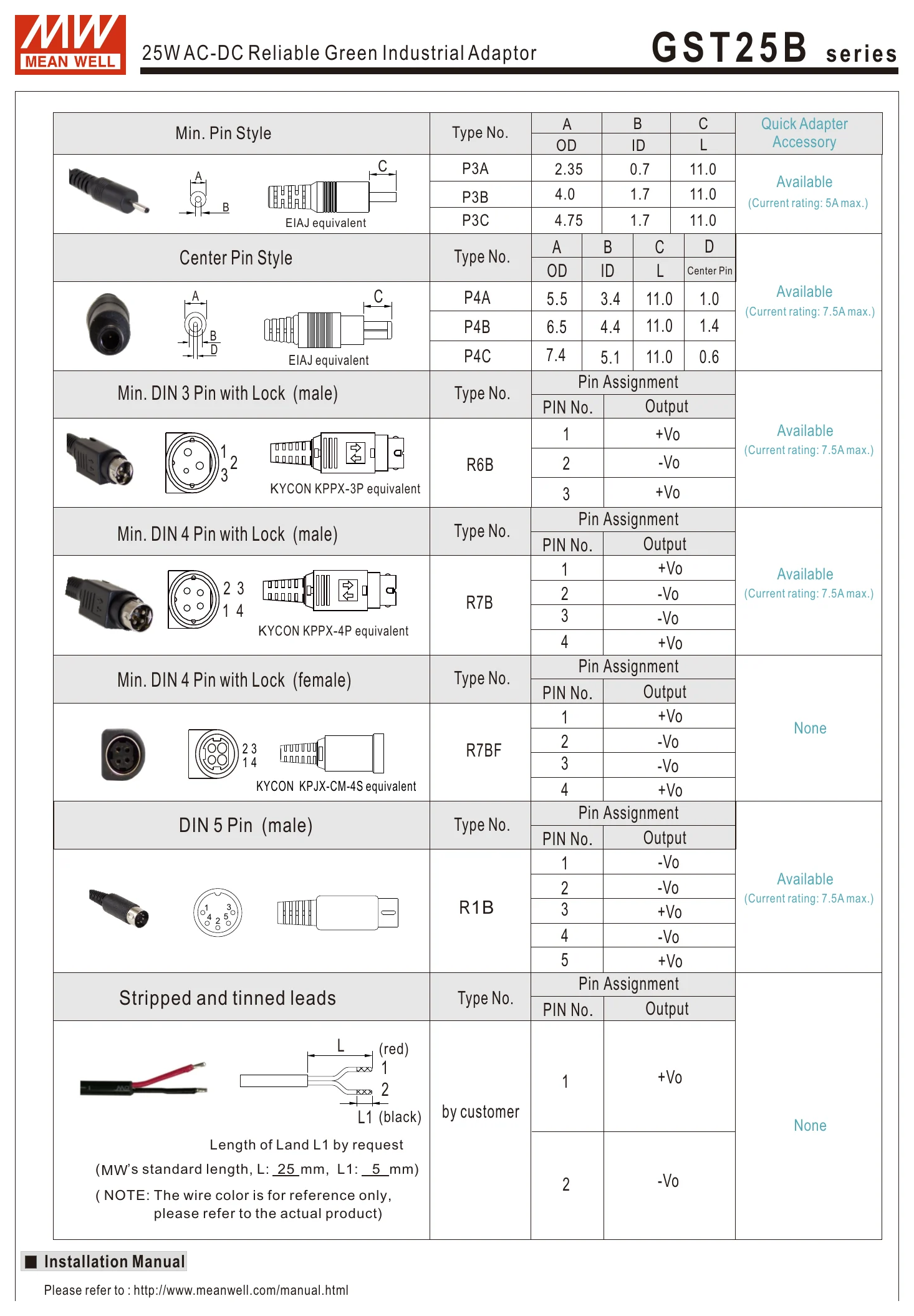

GST25B48-P1J G S T 2 5 B series
G S T 2 5 B series

Typical applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipments

Downloads

FAQ

Can I use the GST25B48-P1J for a 48V telecom or network device?

Yes, if the equipment requires constant 48V DC and draws no more than 0.52A. This model is rated for 25W, so it is intended for lower-power 48V telecom, communications, or network hardware.

Is this power supply suitable for 48V industrial communication equipment?

It can support industrial communication or control equipment designed for a steady 48V DC supply. The output is limited to 25W at 0.52A, so it should be matched to lighter-duty 48V loads.

Can the GST25B48-P1J power a small 48V embedded system?

Yes, for embedded systems that are specified for constant 48V input and remain within 0.52A current draw. Its 85-264VAC input range also makes it usable across a broad range of AC mains conditions.

Is GST25B48-P1J appropriate for a 48V automation accessory or sensor platform?

It is a fit for 48V automation accessories or related electronics that need constant voltage rather than a current-regulated output. The available capacity is 25W, so the total 48V load must stay under 0.52A.

Can this 48V adapter be used in cold or hot operating areas?

The specified operating temperature range is -30°C to +70°C, which covers a wide span for indoor equipment use. No IP rating is provided in the specs, so outdoor exposure suitability cannot be confirmed from the listed data.
