Mean Well GST220A15-R7B Power Supply 201W | Best Prices USA

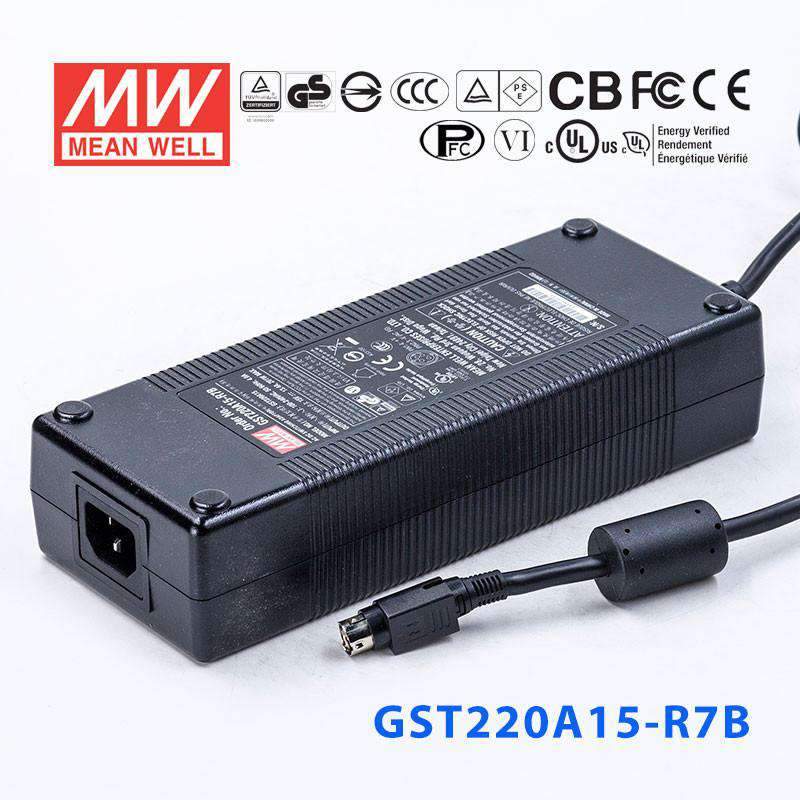

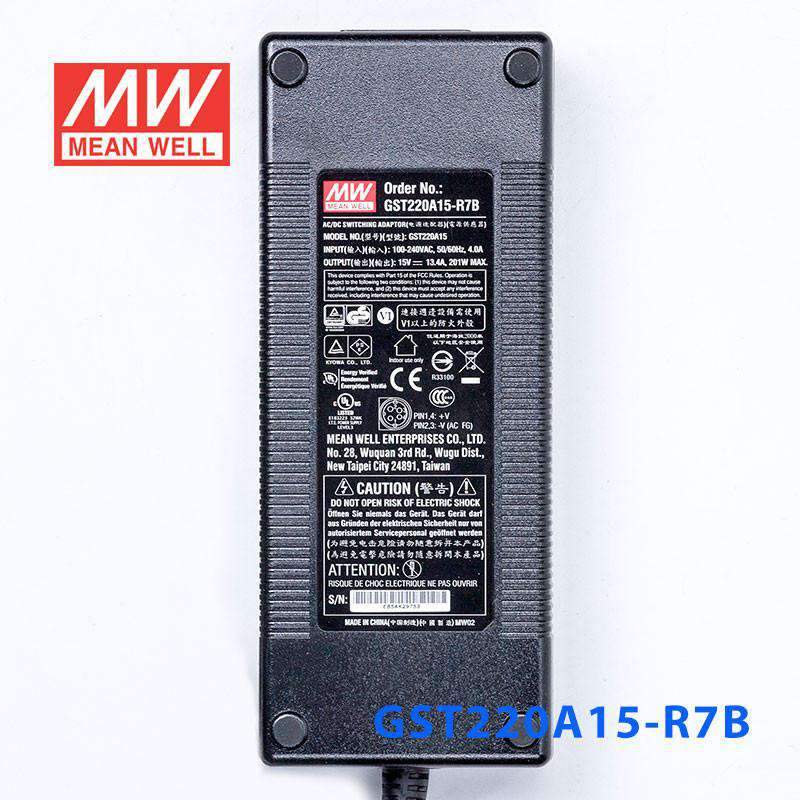

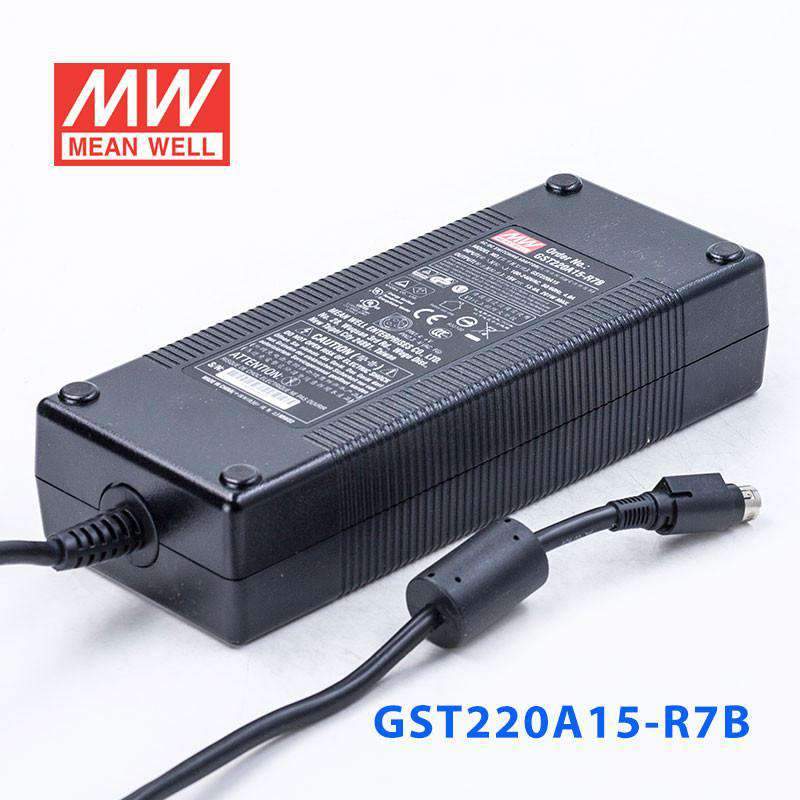

Name: Mean Well GST220A15-R7BPower Supply 201W 15V 13.4A
Brand: Mean Well
SKU: GST220A15-R7B
Price: 86.13 USD
Availability: InStock

Overview

GST220A15-R7B is the 15V output model of this series: rated current 13.4A, typical efficiency 90%. Type R7B: Standard model,Power DIN 4Pin with lock type.

GST220A is a highly reliable, 220W desktop style single-output green adaptor series. This product is a classⅠpower unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 94.5% and the extremely low no-load power consumption below 0.15W, GST220A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST220A is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range

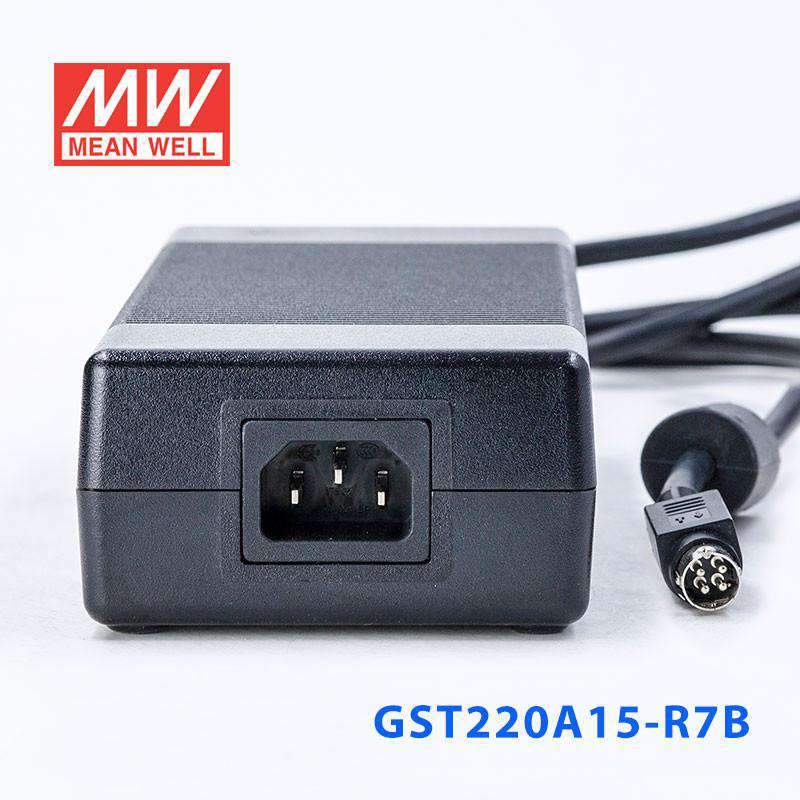

3 pole AC inlet IEC320-C14,ClassⅠpower unit
Built-in active PFC function
No load power consumption<0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,AU/NZ MEPS, EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage /Over temperature
Fanless design with -30~+70℃ working temperature
Fully enclosed plastic case

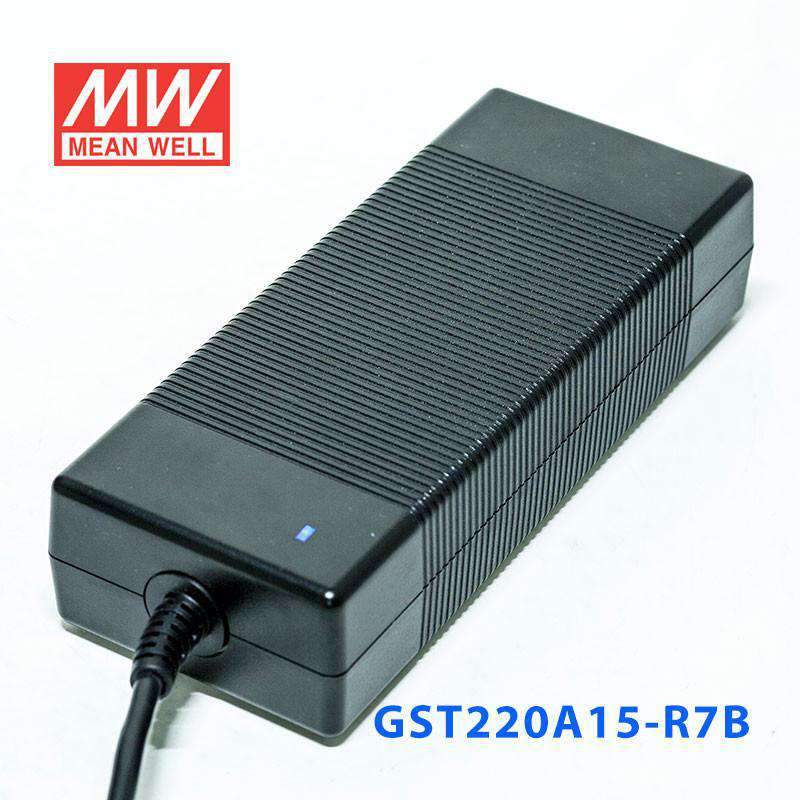

LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST220A15-R7BSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST220A15
DC VOLTAGE^Note.2: 15V
RATED CURRENT: 13.4A
CURRENT RANGE: 0 ~ 13.4A
RATED POWER (max.): 201W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±5.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2000ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 20ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.91 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 4A / 115VAC 2A / 230VAC
INRUSH CURRENT (max.): Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.): 0.75mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 135% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Hiccup mode @ 10%load
OVER TEMPERATURE: Shut down o/p voltage, recovers automatically after temperature goes down

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1,AS/NZS 62368.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved (UL62368-1, CSA C22.2 No.62368-1, TUV EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1,AS/NZS 62368.1 for GST220A36-R7B)
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2006.1K hrs min. Telcordia SR-332 (Bellcore) ; 209.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 210*85*46mm (L*W*H)
PACKING: 1.1Kg; 12pcs/14.2Kg/0.81CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

MODEL ENCODING

R7B (this model): Standard model,Power DIN 4Pin with lock type
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST220A15-R7B Derating Curve — Derating Curve

GST220A15-R7B Mechanical Specification — Mechanical Specification

GST220A15-R7B DC output plug — DC output plug

GST220A15-R7B Example quick adapter accessory — Example quick adapter accessory

GST220A15-R7B ◎ Optional DC plug: (Available in customized cable or… — ◎ Optional DC plug: (Available in customized cable or…

GST220A15-R7B Pin Assignment — Pin Assignment

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST220A15-R7B datasheetGST220A-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

UL Certificate (GST220A)(EN) PDF Download

TUV Certificate (GST220A)(EN) PDF Download

EMC Certificate (GST220A)(EN) PDF Download

NRCan Certificate (GST220A)(EN) PDF Download

BSMI Certificate (GST220A)(EN) PDF Download

PSE Certificate (GST220A)(EN) PDF Download

CCC Certificate (GST220A)(CN) PDF Download

FCC Certificate (GST220A)(EN) PDF Download

ErP Certificate (GST220A)(EN) PDF Download

Test reports1

Test Report (GST220A15)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output specifications of the Mean Well GST220A15-R7B?

This AC/DC power adaptor is rated for 201W with a 15V DC output and up to 13.4A rated current. It is intended for equipment that requires a regulated 15V supply at relatively high current. The model includes the standard R7B 4-pin DIN output plug (KYCON KPPX-4P equivalent).

What kinds of equipment is the GST220A15-R7B typically suited for?

This model is generally suited to commercial or industrial 15V devices that need a high-power external adaptor rather than a built-in power supply. Its 201W capacity and 4-pin DIN output plug make it a stronger fit for professional equipment than for light-duty consumer loads. Buyers should confirm the device requires 15V DC, up to 13.4A, and the R7B plug format.

Is the GST220A15-R7B suitable for use in demanding temperature conditions?

Yes, this model is specified for operation from -30°C to +70°C, with output derating required at higher ambient temperatures according to the derating curve. It also includes over-temperature protection that shuts down the output and recovers automatically once the temperature drops. Actual suitability still depends on the temperature conditions around the end equipment enclosure.

What input power range does the GST220A15-R7B support?

The unit supports a universal AC input range of 85 to 264VAC, and it also accepts 120 to 370VDC input. That makes it suitable for procurement across multiple regions without needing different AC input variants for standard mains ranges. It uses an IEC320-C14 AC inlet.

How does the GST220A15-R7B compare with lower-power 15V adaptors?

The key differentiator is output capacity: this model provides up to 201W at 15V, which is significantly higher than light-duty adaptors intended for smaller loads. It is better suited when the application needs up to 13.4A and benefits from protections such as overload, over-voltage, and over-temperature protection. For smaller loads, a lower-wattage adaptor may be more appropriate from a size and power-margin standpoint.

What compliance and efficiency features does this power supply offer?

The GST220A15-R7B has a typical efficiency of 90% and a typical power factor above 0.91 at 230VAC (above 0.98 at 115VAC). It is approved to multiple safety and EMC standards, including UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, FCC Part 15 Class B, and EN55032 Class B. These features make it suitable for buyers who need an efficient and compliance-focused external power solution.

How can I check whether the GST220A15-R7B is compatible with my equipment?

The main checks are output voltage, current demand, and connector format. This model provides 15V DC, up to 13.4A, with the standard R7B 4-pin DIN plug (KYCON KPPX-4P equivalent) and an output cable of about 1000mm. It is a match only when the equipment's power requirements and connector standard align with those specifications.
