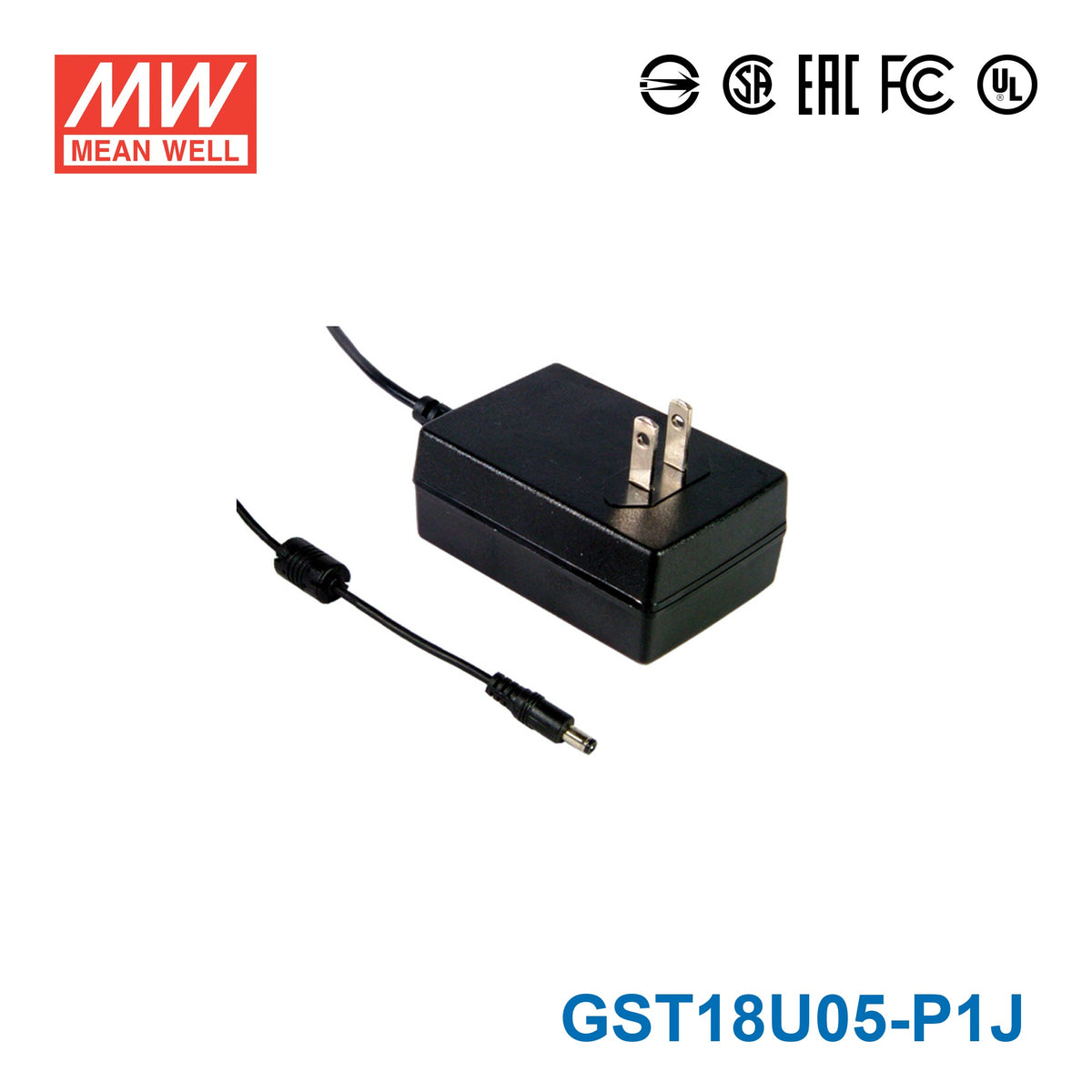

Mean Well GST18U05-P1J Power Supply 15W 5V 3A

Name: Mean Well GST18U05-P1J Power Supply 15W 5V 3A
Brand: Mean Well
SKU: GST18U05-P1J
Price: 13.21 USD
Availability: InStock

$13.21 USD

Shipping calculated at checkout.

Notify me when it's back in stock

Your order will be processed within 24 hours

Description

The Mean Well GST18U05-P1J is a 15W wall-mounted AC-DC green industrial adaptor delivering a regulated 5VDC at 3A. It is a class II unit with no functional earth, fitted with a 2-pole USA AC plug and a P1J tuning-fork DC plug (2.1 x 5.5 x 11mm, centre positive). Safety is approved to UL62368-1, CSA C22.2 No.62368-1, BSMI CNS15598-1 and EAC TP TC 004, with FCC Part 15 and CAN ICES-3(B) Class B emissions.

It accepts the full 85~264VAC input range at 47~63Hz, reaches 81% typical efficiency and draws under 0.075W at no load, meeting energy efficiency level VI along with USA EISA 2007/DoE and Canada NRCan. Short circuit, overload and over voltage protections are built in, and the 94V-0 flame retardant enclosure provides double insulation for operation from -30 to +70°C.

Key Features

✓ 15W wall-mounted adaptor, 5VDC 3A constant voltage output
✓ Universal AC input 85~264VAC full range, 47~63Hz
✓ 2-pole USA AC plug, class II power unit (no FG)

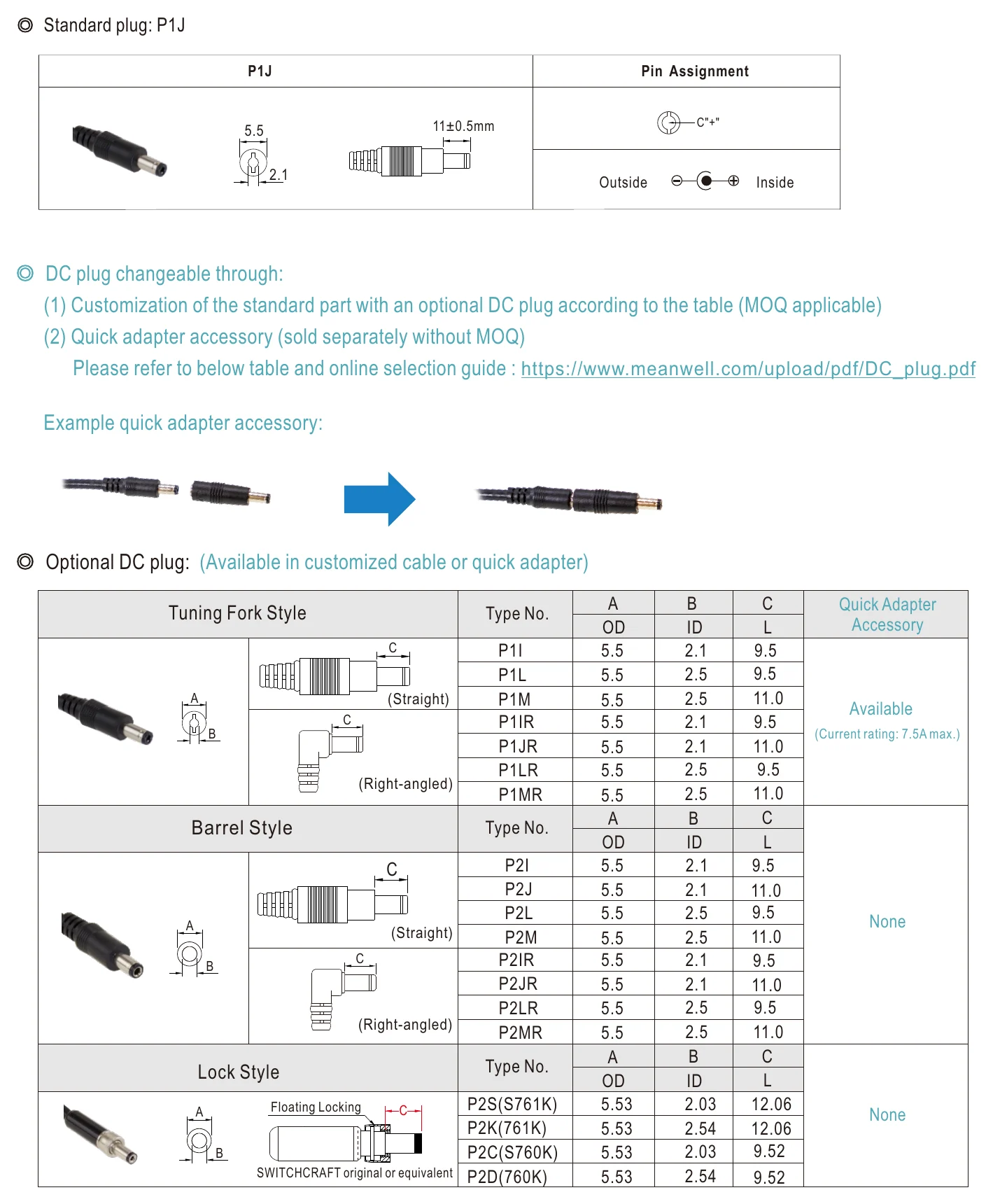

✓ P1J DC plug: 2.1 x 5.5 x 11mm tuning fork, centre positive
✓ Output ripple and noise 80mVp-p max., voltage tolerance ±5.0%
✓ 81% typical efficiency
✓ No load power consumption below 0.075W
✓ Energy efficiency level VI, complies with EISA 2007/DoE and NRCan
✓ Protections: short circuit / overload / over voltage
✓ Fully enclosed 94V-0 flame retardant plastic case with double insulation
✓ Pass LPS

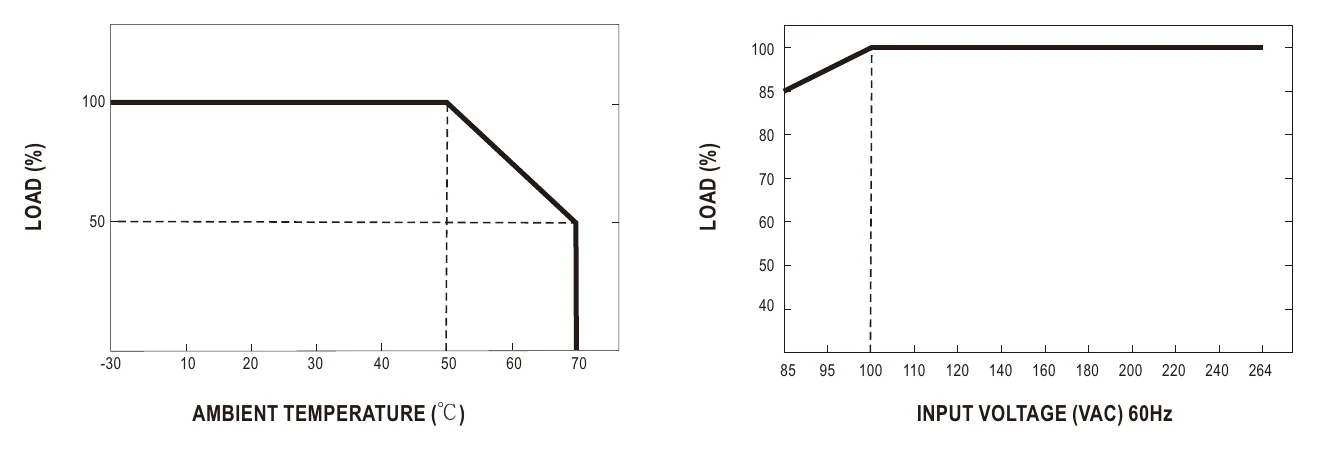

✓ -30 ~ +70°C wide range working temperature
✓ LED indicator for power on
✓ UL1185 16AWG 1200mm output cable

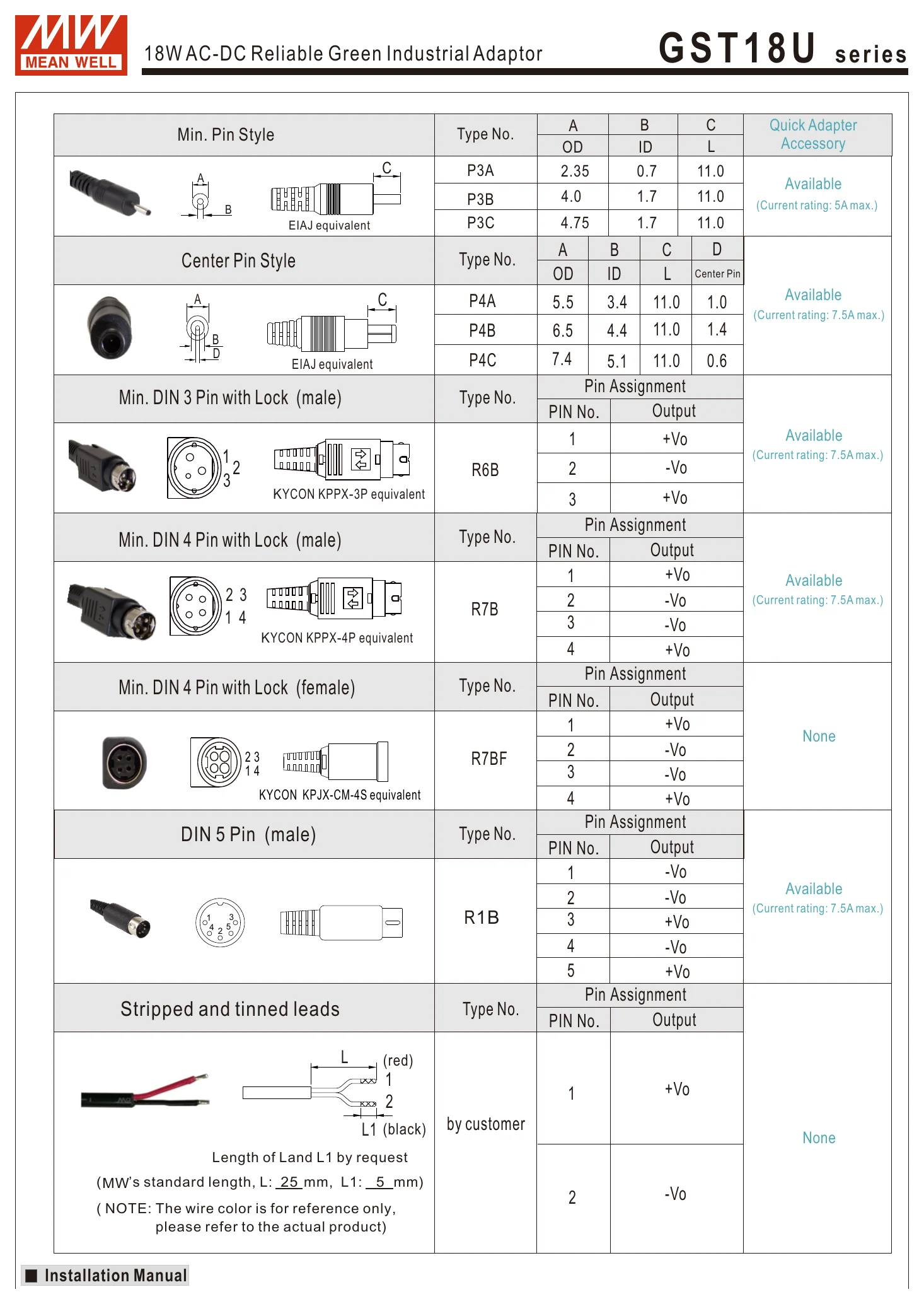

✓ Various DC plug quick adapter accessories available (sold separately)
✓ Safety approvals: UL62368-1, CSA C22.2 No.62368-1, BSMI CNS15598-1, EAC TP TC 004
✓ 3 years warranty

Specifications

Brand

Mean Well
Standards Met

BSMI,CSA,EAC,FCC,UL
Operation Mode

Constant Voltage

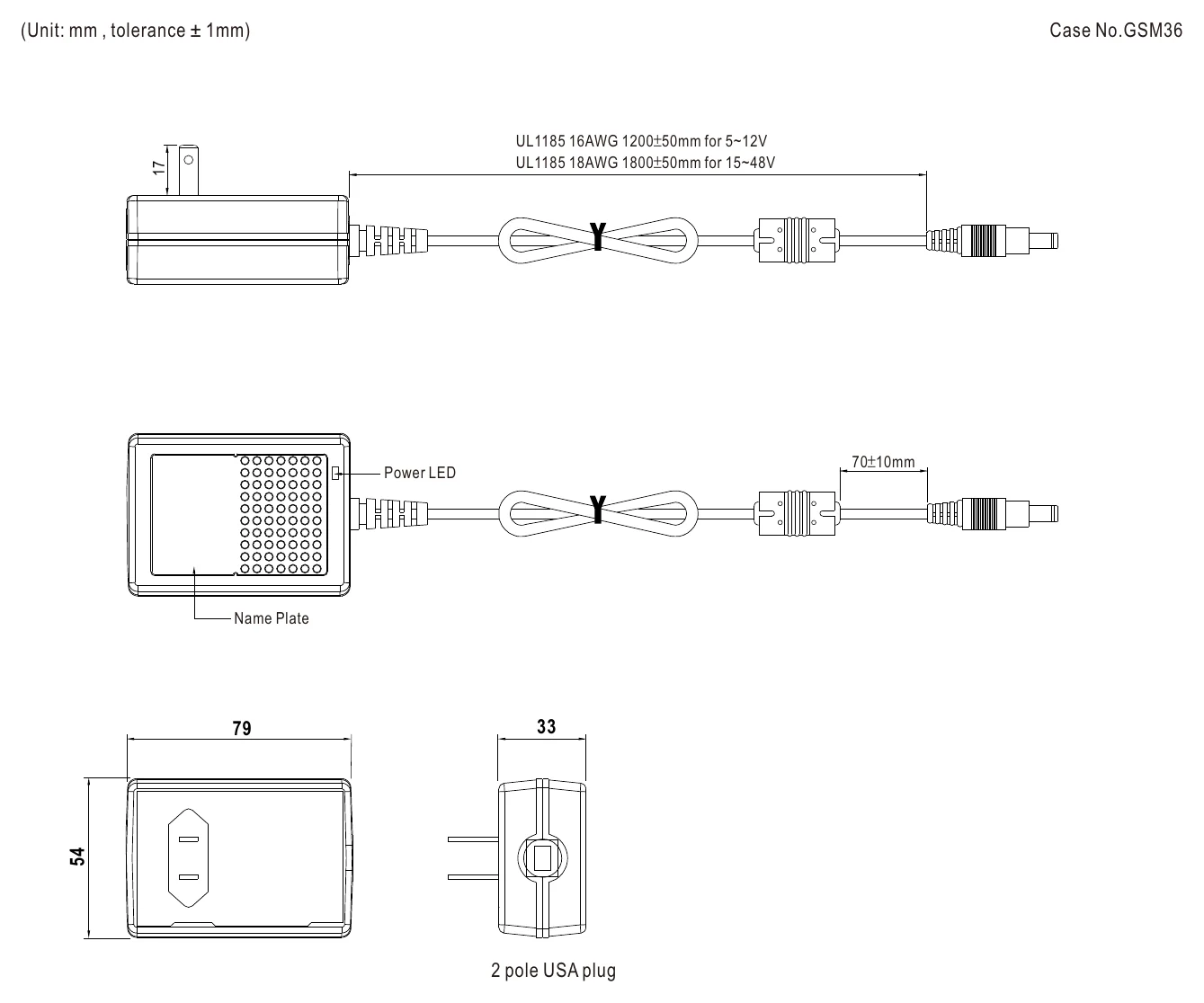

Length

3.11 in
Width

2.13 in
Height

1.3 in
Weight

0.44 lb
