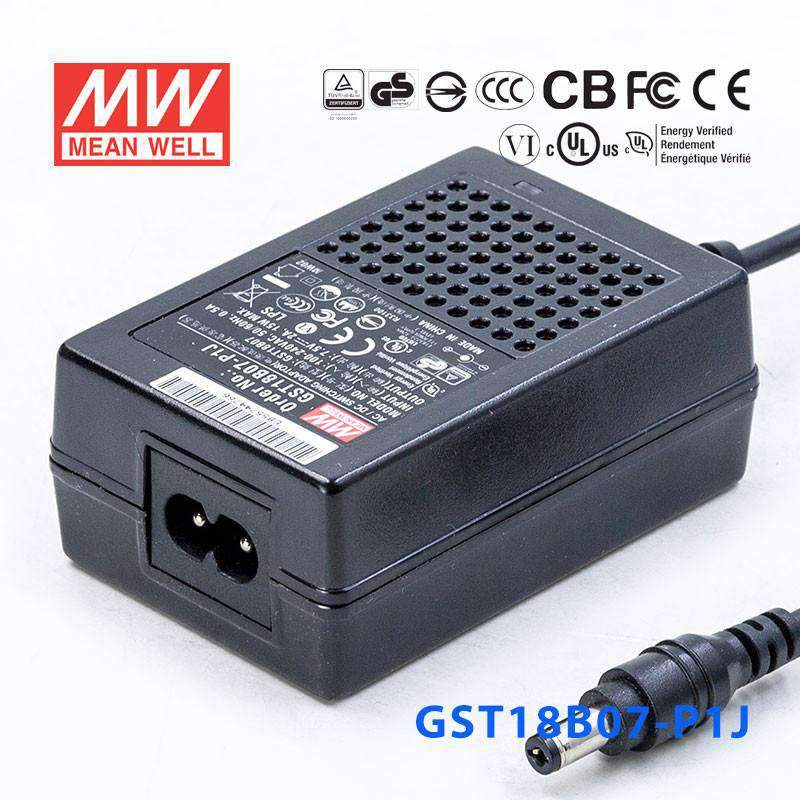

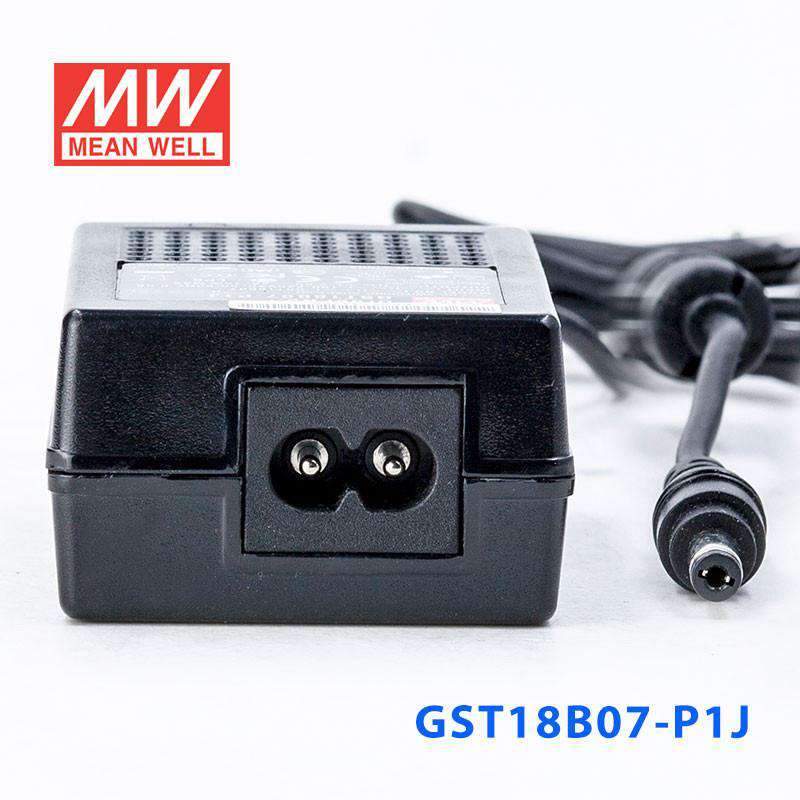

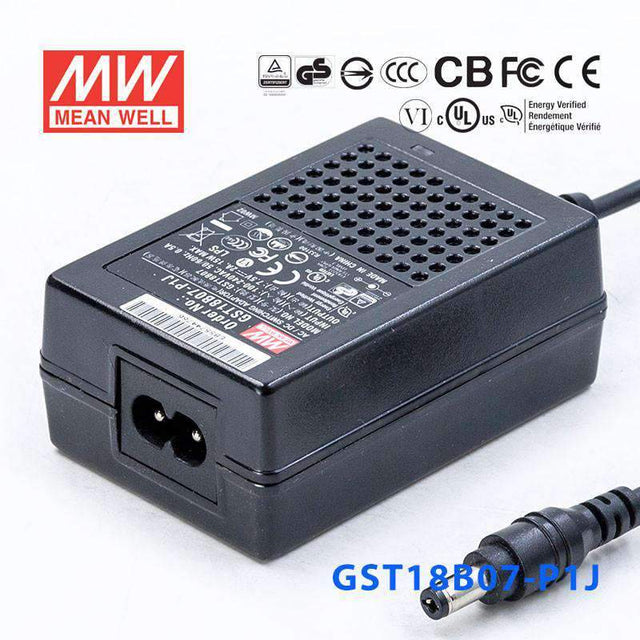

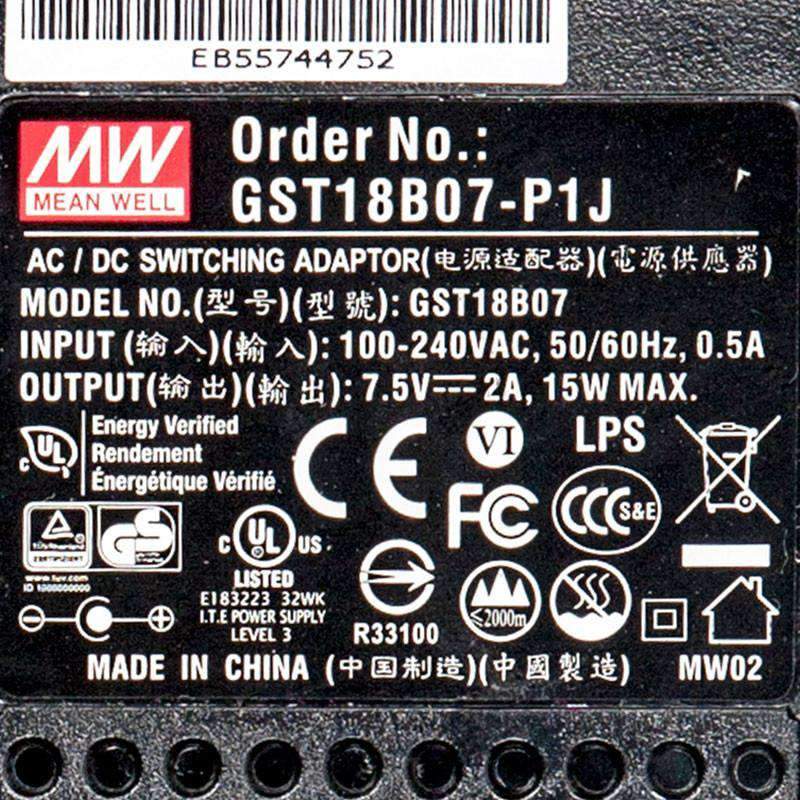

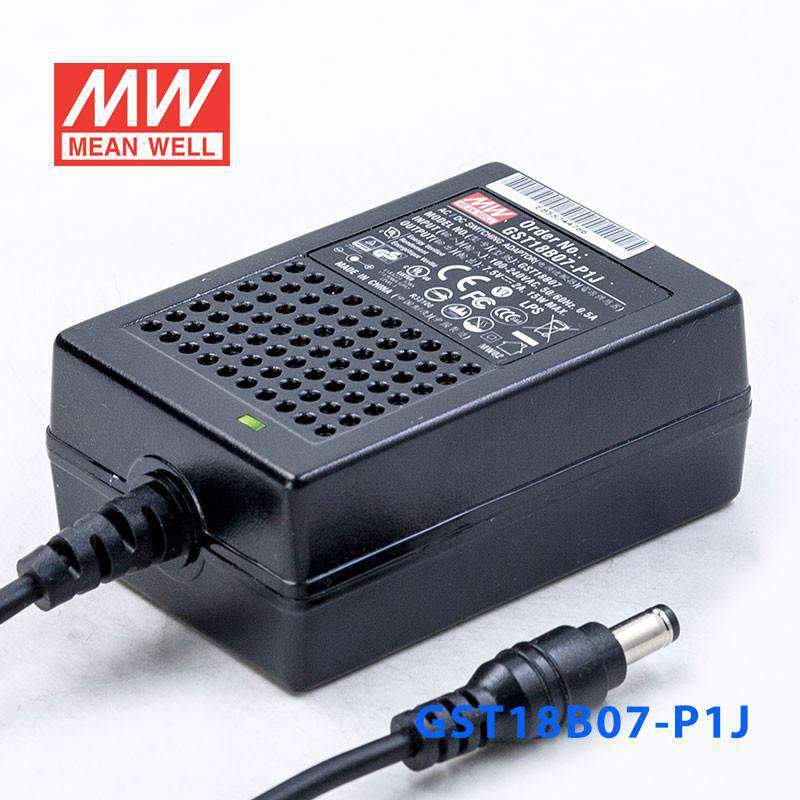

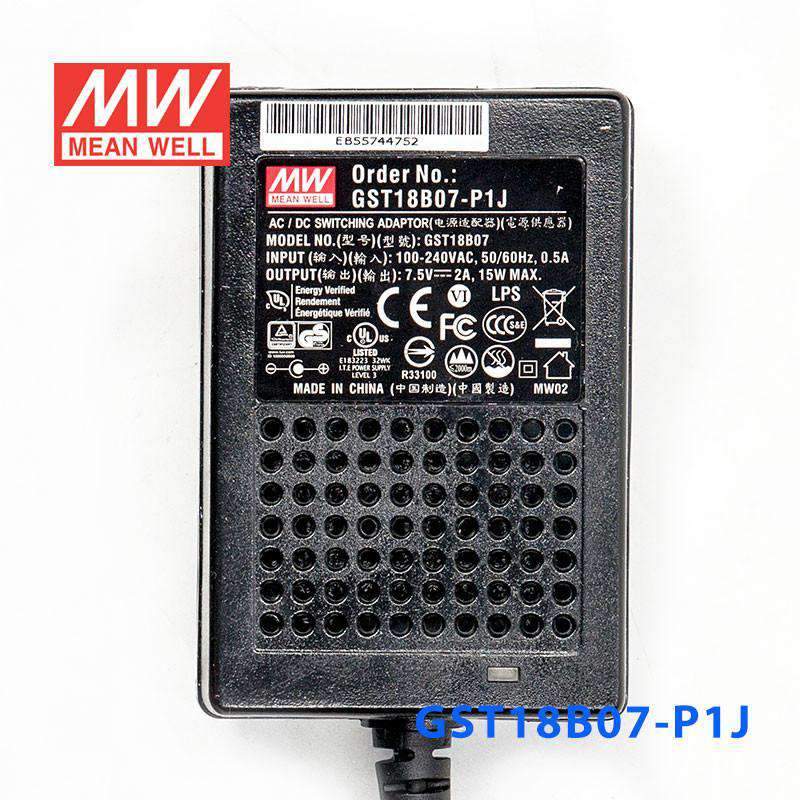

Mean Well GST18B07-P1J Power Supply 15W 7.5V 2A

Name: Mean Well GST18B07-P1J Power Supply 15W 7.5V 2A
Brand: Mean Well
SKU: GST18B07-P1J
Price: 17.97 USD
Availability: InStock

SKU GST18B07-P1J

$17.97 USD

Shipping calculated at checkout.

Select model — 6 in this family

GST18B07-P1J

GST18B07-P1J 2 Pole Low stock$17.97 USD

GST18A07-P1J 3 Pole Low stock$17.97 USD

GST25A07-P1J 3 Pole In stock$18.30 USD

GST25B07-P1J 2 Pole Low stock$18.38 USD

GST40A07-P1J 3 Pole Low stock$20.01 USD

GST60A07-P1J 3 Pole Low stock$22.03 USD

Product variants

In stock

Overview

GST18B07-P1J is the 7.5V output model of this series: rated current 2.0A, typical efficiency 85%. Type P1J: Standard model,2.1 φx5.5 φx11mm,C+,tuning fork type.

GST18B is a highly reliable, 18W desktop style single-output green adaptor series. This product is a classⅡ power unit (no FG), equipped with a standard IEC320-C8 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W,GST18B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS ,Korea K-MEPS ,EU ErP,and Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GST18B is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range
2 pole AC inlet IEC320-C8,Class Ⅱ power unit
No load power consumption< 0.075W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
-30~+70℃ wide range working temperature
LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST18B07-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST18B07
DC VOLTAGE^Note.2: 7.5V
RATED CURRENT: 2.0A
CURRENT RANGE: 0 ~ 2.0A
RATED POWER (max.): 15W
RIPPLE & NOISE (max.)^Note.3: 80mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±5.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85%
AC CURRENT: 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.): Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.): 0.25mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1,AS/NZS 62368.1,PSE J62368-1, BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 191.5g; 60pcs/12.5Kg/1.15CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model): Standard model,2.1 φx5.5 φx11mm,C+,tuning fork type
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST18B07-P1J Derating Curve — Derating Curve

GST18B07-P1J Mechanical Specification — Mechanical Specification

GST18B07-P1J DC output plug — DC output plug

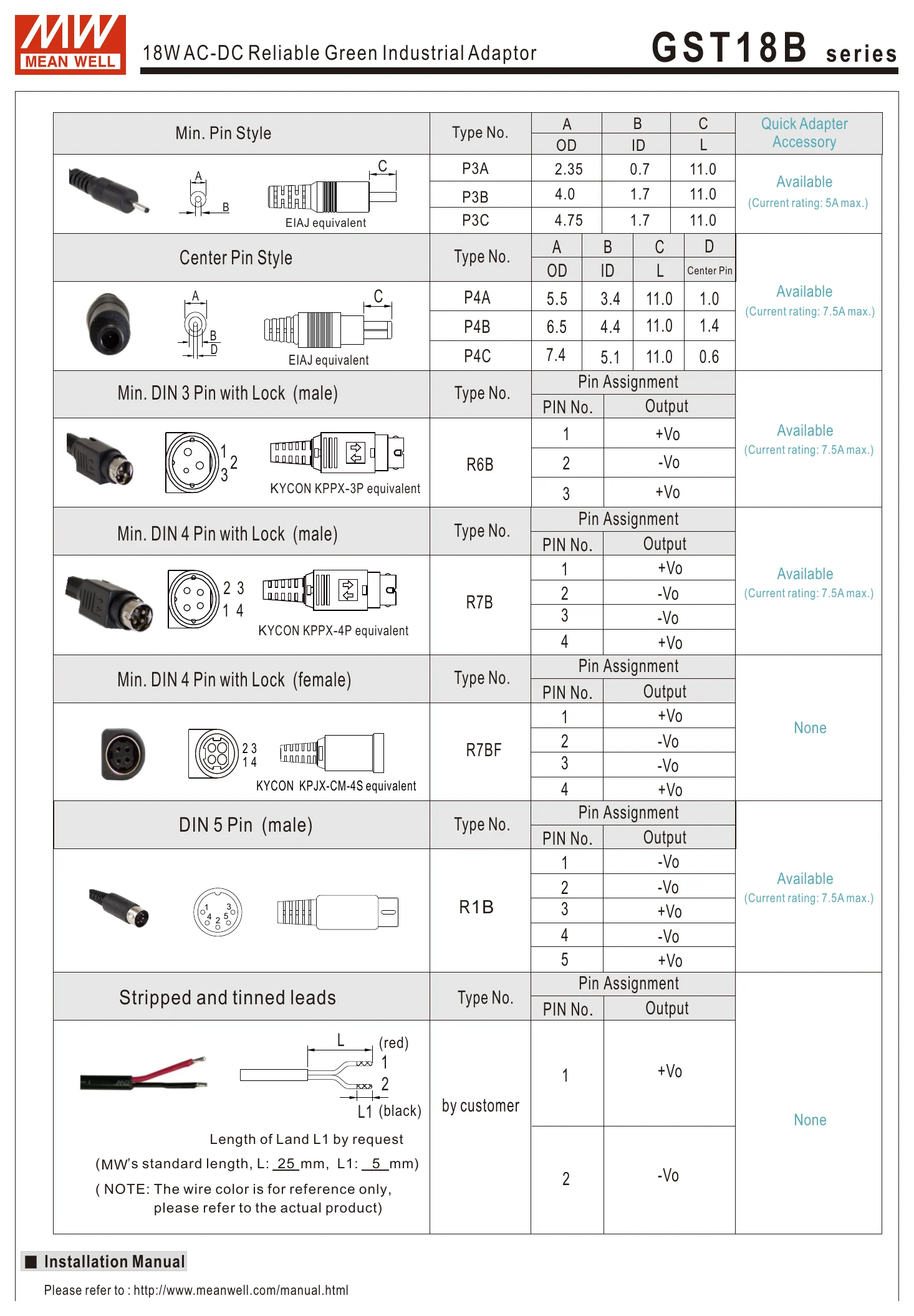

GST18B07-P1J G S T 1 8 B series — G S T 1 8 B series

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST18B07-P1J datasheetGST18B-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

TUV Certificate (GST18B)(EN) PDF Download

BSMI Certificate (GST18B)(EN) PDF Download

CB Certificate(GST18B)(EN) PDF Download

CE Certificate (GST18B)(EN) PDF Download

UL Certificate (GST18B)(EN) PDF Download

EMC Certificate ((GST18B)(EN) PDF Download

NRCAN Certificate (GST18B)(EN) PDF Download

FCC Certificate (GST18B)(EN) PDF Download

RCM Certificate (GST18B)(EN) PDF Download

Test reports1

Test Report(GST18B07) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GST18B07-P1J for a 7.5V router, gateway, or network peripheral?

Yes, if the device is specified for 7.5V DC input and draws no more than 2A or 15W. This model provides constant-voltage 7.5V output, which suits electronics that require a fixed 7.5V rail. The 85-264VAC input range also supports use across varied AC mains conditions.

Is this 7.5V power supply suitable for small industrial control accessories?

It can work for low-power industrial accessories that call for 7.5V constant voltage and stay within 2A and 15W. That makes it more suitable for compact electronics and control accessories than for higher-power actuators or larger automation hardware. Buyers should confirm the accessory is actually rated for 7.5V input.

Can the GST18B07-P1J power a 7.5V test instrument or handheld dock?

Yes, it is appropriate for 7.5V equipment that needs a constant-voltage source up to 2A and 15W. This makes it a practical option for lighter-duty test or support equipment with a 7.5V requirement. Its small 79.0 × 54.0 × 33.0 mm housing also helps where space is limited.

Would this model fit a 7.5V embedded audio or communications device?

It can be a fit if the device requires regulated 7.5V DC and its total load does not exceed 2A or 15W. The unit is a constant-voltage supply, so it is intended for electronics with a defined 7.5V input requirement. It is not the right choice for products that need a different voltage rail.

Is the GST18B07-P1J meant for indoor or outdoor use?

The operating temperature range is -30°C to +70°C, with load derating required at the upper end of that range (see the derating curve), which supports use in a wide range of protected environments. However, the provided specifications do not list an IP rating, so outdoor exposure or wet locations should not be assumed safe. It is best treated as a power supply for indoor or enclosure-protected applications.
