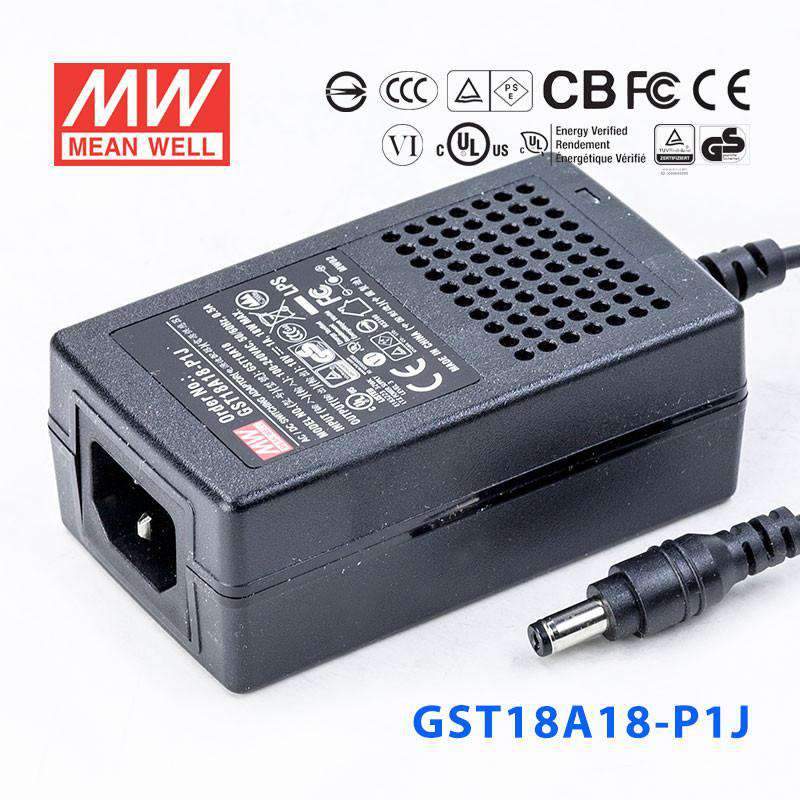

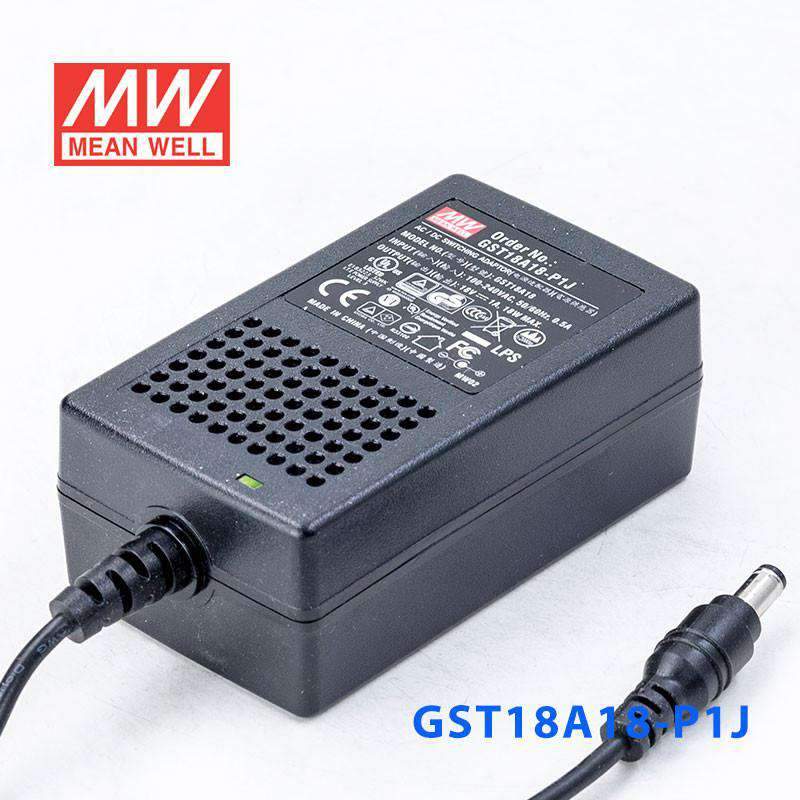

Mean Well GST18A18-P1J Power Supply 18W 18V 1A

Name: Mean Well GST18A18-P1J Power Supply 18W 18V 1A
Brand: Mean Well
SKU: GST18A18-P1J
Price: 17.97 USD
Availability: InStock

SKU GST18A18-P1J

$17.97 USD

Shipping calculated at checkout.

Select model — 6 in this family

GST18A18-P1J

GST18B18-P1J 2 Pole Low stock$17.97 USD

GST18A18-P1J 3 Pole Backorder$17.97 USD

GST25B18-P1J 2 Pole Low stock$18.38 USD

GST25A18-P1J 3 Pole Low stock$18.38 USD

GST40A18-P1J 3 Pole Low stock$20.01 USD

GST60A18-P1J 3 Pole In stock$22.03 USD

Product variants

Available to order

Overview

GST18A18-P1J is the 18V output model of this series: rated current 1.0A, typical efficiency 88%. Type P1J: Standard model,2.1 φ x5.5 φ x11mm,C+,tuning fork type.

GST18A is a highly reliable, 18W desktop style single-output green adaptor series. This product is a classⅠ power unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 5VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 89% and the extremely low no-load power consumption below 0.075W, GST18A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, Korea K-MEPS, EU ErP, and Code of Conduct(CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST18A is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range

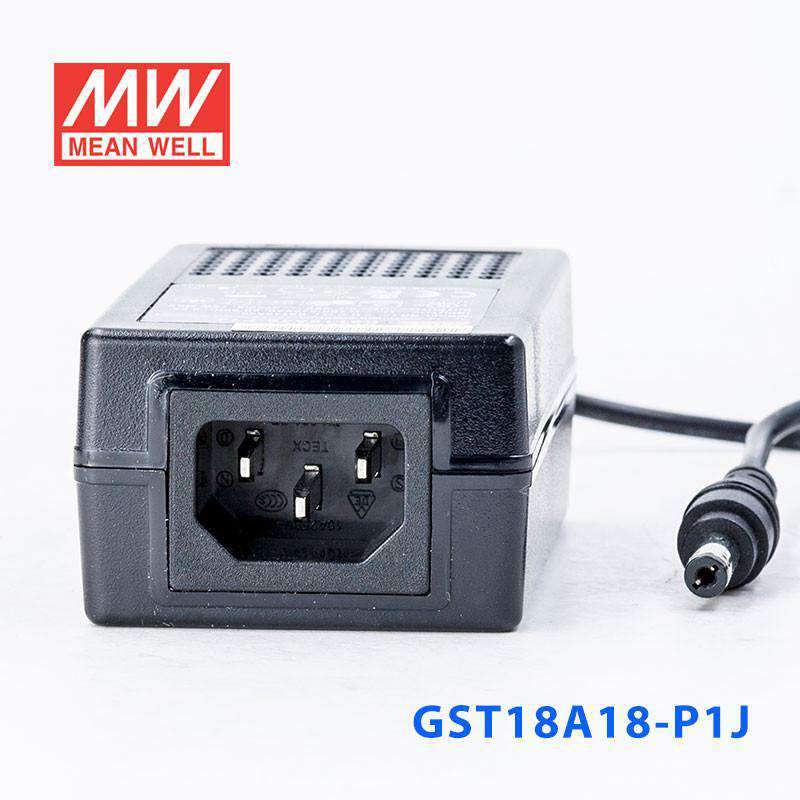

3 pole AC inlet IEC320-C14,ClassⅠpower unit
No load power consumption< 0.075W
Energy efficiency Level Ⅵ
Comply with EISA 2007/DoE,NRCan,Korea K-MEPS, AU/NZ MEPS,EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Pass LPS
-30~+70℃ wide range working temperature
LED indicator for power on
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST18A18-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST18A18
DC VOLTAGE^Note.2: 18V
RATED CURRENT: 1.0A
CURRENT RANGE: 0 ~ 1.0A
RATED POWER (max.): 18W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 30ms, 50ms/230VAC 1500ms, 30ms, 15ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT: 0.5A / 115VAC 0.3A / 230VAC
INRUSH CURRENT (max.): Cold start 35A / 115VAC 65A / 230VAC
LEAKAGE CURRENT(max.): 0.75mA / 240VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 50℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1 , CCC GB4943.1, PSE J62368-1, AS/NZS 62368.1，BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:4242VDC , I/P-FG:2121VDC
ISOLATION RESISTANCE: I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION^{Note. 9}: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY^{Note. 9}: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 2, 1KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15/CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 3, 8KV air; Level 2, 4KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 2, 1KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0. 5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 3879.7K hrs min. Telcordia SR-332 (Bellcore) ; 668.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 93*54*36mm (L*W*H)
PACKING: 209g; 60pcs/13.5Kg/1.02CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model): Standard model,2.1 φ x5.5 φ x11mm,C+,tuning fork type
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST18A18-P1J Derating Curve — Derating Curve

GST18A18-P1J Mechanical Specification — Mechanical Specification

GST18A18-P1J DC output plug — DC output plug

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST18A18-P1J datasheetGST18A-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

TUV Certificate (GST18A)(EN) PDF Download

BSMI Certificate (GST18A)(EN) PDF Download

CB Certificate (GST18A)(EN) PDF Download

CE Certificate (GST18A)(EN) PDF Download

UL Certificate (GST18A)(EN) PDF Download

EMC Certificate (GST18A)(EN) PDF Download

NRCAN Certificate (GST18A)(EN) PDF Download

FCC Certificate (GST18A)(EN) PDF Download

RCM Certificate (GST18A)(EN) PDF Download

Test reports1

Test Report(GST18A18) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GST18A18-P1J for an 18V automation accessory or compact industrial device?

Yes, if the equipment is designed for constant 18V DC input and its load stays within 1A. This supply provides up to 18W, so it fits lower-power 18V control and support equipment within that limit.

Is this power supply appropriate for 18V embedded systems or test equipment?

It can be used for embedded or electronic equipment that specifies a regulated 18V constant-voltage source. The load must remain at or below 1A, and the input side accepts 85-264VAC for broad AC compatibility.

Can the GST18A18-P1J power a small 18V monitoring or data-acquisition unit?

It is suitable for 18V devices that do not exceed 18W total consumption. Buyers should confirm the unit needs constant-voltage 18V power rather than a different output mode.

What should I check before pairing this with an 18V load?

Verify that the load is rated for 18V DC and that its current draw is no higher than 1A. Those two numbers determine whether the device fits within this model's 18W output capacity.

Can this model be used in cold rooms or warm factory areas?

The specified operating range is -30°C to +70°C, which covers both low- and high-temperature indoor environments. Since no IP rating is provided, the specs do not establish outdoor weather resistance or protection against water ingress.
