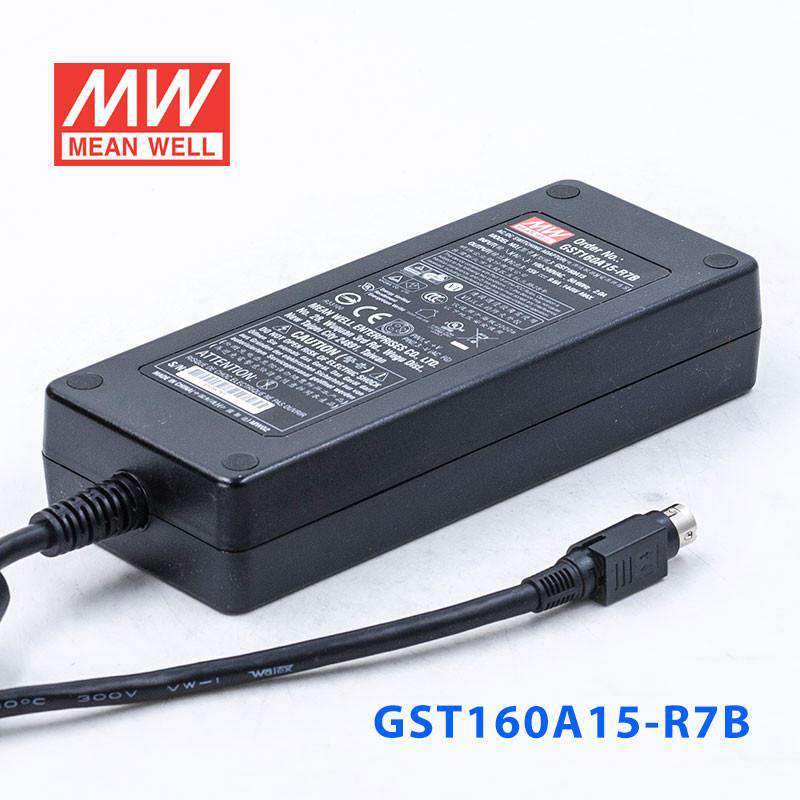

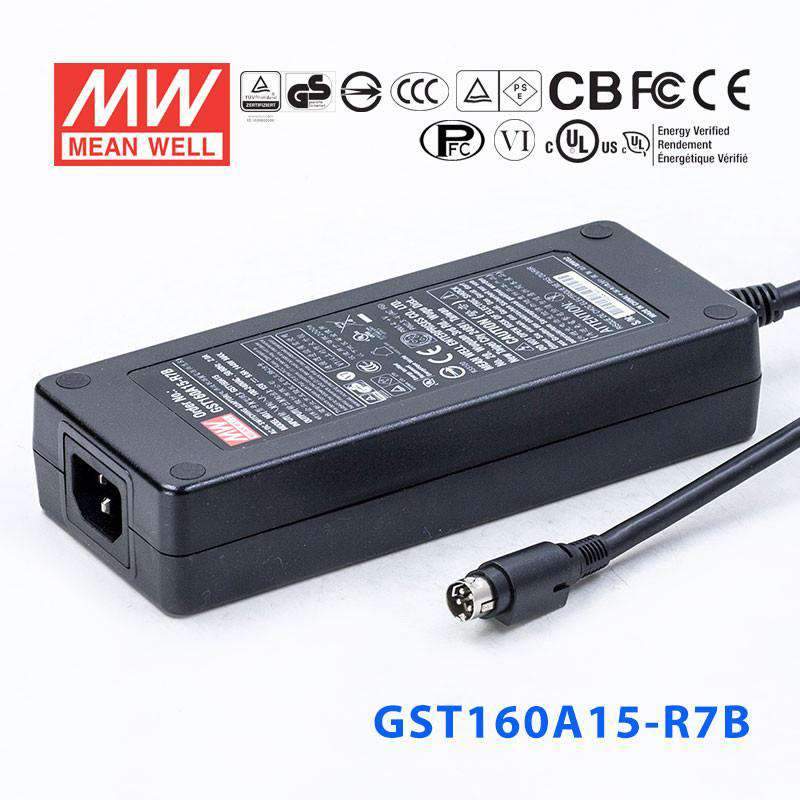

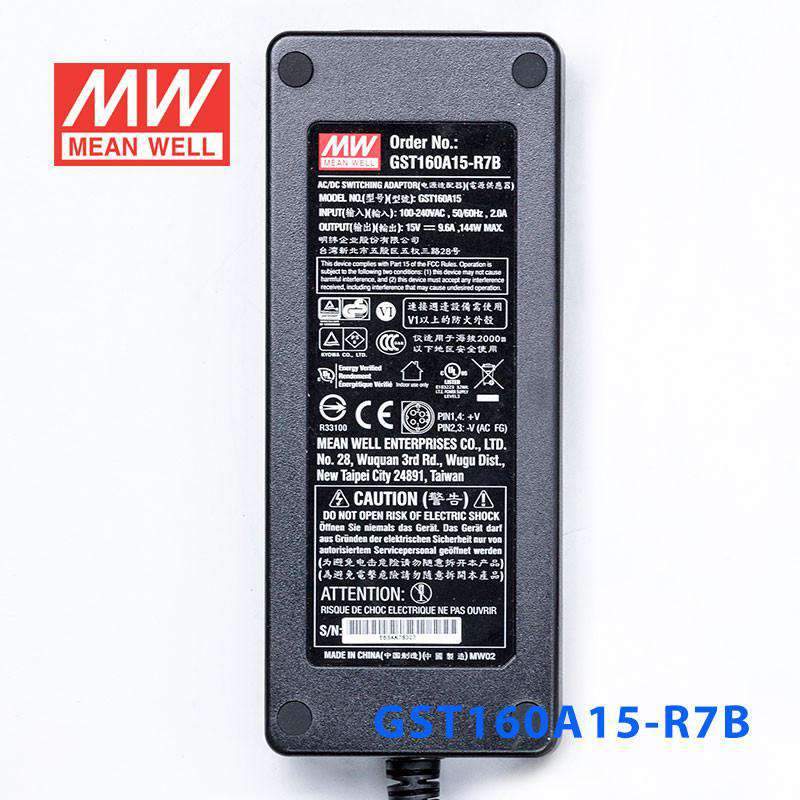

Name: Mean Well GST160A15-R7BPower Supply 144W 15V 9.6A
Brand: Mean Well
SKU: GST160A15-R7B
Price: 62.67 USD
Availability: InStock

Overview

GST160A15-R7B is the 15V output model of this series: rated current 9.6A, typical efficiency 91%.

GST160A is a highly reliable, 160W desktop style single-output green adaptor series. This product is a classⅠpower unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 94% and the extremely low no-load power consumption below 0.15W,GST160A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,EU ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST160A is certified for the international safety regulations.

Features

Global certificates
Universal AC input / Full range

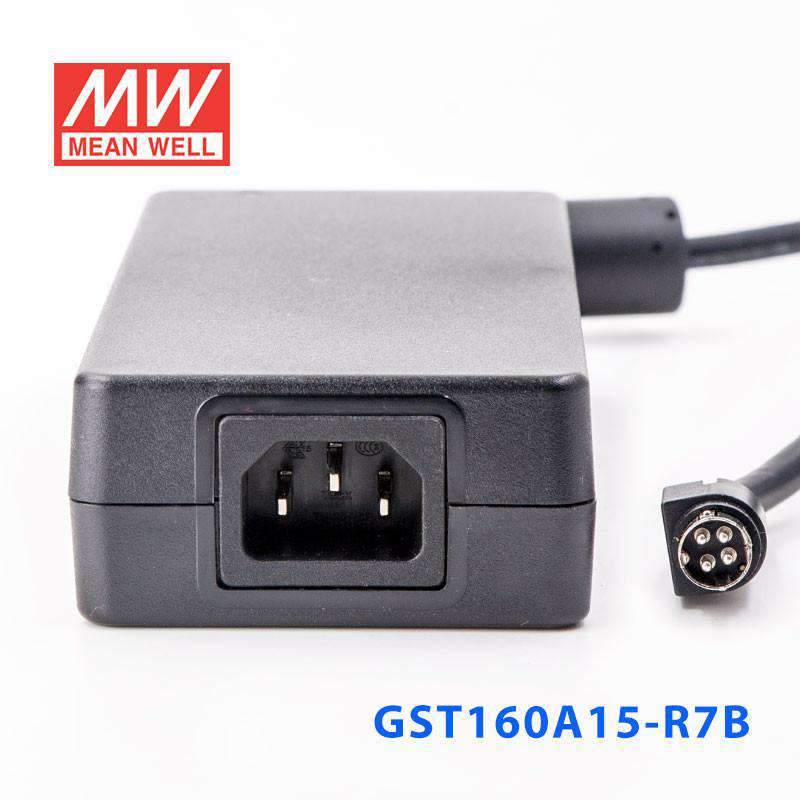

3 pole AC inlet IEC320-C14,ClassⅠpower unit
Built-in active PFC function
No load power consumption<0.15W
Energy efficiency Level VI
Comply with EISA 2007/DoE,NRCan,AU/NZ MEPS, EU ErP and CoC Version 5
Protections: Short circuit / Overload / Over voltage / Over temperature
-30~+70℃ wide range working temperature
Fully enclosed plastic case

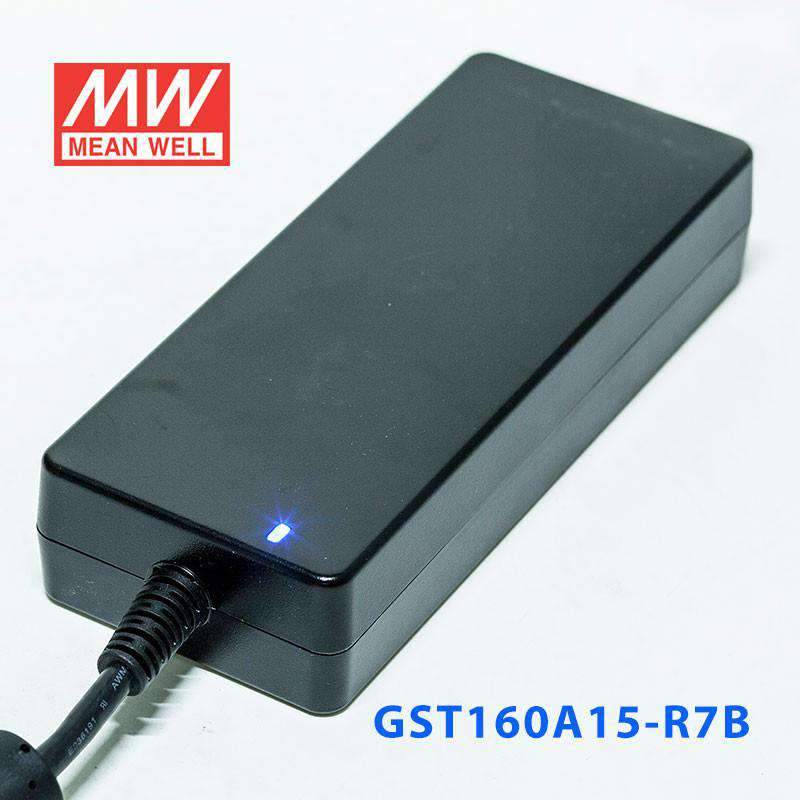

LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GST160A15-R7BSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GST160A15
DC VOLTAGE^Note.2: 15V
RATED CURRENT: 9.6A
CURRENT RANGE: 0 ~ 9.6A
RATED POWER (max.): 144W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±5.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 20ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 12V/15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 91%
AC CURRENT: 1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (max.): Cold start 95A / 115VAC 120A / 230VAC
LEAKAGE CURRENT(max.): 0.75mA / 240VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Hiccup mode @ 10%load
OVER TEMPERATURE: Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃ , 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~50℃ )
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS^{Note. 8}: UL62368-1, CSA C22.2 No.62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1,AS/NZS 62368.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P: 3KVAC I/P-FG: 2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Radiated emission BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2,GB9254 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55035

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 2, 3V/m
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 2, 3A/m
Voltage dips , interruption BS EN/EN61000-4-11 ＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Radiated emission	BS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2,GB9254	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 2, 3V/m
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 2, 3A/m
Voltage dips , interruption	BS EN/EN61000-4-11	＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF: 2205.4K hrs min. Telcordia SR-332 (Bellcore) ; 236.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 175*72*35mm (L*W*H)
PACKING: 0.66Kg; 20pcs/ 14.2Kg/ 0.95CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST160A15-R7B Derating Curve — Derating Curve

GST160A15-R7B Mechanical Specification — Mechanical Specification

GST160A15-R7B DC output plug — DC output plug

GST160A15-R7B ◎ Optional DC plug: (Available in customized cable or… — ◎ Optional DC plug: (Available in customized cable or…

GST160A15-R7B Pin Assignment — Pin Assignment

Typical applications

Consumer electronic devices
Telecommunication devices
Office facilities
Industrial equipments

Downloads

Datasheet1

GST160A15-R7B datasheetGST160A-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates9

UL Certificate (GST160A)(EN) PDF Download

TUV Certificate (GST160A)(EN) PDF Download

EMC Certificate (GST160A)(EN) PDF Download

NRCan Certificate (GST160A)(EN) PDF Download

BSMI Certificate (GST160A)(EN) PDF Download

PSE Certificate (GST160A)(EN) PDF Download

CCC Certificate (GST160A)(CN) PDF Download

FCC Certificate (GST160A)(EN) PDF Download

ErP Certificate (GST160A)(EN) PDF Download

Test reports1

Test Report (GST160A15)(EN) PDF Download

Catalogues2

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

What are the main output specifications of the Mean Well GST160A15-R7B?

This model is a 144W desktop AC-DC power supply with a 15V DC output. It is rated for up to 9.6A output current. The unit is designed for applications that require this specific voltage and power level.

What input range does the GST160A15-R7B support?

The GST160A15-R7B has a universal input range of 85 to 264VAC or 120 to 370VDC. That makes it suitable for use across a wide range of standard mains environments. Its typical power factor is above 0.93 at 230VAC and above 0.98 at 115VAC at full load, with 91% typical efficiency.

What type of output connector does the GST160A15-R7B use?

This model uses the R7B standard DC plug, a 4-pin locking DIN-type connector (KYCON KPPX-4P equivalent). It is intended for equipment designed for that connector style and a 15V DC supply. Buyers should confirm both plug format and electrical rating before selecting it.

Is the GST160A15-R7B suitable for industrial or commercial environments?

It is well suited to commercial and industrial use where an external adaptor-style power supply is preferred. The unit includes overload, over voltage, and over temperature protection for added operational safety. It also uses an IEC320-C14 AC inlet with an earth (FG) connection.

What operating environment can the GST160A15-R7B handle?

The specified working temperature range is -30°C to +70°C, with load derating at higher temperatures per the derating curve, and the working humidity range is 20% to 90% RH non-condensing. Environmental fit should still be checked against the end equipment enclosure and load conditions.

How does the GST160A15-R7B compare with lower-power 15V adapters?

The main differentiator is output capacity: this model delivers up to 144W at 15V, which is significantly higher than smaller desktop adapters. It is intended for applications that need up to 9.6A from a single supply. It also includes industrial-style protections and a locking 4-pin DIN output plug rather than a generic barrel plug.
