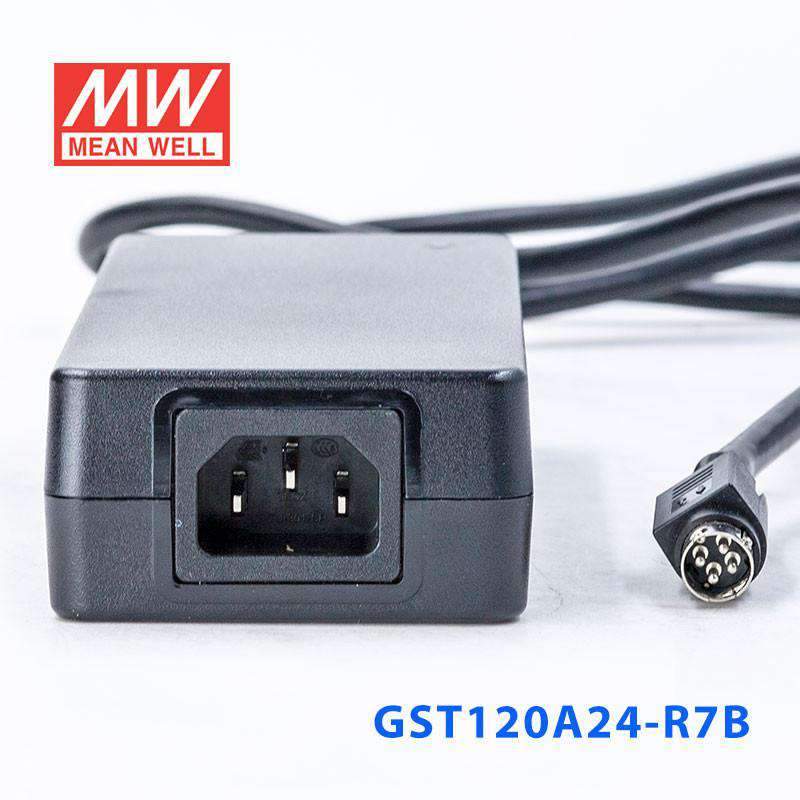

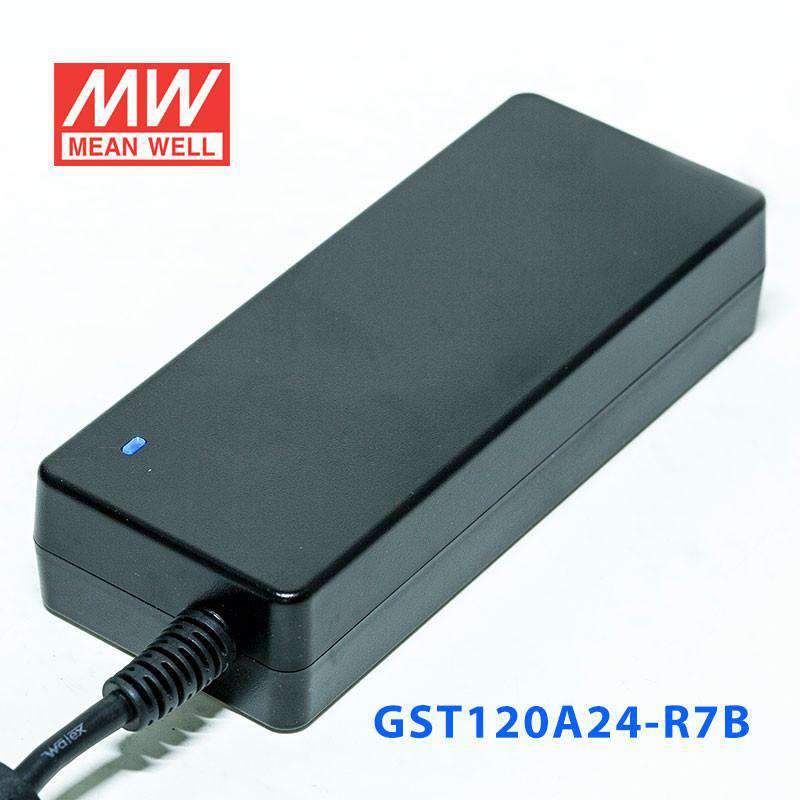

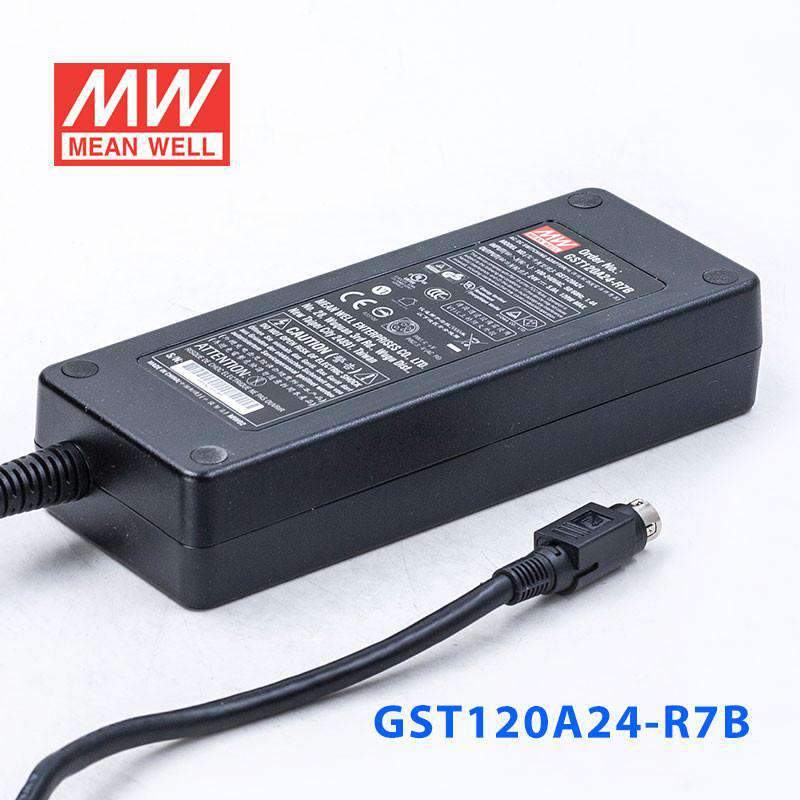

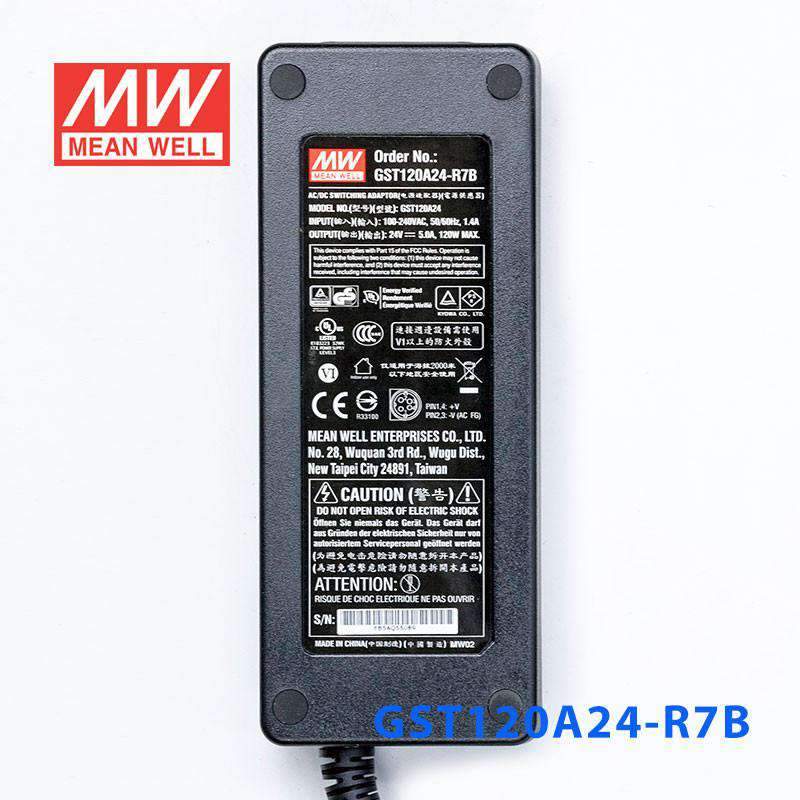

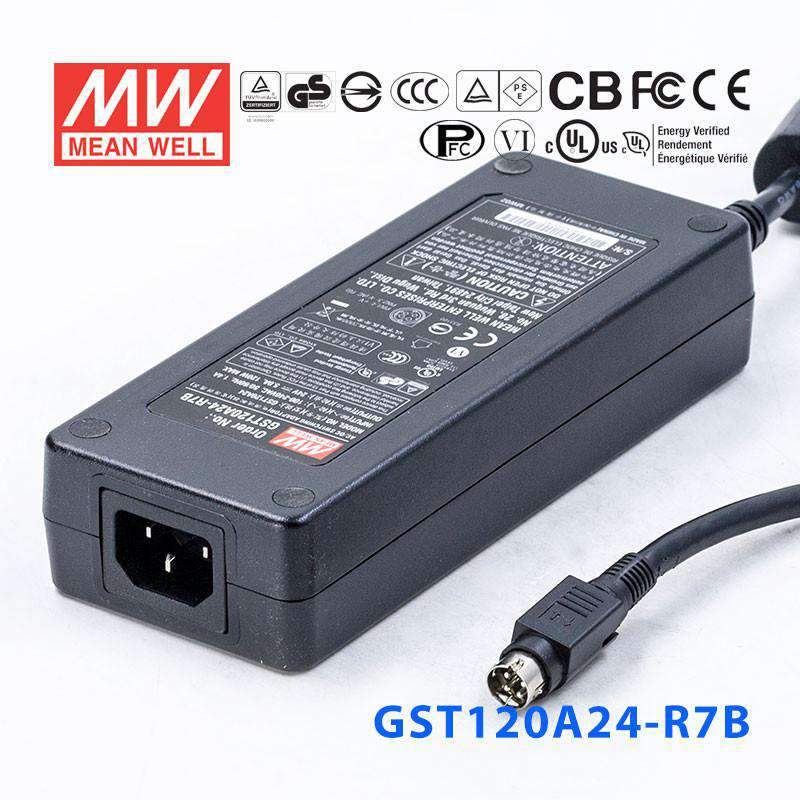

Mean Well GST120A24-R7B Power Supply 120W 24V 5A

SKU GST120A24-R7B
$52.05 USD
Shipping calculated at checkout.

Select model — 12 in this family

GST120A24-R7B
In stock
|

Overview

GST120A24-R7B is the 24V output model of this series: rated current 5A, typical efficiency 90.5%. Type R7B: Plug for 12~48V,Power DIN 4Pin with lock type(standard).

GST120A is a highly reliable, 120W desktop style single-output green adaptor series. This product is a classⅠpower unit (with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 85VAC to 264VAC. The entire series supplies different models with output voltages ranging between 12VDC and 48VDC that can satisfy the demands for various types of consumer electronic devices. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W,GST120A is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS,Korea K-MEPS,Eu ErP and Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GST120A is certified for the international safety regulations.

Features

  • Global certificates
  • Universal AC input / Full range
  • 3 pole AC inlet IEC320-C14,ClassⅠpower unit
  • Built-in active PFC function
  • No load power consumption<0.15W
  • Energy efficiency Level VI
  • Comply with EISA 2007/DoE,NRCan,Korea K-MEPS,AU/NZ MEPS,EU ErP and CoC Version 5
  • Protections: Short circuit / Overload / Over voltage / Over temperature
  • Fully enclosed plastic case
  • -30~+70℃ wide range working temperature
  • LED indicator for power on
  • Various DC plug quick adaptor accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GST120A24-R7BSpecifications from the official datasheet (2025-03-28 edition)

OUTPUT

SAFETY MODEL NO.
GST120A24
DC VOLTAGE
24V
RATED CURRENT
5A
CURRENT RANGE
0 ~ 5A
RATED POWER (max.)
120W
RIPPLE & NOISE (max.)Note.2
180mVp-p
VOLTAGE TOLERANCENote.3
±3.0%
LINE REGULATIONNote.4
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIMENote.5
2000ms, 30ms / 230VAC 2500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
20ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.6
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
POWER FACTOR (Typ.)
PF>0.93 / 230VAC PF>0.97 / 115VAC at full load
EFFICIENCY (Typ.) R7B
90.5%
EFFICIENCY (Typ.) P1M
89.5%
AC CURRENT
1.4A / 115VAC 0.7A / 230VAC
INRUSH CURRENT (max.)
Cold start 35 / 115AC 70A / 230VAC
LEAKAGE CURRENT(max.)
0.75mA / 240VAC

PROTECTION

OVERLOAD
105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE
Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0~45℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 9)

SAFETY STANDARDSNote. 7
UL62368-1, CSA C22.2 No. 62368-1, TUV BS EN/EN62368-1, BSMI CNS15598-1, CCC GB4943.1, PSE J62368-1,AS/NZS 62368.1 , BIS IS13252, KC K60950-1, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P: 3KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Radiated emissionBS EN/EN55032(CISPR32),FCC PART 15 / CISPR22 CAN ICES-3(B)/NMB-3(B),CNS15936,GB17625.1 EAC TP TC 020,MSIP KN32Class B
Harmonic currentBS EN/EN61000-3-2,GB9254Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN55035

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 2, 3V/m
EFT burstsBS EN/EN61000-4-4Level 2, 1KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibilityBS EN/EN61000-4-6Level 2, 3V
Magnetic field immunityBS EN/EN61000-4-8Level 2, 3A/m
Voltage dips , interruptionBS EN/EN61000-4-11＞95% dip 0.5 periods, 30% dip 25 periods, ＞95% interruptions 250 periods

OTHERS

MTBF
2250.5K hrs min. Telcordia SR-332 (Bellcore) ; 368.5K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
167*67*35mm (L*W*H)
PACKING
0.575Kg; 20pcs/12.5Kg/0.89CUFT

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

R7B (this model)
Plug for 12~48V,Power DIN 4Pin with lock type(standard)
P1M
Plug for 20~48V only,2.5 φ x5.5 φ x11mm,C+,tuning fork type(standard)
Test conditions and notes8
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  3. 3. Tolerance: includes set up tolerance, line regulation, load regulation.
  4. 4. Line regulation is measured from low line to high line at rated load.
  5. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  6. 6. Derating may be needed under low input voltage. Please check the derating curve for more details.
  7. 7. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  8. 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GST120A24-R7B Derating Curve
Derating Curve
GST120A24-R7B Mechanical Specification
Mechanical Specification
GST120A24-R7B DC output plug
DC output plug
GST120A24-R7B Center Pin Style
Center Pin Style
GST120A24-R7B Pin Assignment
Pin Assignment

Typical applications

  • Consumer electronic devices
  • Telecommunication devices
  • Office facilities
  • Industrial equipments

Downloads

FAQ

Can I use the GST120A24-R7B for a 24V industrial control panel or automation system?

Yes, if the load requires constant voltage 24V input, this model is aligned with that requirement. It provides up to 5A at 24V with a total output rating of 120W.

Is the GST120A24-R7B suitable for 24V monitoring, signaling, or embedded control equipment?

It can be a fit for 24V monitoring or embedded control devices that expect a regulated constant voltage supply. The available output is 24V and 5A, so the connected equipment needs to remain within a 120W budget.

Can this model be used for 24V industrial networking or edge devices?

It is appropriate for 24V industrial networking or edge hardware when the product input requirement is 24V constant voltage DC. The 85-264VAC input range also supports use in facilities with different AC mains standards.

What is the difference between the GST120A24-R7B and GST120A24-P1M?

The sibling specs shown for these two models are the same: 120W, 24V, and 5A. Based on the provided series data, there is no published difference in output rating.

Is the GST120A24-R7B suitable for outdoor use?

The product specs list an operating temperature range of -30°C to +70°C, which supports a broad temperature window. No IP rating is included here, so the provided data does not confirm protection for direct outdoor, wet, or dusty exposure.
