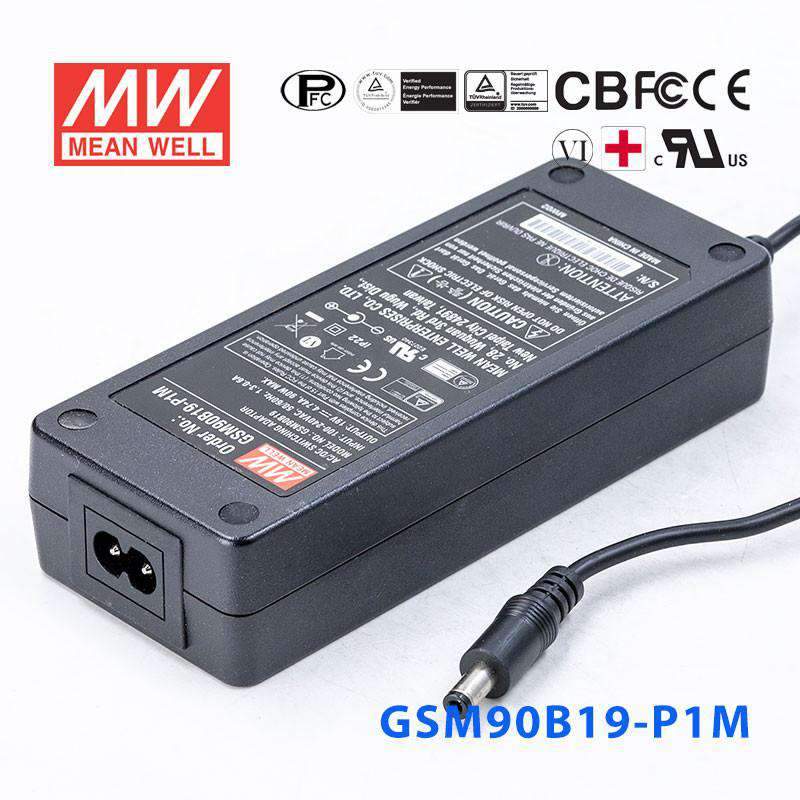

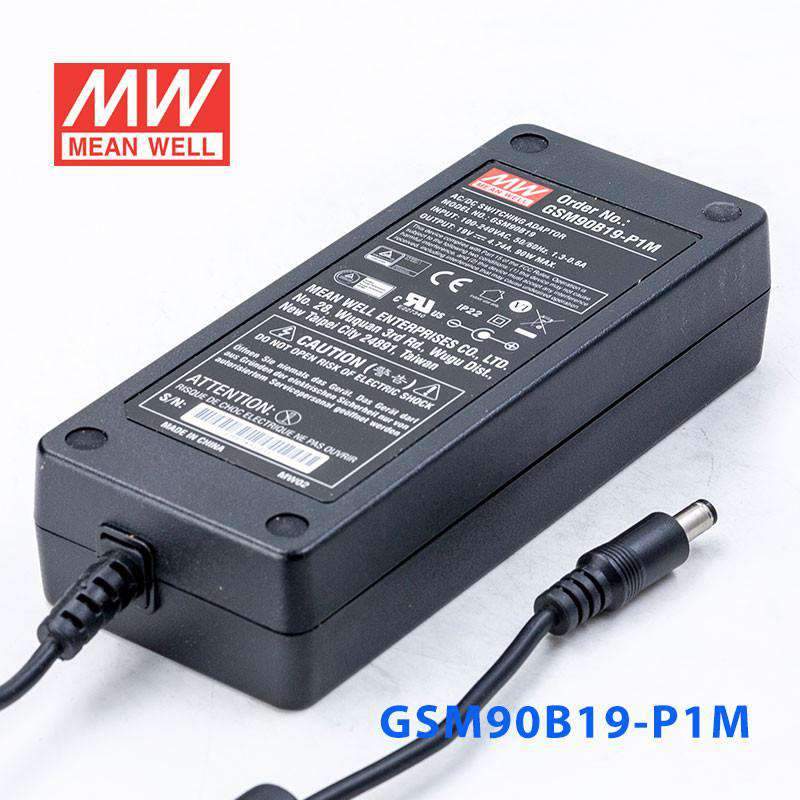

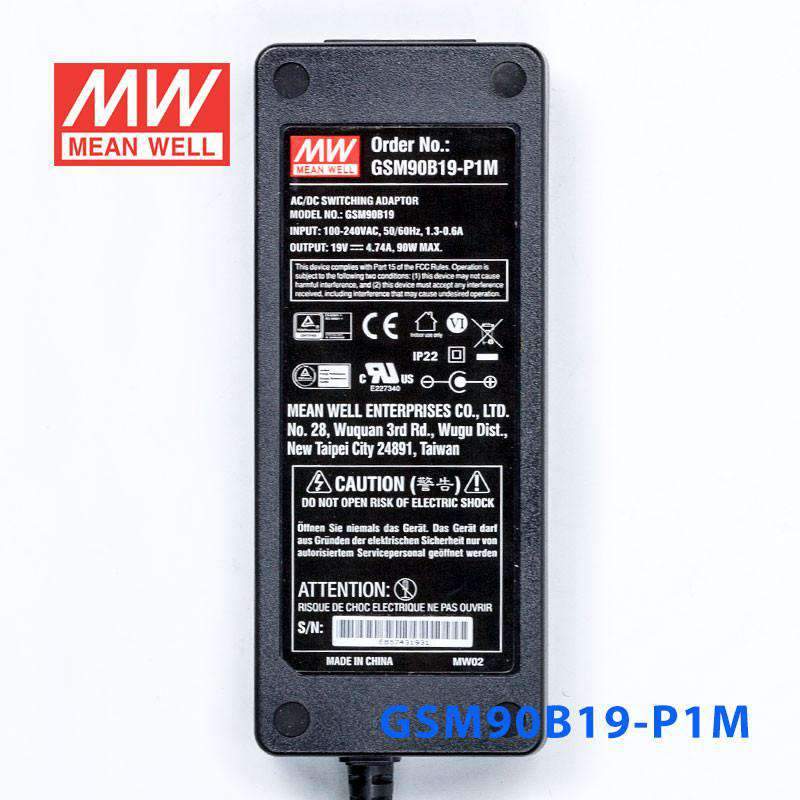

Mean Well GSM90B19-P1M Power Supply 90W 19V 4.74A

Name: Mean Well GSM90B19-P1M Power Supply 90W 19V 4.74A
Brand: Mean Well
SKU: GSM90B19-P1M
Price: 41.11 USD
Availability: InStock

SKU GSM90B19-P1M

$41.11 USD

Shipping calculated at checkout.

Select model — 2 in this family

GSM90B19-P1M

GSM90B19-P1M 2 Pole Backorder$41.11 USD

GSM90A19-P1M 3 Pole In stock$40.73 USD

Product variants

Available to order

Overview

GSM90B19-P1M is the 19V output model of this series: rated current 4.74A, typical efficiency 89%.

GSM90B is a highly reliable, 90W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, GSM90B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM90B is approved with the international medical safety certificates.

Features

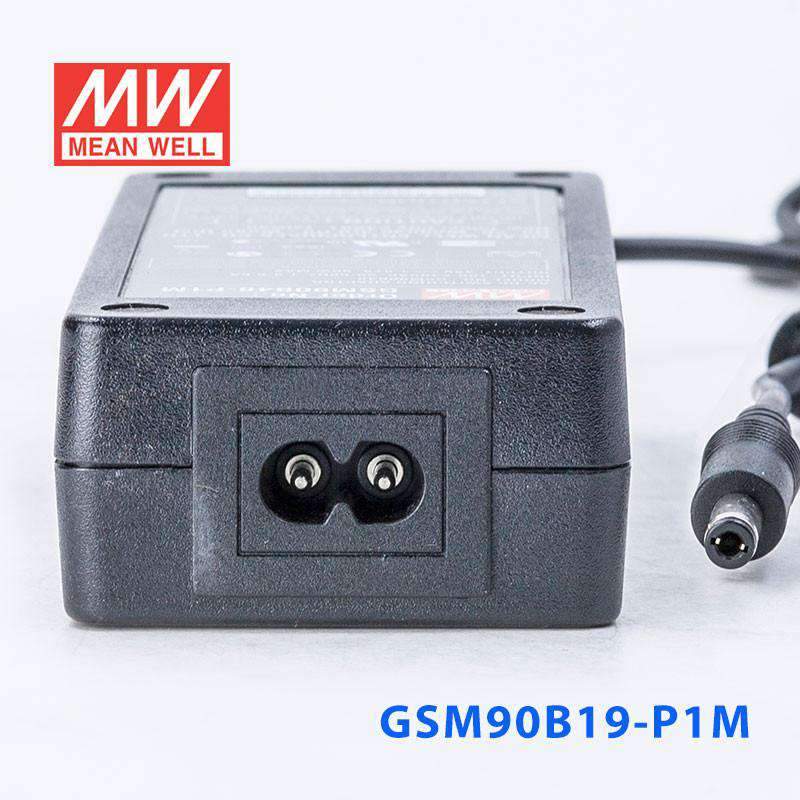

2 pole AC inlet IEC320-C8, Class Ⅱ power unit
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
Extremely low leakage current
No load power consumption<0.15W
Energy efficiency level VI and meet CoC Version 5
-30~+70℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature

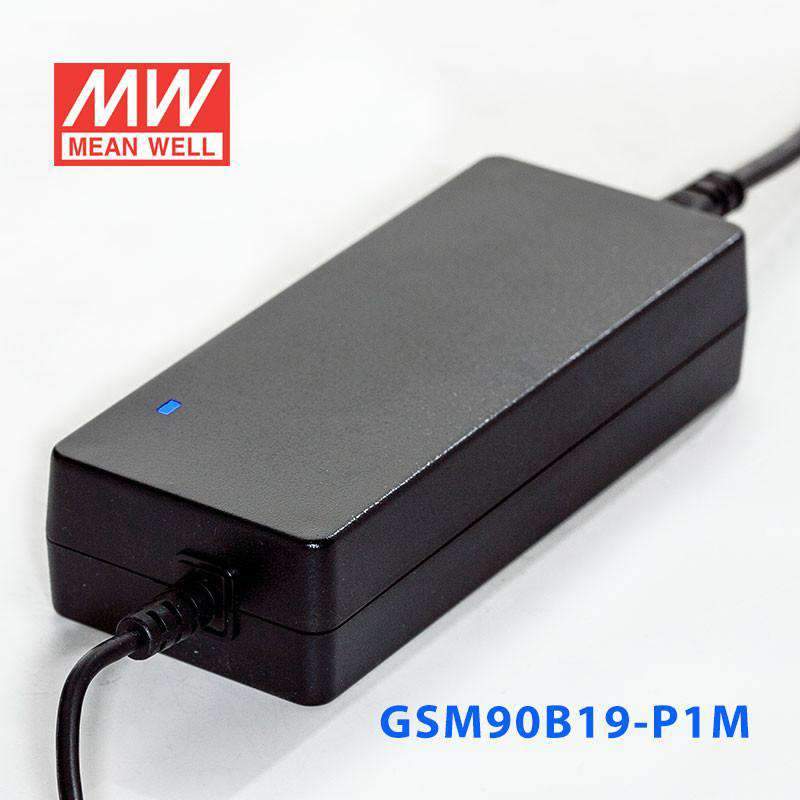

LED indicator for power on
Lifetime> 90 K hours
Various DC plug quick adapter accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM90B19-P1MSpecifications from the official datasheet (2026-05-09 edition)

OUTPUT

SAFETY MODEL NO.: GSM90B19
DC VOLTAGE^Note.2: 19V
RATED CURRENT: 4.74A
CURRENT RANGE: 0 ~ 4.74A
RATED POWER (max.): 90W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±4.0%
SETUP, RISE TIME^Note.6: 1000ms, 50ms / 230VAC 1500ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (Typ.): Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.8: 3000 meters

SAFETY & EMC

SAFETY STANDARDS^Note.9: IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1 ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1,CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1 EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P: 4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B
Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22	Class B
Radiated emission	BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 2743.3K hrs min. Telcordia SR-332 (Bellcore) ; 353.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*60*32mm (L*W*H)
PACKING: 0.45Kg; 30pcs/14.5Kg/0.9CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM90B19-P1M Derating Curve — Derating Curve

GSM90B19-P1M Mechanical Specification — Mechanical Specification

GSM90B19-P1M DC output plug — DC output plug

Typical applications

Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breath Machine
Medical computer monitor

Downloads

Datasheet1

GSM90B19-P1M datasheetGSM90B-SPEC.PDF · 2026-05-09 edition PDF Download

Certificates6

CB Certificate(GSM90B)(EN) PDF Download

TUV Certificate(GSM90B)(EN) PDF Download

EMC Certificate(GSM90B)(EN) PDF Download

FCC Certificate(GSM90B)(EN) PDF Download

NRCan Certificate(GSM90B)(EN) PDF Download

UL Certificate(GSM90B)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can the GSM90B19-P1M power 19V industrial PCs or embedded computing hardware?

Yes, it is suitable for 19V devices that require constant-voltage DC input and stay within 90W and 4.74A. That makes it relevant for many embedded computing and industrial PC applications built around 19V power.

Is this a good option for 19V display, HMI, or kiosk systems?

It can be used for 19V display, HMI, or kiosk hardware when the product requires a steady 19V DC supply. The combined load must remain at or below 4.74A and 90W.

Can I use the GSM90B19-P1M for 19V networking or IT peripherals?

Yes, if the networking or IT peripheral is specified for constant 19V DC input, this supply can be a fit. Buyers should confirm the device does not exceed the 4.74A output current or 90W power rating.

Would this work for 19V monitoring or control terminals in automation environments?

It can support 19V monitoring or control terminals that need regulated constant-voltage power. The application match depends on the terminal being designed for 19V DC and drawing no more than 4.74A.

Can this power supply handle cold or hot operating conditions?

The listed operating temperature range is -30°C to +70°C, so it is specified for both low and high ambient temperatures within that span. Since no IP rating is provided, the specs do not establish outdoor weather exposure or water-ingress protection.

How should I check if this 19V supply matches my equipment?

Match it to equipment that requires constant 19V DC and draws 4.74A or less, with total power demand up to 90W. Those are the key electrical limits given in the product specs.
