Mean Well GSM90B15-P1M 90W 15V Power Supply | Best Price & Stock

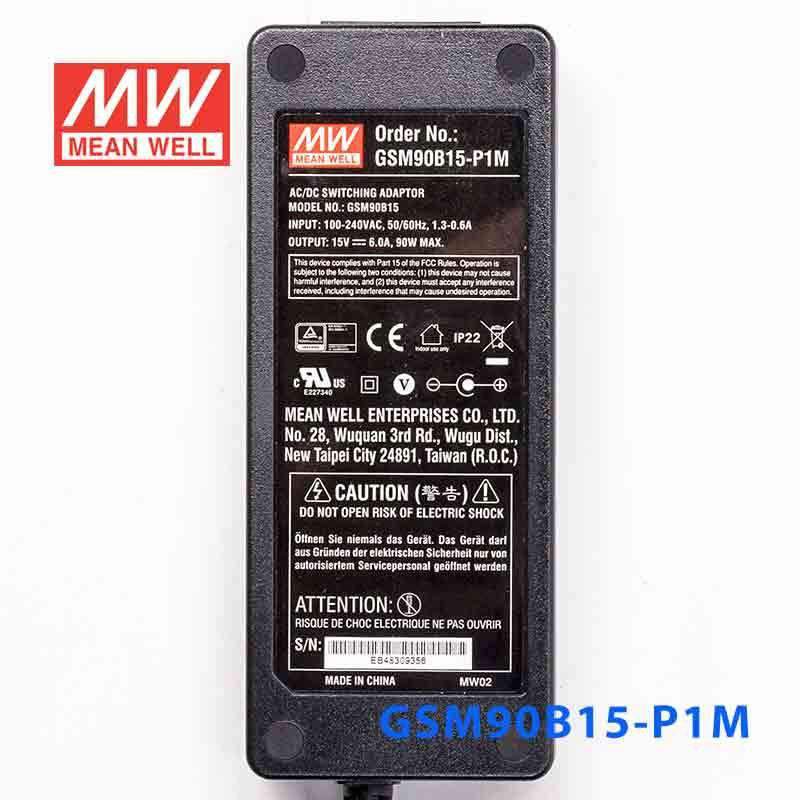

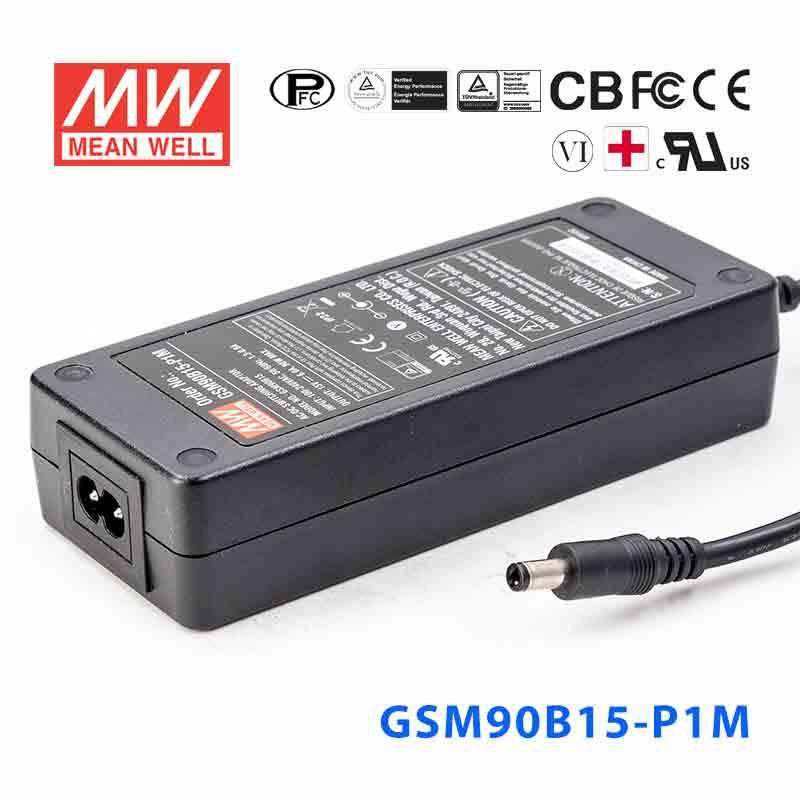

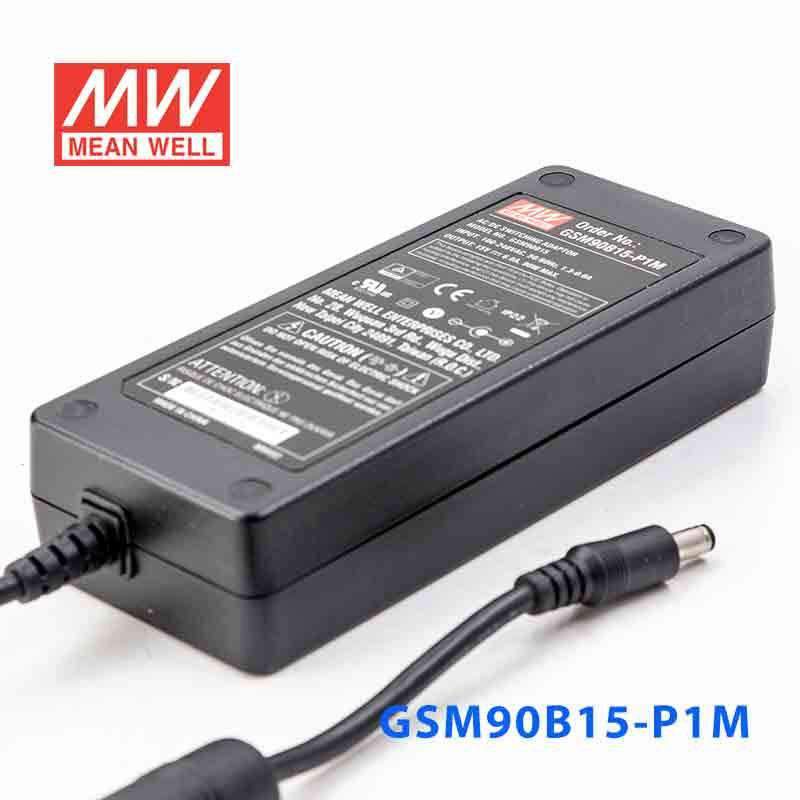

Name: Mean Well GSM90B15-P1M Power Supply 90W 15V 6A
Brand: Mean Well
SKU: GSM90B15-P1M
Price: 41.11 USD
Availability: InStock

Overview

GSM90B15-P1M is the 15V output model of this series: rated current 6A, typical efficiency 89%.

GSM90B is a highly reliable, 90W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, GSM90B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM90B is approved with the international medical safety certificates.

Features

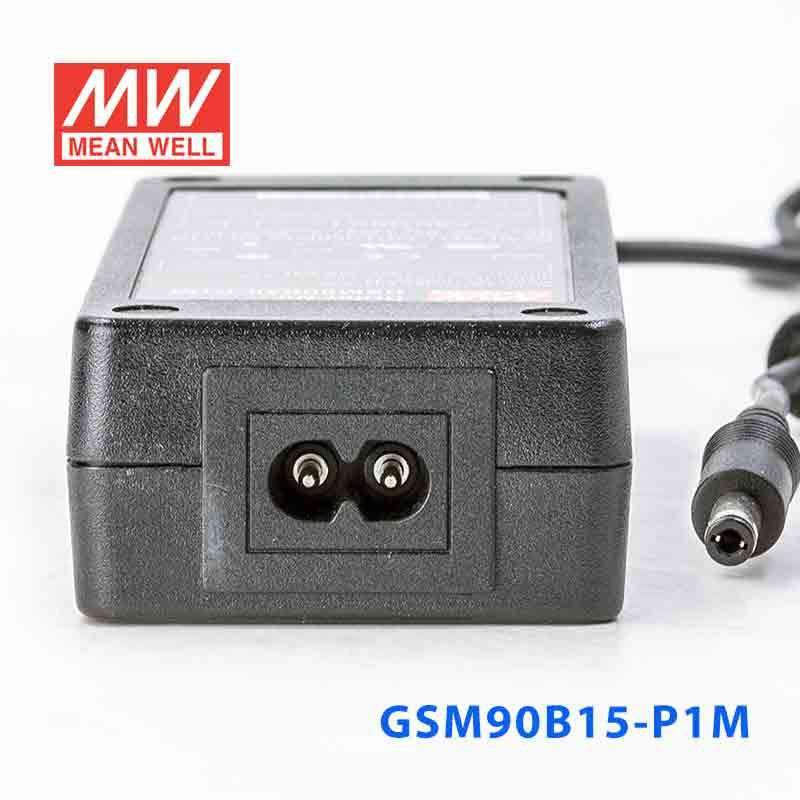

2 pole AC inlet IEC320-C8, Class Ⅱ power unit
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
Extremely low leakage current
No load power consumption<0.15W
Energy efficiency level VI and meet CoC Version 5
-30~+70℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature

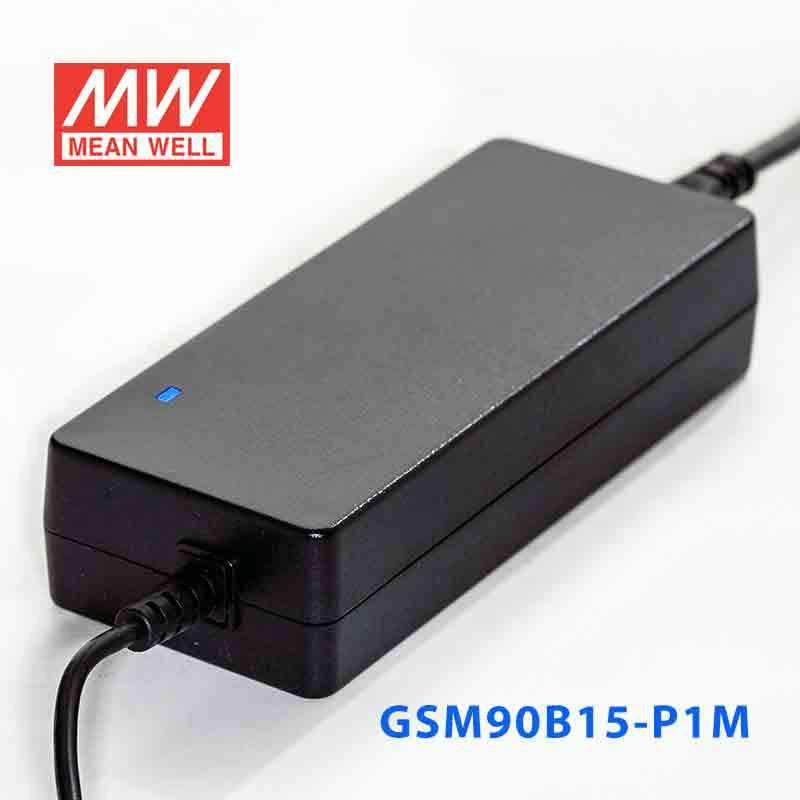

LED indicator for power on
Lifetime> 90 K hours
Various DC plug quick adapter accessory available (Plug kit sold separately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM90B15-P1MSpecifications from the official datasheet (2026-05-09 edition)

OUTPUT

SAFETY MODEL NO.: GSM90B15
DC VOLTAGE^Note.2: 15V
RATED CURRENT: 6A
CURRENT RANGE: 0 ~ 6A
RATED POWER (max.): 90W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±5.0%
SETUP, RISE TIME^Note.6: 1000ms, 50ms / 230VAC 1500ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 30ms / 230VAC 20ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): PF>0.91 / 230VAC PF>0.95 / 115VAC at full load
EFFICIENCY (Typ.): 89%
AC CURRENT (Typ.): 1.3A / 115VAC 0.6A / 230VAC
INRUSH CURRENT (Typ.): Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 110 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.8: 3000 meters

SAFETY & EMC

SAFETY STANDARDS^Note.9: IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1 ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1,CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1 EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P: 4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B
Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22	Class B
Radiated emission	BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 2743.3K hrs min. Telcordia SR-332 (Bellcore) ; 353.3K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 145*60*32mm (L*W*H)
PACKING: 0.45Kg; 30pcs/14.5Kg/0.9CUFT

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM90B15-P1M Derating Curve — Derating Curve

GSM90B15-P1M Mechanical Specification — Mechanical Specification

GSM90B15-P1M DC output plug — DC output plug

Typical applications

Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breath Machine
Medical computer monitor

Downloads

Datasheet1

GSM90B15-P1M datasheetGSM90B-SPEC.PDF · 2026-05-09 edition PDF Download

Certificates6

CB Certificate(GSM90B)(EN) PDF Download

TUV Certificate(GSM90B)(EN) PDF Download

EMC Certificate(GSM90B)(EN) PDF Download

FCC Certificate(GSM90B)(EN) PDF Download

NRCan Certificate(GSM90B)(EN) PDF Download

UL Certificate(GSM90B)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM90B15-P1M for 15V automation controllers or industrial electronics?

Yes, this unit provides constant 15V DC output and is rated for 90W and 6A. It suits 15V automation or industrial electronics that need regulated 15V power and remain within the 6A / 90W capacity.

Is the GSM90B15-P1M suitable for 15V embedded systems or edge devices?

It can be used for embedded systems, edge devices, or industrial computers that are specified for constant 15V DC input. The load still needs to stay within 6A and 90W.

Can this model power 15V HMI, sensing, or monitoring equipment?

Yes, it is a reasonable fit for 15V HMI, sensor, or monitoring equipment when the application requires constant-voltage output. The equipment should be rated for 15V DC and draw no more than 6A total.

Would this power supply work for 15V lab or test equipment?

It can work for 15V test and bench equipment that expects a constant 15V DC source rather than constant-current drive. Capacity should be checked against the 90W maximum and 6A output rating.

Is the GSM90B15-P1M intended for indoor or outdoor use?

The specified operating range is -30°C to +70°C, which supports use across a wide temperature span. But the provided specs do not list an IP rating, so these details do not confirm suitability for outdoor or exposed wet locations.

What is the main compatibility check before choosing this 15V model?

The main check is whether your equipment needs constant 15V DC and stays within 6A and 90W. If your device needs a different voltage or exceeds those limits, this model is not the correct fit.
