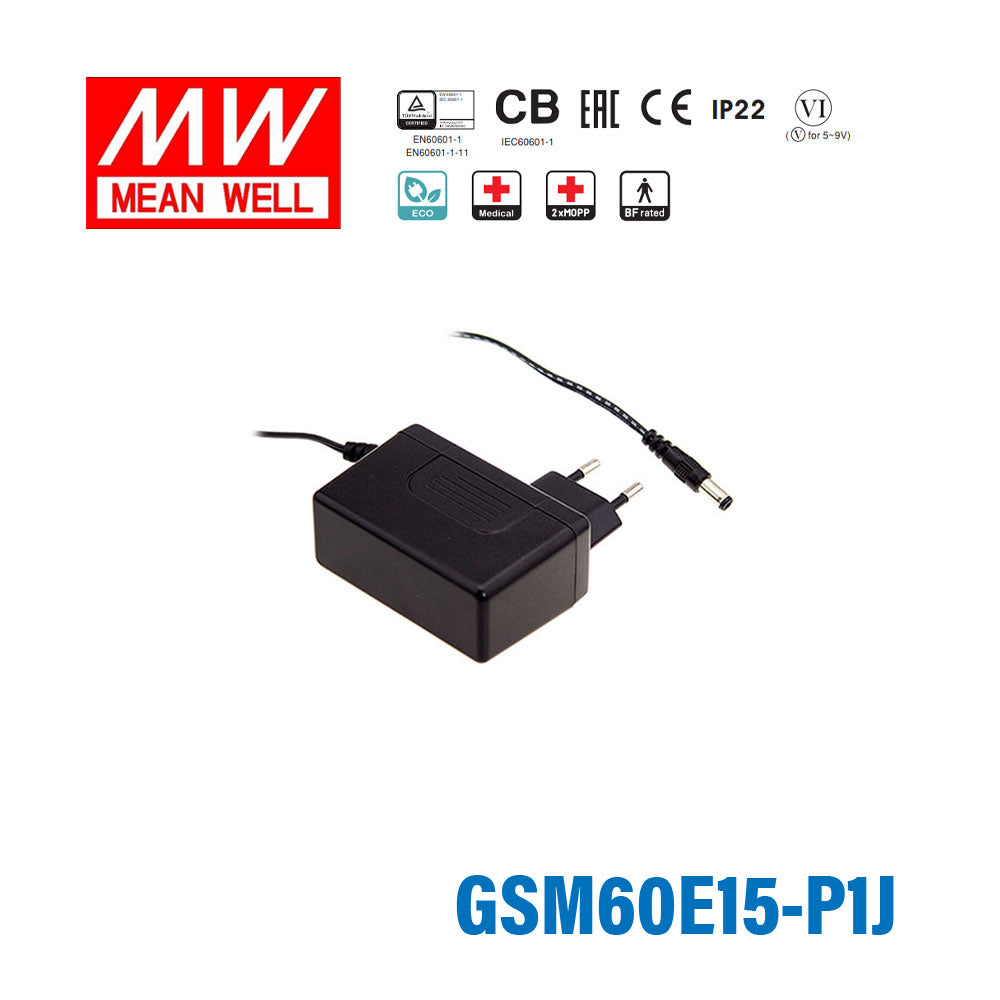

Name: Mean Well GSM60E15-P1J Power Supply 60W 15V 4A
Brand: Mean Well
SKU: GSM60E15-P1J
Price: 37.07 USD
Availability: InStock

Overview

GSM60E15-P1J is the 15V output model of this series: rated current 4A, typical efficiency 88%.

GSM60E is a 60W ultra slim wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. GSM60E is a class Ⅱ power unit (no FG) equipped with the standard 2-Pin European plug, accepting the input range from 80VAC to 264VAC. The whole series provides different models with output voltages ranging between 5VDC and 48VDC that it can satisfy the demands for various types of medical electronic devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 90% and the extremely low no-load power consumption below 0.15W, GSM60E is compliant with EU ErP and meet CoC version 5 (5~9V for Level Ⅴ). The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazards.

Features

Ultra slim, compact size
Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11
Extremely Low leakage current
2 pole EURO plug, Class Ⅱ power unit
No load power consumption <0.15W
Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
-30~+70℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM60E15-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GSM60E15
DC VOLTAGE^Note.2: 15V
RATED CURRENT: 4A
CURRENT RANGE: 0 ~ 4A
RATED POWER (max.): 60W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 100ms, 10ms/230VAC 1000ms, 100ms, 10ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT: 1.5A / 115VAC 0.8A / 230VAC
INRUSH CURRENT (max.): Cold start 50A / 115VAC 100A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -30 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
IP rating: IP22

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/ EN55011, BS EN/ EN60601-1-2

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~6GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV Line-Line,1KV ineterconnect Lines at 100KHz rate
Surge susceptibility BS EN/EN61000-4-5 Level 3, 2KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~6GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV Line-Line,1KV ineterconnect Lines at 100KHz rate
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 2KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 8hours / day
MTBF: 400Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 75.5*32*47.5mm (L*W*H)
PACKING: 200g ; 60pcs / 13kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; other type available by customer requested
CABLE: See page 4~5 ; other type available by customer requested

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GSM60E15-P1J Derating Curve — Derating Curve

GSM60E15-P1J Mechanical Specification — Mechanical Specification

GSM60E15-P1J DC output plug — DC output plug

GSM60E15-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Datasheet1

GSM60E15-P1J datasheetGSM60E-SPEC.PDF · 2022-04-15 edition PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM60E15-P1J for a 15V industrial instrument or analyzer?

Yes, if the equipment is designed for constant voltage 15V DC input. This model provides up to 60W and 4A, which makes it suitable for 15V instruments, analyzers, or lab electronics within that load range.

Is the GSM60E15-P1J suitable for 15V automation modules or control hardware?

It can be used for 15V automation modules, signal processors, or control hardware that require a stable 15V constant voltage source. The total demand needs to stay at or below 60W and 4A.

Would this 15V power supply work for embedded systems with a 15V DC input?

It is intended for loads that specifically call for constant voltage 15V DC rather than a current-regulated output. With 60W available at 4A, it fits embedded systems and electronics assemblies that stay inside those electrical limits.

Can the GSM60E15-P1J power small motion-control or industrial accessory devices that need 15V?

It may be a fit for 15V accessory devices, interface units, or compact industrial electronics when the input requirement is fixed 15V DC. The main sizing check is keeping the load within 60W and 4A.

Is this model appropriate for indoor equipment exposed to temperature swings?

The operating temperature range is -30°C to +70°C, with load derating at the upper end per the derating curve, so it covers both cold-start and warm-running equipment environments. It is rated IP22, so outdoor weather exposure is not supported by the spec sheet.
