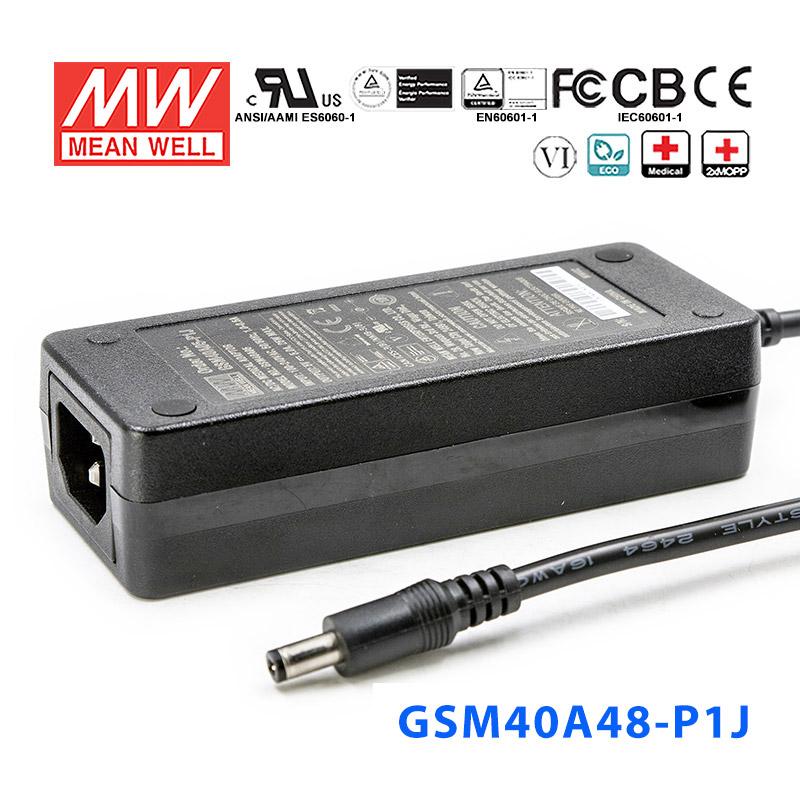

Mean Well GSM40A48-P1J Power Supply 40W 48V 840mA

SKU GSM40A48-P1J
$25.70 USD
Shipping calculated at checkout.

Select model — 14 in this family

GSM40A48-P1J
In stock
|

Overview

GSM40A48-P1J is the 48V output model of this series: rated current 0.84A, typical efficiency 91%.

GSM40A is a highly reliable, 40W single-output green medical adaptor series. This product is a class I power unit(with FG), equipped with a standard IEC320-C14 AC inlet and adopting the input range from 80VAC to 264VAC. The entire series supplies different models with output voltages between 5VDC and 48VDC that can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 91% and the extremely low no-load power consumption below 0.15W, GSM40A is compliant with USA EISA 2007/DoE ,Canada NRCan,Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5.The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case.GSM40A is certified for the international medical safety regulations.

Features

  • 3 pole AC inlet IEC320-C14, ClassⅠpower unit
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1 and IEC/BS EN/EN60601-1
  • Extremely low leakage current
  • No load power consumption<0.15W
  • Energy efficiency level VI and meet CoC Version 5 (Except 5~9V for Level V)
  • -30~+70℃ wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • LED indicator for power on
  • Lifetime > 90 K hours
  • Various DC plug quick adapter accessory available (Plug kit sold sperately,please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GSM40A48-P1JSpecifications from the official datasheet (2026-05-09 edition)

OUTPUT

SAFETY MODEL NO.
GSM40A48
DC VOLTAGENote.2
48V
RATED CURRENT
0.84A
CURRENT RANGE
0.1 ~ 0.84A
RATED POWER (max.)
40W
RIPPLE & NOISE (max.)Note.3
150mVp-p
VOLTAGE TOLERANCENote.4
±2.5%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±2.5%
SETUP, RISE TIMENote.6
1000ms, 30ms / 230VAC 1500ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
50ms / 230VAC 24ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
80 ~ 264VAC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
91%
AC CURRENT (Typ.)
1A / 115VAC 0.5A / 230VAC
INRUSH CURRENT (Typ.)
Cold start 30A/115VAC 60A / 230VAC
LEAKAGE CURRENT(max.)
Earth leakage current < 100μA/264VAC , Touch current < 100μA/264VAC

PROTECTION

OVERLOAD
105 ~ 160% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
50.4 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0~50℃ )
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDENote.8
3000 meters

SAFETY & EMC (Note 9)

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2, TUV BS EN/ EN 60601-1:2006+A1+A12+A2, ANSI/AAMI ES60601-1:2005+A2,CAN/CSA C22.2 No. 60601-1:2014+A2, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP, Primary-Earth:1xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC I/P-FG:2KVAC O/P-FG:SHORT
ISOLATION RESISTANCE
I/P-O/P, I/P-FG:100M Ohms / 500VDC / 25℃ / 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionBS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22Class B
Radiated emissionBS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22Class B
Harmonic currentBS EN/EN61000-3-2Class A
Voltage flickerBS EN/EN61000-3-3
EMC IMMUNITY

BS EN/EN60601-1-2, BS EN/EN61204-3

ParameterStandardTest Level
ESDBS EN/EN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityBS EN/EN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsBS EN/EN61000-4-4Level 3, 2KV
Surge susceptibilityBS EN/EN61000-4-5Level 3, 1KV/Line-Line , 2KV/Line-FG
Conducted susceptibilityBS EN/EN61000-4-6Level 3, 10V
Magnetic field immunityBS EN/EN61000-4-8Level 4, 30A/m
Voltage dip, interruptionBS EN/EN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
3613.2K hrs min. Telcordia SR-332 (Bellcore) ; 740.7K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
125*50*31.5mm (L*W*H)
PACKING
0.25Kg; 40pcs/ 12Kg/1.04CUFT

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested
Test conditions and notes9
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltages. Pleas check the derating curve for more details.
  8. 8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
  9. 9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM40A48-P1J Derating Curve
Derating Curve
GSM40A48-P1J Mechanical Specification
Mechanical Specification
GSM40A48-P1J DC output plug
DC output plug

Typical applications

  • Mobile clinical workstation
  • Oral irrigator
  • Portable hemodialysis machine
  • Breath Machine
  • Medical computer monitor

Downloads

FAQ

Can I use the GSM40A48-P1J for 48V industrial sensors or field devices?

This model is a constant-voltage 48V power supply, so it fits equipment designed for a regulated 48V DC input. The connected load needs to stay within 0.84A and 40W.

Is this 48V power supply suitable for telecom or network equipment that runs on 48V DC?

It can be used with telecom or network hardware that specifically requires constant 48V DC input. Power draw must remain at or below 0.84A and 40W.

Will this work for embedded or automation controllers that require 48V DC?

Yes, if the controller is rated for constant 48V input. This unit provides up to 40W total output with a maximum current of 0.84A.

Can this power supply support a small 48V automation subsystem inside a control panel?

It is intended for constant-voltage 48V applications, which makes it a fit for compact automation loads that are specified for 48V DC. The available output is limited to 40W and 0.84A.

Is the GSM40A48-P1J suitable for outdoor or harsh-environment use?

The listed operating temperature is -30°C to +70°C, so the temperature range is broad. However, no IP rating is provided in the specs, so outdoor or washdown suitability is not confirmed by the product data shown here.
