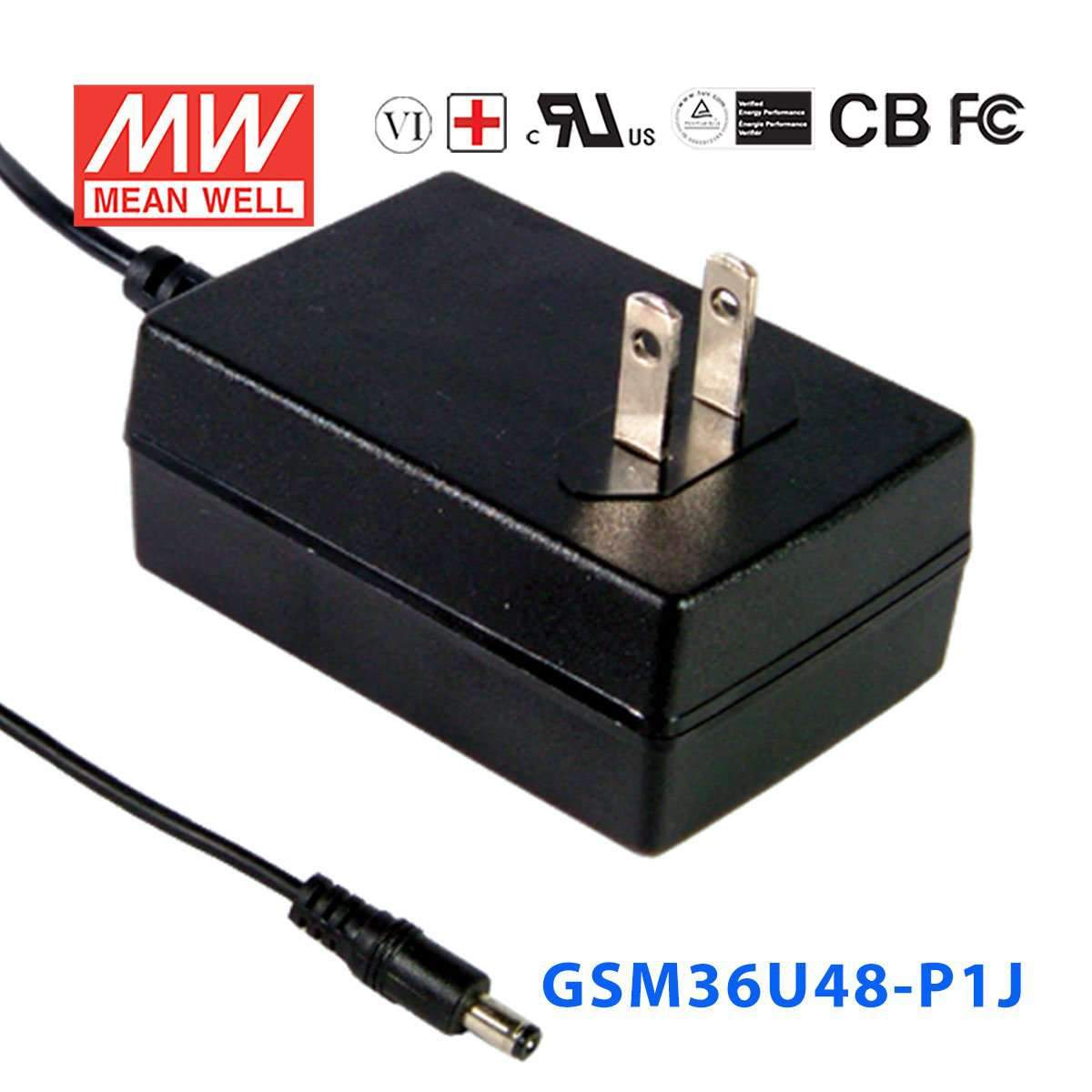

Mean Well GSM36U48-P1J Power Supply 36W 48V 750mA

Name: Mean Well GSM36U48-P1J Power Supply 36W 48V 750mA
Brand: Mean Well
SKU: GSM36U48-P1J
Price: 20.19 USD
Availability: InStock

SKU GSM36U48-P1J

$20.19 USD

Shipping calculated at checkout.

Select model — 8 in this family

GSM36U48-P1J

GSM12E48-P1J Europe Low stock$20.27 USD

GSM12U48-P1J USA Low stock$20.27 USD

GSM18E48-P1J Europe Low stock$20.48 USD

GSM18U48-P1J USA In stock$20.48 USD

GSM25U48-P1J USA In stock$18.54 USD

GSM36E48-P1J Europe Low stock$20.19 USD

GSM36U48-P1J USA In stock$20.19 USD

GSM60E48-P1J Europe Low stock$37.07 USD

Product variants

In stock

Overview

GSM36U48-P1J is the 48V output model of this series: rated current 0.75A, typical efficiency 88%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM36U is a highly reliable, 36W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM36U is compliant with USA EISA 2007/DoE and Canada NRCan; the superme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM36U is approved with the international medical safety certificates.

Features

2 pole USA plug, Class Ⅱ power unit
Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
Extremely low leakage current
No load power consumption<0.1W
Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
-25~+60℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage
LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM36U48-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GSM36U48
DC VOLTAGE^Note.2: 48V
RATED CURRENT: 0.75A
CURRENT RANGE: 0 ~ 0.75A
RATED POWER (max.): 36W
RIPPLE & NOISE (max.)^Note.3: 240mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±2.0%
SETUP, RISE TIME^Note.6: 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 16ms / 230VAC 10ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 88%
AC CURRENT (Typ.): 0.9A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (Typ.): 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.): Touch current < 50μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 50.4 ~ 64.8V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -25 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission FCC PART 15 / CISPR22 Class B
Radiated emission FCC PART 15 / CISPR22 Class B

Parameter	Standard	Test Level
Conducted emission	FCC PART 15 / CISPR22	Class B
Radiated emission	FCC PART 15 / CISPR22	Class B

OTHERS

MTBF: 3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 215g ; 60pcs / 13.9Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model): Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes8

1. All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM36U48-P1J Derating Curve — Derating Curve

GSM36U48-P1J Mechanical Specification — Mechanical Specification

GSM36U48-P1J DC output plug — DC output plug

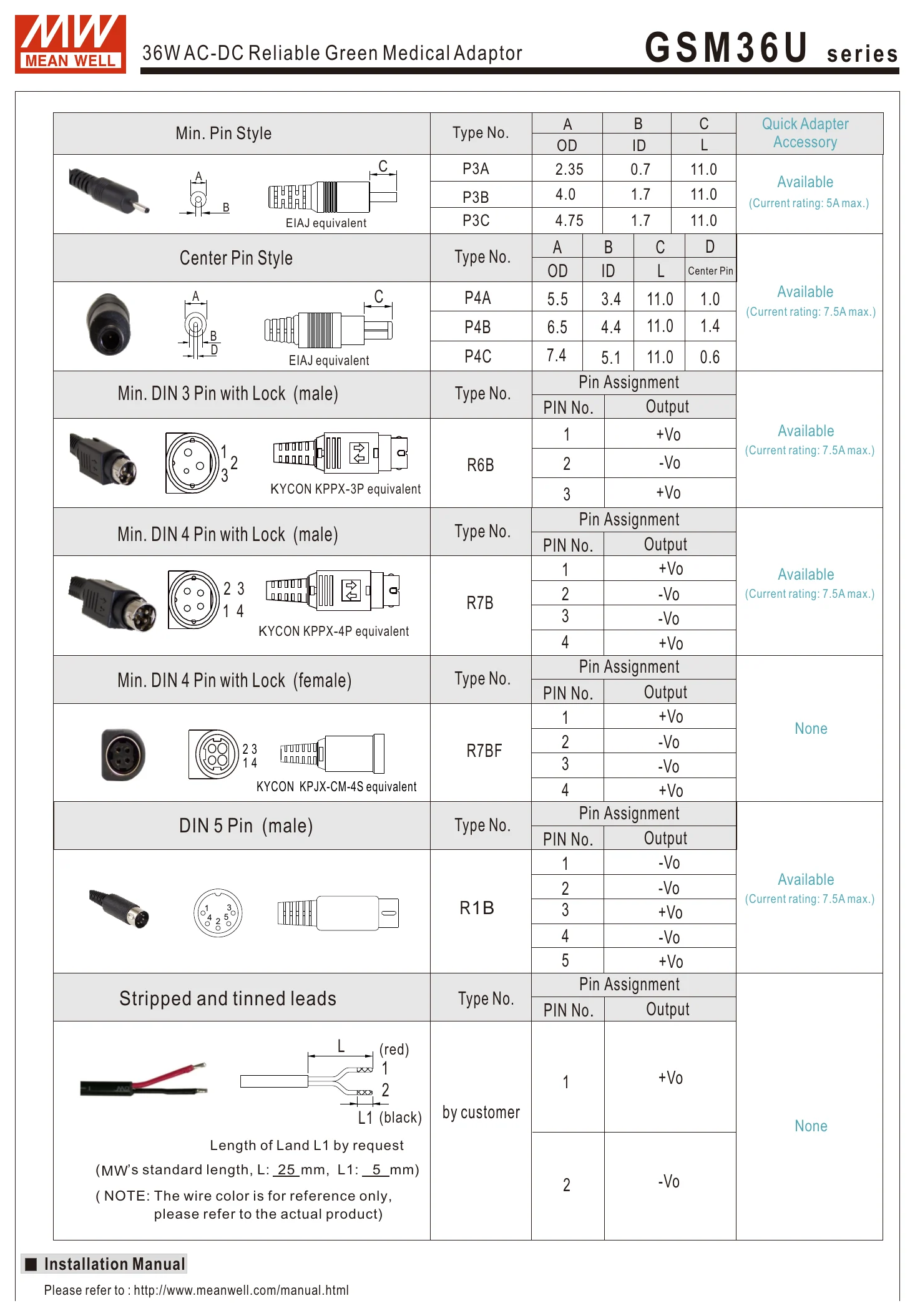

GSM36U48-P1J G S M 3 6 U series — G S M 3 6 U series

Typical applications

Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device

Downloads

Datasheet1

GSM36U48-P1J datasheetGSM36U-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

CB Certificate(GSM36U)(EN) PDF Download

NRCAN Certificate(GSM36U)(EN) PDF Download

UL Certificate(GSM36U)(EN) PDF Download

FCC Certificate(GSM36U)(EN) PDF Download

Test reports1

Test Report(GSM36U48-P1J)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM36U48-P1J for 48V industrial control hardware?

It can fit 48V DC control or embedded hardware that requires constant voltage and draws no more than 0.75A. This model is rated for 36W total output, so the connected 48V load needs to stay within that power and current limit.

Is the GSM36U48-P1J suitable for small 48V telecom or network equipment?

It can be suitable for 48V equipment that uses a constant voltage input and stays within 36W and 0.75A. The wide 80-264VAC input also helps when the AC source varies across regions or facilities.

Can this 48V power supply run embedded systems or test fixtures that need stable DC output?

Yes, if the embedded system or fixture is designed for 48V constant voltage power and its draw does not exceed 0.75A. The compact 79.0 x 54.0 x 33.0 mm size can also help where space is limited.

Is the GSM36U48-P1J a good fit for low-power 48V automation accessories?

It is appropriate for low-power 48V automation accessories when the total load stays within 36W. For selection, the key checks are that the device requires 48V constant voltage and that its current demand is at or below 0.75A.

Can the GSM36U48-P1J be used outdoors or in harsh plant conditions?

The provided specs list an operating temperature range of -25°C to +60°C, but they do not list an IP rating. That means the temperature capability is defined, but outdoor, washdown, or dust-tight suitability is not established by the stated specs.
