Mean Well

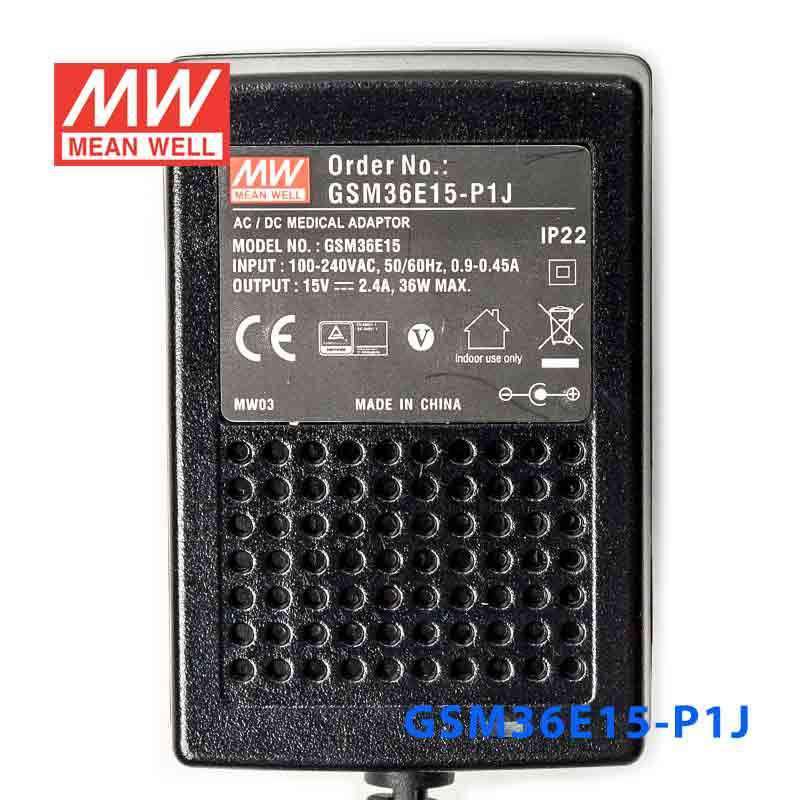

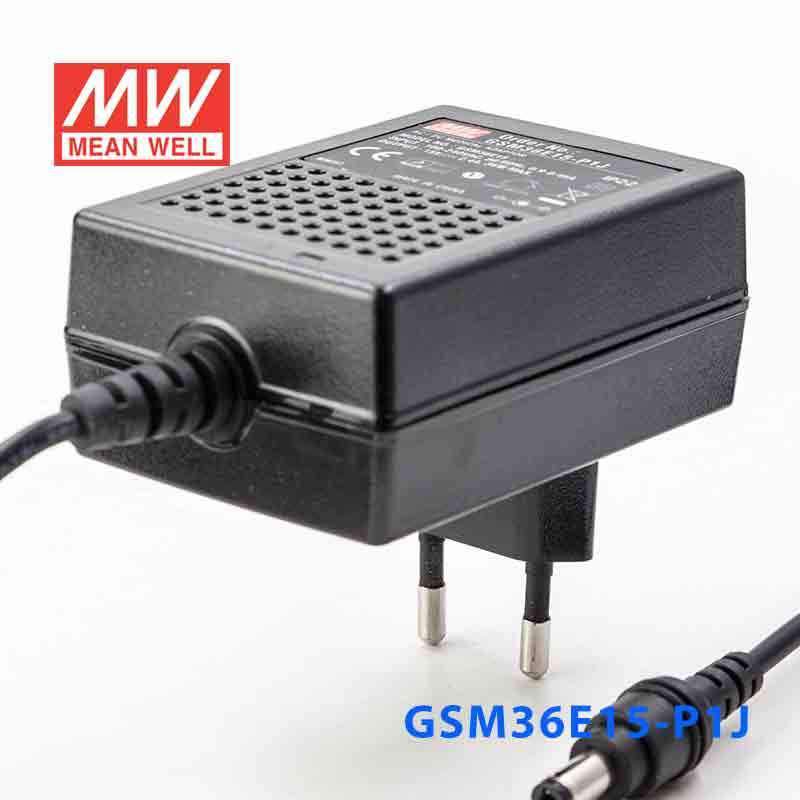

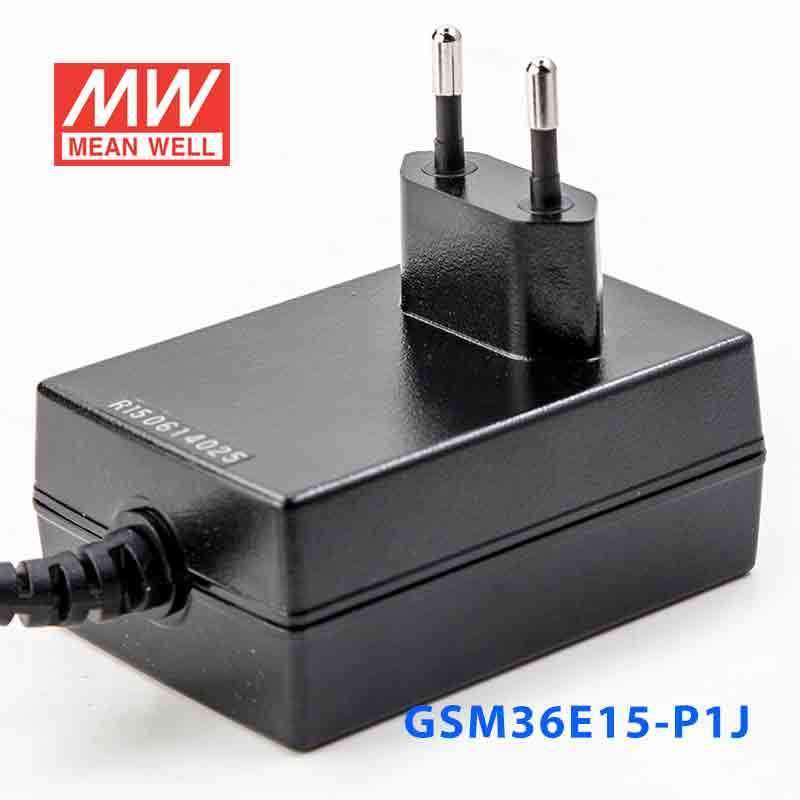

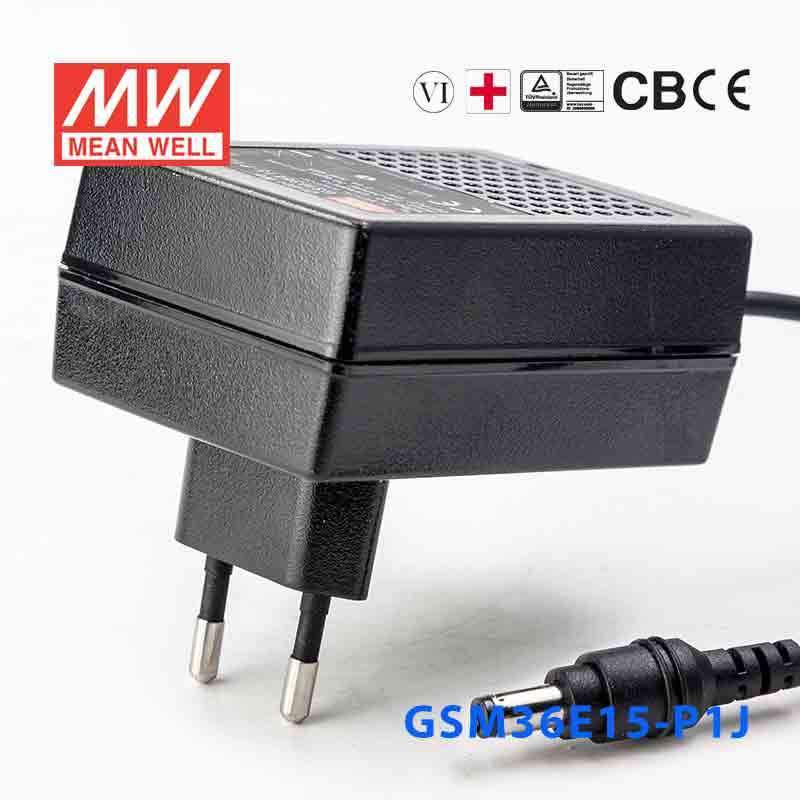

Mean Well GSM36E15-P1J Power Supply 36W 15V 2.4A

SKU GSM36E15-P1J
$20.19 USD
Shipping calculated at checkout.

Select model — 10 in this family

GSM36E15-P1J
In stock
|

Overview

GSM36E15-P1J is the 15V output model of this series: rated current 2.4A, typical efficiency 87%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM36E is a highly reliable, 36W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM36E is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM36E is approved with the international medical safety certificates.

Features

  • 2 pole EURO plug , Class Ⅱ power unit
  • Medical safety approved (2×MOPP) according to EN60601-1/-1-11
  • Extremely low leakage current
  • No load power consumption<0.1W
  • Energy efficiency Level Ⅵ and meet CoC version 5 ( except 5~9V for Level Ⅴ)
  • -25~+60℃ wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • LED indicator for power on
  • Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GSM36E15-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.
GSM36E15
DC VOLTAGENote.2
15V
RATED CURRENT
2.4A
CURRENT RANGE
0 ~ 2.4A
RATED POWER (max.)
36W
RIPPLE & NOISE (max.)Note.3
120mVp-p
VOLTAGE TOLERANCENote.4
±3.0%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±3.0%
SETUP, RISE TIMENote.6
500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
16ms / 230VAC 10ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
87%
AC CURRENT (Typ.)
0.9A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (Typ.)
55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.)
Touch current < 50μA/264VAC

PROTECTION

OVERLOAD
105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
15.75 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-25 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0~40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionEN55011 (CISPR11)Class B
Radiated emissionEN55011 (CISPR11)Class B
Harmonic currentEN61000-3-2Class A
Voltage flickerEN61000-3-3
EMC IMMUNITY

EN60601-1-2, EN61204-3

ParameterStandardTest Level
ESDEN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityEN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsEN61000-4-4Level 3, 2KV
Surge susceptibilityEN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityEN61000-4-6Level 3, 10V
Magnetic field immunityEN61000-4-8Level 4, 30A/m
Voltage dip, interruptionEN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
79*54*33mm (L*W*H)
PACKING
230g ; 60pcs / 14.8Kg / CARTON

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model)
Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank
Other options available by customer requested (see Page 4~5)
Test conditions and notes8
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM36E15-P1J Derating Curve
Derating Curve
GSM36E15-P1J Mechanical Specification
Mechanical Specification
GSM36E15-P1J DC output plug
DC output plug

Typical applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device

Downloads

FAQ

Can I use the GSM36E15-P1J for a 15V industrial sensor interface or analog module?

Yes, if the equipment is designed for constant 15V DC and draws no more than 2.4A. This model provides up to 36W total output power, which fits smaller 15V industrial electronics within that load range.

Is this a fit for 15V instrumentation or control electronics?

It is suitable for 15V instrumentation or control devices that require constant voltage output and stay within 2.4A and 36W. The important match points are the 15V rating and the available output current.

Can the GSM36E15-P1J power a 15V communications or embedded device?

Yes, for communications or embedded hardware specified for 15V constant voltage input and no more than 2.4A current draw. Its 80-264VAC input range also supports use where AC supply conditions vary by region.

How does this model handle indoor environmental conditions?

The listed operating temperature range is -25°C to +60°C, which defines the temperature envelope for use. The provided specs do not list an IP rating, so enclosure sealing or exposed outdoor suitability is not defined here.

How should I size this power supply for a 15V load?

This unit is rated for 15V output at up to 2.4A, with 36W maximum power. It should only be selected for loads that require constant 15V DC and remain within both the 2.4A and 36W limits.
