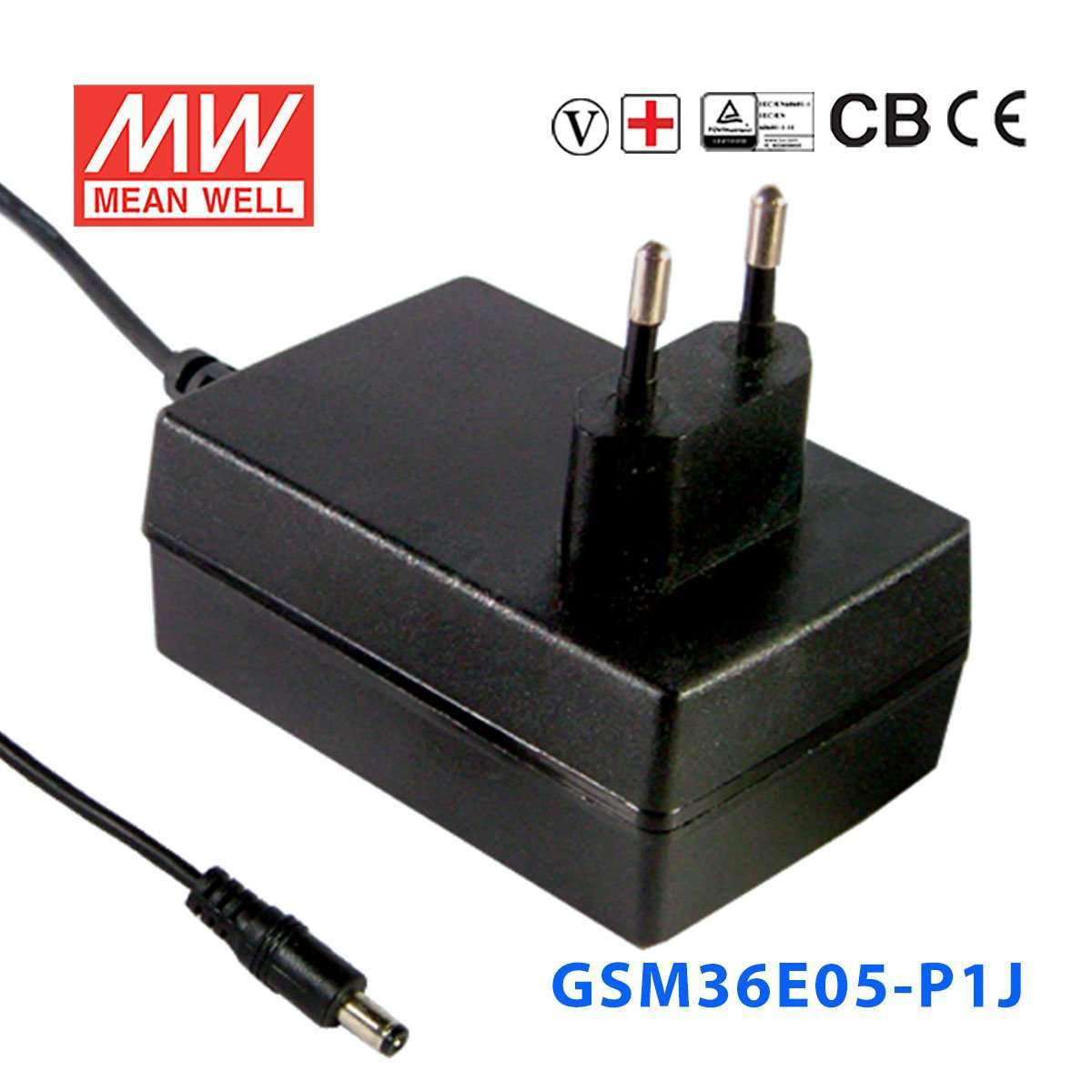

Mean Well GSM36E05-P1J Power Supply 22.5W 5V 4.5A

SKU GSM36E05-P1J
$20.19 USD
Shipping calculated at checkout.

Select model — 10 in this family

GSM36E05-P1J
In stock
|

Overview

GSM36E05-P1J is the 5V output model of this series: rated current 4.5A, typical efficiency 80%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM36E is a highly reliable, 36W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM36E is compliant with EU ErP and meet Code of Conduct(CoC) Version 5; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM36E is approved with the international medical safety certificates.

Features

  • 2 pole EURO plug , Class Ⅱ power unit
  • Medical safety approved (2×MOPP) according to EN60601-1/-1-11
  • Extremely low leakage current
  • No load power consumption<0.1W
  • Energy efficiency Level Ⅵ and meet CoC version 5 ( except 5~9V for Level Ⅴ)
  • -25~+60℃ wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • LED indicator for power on
  • Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GSM36E05-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.
GSM36E05
DC VOLTAGENote.2
5V
RATED CURRENT
4.5A
CURRENT RANGE
0 ~ 4.5A
RATED POWER (max.)
22.5W
RIPPLE & NOISE (max.)Note.3
80mVp-p
VOLTAGE TOLERANCENote.4
±6.0%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±6.0%
SETUP, RISE TIMENote.6
500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
16ms / 230VAC 10ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
0.9A / 115VAC 0.45A / 230VAC
INRUSH CURRENT (Typ.)
55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.)
Touch current < 50μA/264VAC

PROTECTION

OVERLOAD
105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.25 ~ 7.5V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-25 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0~40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDSNote.8
IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionEN55011 (CISPR11)Class B
Radiated emissionEN55011 (CISPR11)Class B
Harmonic currentEN61000-3-2Class A
Voltage flickerEN61000-3-3
EMC IMMUNITY

EN60601-1-2, EN61204-3

ParameterStandardTest Level
ESDEN61000-4-2Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibilityEN61000-4-3Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT burstsEN61000-4-4Level 3, 2KV
Surge susceptibilityEN61000-4-5Level 3, 1KV/Line-Line
Conducted susceptibilityEN61000-4-6Level 3, 10V
Magnetic field immunityEN61000-4-8Level 4, 30A/m
Voltage dip, interruptionEN61000-4-11100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF
3777.8K hrs min. Telcordia SR-332 (Bellcore) ; 651.4K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
79*54*33mm (L*W*H)
PACKING
230g ; 60pcs / 14.8Kg / CARTON

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model)
Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank
Other options available by customer requested (see Page 4~5)
Test conditions and notes8
  1. 1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM36E05-P1J Derating Curve
Derating Curve
GSM36E05-P1J Mechanical Specification
Mechanical Specification
GSM36E05-P1J DC output plug
DC output plug

Typical applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device

Downloads

FAQ

Can I use the GSM36E05-P1J for a 5V single-board computer or embedded controller?

Yes, this model is a constant voltage 5V power supply with up to 4.5A output and 22.5W total power. That fits 5V embedded systems or single-board controllers that need a regulated 5V source and stay within 4.5A.

Is this power supply suitable for 5V industrial sensors or USB-powered automation accessories?

It can be used for 5V industrial or automation accessories if the load requires constant voltage and the total draw does not exceed 4.5A or 22.5W. The wide 80-264VAC input also supports use in facilities with different AC mains ranges.

Can the GSM36E05-P1J power a small 5V networking or IT device?

It is suitable for 5V IT or networking hardware that needs constant 5V DC and draws no more than 4.5A. Buyers should match the device requirement to the 5V output and 22.5W maximum power.

Is the GSM36E05-P1J okay for outdoor or harsh-environment use?

The provided specs list an operating temperature range of -25°C to +60°C, but they do not list an IP rating. That means temperature capability is defined, while dust and water protection for exposed outdoor use is not established by the provided data.

What kind of AC input range does this model support for global equipment use?

This power supply accepts 80-264VAC input, which covers a broad universal AC range. That makes it practical for equipment deployed across regions using different mains voltages, as long as the connected load needs 5V constant voltage output.
