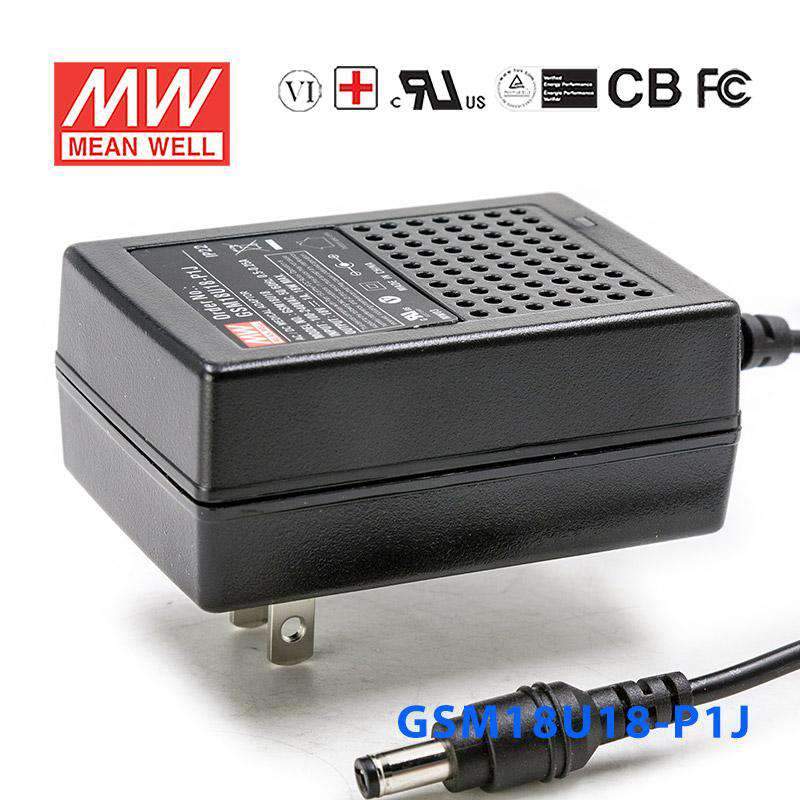

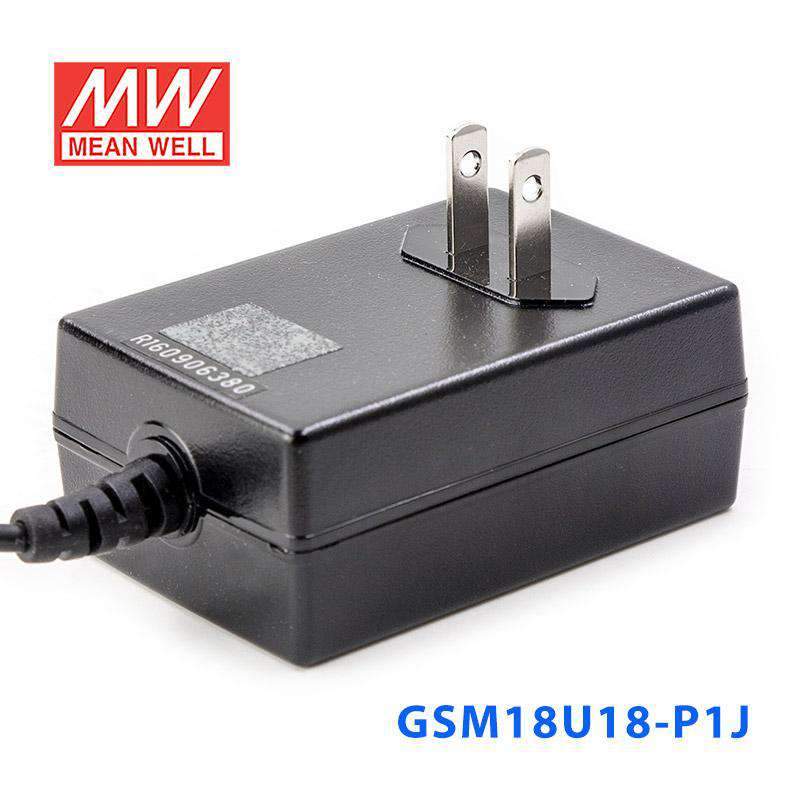

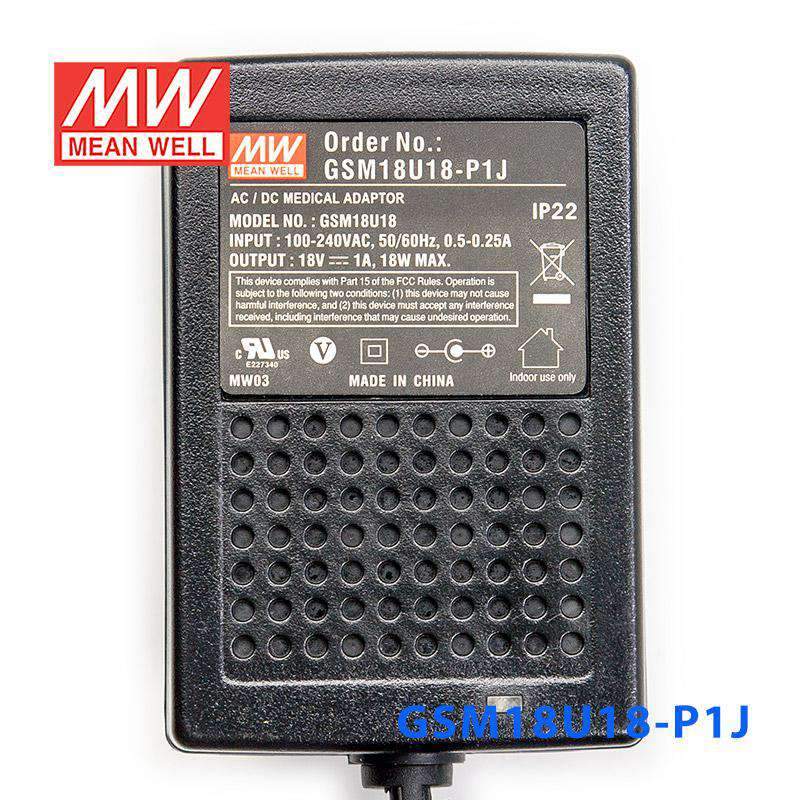

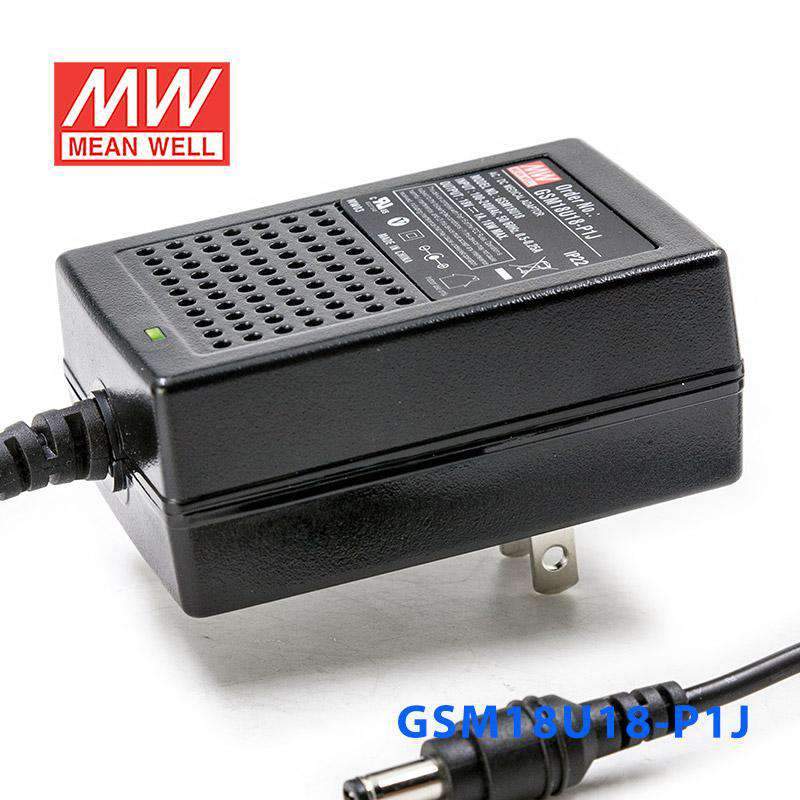

Mean Well GSM18U18-P1J Power Supply 18W 18V 1A

Name: Mean Well GSM18U18-P1J Power Supply 18W 18V 1A
Brand: Mean Well
SKU: GSM18U18-P1J
Price: 20.48 USD
Availability: InStock

SKU GSM18U18-P1J

$20.48 USD

Shipping calculated at checkout.

Select model — 9 in this family

GSM18U18-P1J

GSM06E18-P1J Europe Low stock$16.09 USD

GSM06U18-P1J USA Low stock$16.09 USD

GSM12E18-P1J Europe Low stock$20.27 USD

GSM12U18-P1J USA Low stock$20.27 USD

GSM18E18-P1J Europe Low stock$20.48 USD

GSM18U18-P1J USA In stock$20.48 USD

GSM36E18-P1J Europe Low stock$20.19 USD

GSM36U18-P1J USA Low stock$20.19 USD

GSM60E18-P1J Europe Backorder$37.07 USD

Product variants

In stock

Overview

GSM18U18-P1J is the 18V output model of this series: rated current 1A, typical efficiency 87%.

GSM18U is a highly reliable, 18W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniaturize medical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM18U is compliant with USA EISA 2007/DoE and Canada NRCan; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM18U is approved with the international medical safety certificates.

Features

2 pole USA plug, Class Ⅱ power unit
Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
Extremely low leakage current
No load power consumption<0.1W
Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
-25~+60℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage
LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM18U18-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.: GSM18U18
DC VOLTAGE^Note.2: 18V
RATED CURRENT: 1A
CURRENT RANGE: 0 ~ 1A
RATED POWER (max.): 18W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME^Note.6: 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 16ms / 230VAC 16ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT (Typ.): 0.5A / 115VAC 0.25A / 230VAC
INRUSH CURRENT (Typ.): 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.): Touch current < 50μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 18.9 ~ 24.3V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -25 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission FCC PART 15 / CISPR22 Class B
Radiated emission FCC PART 15 / CISPR22 Class B

Parameter	Standard	Test Level
Conducted emission	FCC PART 15 / CISPR22	Class B
Radiated emission	FCC PART 15 / CISPR22	Class B

OTHERS

MTBF: 3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 185g ; 60pcs / 12.1Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes8

1. All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM18U18-P1J Derating Curve — Derating Curve

GSM18U18-P1J Mechanical Specification — Mechanical Specification

GSM18U18-P1J DC output plug — DC output plug

GSM18U18-P1J G S M 1 8 U series — G S M 1 8 U series

Typical applications

Blood glucose meter
Blood pressure meter
Nebulizer
Inhale
Portable medical device

Downloads

Datasheet1

GSM18U18-P1J datasheetGSM18U-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates5

EMC Certificate (ELG-75)(EN) PDF Download

UL Certificate (GSM18U)(EN) PDF Download

FCC Certificate (GSM18U)(EN) PDF Download

CB Certificate(GSM18U)(EN) PDF Download

NRCAN Certificate(GSM18U)(EN) PDF Download

Test reports1

Test Report(GSM18U18-P1J)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM18U18-P1J for an 18V industrial control device?

Yes, if the device requires constant voltage 18V DC and draws no more than 1A or 18W. That makes it suitable for low-power industrial electronics and control hardware built for an 18V input.

Is this 18V power supply suitable for embedded systems or portable bench equipment?

It can be suitable for embedded or test equipment that calls for regulated 18V constant voltage. The available output is capped at 1A and 18W, so the load needs to remain within that range.

Can the GSM18U18-P1J power a small automation module that runs on 18V DC?

Yes, for compact automation modules or interface electronics specified for 18V DC input. This unit provides constant voltage output at 18V with up to 1A available.

Will the GSM18U18-P1J handle cold or warm operating environments?

The specified operating temperature range is -25°C to +60°C, which defines the supported temperature window. No IP rating is listed, so the spec sheet here does not confirm suitability for outdoor exposure or wet environments.
