Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

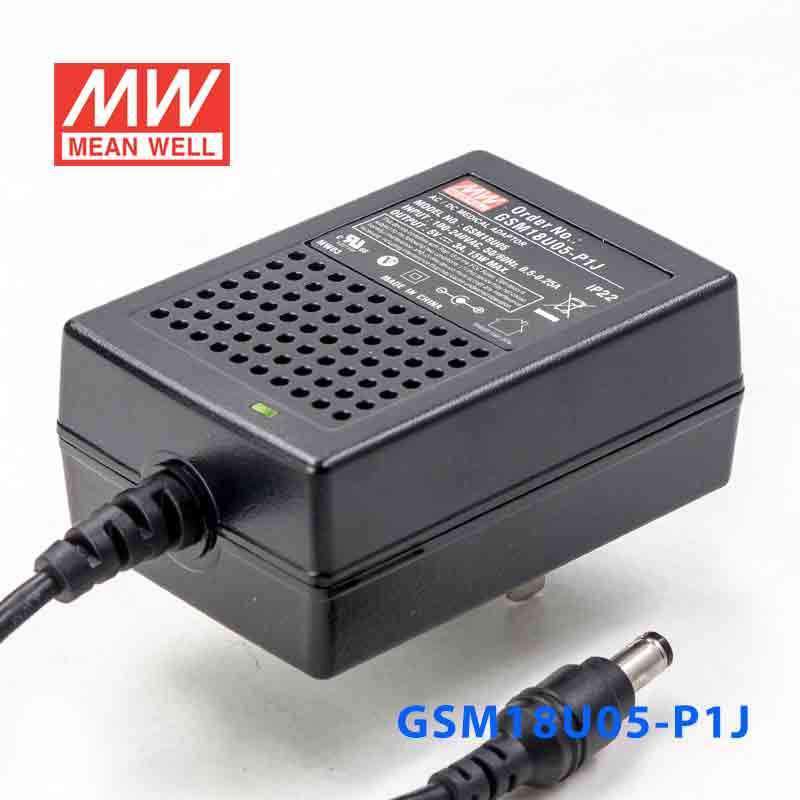

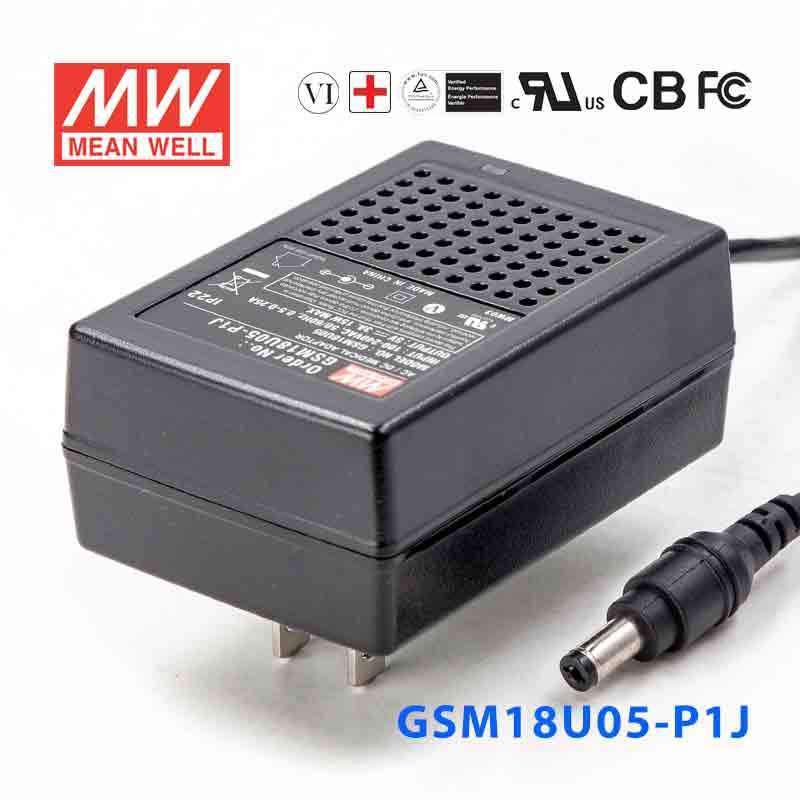

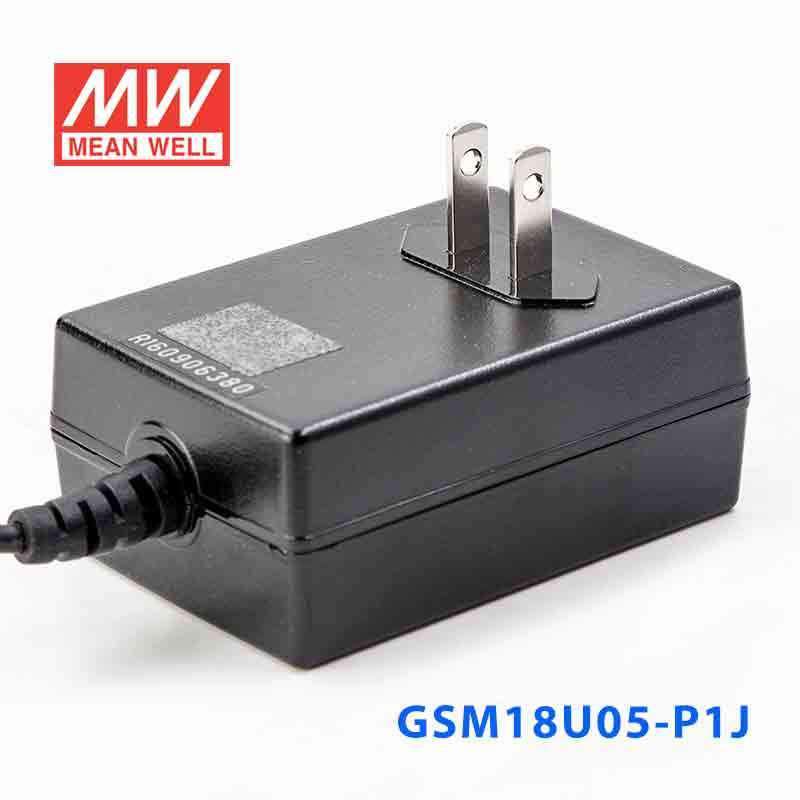

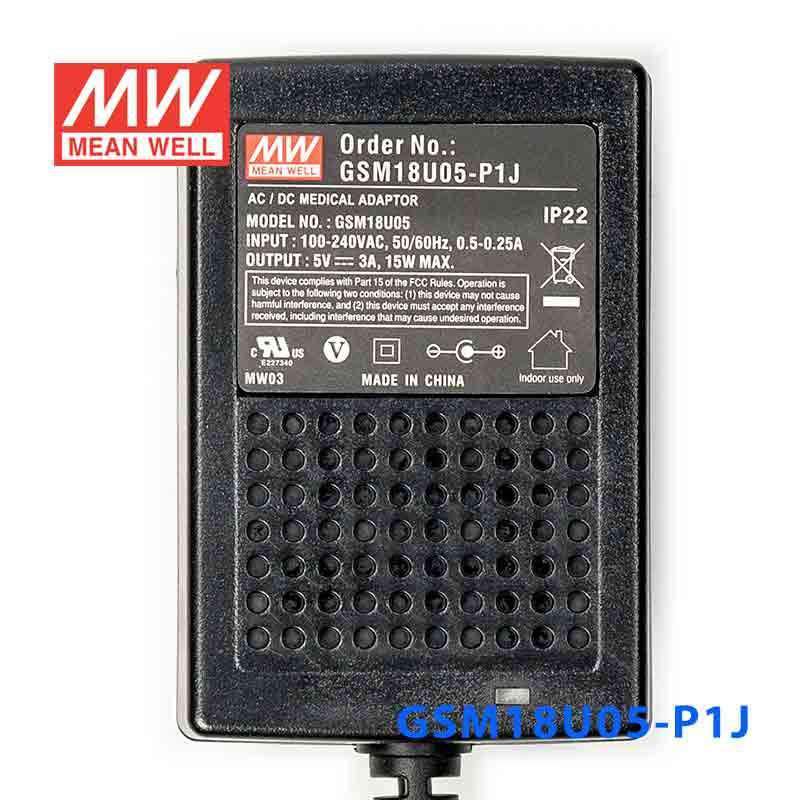

Mean Well GSM18U05-P1J Power Supply 15W 5V 3A

SKU GSM18U05-P1J
$20.48 USD
Shipping calculated at checkout.

Select model — 10 in this family

GSM18U05-P1J
In stock
|

Overview

GSM18U05-P1J is the 5V output model of this series: rated current 3A, typical efficiency 80%.

GSM18U is a highly reliable, 18W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniaturize medical devices. The circuitry design meets the international medical standards (2 × MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM18U is compliant with USA EISA 2007/DoE and Canada NRCan; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM18U is approved with the international medical safety certificates.

Features

  • 2 pole USA plug, Class Ⅱ power unit
  • Medical safety approved (2 × MOPP) according to ANSI/AAMI ES60601-1/-1-11
  • Extremely low leakage current
  • No load power consumption<0.1W
  • Energy efficiency Level Ⅵ ( except 5~9V for Level Ⅴ)
  • -25~+60℃ wide range working temperature
  • Protections: Short circuit / Overload / Over voltage
  • LED indicator for power on
  • Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GSM18U05-P1JSpecifications from the official datasheet (2026-04-03 edition)

OUTPUT

SAFETY MODEL NO.
GSM18U05
DC VOLTAGENote.2
5V
RATED CURRENT
3A
CURRENT RANGE
0 ~ 3A
RATED POWER (max.)
15W
RIPPLE & NOISE (max.)Note.3
60mVp-p
VOLTAGE TOLERANCENote.4
±5.0%
LINE REGULATIONNote.5
±1.0%
LOAD REGULATION
±5.0%
SETUP, RISE TIMENote.6
500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.)
16ms / 230VAC 16ms / 115VAC at full load

INPUT

VOLTAGE RANGENote.7
80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
80%
AC CURRENT (Typ.)
0.5A / 115VAC 0.25A / 230VAC
INRUSH CURRENT (Typ.)
55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.)
Touch current < 50μA/264VAC

PROTECTION

OVERLOAD
105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
5.25 ~ 7.5V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.
-25 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.03% / ℃ (0~40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS
IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1 CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved
ISOLATION LEVEL
Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE
I/P-O/P:4KVAC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionFCC PART 15 / CISPR22Class B
Radiated emissionFCC PART 15 / CISPR22Class B

OTHERS

MTBF
3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION
79*54*33mm (L*W*H)
PACKING
185g ; 60pcs / 12.1Kg / CARTON

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested
Test conditions and notes8
  1. 1. All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
  2. 2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
  4. 4. Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5. Line regulation is measured from low line to high line at rated load.
  6. 6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
  7. 7. Derating may be needed under low input voltage. Please check the derating curve for more details.
  8. 8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM18U05-P1J Derating Curve
Derating Curve
GSM18U05-P1J Mechanical Specification
Mechanical Specification
GSM18U05-P1J DC output plug
DC output plug
GSM18U05-P1J G S M 1 8 U series
G S M 1 8 U series

Typical applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhale
  • Portable medical device

Downloads

FAQ

Can I use the GSM18U05-P1J for a 5V single-board computer or embedded controller?

This model supplies constant 5V DC at up to 3A, with 15W total power. That makes it suitable for many 5V embedded controllers, single-board computers, or logic-based devices that require a regulated 5V source within that limit.

Is the GSM18U05-P1J a fit for 5V industrial interface electronics?

It can be used for low-power 5V industrial interface electronics, monitoring modules, or control boards that need constant-voltage input and draw no more than 3A. It is intended for electronics loads, not higher-power equipment outside the 15W rating.

Can this 5V power supply run USB-class or logic-level devices in IT equipment?

Yes, if the equipment is designed for a fixed 5V DC input and the total load stays within 15W. Its 3A rating is the highest output current in the GSM18U series, although this 5V version is rated at 15W rather than the 18W of the 9V to 48V models.

How does the GSM18U05-P1J handle indoor temperature conditions?

Its operating temperature range is -25°C to +60°C. The provided specs do not list an IP rating, so the data supports temperature suitability within that range but does not confirm outdoor or sealed-enclosure performance.

Is this model useful where space and weight matter in a compact device?

The housing measures 79.0 × 54.0 × 33.0 mm and the unit weighs 0.185 kg. That compact size can be helpful where a 5V supply is needed in a small equipment footprint.
