Mean Well GSM18B15-P1J Power Supply: Best Price & Stock - 18W 15V Adaptor

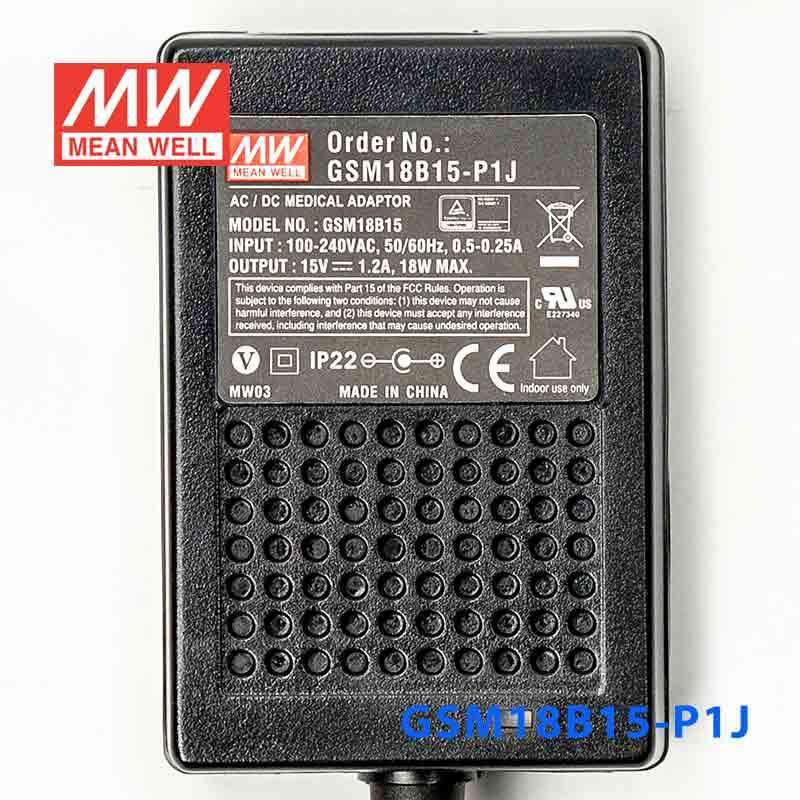

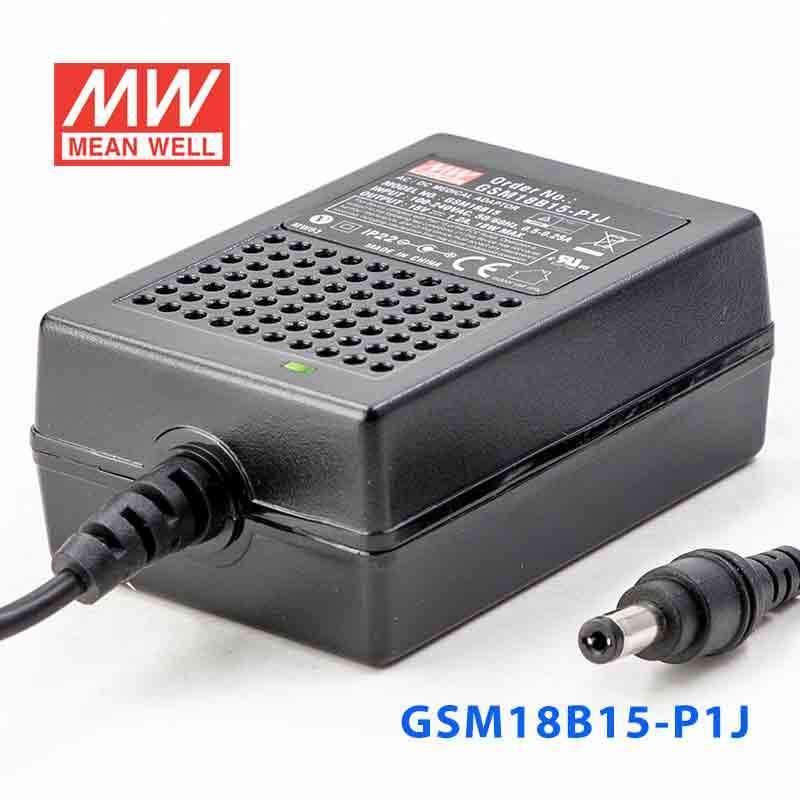

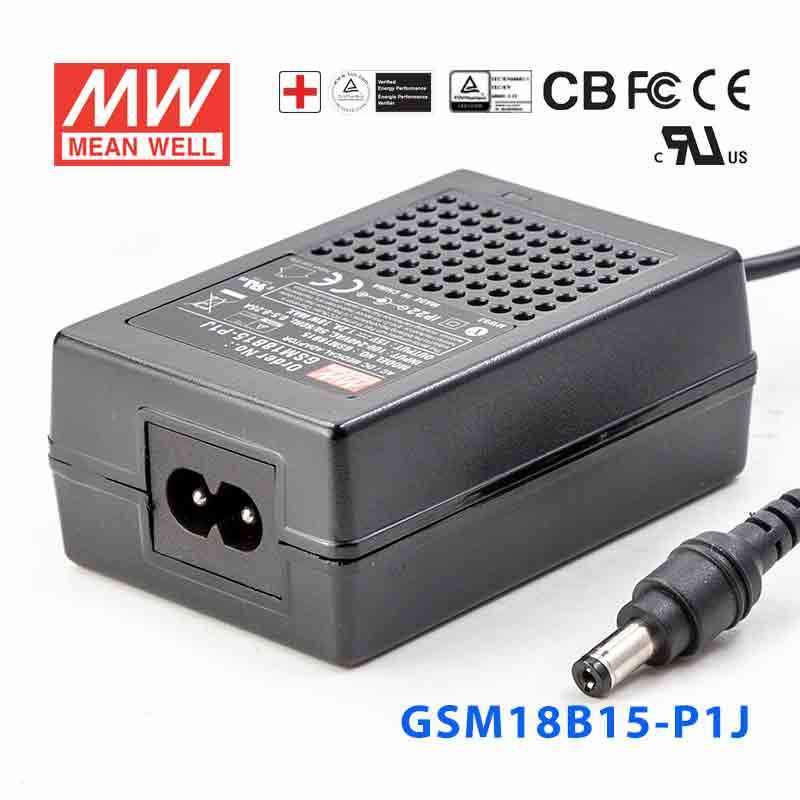

Name: Mean Well GSM18B15-P1J Power Supply 18W 15V 1.2A
Brand: Mean Well
SKU: GSM18B15-P1J
Price: 20.48 USD
Availability: InStock

Overview

GSM18B15-P1J is the 15V output model of this series: rated current 1.2A, typical efficiency 85.5%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM18B is a highly reliable, 18W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 48VDC that can satisfy the demands for various kinds of miniture medical devices. The circuitry design meets the international medical standards (2×MOPP), having an ultra low leakage current (<50 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 88% and the extreme low no-load power consumption below 0.1W, GSM18B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP and meet Code of Conduct(CoC) Version 5 ; the supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM18B is approved with the international medical safety certificates.

Features

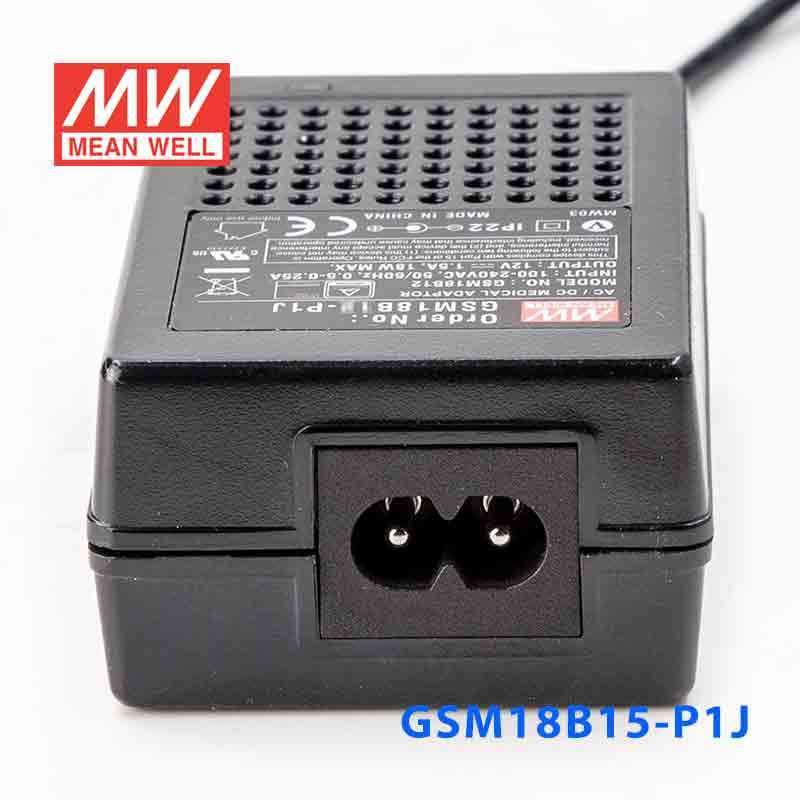

2 pole AC inlet IEC320-C8, Class Ⅱ power unit
Medical safety approved (2×MOPP) according to ANSI/AAMI ES60601-1/-1-11, BS EN/EN60601-1/-1-11
Extremely low leakage current
No load power consumption<0.1W
Energy efficiency Level Ⅵ and meet CoC version 5 ( except 5~9V for Level Ⅴ)
-25~+60℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage
LED indicator for power on
Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM18B15-P1JSpecifications from the official datasheet (2026-04-03 edition)Download datasheet PDF

OUTPUT

SAFETY MODEL NO.: GSM18B15
DC VOLTAGE^Note.2: 15V
RATED CURRENT: 1.2A
CURRENT RANGE: 0 ~ 1.2A
RATED POWER (max.): 18W
RIPPLE & NOISE (max.)^Note.3: 120mVp-p
VOLTAGE TOLERANCE^Note.4: ±3.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±3.0%
SETUP, RISE TIME^Note.6: 500ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
HOLD UP TIME (Typ.): 16ms / 230VAC 16ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 85.5%
AC CURRENT (Typ.): 0.5A / 115VAC 0.25A / 230VAC
INRUSH CURRENT (Typ.): 55A / 230VAC 30A / 115VAC
LEAKAGE CURRENT(max.): Touch current < 50μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 170% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 15.75 ~ 20.25V Protection type : Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -25 ~ +60℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0~40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1, TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1 ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1, CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1, EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P:4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011(CISPR11),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B),MSIP KN32 Class B
Radiated emission BS EN/EN55011(CISPR11),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B),MSIP KN32 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011(CISPR11),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B),MSIP KN32	Class B
Radiated emission	BS EN/EN55011(CISPR11),FCC PART 15 / CISPR22, CAN ICES-3(B)/NMB-3(B),MSIP KN32	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3	-----

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 3889.1K hrs min. Telcordia SR-332 (Bellcore) ; 794.6K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 79*54*33mm (L*W*H)
PACKING: 205g ; 60pcs / 13.3Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model): Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes8

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM18B15-P1J Derating Curve — Derating Curve

GSM18B15-P1J Mechanical Specification — Mechanical Specification

GSM18B15-P1J DC output plug — DC output plug

GSM18B15-P1J G S M 1 8 B series — G S M 1 8 B series

Typical applications

Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device

Downloads

Datasheet1

GSM18B15-P1J datasheetGSM18B-SPEC.PDF · 2026-04-03 edition PDF Download

Certificates7

EMC Certificate (ELG-75)(EN) PDF Download

EMC Certificate (GSM18B)(EN) PDF Download

FCC Certificate (GSM18B)(EN) PDF Download

UL Certificate (GSM18B)(EN) PDF Download

CB Certificate(GSM18B)(EN) PDF Download

TUV Certificate(GSM18B)(EN) PDF Download

NRCan Certificate(GSM18B)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM18B15-P1J for a 15V industrial instrument or monitoring device?

Yes, this model is intended for constant voltage 15V applications and can supply up to 1.2A with 18W total output. It is suitable for industrial or monitoring equipment that specifically requires 15V DC and stays within those limits.

Is this a good fit for embedded control hardware that runs on 15V DC?

It can be a fit for embedded control hardware, interface modules, or small electronic assemblies designed for 15V constant voltage input. The available output is 15V at up to 1.2A, so it is best matched to lower-power 15V loads.

Can this power a small automation peripheral that needs 15V constant voltage?

Yes, if the peripheral is designed for 15V constant voltage operation and its load stays within 1.2A and 18W. That makes it appropriate for compact automation peripherals and auxiliary electronics rather than larger 15V devices.

How do I know if this 15V power supply is sized correctly for my device?

Match the device to the 15V constant voltage output first, then confirm the load does not exceed 1.2A or 18W. If the equipment requires more current or power than that, this model is undersized.

Can the GSM18B15-P1J be used in cold or warm industrial spaces?

The specified operating temperature range is -25°C to +60°C, which supports use in many indoor industrial and control-panel environments. The provided specs do not list an IP rating, so suitability for direct outdoor exposure or wet areas is not established here.
