Mean Well GSM160B12-R7B Power Supply 138W 12V - Affordable U.S. Stock

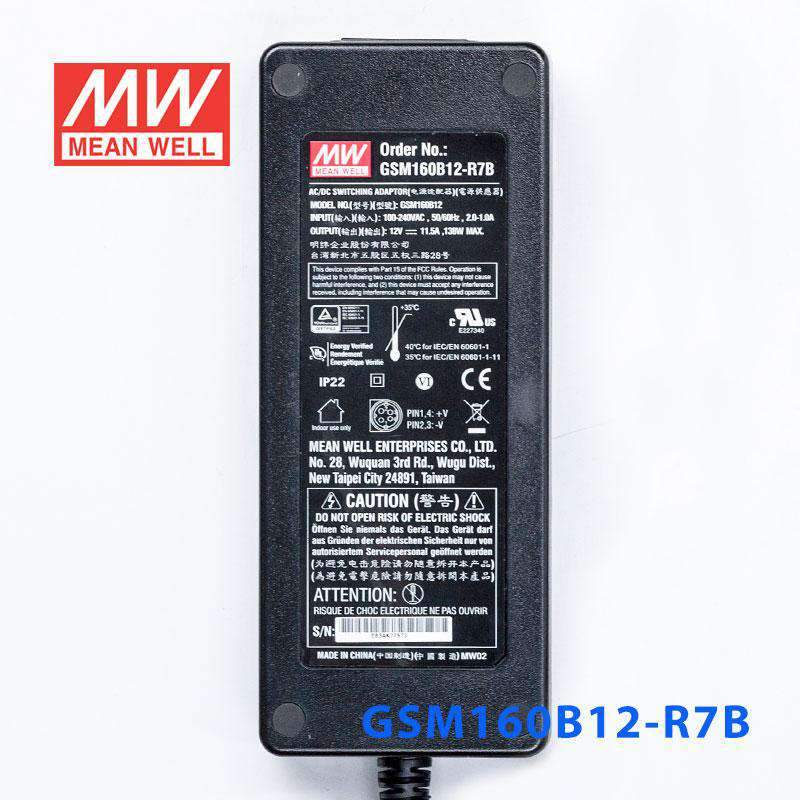

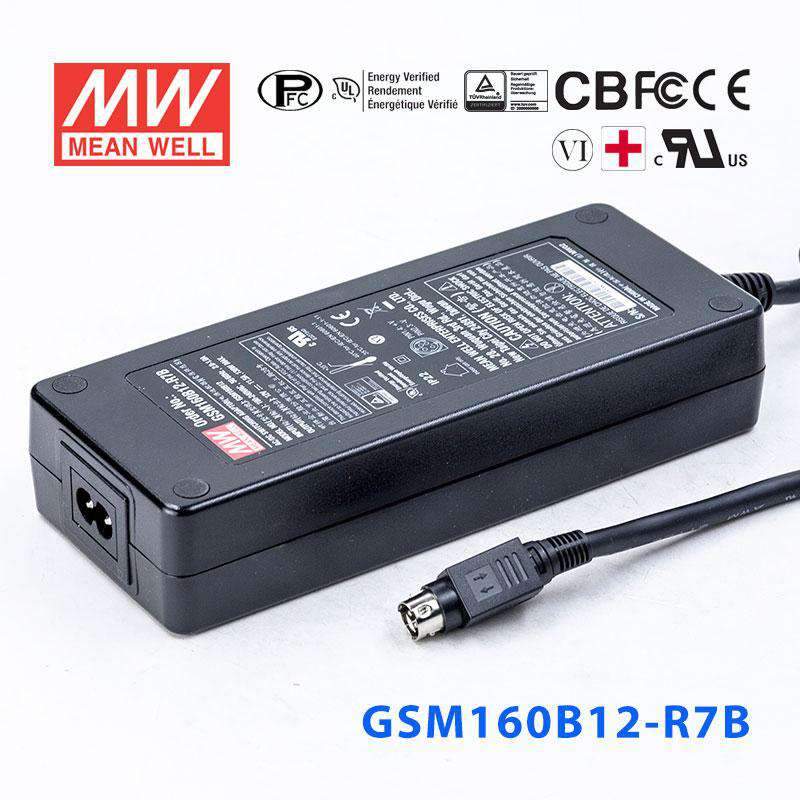

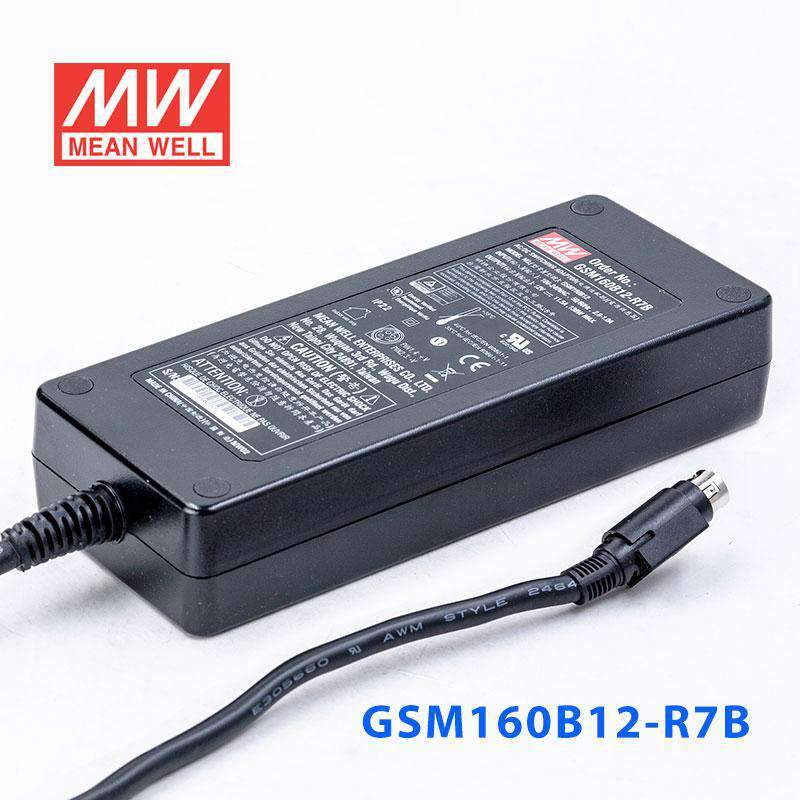

Name: Mean Well GSM160B12-R7B Power Supply 138W 12V 11.5A
Brand: Mean Well
SKU: GSM160B12-R7B
Price: 72.43 USD
Availability: InStock

Overview

GSM160B12-R7B is the 12V output model of this series: rated current 11.5A, typical efficiency 90%.

GSM160B is a highly reliable, 160W desktop style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard IEC320-C8 power plug, adopting the input range from 80VAC to 264VAC. The entire series supplies different output voltages between 12VDC and 48VDC that can satisfy the demands for various kinds of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100 μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 94% and the extremely low no-load power consumption below 0.15W, GSM160B is compliant with USA EISA 2007/DoE, Canada NRCan, Australia and New Zealand MEPS, EU ErP,and meet Code of Conduct (CoC) Version 5. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM160B is approved with the international medical safety certificates.

Features

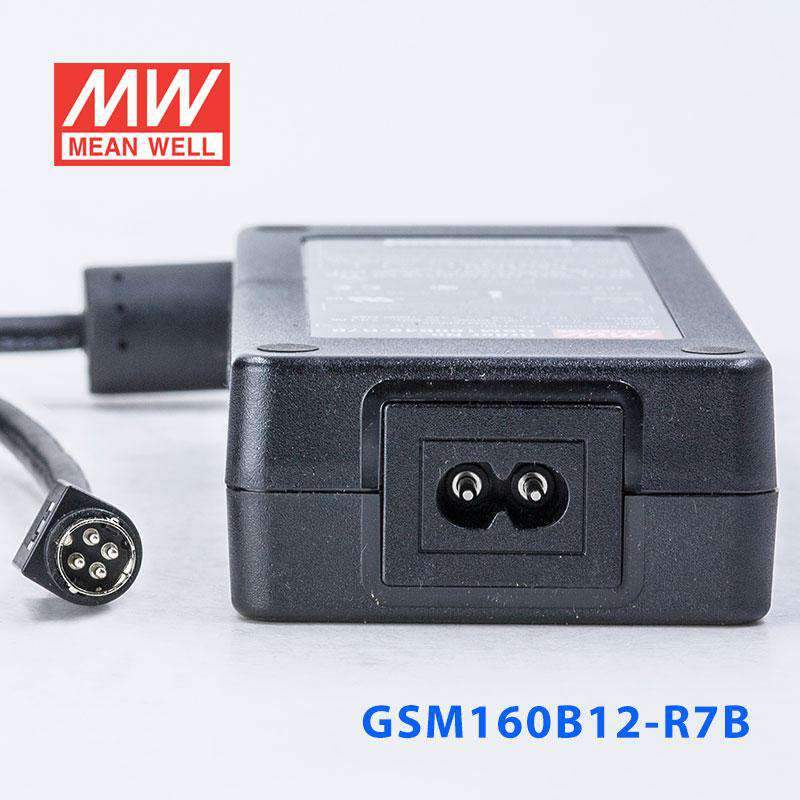

2 pole AC inlet IEC320-C8, Class Ⅱ power unit
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1/-1-11 and IEC/BS EN/EN60601-1/-1-11
Extremely low leakage current
No load power consumption<0.15W
Energy efficiency level VI and meet CoC Version 5
-30~+70℃ wide range working temperature
Protections: Short circuit / Overload / Over voltage / Over temperature

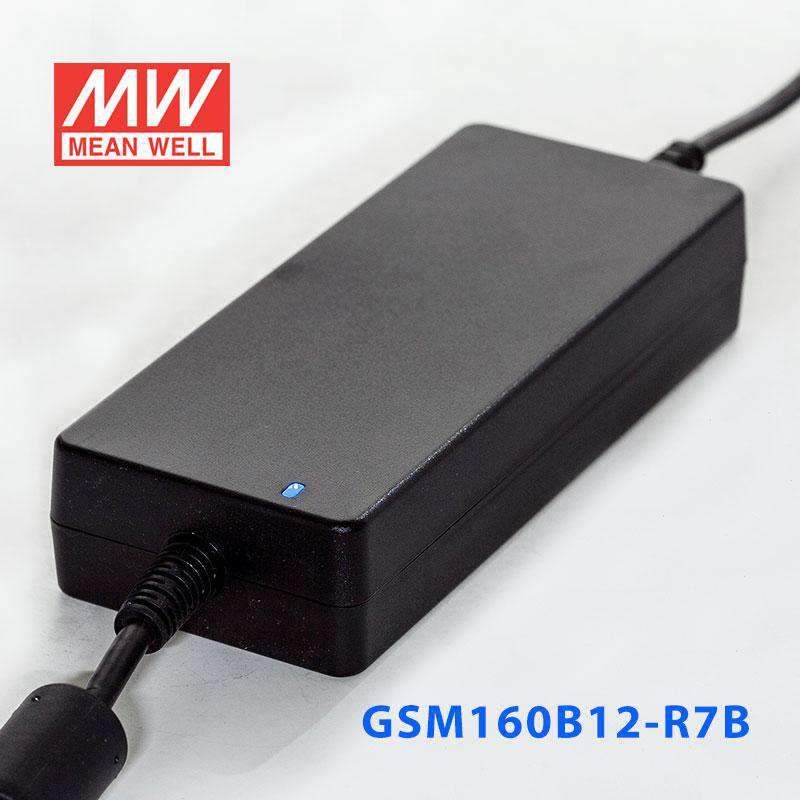

LED indicator for power on
Lifetime> 110 K hours
Various DC plug quick adapter accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM160B12-R7BSpecifications from the official datasheet (2026-05-09 edition)

OUTPUT

SAFETY MODEL NO.: GSM160B12
DC VOLTAGE^Note.2: 12V
RATED CURRENT: 11.5A
CURRENT RANGE: 0 ~ 11.5A
RATED POWER (max.): 138W
RIPPLE & NOISE (max.)^Note.3: 80mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION: ±5.0%
SETUP, RISE TIME^Note.6: 2000ms, 50ms / 230VAC 2500ms, 50ms / 115VAC at full load
HOLD UP TIME (Typ.): 24ms / 230VAC 24ms / 115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
POWER FACTOR (Typ.): 12V/15V:PF>0.93 / 230VAC 20V,24V,48V:PF>0.94 / 230VAC PF>0.98 / 115VAC at full load
EFFICIENCY (Typ.): 90%
AC CURRENT (Typ.): 1.85A / 115VAC 1A / 230VAC
INRUSH CURRENT (Typ.): Cold start 90A / 115VAC 110A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100 μA/264VAC

PROTECTION

OVERLOAD: 105 ~ 150% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 105 ~ 135% rated output voltage Protection type : Shut down o/p voltage, re-power on to recover
OVER TEMPERATURE: Shut down o/p voltage, re-power on to recover

ENVIRONMENT

WORKING TEMP.: -30 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -40 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
OPERATING ALTITUDE^Note.8: 3000 meters

SAFETY & EMC (Note. 9)

SAFETY STANDARDS: IEC 60601-1:2005+A1+A2; IEC 60601-1-11:2015+A1,TUV BS EN/ EN 60601-1:2006+A1+A12+A2; BS EN/ EN 60601-1-11:2015+A1 ANSI/AAMI ES60601-1:2005+A2; ANSI/AAMI HA60601-1-11+A1,CAN/CSA C22.2 No. 60601-1:2014+A2; CSA C22.2 NO. 60601-1-11:2015+A1 EAC TP TC 004 approved
ISOLATION LEVEL: Primary-Secondary: 2xMOPP
WITHSTAND VOLTAGE: I/P-O/P: 4KVAC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B
Radiated emission BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22 Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 3, 10V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22	Class B
Radiated emission	BS EN/EN55011 (CISPR11), FCC PART 15 / CISPR22	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m( 80MHz~2.7GHz ) Table 9, 9~28V/m( 385MHz~5.78GHz )
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 3, 10V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	100% dip 1 periods, 30% dip 25 periods, 100% interruptions 250 periods

OTHERS

MTBF: 2191.3K hrs min. Telcordia SR-332 (Bellcore) ; 239.1K hrs min. MIL-HDBK-217F (25℃)
DIMENSION: 175*72*35mm (L*W*H)
PACKING: 0.66Kg; 20pcs/14.2Kg/0.95CUFT

CONNECTOR

PLUG: See page 4~5; Other type available by customer requested
CABLE: See page 4~5; Other type available by customer requested

Test conditions and notes9

1. All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2. DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3. Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μF & 47μF capacitor.
4. Tolerance: includes set up tolerance, line regulation, load regulation.
5. Line regulation is measured from low line to high line at rated load.
6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
7. Derating may be needed under low input voltage. Please check the derating curve for more details.
8. The ambient temperature derating of 3.5℃/1000m with fanless models and of 5℃/1000m with fan models for operating altitude higher than 2000m(6500ft).
9. The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on https://www.meanwell.com//Upload/PDF/EMI_statement_en.pdf )

Technical drawings

GSM160B12-R7B Derating Curve — Derating Curve

GSM160B12-R7B Mechanical Specification — Mechanical Specification

GSM160B12-R7B DC output plug — DC output plug

GSM160B12-R7B ◎ Optional DC plug: (Available in customized cable or… — ◎ Optional DC plug: (Available in customized cable or…

GSM160B12-R7B Pin Assignment — Pin Assignment

Typical applications

Mobile clinical workstation
Oral irrigator
Portable hemodialysis machine
Breath Machine
Medical computer monitor

Downloads

Datasheet1

GSM160B12-R7B datasheetGSM160B-SPEC.PDF · 2026-05-09 edition PDF Download

Certificates6

EMC Certificate (GSM160B)(EN) PDF Download

UL Certificate (GSM160B)(EN) PDF Download

CB Certificate (GSM160B)(EN) PDF Download

TUV Certificate (GSM160B)(EN) PDF Download

FCC Certificate(GSM160B)(EN) PDF Download

NRCan Certificate(GSM160B)(EN) PDF Download

Test reports1

Test Report(GSM160B12-R7B)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM160B12-R7B for 12V embedded controllers or industrial electronics?

Yes, it is a constant-voltage 12V power supply with up to 11.5A output current and 138W total output power. That suits 12V embedded controllers, industrial electronics, and similar DC loads within those ratings.

Is this model suitable for 12V automation accessories and low-voltage control devices?

It can be a fit for 12V automation accessories and control devices that need a regulated constant-voltage source. The output ceiling is 11.5A, and the total power limit is 138W.

Can this power supply support a 12V test fixture or development bench setup?

For 12V bench or fixture applications, this model provides a relatively high current output for a compact supply. It delivers 12V constant voltage and can support loads up to 138W.

Would the GSM160B12-R7B work for 12V monitoring, communications, or interface hardware?

It can be used for 12V communications, interface, or monitoring devices that require constant-voltage DC. It also accepts a wide 80-264VAC input range, which is useful where AC supply conditions vary.

Is this 12V power supply meant for indoor or outdoor environments?

The stated operating temperature range is -30°C to +70°C, with output derating at higher ambient temperatures per the derating curve. However, the provided specs do not include an IP rating, so outdoor-exposed use is not something the listed data confirms.
