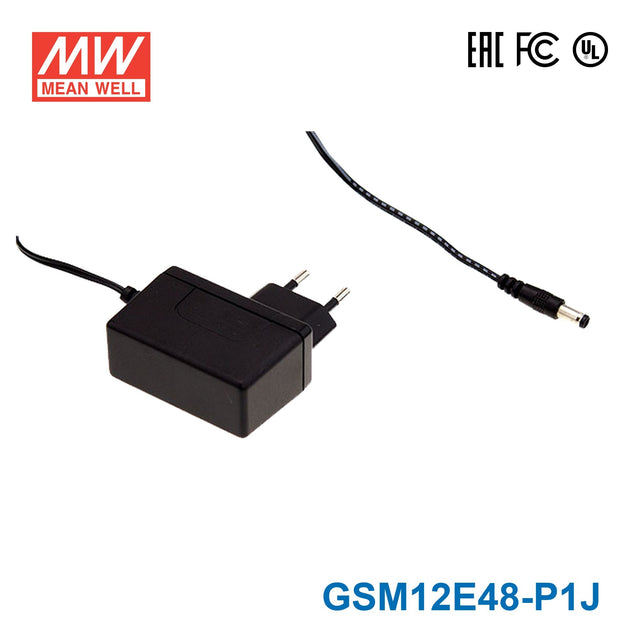

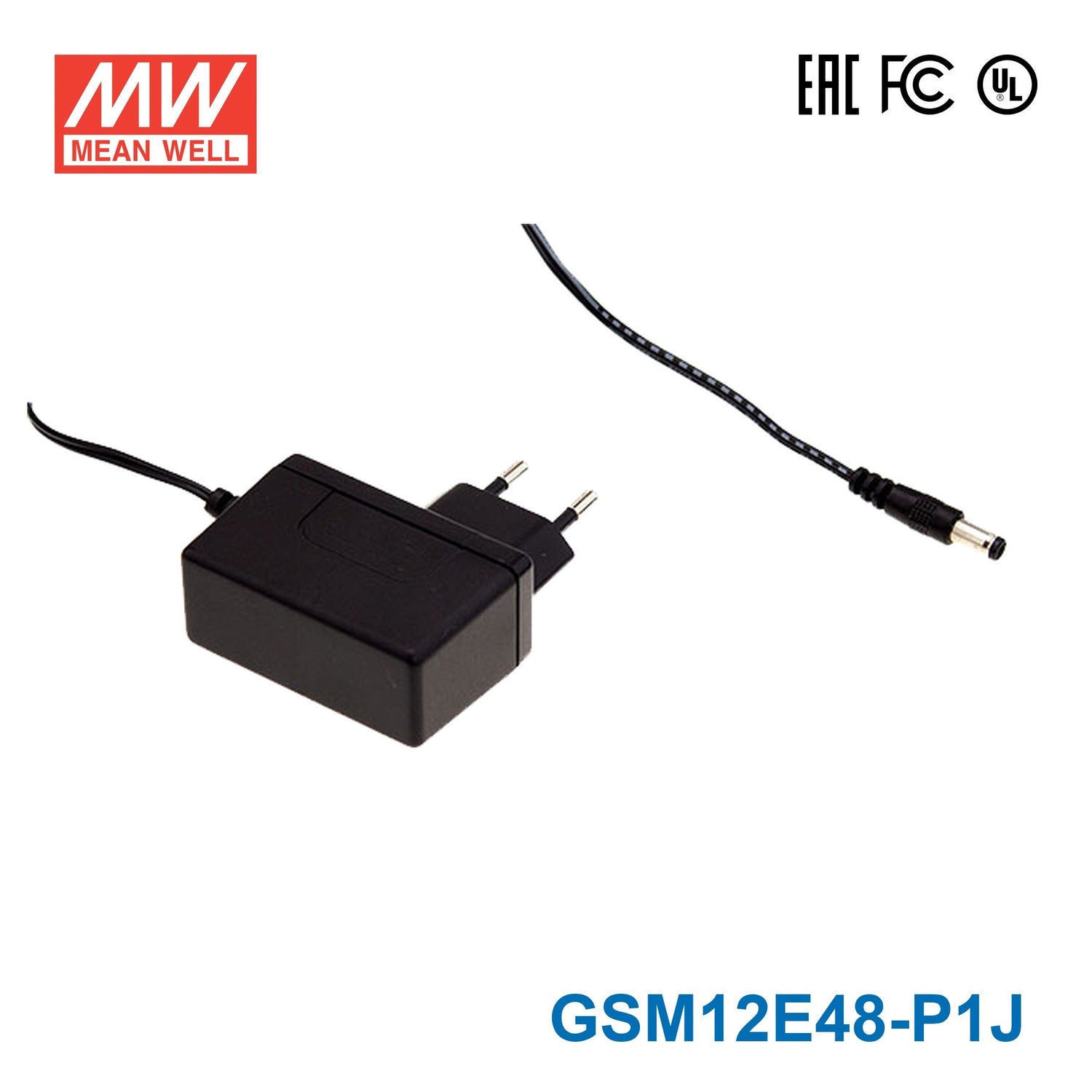

Mean Well GSM12E48-P1J Power Supply 12W 48V 250mA

Name: Mean Well GSM12E48-P1J Power Supply 12W 48V 250mA
Brand: Mean Well
SKU: GSM12E48-P1J
Price: 20.27 USD
Availability: InStock

SKU GSM12E48-P1J

$20.27 USD

Shipping calculated at checkout.

Select model — 8 in this family

GSM12E48-P1J

GSM12E48-P1J Europe Low stock$20.27 USD

GSM12U48-P1J USA Low stock$20.27 USD

GSM18E48-P1J Europe Low stock$20.48 USD

GSM18U48-P1J USA In stock$20.48 USD

GSM25U48-P1J USA In stock$18.54 USD

GSM36E48-P1J Europe Low stock$20.19 USD

GSM36U48-P1J USA In stock$20.19 USD

GSM60E48-P1J Europe Low stock$37.07 USD

Product variants

In stock

Overview

GSM12E48-P1J is the 48V output model of this series: rated current 0.25A, typical efficiency 87%. Type P1J: Plug for standard model, 2.1ψ×5.5ψ×11mm, C+ tuning fork type.

GSM12E is a highly reliable, 12W wall-mounted style single-output green medical adaptor series, which is compact and convenient for carry. This product is equipped with the standard 2-pin European plug. GSM12E is a class Ⅱ power unit (no FG), accepting the input range from 80VAC to 264VAC that it can satisfy the demands for various types of medical electrical devices. The circuitry design meets the international medical standards (2*MOPP), having an ultra low leakage current (<100μA), fitting the medical devices in direct electrical contact with the patients. With the working efficiency up to 87% and the extremely low no-load power consumption below 0.075W (<0.1W for 18V/48V), GSM12E is compliant with EU ErP and meet CoC version 5 (Except for 18V/48V). The supreme feature allows the adaptor to save the energy when it is under either the operating mode or the standby mode. The entire series is approved for international safety regulations; moreover, it adopts the 94V-0 flame retardant plastic case that it can effectively prevent users from electrical hazard.

Features

Universal AC input / Full range
Medical safety approved (2 x MOPP) according to BS EN/EN60601-1/BS EN/EN60601-1-11
Extremely low leakage current
No load power consumption< 0.075W(<0.1W for 18V/48V)
Energy efficiency Level Ⅵ
-20~+70℃ wide range working temperature
Class Ⅱ power (no earth pin)
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adaptor accessory available (Plug kit sold sperately, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf
3 years warranty

Specifications

GSM12E48-P1JSpecifications from the official datasheet (2024-05-13 edition)Download datasheet PDF

OUTPUT

SAFETY MODEL NO.: GSM12E48
DC VOLTAGE^Note.2: 48V
RATED CURRENT: 0.25A
CURRENT RANGE: 0 ~ 0.25A
RATED POWER (max.): 12W
RIPPLE & NOISE (max.)^Note.3: 100mVp-p
VOLTAGE TOLERANCE^Note.4: ±2.0%
LINE REGULATION^Note.5: ±1.0%
LOAD REGULATION^Note.6: ±2.0%
SETUP, RISE, HOLD UP TIME: 500ms, 30ms, 16ms/230VAC 500ms, 30ms, 16ms/115VAC at full load

INPUT

VOLTAGE RANGE^Note.7: 80 ~ 264VAC 113 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 87%
AC CURRENT: 0.4A / 115VAC 0.2A / 230VAC
INRUSH CURRENT (max.): Cold start 30A / 115VAC 60A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 100μA/264VAC

PROTECTION

OVERLOAD: 110 ~ 200% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output voltage Protection type : Clamp by zener diode, output short

ENVIRONMENT

WORKING TEMP.: -20 ~ +70℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 0 ~ 95% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 0 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.03% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC (Note. 8)

SAFETY STANDARDS: TUV BS EN/EN60601-1, BS EN/EN60601-1-11 (3.1 version), EAC TP TC 004 approved GSM12E05-USB without BS EN/EN60601-1-11
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3 -----
EMC IMMUNITY: BS EN/EN55024, BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3	-----

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

LIFE: 3 years : 100% load 40℃, 12hours / day
MTBF: 400Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 62.2*27.4*39.7mm (L*W*H)
PACKING: 100g, 90pcs / 10kg / CARTON for cable connection ; 76g, 150pcs / 12.5kg / CARTON for USB connection

CONNECTOR

PLUG: See page 4~5 ; other type available by customer requested
CABLE: See page 4~5 ; other type available by customer requested

Certifications & ratings

IP level: IP22

MODEL ENCODING

P1J (this model): Plug for standard model, 2.1ψ×5.5ψ×11mm, C+ tuning fork type
USB: USB(type A) for 5V model only
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes8

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.Derating may be needed under low input voltage. Please check the derating curve for more details.
8.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to "EMI testing of component power supplies." (as available on http://www.meanwell.com)

Technical drawings

GSM12E48-P1J Derating Curve — Derating Curve

GSM12E48-P1J Mechanical Specification — Mechanical Specification

GSM12E48-P1J DC output plug — DC output plug

GSM12E48-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Downloads

Datasheet1

GSM12E48-P1J datasheetGSM12E-SPEC.PDF · 2024-05-13 edition PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM12E48-P1J to power a small 48V industrial sensor or control accessory?

Yes, this model is intended for constant-voltage 48V loads up to 0.25A, with a total output of 12W. It fits low-power industrial or automation devices that specifically require 48V DC and stay within those limits.

Is this 48V adapter appropriate for embedded or telecom interface modules that need 48V DC?

It can be a fit for embedded or interface equipment designed for constant-voltage 48V input. The key limits are 12W maximum output and 0.25A output current, so the connected module must be rated within both.

Can this power supply be used for a low-power 48V building automation device?

It is suitable for building automation or control devices that require a regulated 48V constant-voltage source. This unit provides 48V at up to 0.25A, so it is best for lower-power devices within the 12W rating.

How do I know if a 48V device is compatible with the GSM12E48-P1J?

The device should require constant-voltage 48V DC and draw no more than 0.25A or 12W. If its requirement exceeds 0.25A or 12W, this model is undersized.

Is the GSM12E48-P1J suitable for indoor or outdoor use?

The listed operating temperature range is -20°C to +70°C (with derating at higher temperatures), which supports a wide range of indoor equipment environments. The unit is rated IP22, which does not make it suitable for outdoor or washdown use.
