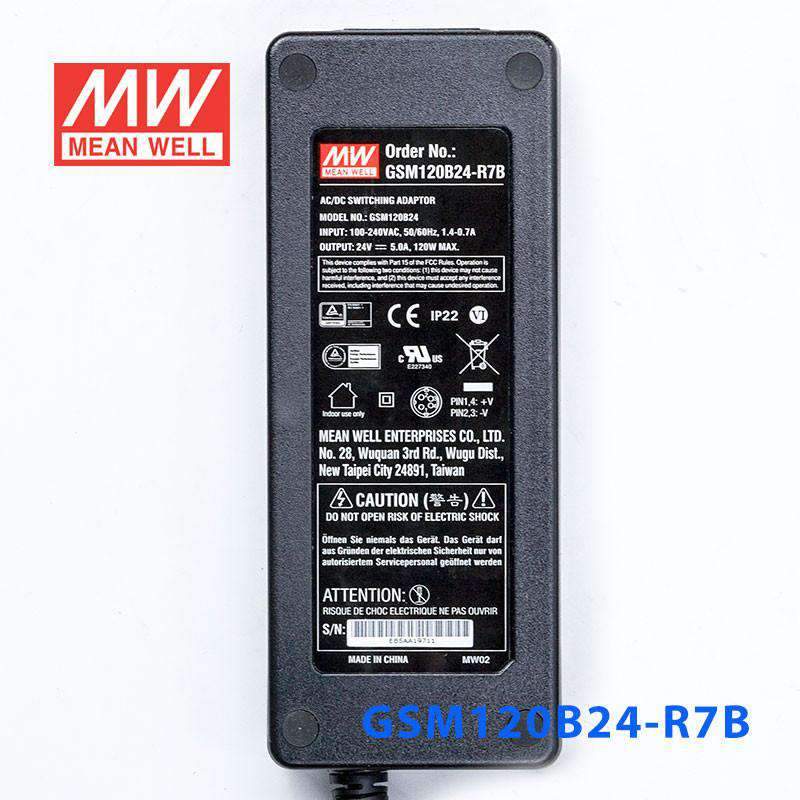

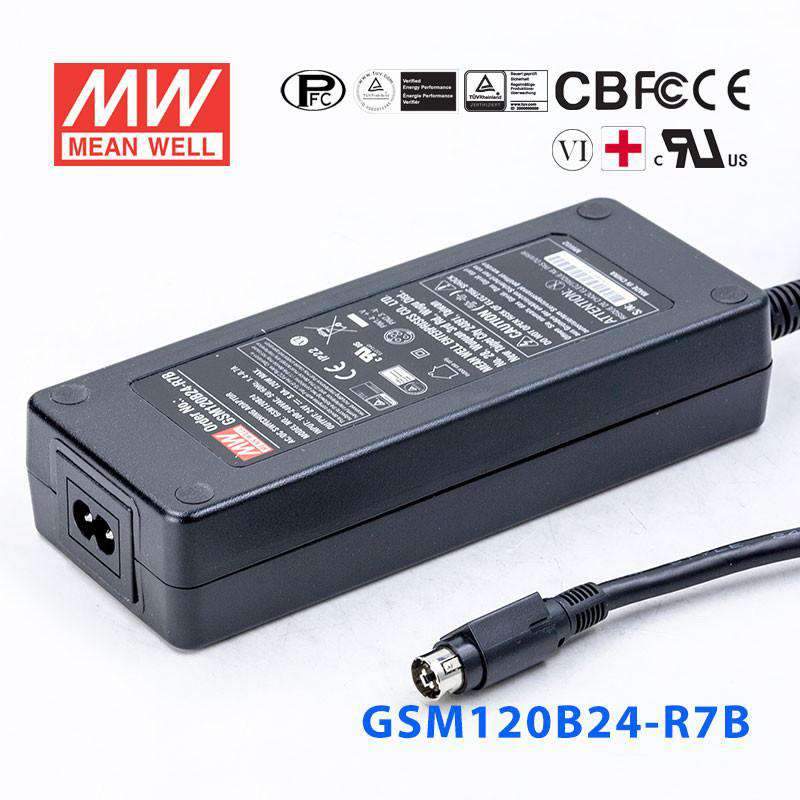

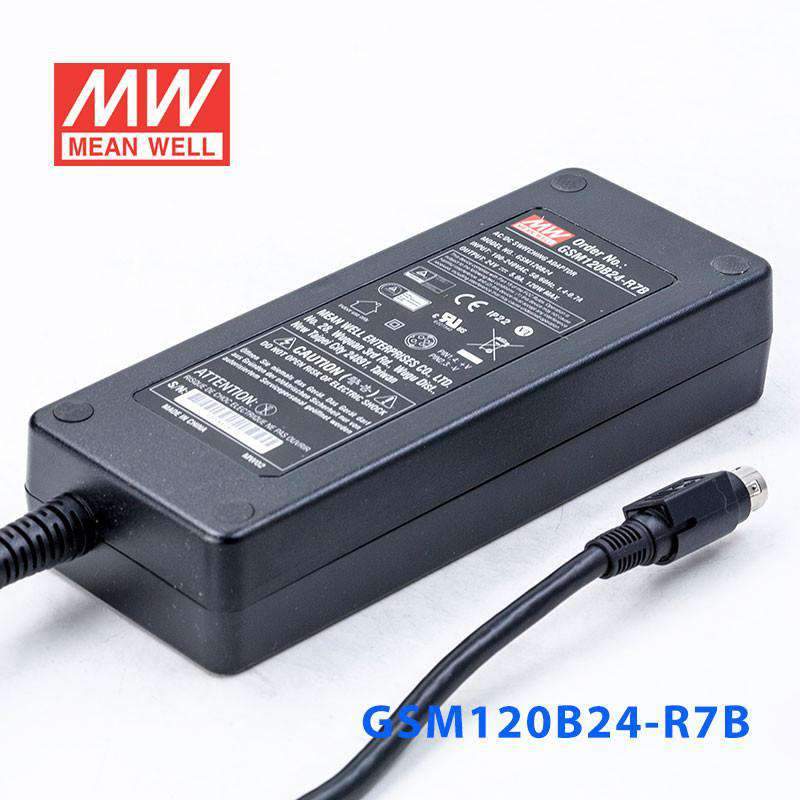

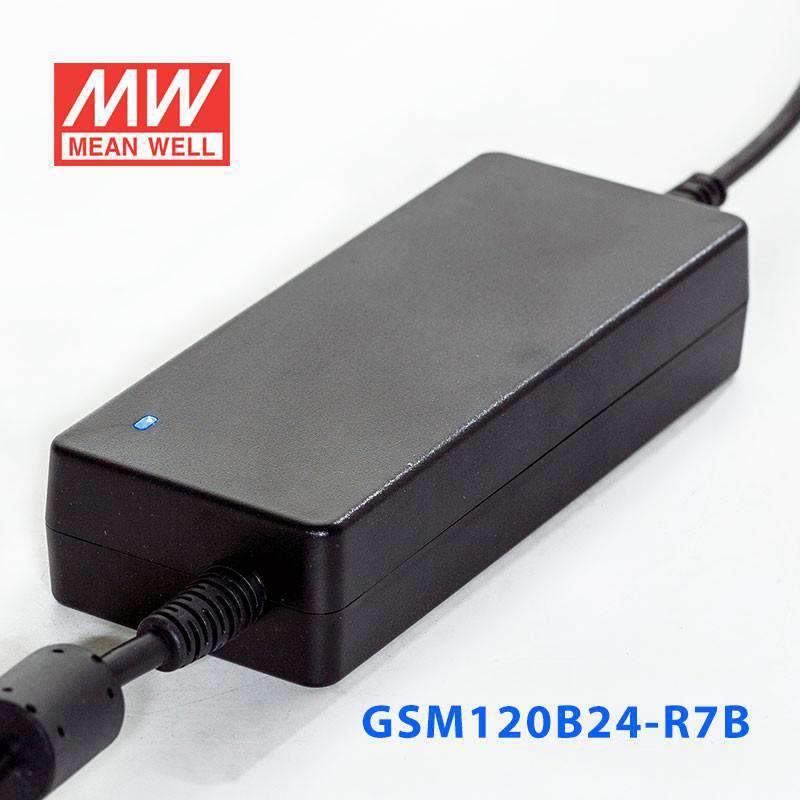

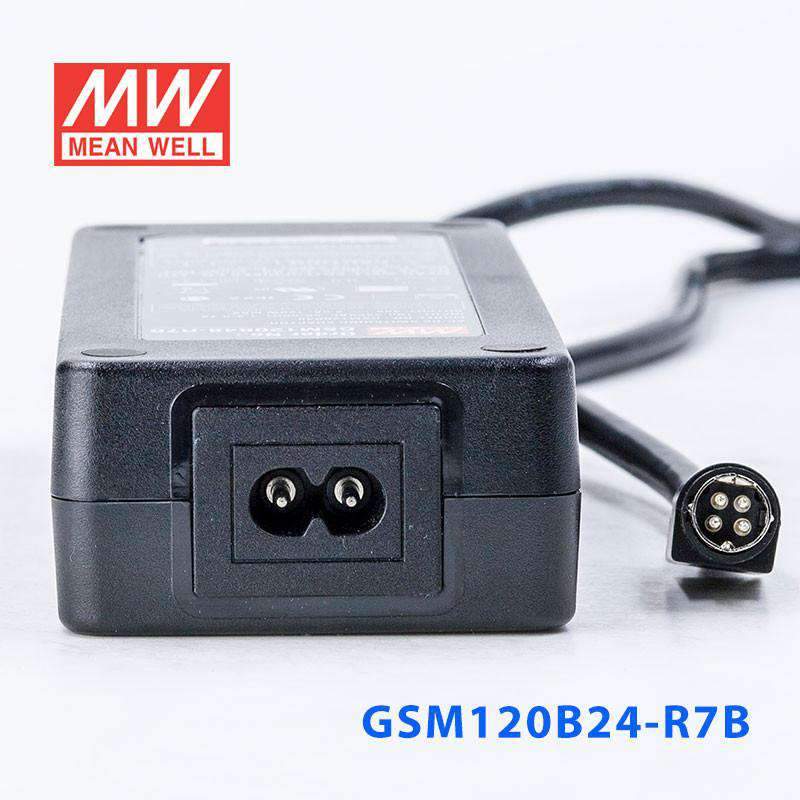

Mean Well GSM120B24-R7B Power Supply 120W 24V
$60.01 USD
Unit price /
Unavailable
Description
Description
The GSM120B24 is a 120W Mean Well power converter (input range: 80~264VAC).
Key Features
- ✓ Input voltage range: 80~264VAC
- ✓ 4KVAC reinforced I/O isolation
- ✓ Cooling by free air convection
- ✓ Protections: Short circuit / Overload / Over voltage / Over temperature
- ✓ Safety approvals: ulation that effectively prevents electrical shock. GSM120B is
- ✓ 3 years warranty
Specifications
Specifications
-
BrandMean Well
-
SeriesGSM Series
-
Power Rating120 Watt
-
Output Voltage24 Volt
-
Rated Current5 Ampere
-
Input Voltage80V~264V
-
Standards MetCB,CE,EAC,FCC,TUV,UL
-
Operation ModeConstant Voltage
-
Operating Temperature-30°C~70°C
-
Warranty3 Year
-
Length6.89 in
-
Width2.83 in
-
Height1.38 in
-
Weight1.46 lb
