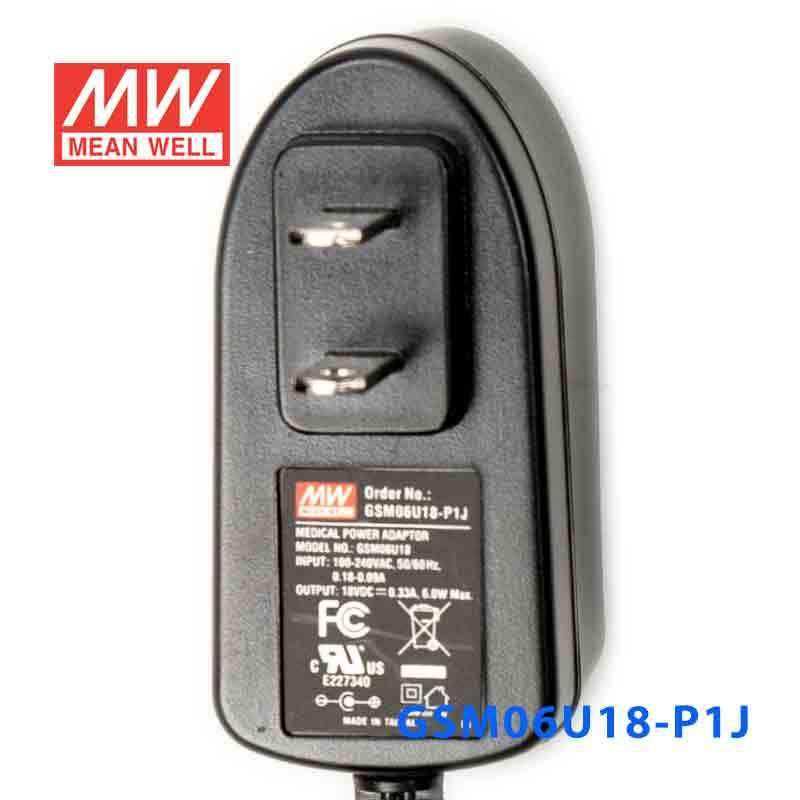

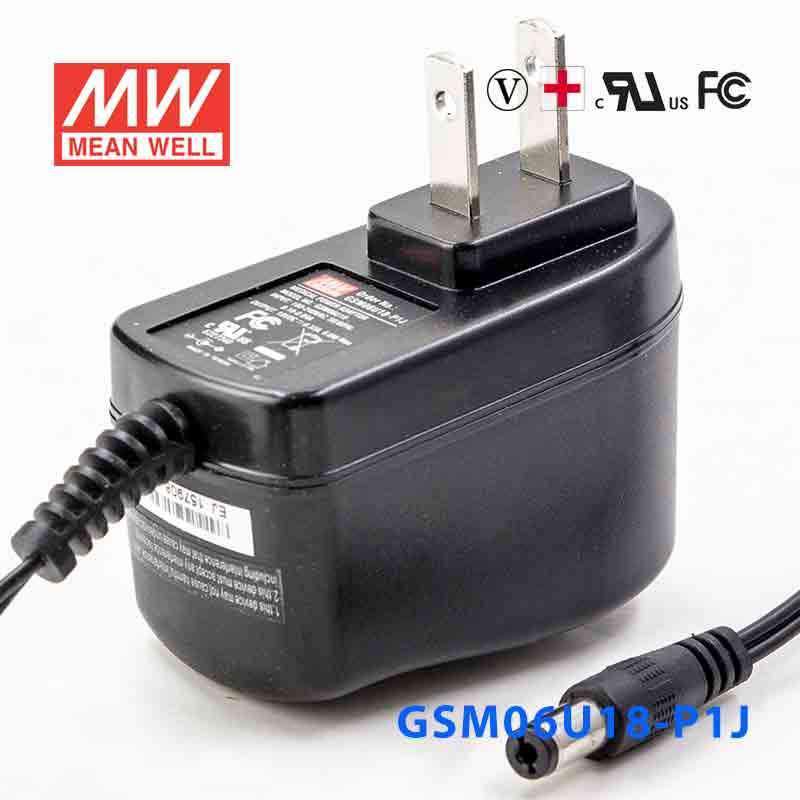

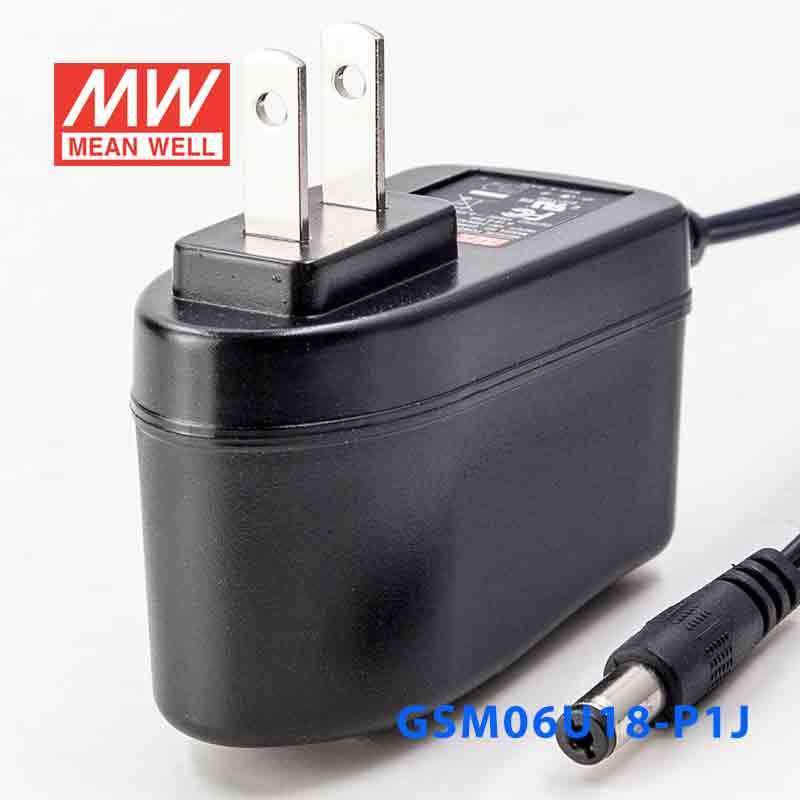

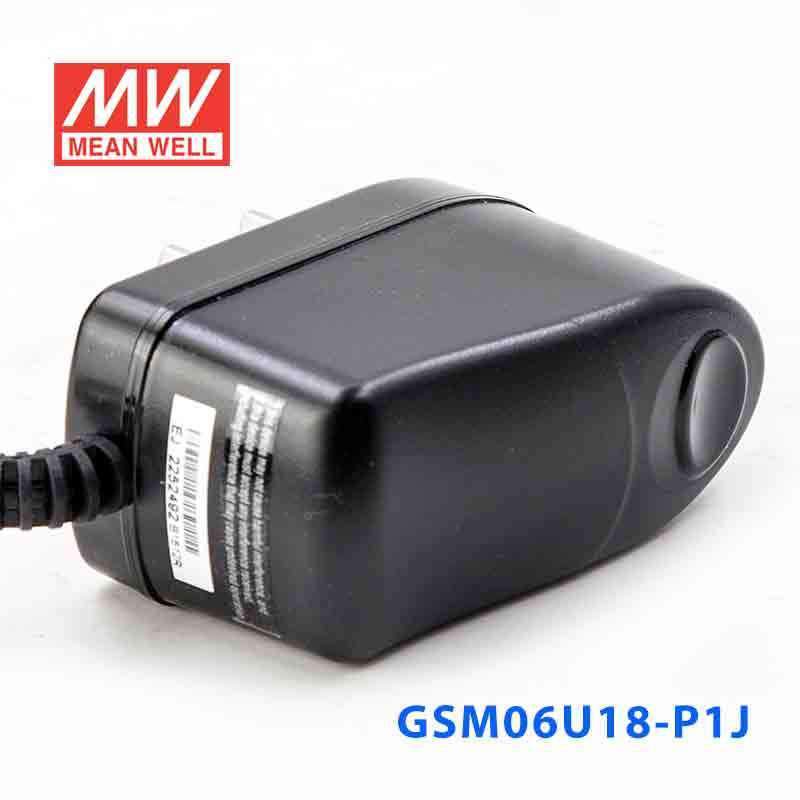

Mean Well GSM06U18-P1J Power Supply 06W 18V 330mA

Name: Mean Well GSM06U18-P1J Power Supply 06W 18V 330mA
Brand: Mean Well
SKU: GSM06U18-P1J
Price: 16.09 USD
Availability: InStock

SKU GSM06U18-P1J

$16.09 USD

Shipping calculated at checkout.

Select model — 9 in this family

GSM06U18-P1J

GSM06E18-P1J Europe Low stock$16.09 USD

GSM06U18-P1J USA Low stock$16.09 USD

GSM12E18-P1J Europe Low stock$20.27 USD

GSM12U18-P1J USA Low stock$20.27 USD

GSM18E18-P1J Europe Low stock$20.48 USD

GSM18U18-P1J USA In stock$20.48 USD

GSM36E18-P1J Europe Low stock$20.19 USD

GSM36U18-P1J USA Low stock$20.19 USD

GSM60E18-P1J Europe Backorder$37.07 USD

Product variants

In stock

Overview

GSM06U18-P1J is the 18V output model of this series: rated current 0.33A, rated power 6W, typical efficiency 80%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM06U is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06U is compliant with USA EISA 2007. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06U is approved with the international medical safety certificates.

Features

2 pole USA AC plug, Class Ⅱ power unit
Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1
Extremely low leakage current
No load power consumption< 0.3W
Energy efficiency Level Ⅴ
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
3 years warranty

Specifications

GSM06U18-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GSM06U18
DC VOLTAGE^Note.2: 18V
RATED CURRENT: 0.33A
CURRENT RANGE: 0 ~ 0.33A
RATED POWER: 6W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.18A / 100VAC
INRUSH CURRENT (max.): Cold start 15A / 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 50μA/264VAC

PROTECTION

OVERLOAD: >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: >120% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: 0 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.04% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B
Radiated emission FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B) Class B

Parameter	Standard	Test Level
Conducted emission	FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B
Radiated emission	FCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B)	Class B

OTHERS

MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 32*66*42.5mm (L*W*H)
PACKING: 100g; 110pcs/12Kg/CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model): Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank: Other options available by customer requested (see Page 4~5)

Test conditions and notes7

1.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 10% to 100% rated load.
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GSM06U18-P1J Mechanical Specification — Mechanical Specification

Typical applications

Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device

Downloads

Datasheet1

GSM06U18-P1J datasheetGSM06U-SPEC.PDF · 2022-04-15 edition PDF Download

Certificates4

EMC Certificate (ELG-75)(EN) PDF Download

EMC Certificate (GSM06U)(EN) PDF Download

FCC Certificate(GSM06U)(EN) PDF Download

UL Certificate (GSM06U)(EN) PDF Download

Test reports1

Test Report (GSM06U18-P1J)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM06U18-P1J for a small 18V automation device?

This supply provides constant-voltage 18V output at up to 6W and 0.33A. It is suited to small 18V automation devices, compact control accessories, or low-current embedded products that match those limits.

Will this work for an 18V embedded board or OEM assembly?

It is appropriate for 18V embedded assemblies that need a regulated constant-voltage source and draw no more than 0.33A. Its 66.0 x 42.5 x 32.0 mm body also makes it easier to place in compact OEM equipment.

Can this power supply run a low-power 18V monitoring or communications module?

Yes, if the module is designed for 18V constant-voltage input and stays within 6W. The available output current is 0.33A, so it is better suited to modest-load monitoring, signaling, or communications hardware than higher-draw devices.

How do I know if my 18V load is compatible with this adapter?

The load should require 18V constant-voltage input and draw no more than 6W or 0.33A. If the device needs more current than 0.33A, this model is undersized for that application.

Can the GSM06U18-P1J be used in varying ambient conditions?

Its specified operating range is 0°C to +50°C. No IP rating is listed in the provided specs, so environmental suitability is defined by temperature here rather than by a published ingress-protection classification.
