Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

Mean Well

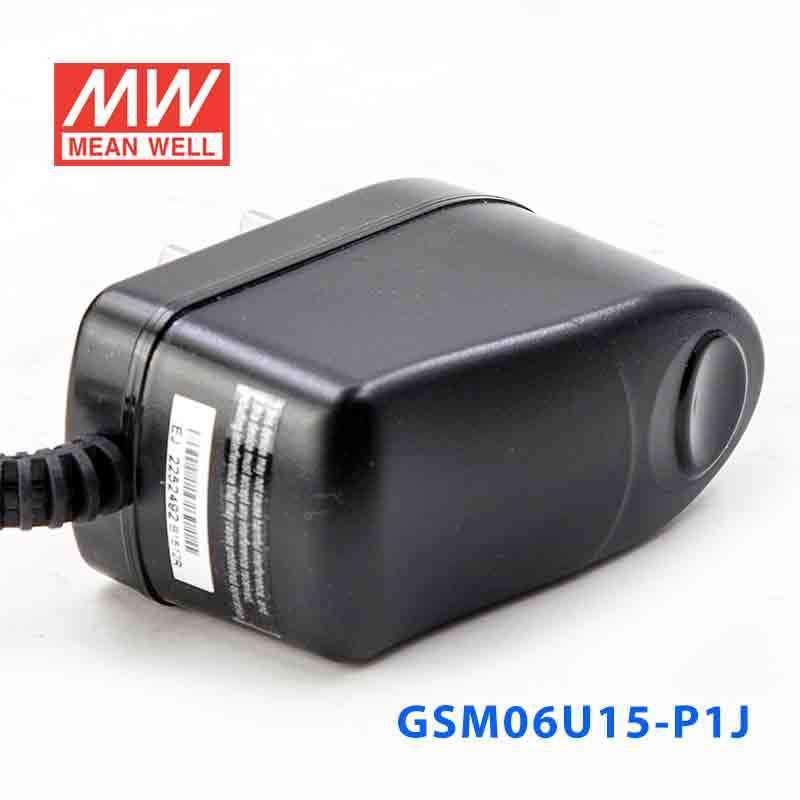

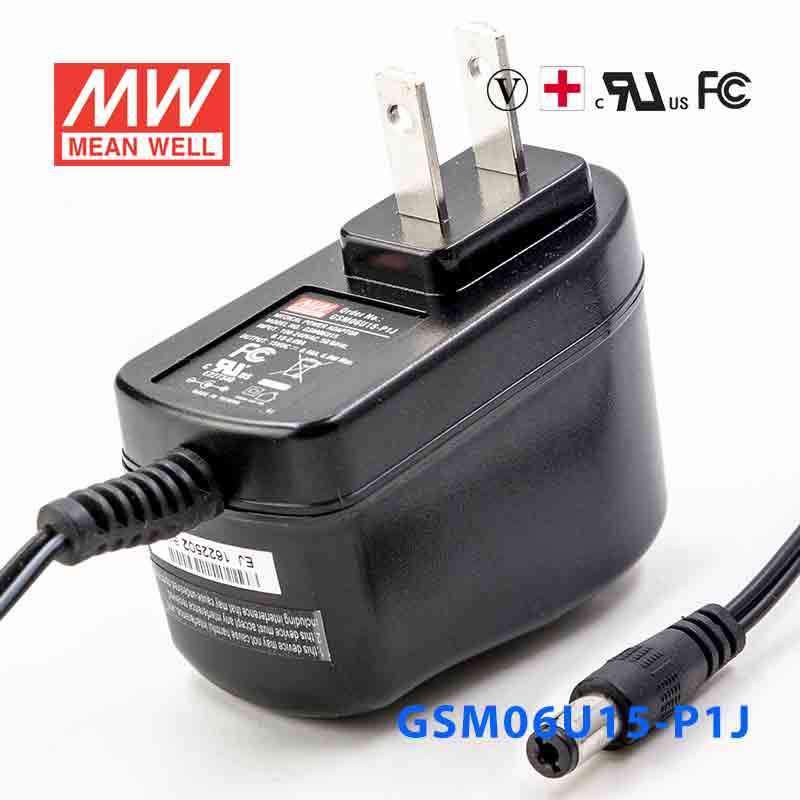

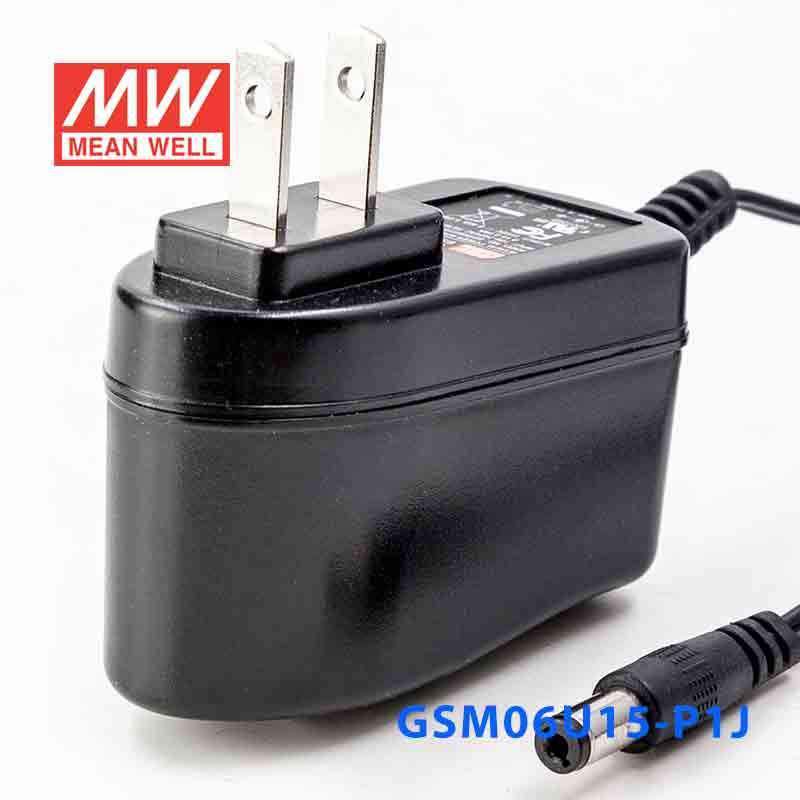

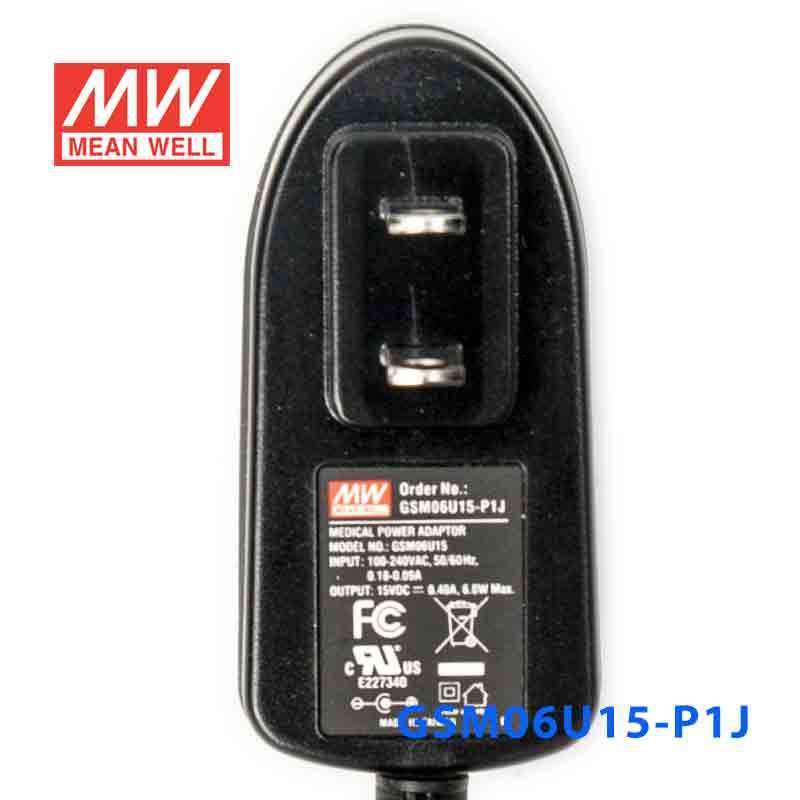

Mean Well GSM06U15-P1J Power Supply 06W 15V 400mA

SKU GSM06U15-P1J
$16.09 USD
Shipping calculated at checkout.

Select model — 10 in this family

GSM06U15-P1J
Available to order
|

Overview

GSM06U15-P1J is the 15V output model of this series: rated current 0.4A, rated power 6W, typical efficiency 79%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM06U is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06U is compliant with USA EISA 2007. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06U is approved with the international medical safety certificates.

Features

  • 2 pole USA AC plug, Class Ⅱ power unit
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1
  • Extremely low leakage current
  • No load power consumption< 0.3W
  • Energy efficiency Level Ⅴ
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GSM06U15-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.
GSM06U15
DC VOLTAGENote.2
15V
RATED CURRENT
0.4A
CURRENT RANGE
0 ~ 0.4A
RATED POWER
6W
RIPPLE & NOISE (max.)Note.3
120mVp-p
VOLTAGE TOLERANCENote.4
±5.0%
LINE REGULATIONNote.5
±0.5%
LOAD REGULATIONNote.6
±3.0%
SETUP, RISE, HOLD UP TIME
1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
79%
AC CURRENT
0.18A / 100VAC
INRUSH CURRENT (max.)
Cold start 15A / 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.)
Touch current < 50μA/264VAC

PROTECTION

OVERLOAD
>105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
>120% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.04% / ℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:5656VDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionFCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B)Class B
Radiated emissionFCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B)Class B

OTHERS

MTBF
500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
32*66*42.5mm (L*W*H)
PACKING
100g; 110pcs/12Kg/CARTON

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model)
Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank
Other options available by customer requested (see Page 4~5)
Test conditions and notes7
  1. 1.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
  2. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
  4. 4.Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5.Line regulation is measured from low line to high line at rated load.
  6. 6.Load regulation is measured from 10% to 100% rated load.
  7. 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GSM06U15-P1J Mechanical Specification
Mechanical Specification

Typical applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device

Downloads

FAQ

Can I use the GSM06U15-P1J for a small 15V industrial sensor or controller?

This model is a constant-voltage 15V supply rated for 6W and 0.4A. It fits small 15V industrial sensors, compact controllers, or low-draw automation accessories that stay within that output rating.

Is this power supply suitable for embedded 15V electronics in a compact enclosure?

It can work for embedded 15V equipment that needs a constant-voltage source up to 0.4A. The housing is 66.0 x 42.5 x 32.0 mm, so it suits space-limited products better than larger desktop supplies.

Can I use this for a low-power 15V HMI, interface module, or test fixture?

Yes, if the load is a 15V constant-voltage device and the total demand does not exceed 6W or 0.4A. That makes it a reasonable fit for low-power interface modules, bench fixtures, and similar light-duty 15V electronics.

Is the GSM06U15-P1J a good choice for globally deployed equipment?

The input range is 85-264VAC, which supports a wide AC input span for equipment used in different regions. It is approved to ANSI/AAMI ES60601-1, CAN/CSA-C22 No. 60601-1 and EAC, and meets FCC Part 15 & 18 Class B emission limits.

Is this model intended for indoor or outdoor use?

The published specs list an operating temperature of 0°C to +50°C, but no IP rating is provided here. That means temperature suitability is defined, while outdoor exposure should be evaluated against the enclosure requirements of the final product.
