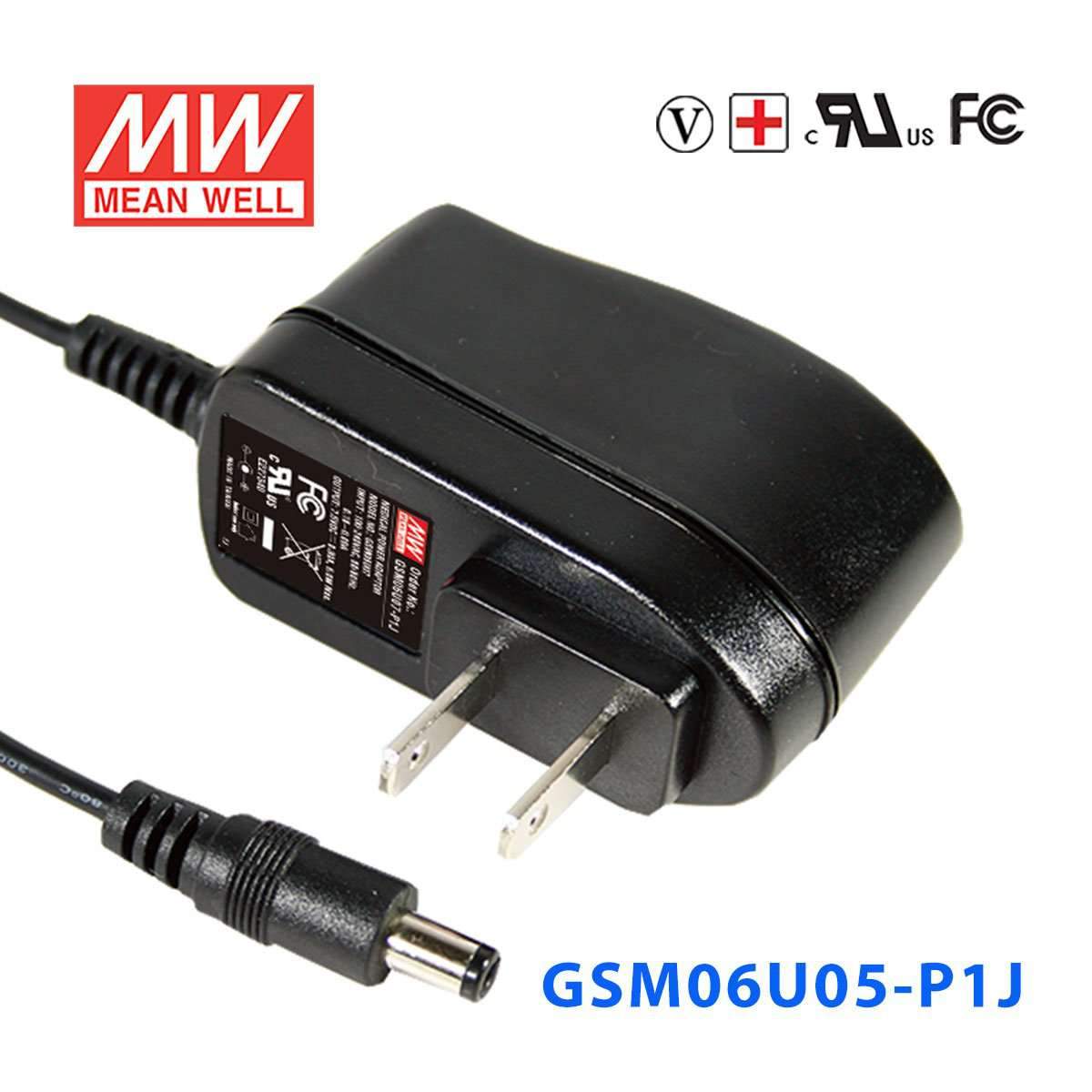

Mean Well GSM06U05-P1J Power Supply 06W 5V 1.2A

SKU GSM06U05-P1J
$16.09 USD
Shipping calculated at checkout.

Select model — 10 in this family

GSM06U05-P1J
Available to order
|

Overview

GSM06U05-P1J is the 5V output model of this series: rated current 1.2A, rated power 6W, typical efficiency 68%. Type P1J: Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type.

GSM06U is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard USA AC power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06U is compliant with USA EISA 2007. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06U is approved with the international medical safety certificates.

Features

  • 2 pole USA AC plug, Class Ⅱ power unit
  • Medical safety approved (2 x MOPP) according to ANSI/AAMI ES60601-1
  • Extremely low leakage current
  • No load power consumption< 0.3W
  • Energy efficiency Level Ⅴ
  • Protections: Short circuit / Overload / Over voltage
  • Fully enclosed plastic case
  • Various DC plug quick adapter accessory available (Plug kit sold seperate, please refer to : https://www.meanwell.com/upload/pdf/DC_plug.pdf)
  • 3 years warranty

Specifications

GSM06U05-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.
GSM06U05
DC VOLTAGENote.2
5V
RATED CURRENT
1.2A
CURRENT RANGE
0 ~ 1.2A
RATED POWER
6W
RIPPLE & NOISE (max.)Note.3
50mVp-p
VOLTAGE TOLERANCENote.4
±5.0%
LINE REGULATIONNote.5
±0.5%
LOAD REGULATIONNote.6
±5.0%
SETUP, RISE, HOLD UP TIME
1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE
85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE
47 ~ 63Hz
EFFICIENCY (Typ.)
68%
AC CURRENT
0.18A / 100VAC
INRUSH CURRENT (max.)
Cold start 15A / 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.)
Touch current < 50μA/264VAC

PROTECTION

OVERLOAD
>105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE
>120% rated output voltage Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.
0 ~ +50℃ (Refer to "Derating Curve")
WORKING HUMIDITY
20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY
-20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT
±0.04% / ℃ (0 ~ 40℃)
VIBRATION
10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS
ANSI/AAMI ES60601-1(3.1 version),CAN/CSA-C22 NO. 60601-1 3rd edition, EAC TP TC 004 approved
WITHSTAND VOLTAGE
I/P-O/P:5656VDC
ISOLATION RESISTANCE
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION
ParameterStandardTest Level
Conducted emissionFCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B)Class B
Radiated emissionFCC PART 15 & 18 / CISPR22, CAN ICES-3(B)/NMB-3(B)Class B

OTHERS

MTBF
500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION
32*66*42.5mm (L*W*H)
PACKING
100g; 110pcs/12Kg/CARTON

CONNECTOR

PLUG
See page 4~5 ; Other type available by customer requested
CABLE
See page 4~5 ; Other type available by customer requested

MODEL ENCODING

P1J (this model)
Plug for standard model, 2.1φ x 5.5φ x11mm, c+, tuning fork type
Blank
Other options available by customer requested (see Page 4~5)
Test conditions and notes7
  1. 1.All parameters are specified at 115VAC input, rated load, 25℃ 70% RH ambient.
  2. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
  3. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
  4. 4.Tolerance: includes set up tolerance, line regulation, load regulation.
  5. 5.Line regulation is measured from low line to high line at rated load.
  6. 6.Load regulation is measured from 10% to 100% rated load.
  7. 7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

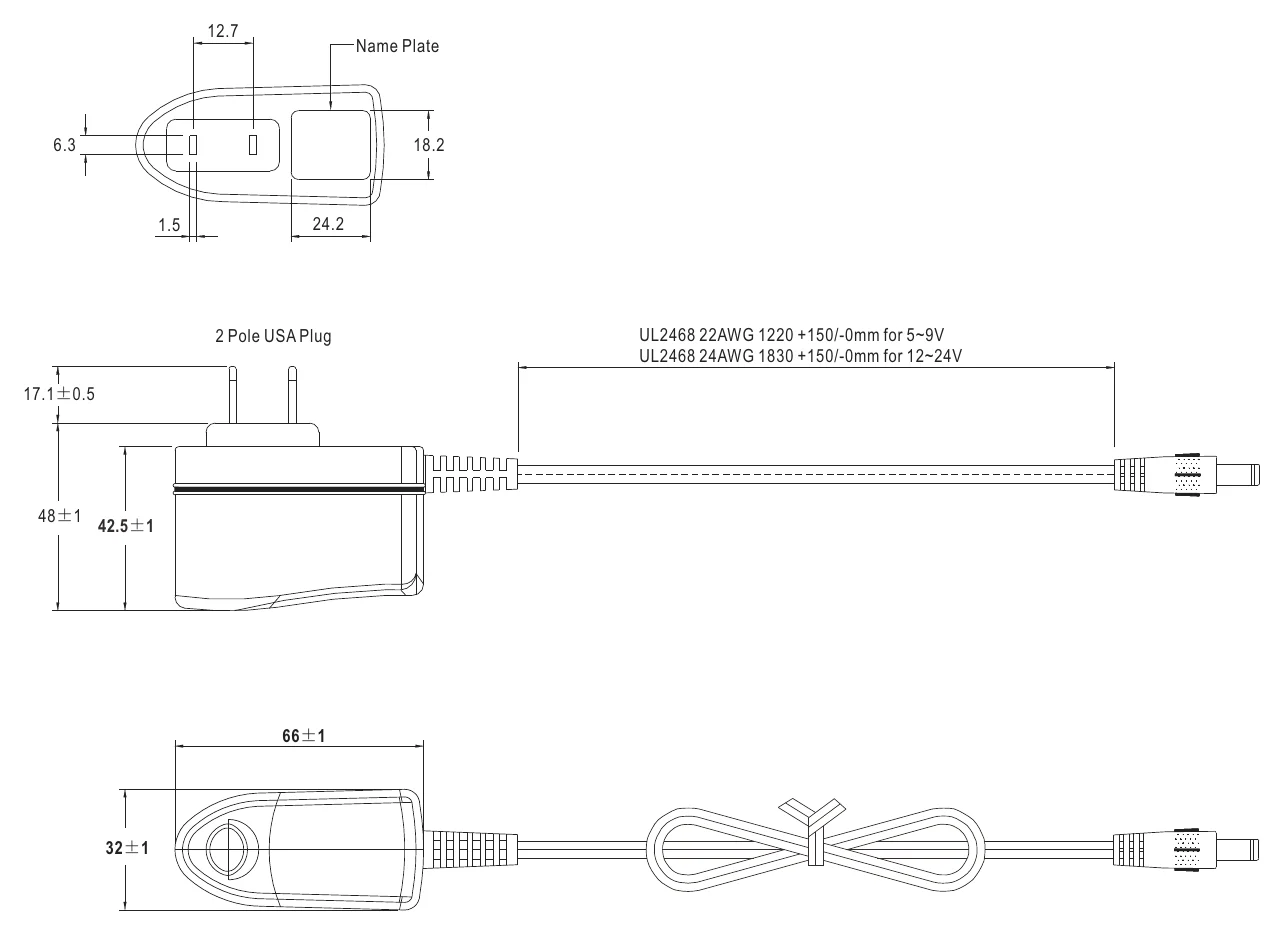

GSM06U05-P1J Mechanical Specification
Mechanical Specification

Typical applications

  • Blood glucose meter
  • Blood pressure meter
  • Nebulizer
  • Inhaler
  • Portable medical device

Downloads

FAQ

Can I use the GSM06U05-P1J to power a 5V embedded controller or development board?

Yes, this model is intended for constant voltage output at 5V. It can support 5V embedded or controller loads that stay within 6W total and draw no more than 1.2A.

Is this 5V power supply suitable for a small industrial sensor interface or USB-powered control device?

It can be a fit for 5V industrial or IT devices that require a regulated 5V constant voltage supply. The load needs to remain at or below 1.2A and within the unit's 6W rating.

Can I use this for a low-power automation gateway or compact 5V communications device?

This supply is appropriate for compact automation or communications hardware that runs on 5V constant voltage. Capacity is limited to 6W maximum output, so the connected device must not exceed 1.2A.

Will this work for a small 5V single-board computer used in monitoring or control?

It can work when the single-board computer requires 5V constant voltage and its power demand stays within 6W. The available output current is 1.2A, so it is best suited to lower-power 5V systems.

Is the GSM06U05-P1J suitable for outdoor or harsh-location use?

The listed specs show an operating temperature range of 0°C to +50°C, which helps define its environmental limit. No IP rating is provided in the supplied specs, so this model is better matched to indoor or otherwise protected locations.
