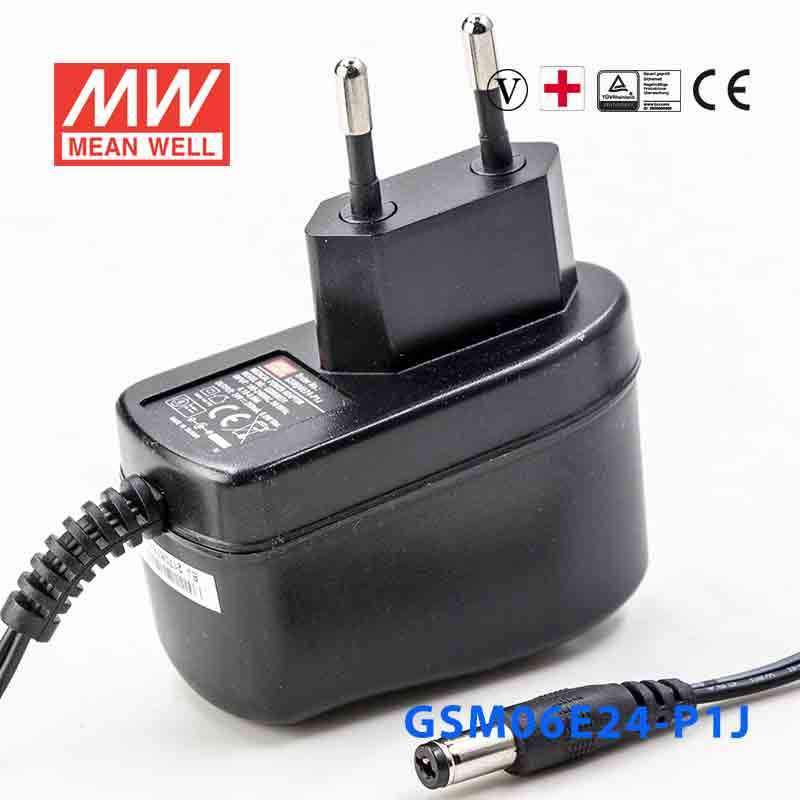

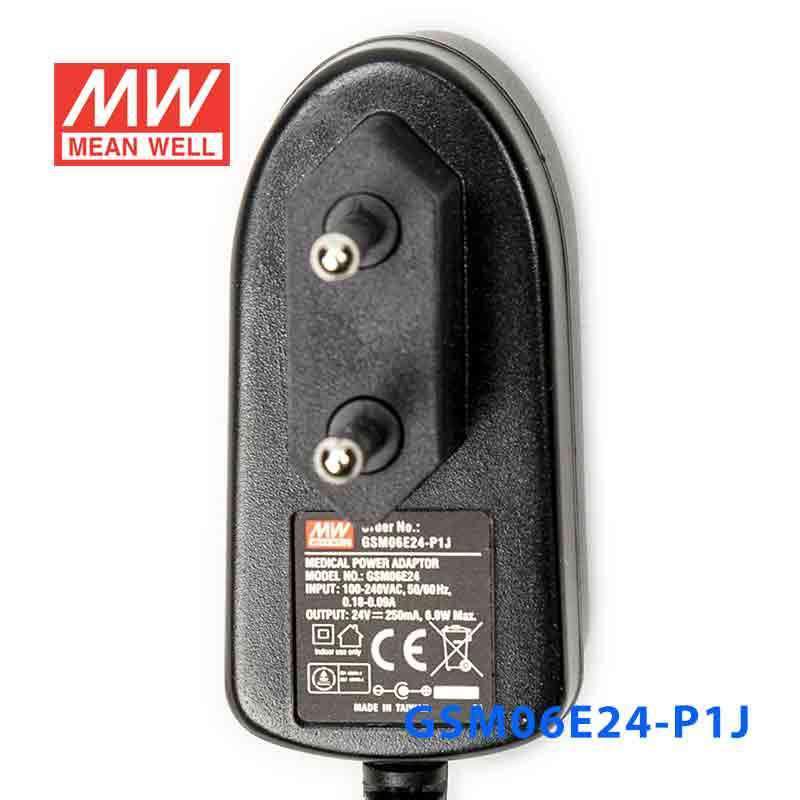

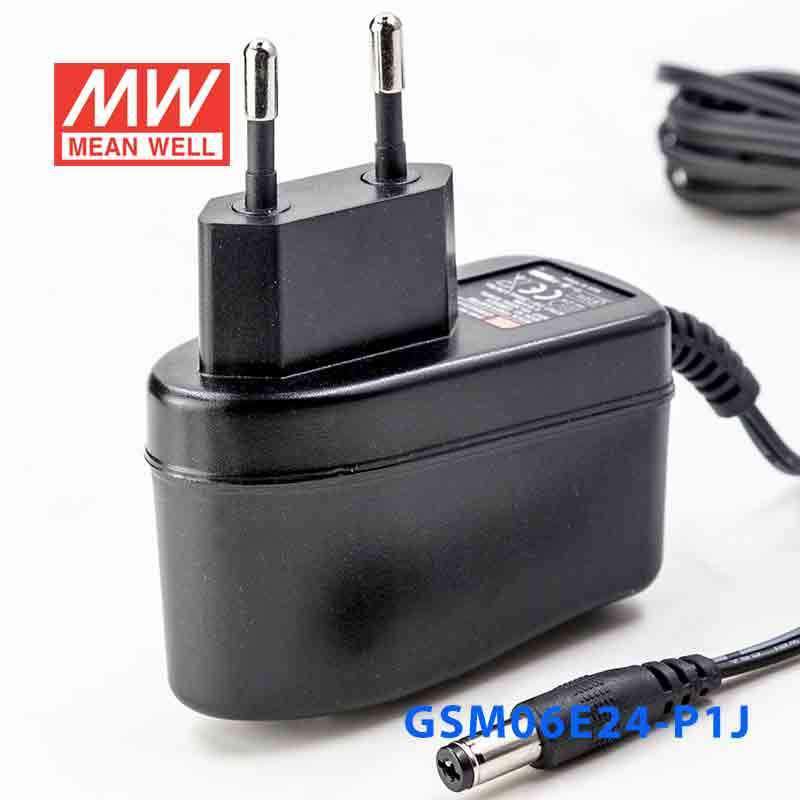

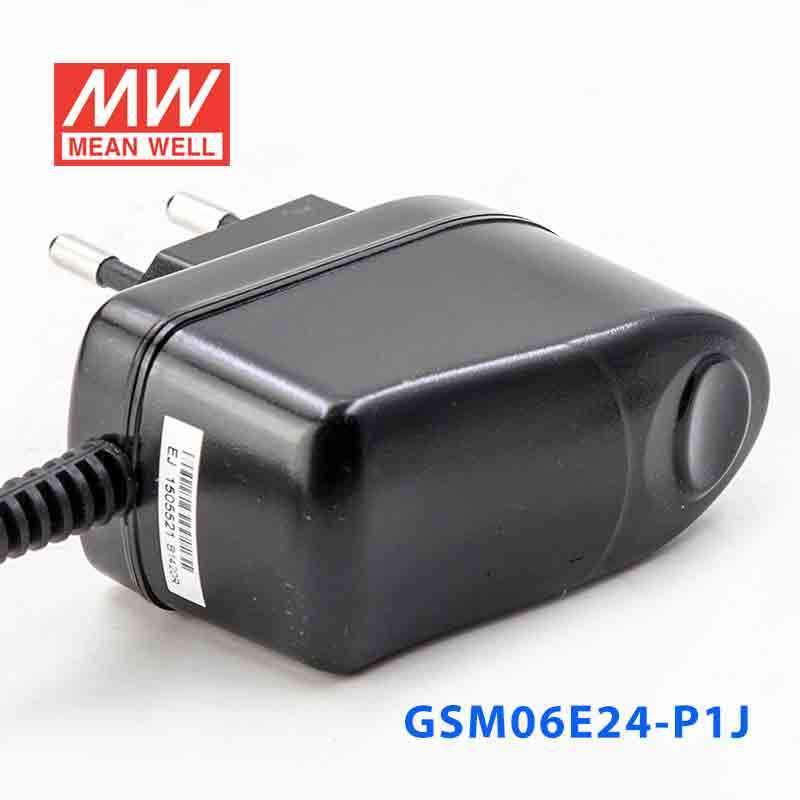

Name: Mean Well GSM06E24-P1J Power Supply 06W 24V 250mA
Brand: Mean Well
SKU: GSM06E24-P1J
Price: 14.29 USD
Availability: InStock

Overview

GSM06E24-P1J is the 24V output model of this series: rated current 0.25A, rated power 6W, typical efficiency 82%.

GSM06E is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06E is compliant with EU ErP. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06E is approved with the international medical safety certificates.

Features

2 pole EURO plug , Class Ⅱ power unit
Medical safety approved (2 x MOPP) according to BS EN/EN60601-1
Extremely low leakage current
No load power consumption< 0.3W
Energy efficiency Level Ⅴ
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
3 years warranty

Specifications

GSM06E24-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GSM06E24
DC VOLTAGE^Note.2: 24V
RATED CURRENT: 0.25A
CURRENT RANGE: 0 ~ 0.25A
RATED POWER: 6W
RIPPLE & NOISE (max.)^Note.3: 180mVp-p
VOLTAGE TOLERANCE^Note.4: ±4.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±2.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 82%
AC CURRENT: 0.18A / 100VAC
INRUSH CURRENT (max.): Cold start 15A/ 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 50μA/264VAC

PROTECTION

OVERLOAD: >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output power Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: 0 ~ +50℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.04% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 32*66*42.5mm (L*W*H)
PACKING: 100g ; 90pcs / 10Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes7

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load.
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GSM06E24-P1J Mechanical Specification — Mechanical Specification

GSM06E24-P1J DC output plug — DC output plug

GSM06E24-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device

Downloads

Datasheet1

GSM06E24-P1J datasheetGSM06E-SPEC.PDF · 2022-04-15 edition PDF Download

Certificates3

EMC Certificate (ELG-75)(EN) PDF Download

EMC Certificate (GSM06E)(EN) PDF Download

TUV Certificate(GSM06E)(EN) PDF Download

Test reports1

Test Report (GSM06E24-P1J)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM06E24-P1J for a 24V PLC I/O accessory or automation module?

It can fit a small PLC I/O accessory or automation module that requires constant 24V DC and draws up to 0.25A. The output is limited to 6W, so it is intended for low-power 24V devices only. The 85-264VAC input range is useful in a wide range of AC supply conditions.

Is this 24V power supply suitable for compact industrial sensors or transmitters?

Yes, it can suit compact sensors or transmitters that need constant 24V DC and no more than 0.25A. Because it provides 6W total output, it is best matched to light electronic loads. Higher-current 24V field devices would exceed this model's output capability.

Will the GSM06E24-P1J work for small embedded or control systems that use 24V DC?

It can work for small embedded or control systems if their power requirement is constant 24V DC at or below 0.25A. The 6W rating places it in the low-power range, which is suitable for compact electronics and interface boards. It is not intended for larger 24V control hardware with heavier load demand.

Can this model power low-power 24V monitoring or communication equipment?

It can power low-power monitoring or communication equipment when the device needs constant 24V DC and stays within 0.25A. That gives a maximum output of 6W, so it is best for compact accessories rather than main system loads. Matching both voltage and current is necessary before use.

Can the GSM06E24-P1J be used outside or in unprotected industrial areas?

The provided specs show an operating temperature range of 0°C to +50°C, but they do not include an IP rating. Without an IP rating, this model is better considered for indoor or protected locations rather than exposed outdoor use. If the environment includes water, dust, or washdown conditions, that missing protection rating matters.
