Image shown is a representation only. Exact specifications should be obtained from the product datasheet.

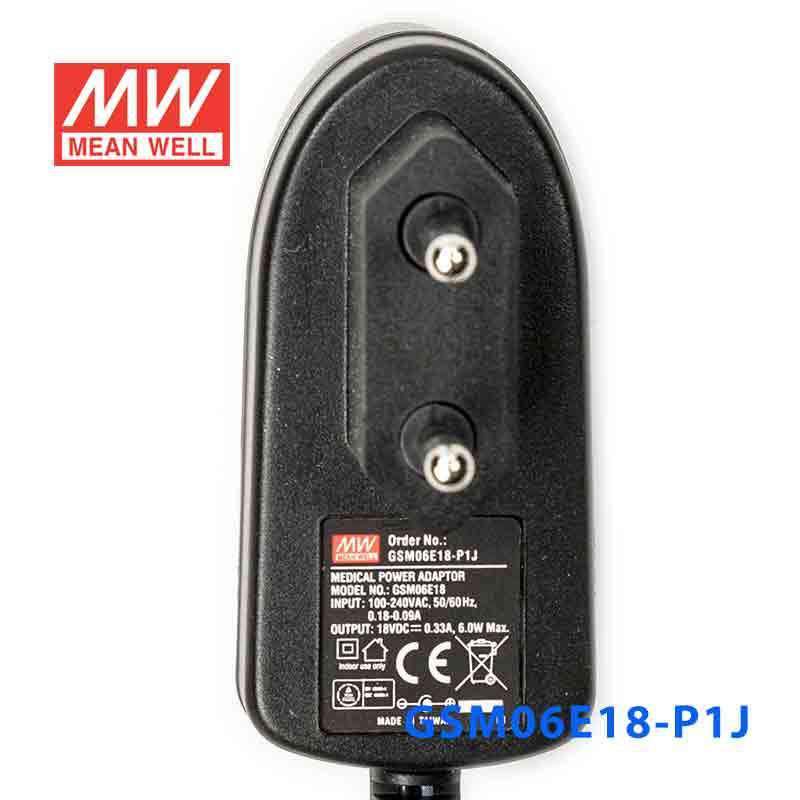

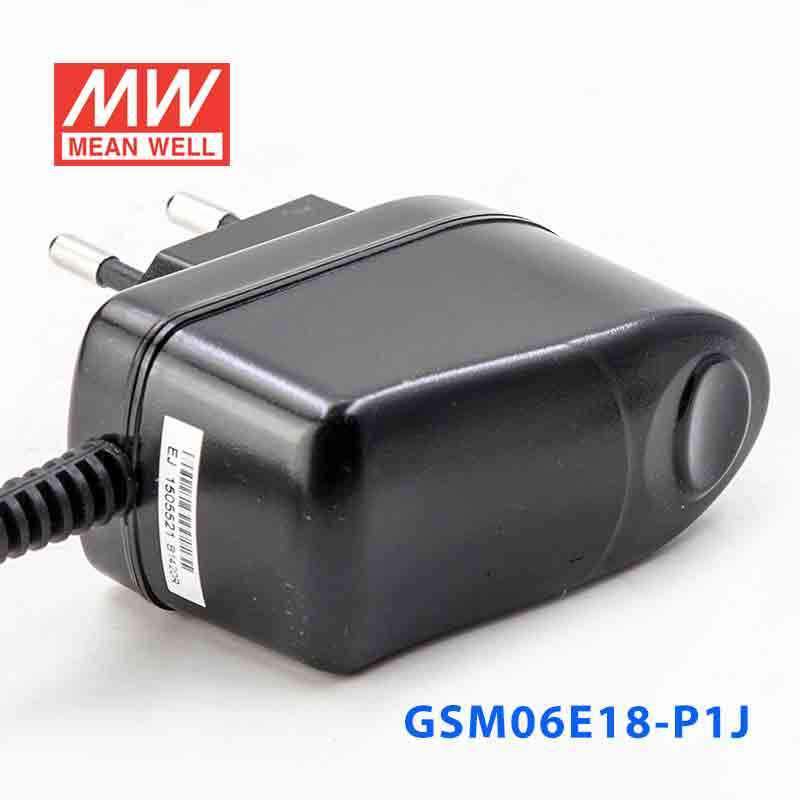

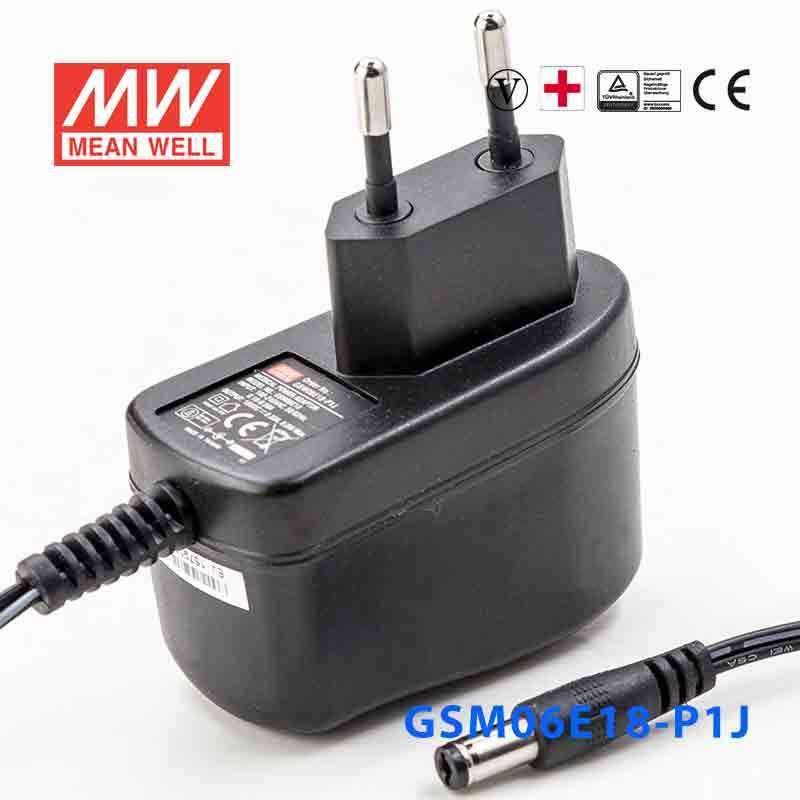

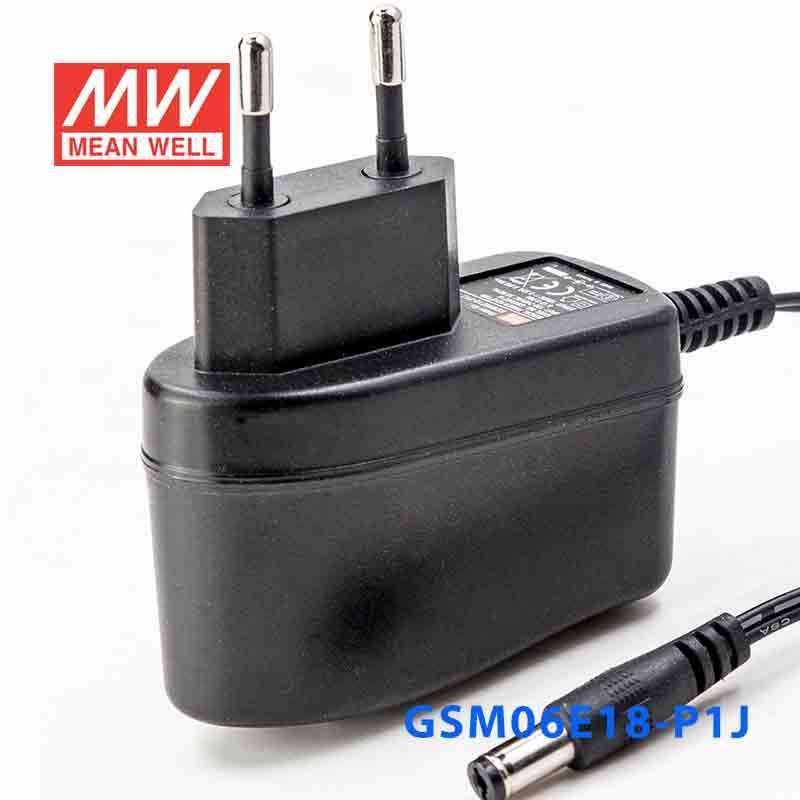

Mean Well GSM06E18-P1J Power Supply 06W 18V 330mA

Name: Mean Well GSM06E18-P1J Power Supply 06W 18V 330mA
Brand: Mean Well
SKU: GSM06E18-P1J
Price: 16.09 USD
Availability: InStock

SKU GSM06E18-P1J

$16.09 USD

Shipping calculated at checkout.

Select model — 9 in this family

GSM06E18-P1J

GSM06E18-P1J Europe Low stock$16.09 USD

GSM06U18-P1J USA Low stock$16.09 USD

GSM12E18-P1J Europe Low stock$20.27 USD

GSM12U18-P1J USA Low stock$20.27 USD

GSM18E18-P1J Europe Low stock$20.48 USD

GSM18U18-P1J USA In stock$20.48 USD

GSM36E18-P1J Europe Low stock$20.19 USD

GSM36U18-P1J USA Low stock$20.19 USD

GSM60E18-P1J Europe Backorder$37.07 USD

Product variants

In stock

Overview

GSM06E18-P1J is the 18V output model of this series: rated current 0.33A, rated power 6W, typical efficiency 80%.

GSM06E is a highly reliable, 6W wall-mounted style single-output green medical adaptor series. This product is equipped with a 2-pin (no FG) standard European power plug, adopting the input range from 85VAC to 264VAC. The entire series supplies different output voltages between 5VDC and 24VDC that can satisfy the demands for various kinds of miniature medical devices. The circuitry design meets the international medical standards (2 x MOPP), having an ultra low leakage current (<50μA), fitting the medical devices in direct electrical contact with the patients. With the efficiency up to 82% and the extreme low no-load power consumption below 0.3W. GSM06E is compliant with EU ErP. The supreme feature allows the adaptor to save the energy when it is either under the operating mode or the standby mode. The entire series utilizes the 94V-0 flame retardant plastic case, providing the double insulation that effectively prevents electrical shock. GSM06E is approved with the international medical safety certificates.

Features

2 pole EURO plug , Class Ⅱ power unit
Medical safety approved (2 x MOPP) according to BS EN/EN60601-1
Extremely low leakage current
No load power consumption< 0.3W
Energy efficiency Level Ⅴ
Protections: Short circuit / Overload / Over voltage
Fully enclosed plastic case
3 years warranty

Specifications

GSM06E18-P1JSpecifications from the official datasheet (2022-04-15 edition)

OUTPUT

SAFETY MODEL NO.: GSM06E18
DC VOLTAGE^Note.2: 18V
RATED CURRENT: 0.33A
CURRENT RANGE: 0 ~ 0.33A
RATED POWER: 6W
RIPPLE & NOISE (max.)^Note.3: 150mVp-p
VOLTAGE TOLERANCE^Note.4: ±5.0%
LINE REGULATION^Note.5: ±0.5%
LOAD REGULATION^Note.6: ±3.0%
SETUP, RISE, HOLD UP TIME: 1000ms, 50ms, 12ms at full load

INPUT

VOLTAGE RANGE: 85 ~ 264VAC 120 ~ 370VDC
FREQUENCY RANGE: 47 ~ 63Hz
EFFICIENCY (Typ.): 80%
AC CURRENT: 0.18A / 100VAC
INRUSH CURRENT (max.): Cold start 15A/ 115VAC 30A / 230VAC
LEAKAGE CURRENT(max.): Touch current < 50μA/264VAC

PROTECTION

OVERLOAD: >105% rated output power Protection type : Hiccup mode, recovers automatically after fault condition is removed
OVER VOLTAGE: 110 ~ 140% rated output power Protection type : Clamp by zener diode

ENVIRONMENT

WORKING TEMP.: 0 ~ +50℃(Refer to "Derating Curve")
WORKING HUMIDITY: 20% ~ 90% RH non-condensing
STORAGE TEMP., HUMIDITY: -20 ~ +85℃, 10 ~ 95% RH non-condensing
TEMP. COEFFICIENT: ±0.04% / ℃ (0 ~ 40℃)
VIBRATION: 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes

SAFETY & EMC

SAFETY STANDARDS: TUV BS EN/EN60601-1, BS EN/EN60601-1-11, EAC TP TC 004 approved
ISOLATION LEVEL: Pimary - Secondary: 2 x MOPP
WITHSTAND VOLTAGE: I/P-O/P:5656VDC
ISOLATION RESISTANCE: I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH
EMC EMISSION: Parameter Standard Test Level

Conducted emission BS EN/EN55011 (CISPR11) Class B
Radiated emission BS EN/EN55011 (CISPR11) Class B
Harmonic current BS EN/EN61000-3-2 Class A
Voltage flicker BS EN/EN61000-3-3
EMC IMMUNITY: BS EN/EN55024 , BS EN/EN60601-1-2, BS EN/EN61204-3

Parameter Standard Test Level

ESD BS EN/EN61000-4-2 Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility BS EN/EN61000-4-3 Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts BS EN/EN61000-4-4 Level 3, 2KV
Surge susceptibility BS EN/EN61000-4-5 Level 3, 1KV/Line-Line
Conducted susceptibility BS EN/EN61000-4-6 Level 2, 3V
Magnetic field immunity BS EN/EN61000-4-8 Level 4, 30A/m
Voltage dip, interruption BS EN/EN61000-4-11 >95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

Parameter	Standard	Test Level
Conducted emission	BS EN/EN55011 (CISPR11)	Class B
Radiated emission	BS EN/EN55011 (CISPR11)	Class B
Harmonic current	BS EN/EN61000-3-2	Class A
Voltage flicker	BS EN/EN61000-3-3

Parameter	Standard	Test Level
ESD	BS EN/EN61000-4-2	Level 4, 15KV air; Level 4, 8KV contact
RF field susceptibility	BS EN/EN61000-4-3	Level 3, 10V/m(80MHz~2.7GHz) Table 9, 9~28V/m(385MHz~5.78GHz)
EFT bursts	BS EN/EN61000-4-4	Level 3, 2KV
Surge susceptibility	BS EN/EN61000-4-5	Level 3, 1KV/Line-Line
Conducted susceptibility	BS EN/EN61000-4-6	Level 2, 3V
Magnetic field immunity	BS EN/EN61000-4-8	Level 4, 30A/m
Voltage dip, interruption	BS EN/EN61000-4-11	>95% dip 0.5 periods, 30% dip 25 periods, >95% interruptions 250 periods

OTHERS

MTBF: 500Khrs min. MIL-HDBK-217F(25℃)
DIMENSION: 32*66*42.5mm (L*W*H)
PACKING: 100g ; 90pcs / 10Kg / CARTON

CONNECTOR

PLUG: See page 4~5 ; Other type available by customer requested
CABLE: See page 4~5 ; Other type available by customer requested

Test conditions and notes7

1.All parameters are specified at 230VAC input, rated load, 25℃ 70% RH ambient.
2.DC voltage: The output voltage set at point measure by plug terminal & 50% load.
3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1μf & 47μf capacitor.
4.Tolerance: includes set up tolerance, line regulation, load regulation.
5.Line regulation is measured from low line to high line at rated load.
6.Load regulation is measured from 0% to 100% rated load.
7.The power supply is considered as an independent unit, but the final equipment still need to re-confirm that the whole system complies with the EMC directives. For guidance on how to perform these EMC tests, please refer to “EMI testing of component power supplies.” (as available on http://www.meanwell.com)

Technical drawings

GSM06E18-P1J Mechanical Specification — Mechanical Specification

GSM06E18-P1J DC output plug — DC output plug

GSM06E18-P1J Illustration (page 5) — Illustration (page 5)

Typical applications

Blood glucose meter
Blood pressure meter
Nebulizer
Inhaler
Portable medical device

Downloads

Datasheet1

GSM06E18-P1J datasheetGSM06E-SPEC.PDF · 2022-04-15 edition PDF Download

Certificates3

EMC Certificate (ELG-75)(EN) PDF Download

EMC Certificate (GSM06E)(EN) PDF Download

TUV Certificate(GSM06E)(EN) PDF Download

Test reports1

Test Report (GSM06E18-P1J)(EN) PDF Download

Catalogues3

Mean Well Medical Catalog PDF Download

Mean Well Adaptor Catalog PDF Download

Mean Well Catalog (Industrial) PDF Download

FAQ

Can I use the GSM06E18-P1J for an 18V automation or industrial electronics load?

It can fit a low-power automation or industrial electronics load that requires constant 18V DC and draws no more than 0.33A. The available output power is 6W, so it is intended for smaller devices rather than heavier 18V loads. Its 85-264VAC input range supports operation from a wide AC input range.

Is this 18V model suitable for embedded systems or control accessories?

Yes, it can suit embedded systems or control accessories that need constant 18V DC up to 0.33A. Because the unit is rated at 6W, it is best used with compact low-power equipment. It is not sized for 18V devices with higher current demand.

Will the GSM06E18-P1J work for small measurement or monitoring equipment that runs on 18V?

It can work for small monitoring or measurement equipment if the device requires constant 18V DC and remains within 0.33A. The 6W output limit keeps it in the low-power category. Buyers should confirm the equipment's 18V requirement and current draw before selecting it.

Can this power supply be used for compact industrial communication or interface modules with 18V input?

It can be used where a compact module needs constant 18V DC and no more than 0.33A. With 6W total output, it is better for small interfaces and electronics than for larger communication hardware. The broad 85-264VAC input range can also simplify use across different facilities.

Is the GSM06E18-P1J suitable for indoor or outdoor conditions?

The specified operating temperature is 0°C to +50°C, and no IP rating is provided in the product data. That makes it a better fit for indoor or protected environments rather than direct outdoor exposure. Where moisture or dust protection is needed, the missing IP rating should be treated as a constraint.
